FJ62LG-MECZV (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Jan 1990
Engine
3F
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )FJ62..LHD

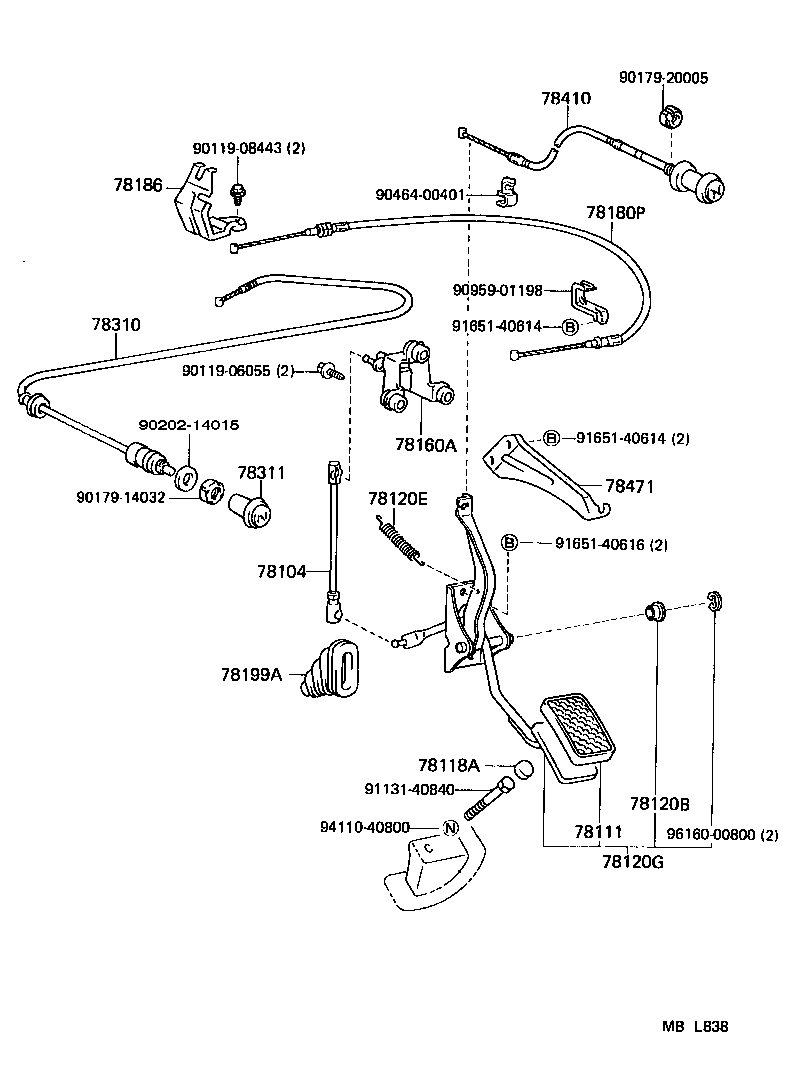

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-90A01 |
BJ60,FJ62,HJ60..LHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-95110 |
BJ60,FJ62,HJ6# |
1 | ||
| 78118A - STOPPER, ACCELERATOR PEDAL | ||||
| 78118-90K00 |
BJ60,FJ62,HJ6# |
1 | ||
| 78120B - BUSH (FOR ACCELERATOR LINK ROD) | ||||
| 90386-10138 |
BJ60,FJ62,HJ60..LHD |
2 | ||
| 78120E - SPRING, TENSION (FOR ACCELERATOR LINK ROD) | ||||
| 90506-12262 |
BJ60,FJ62,HJ60..LHD |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-90A06 |
BJ60,FJ62,HJ60..LHD |
1 | ||
| 78160A - BELLCRANK ASSY, ACCEL CONTROL W/BRACKET | ||||
| 78160-90A02 |
BJ60,FJ62,HJ60..LHD |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-90A11 |
FJ62..LHD |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-90A02 |
FJ62 |
1 | ||
| 78199A - BOOT, ACCELERATOR PEDAL ROD | ||||
| 78199-90352 |
BJ60,FJ62,HJ60..LHD |
1 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 78310-90A05 |
FJ62..LHD |
1 | ||
| 78311 - KNOB, CHOKE CONTROL CABLE | ||||
| 78303-90A03 |
FJ62 |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-90A02 |
BJ60,FJ62,HJ60..LHD |
1 | ||
| 78471 - BRACKET, THROTTLE CONTROL CABLE | ||||
| 78471-90A00 |
BJ60,FJ62,HJ60..LHD |
1 | ||
| Common parts | ||||
| 90119-06055 | ||||
| 90119-08443 | ||||
| 90179-14032 | ||||
| 90179-20005 | ||||
| 90202-14015 | ||||
| 90464-00401 | ||||
| 90959-01198 | ||||
| 91131-40840 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 94110-40800 | ||||
| 96160-00800 | ||||
