FJ60RV-KCQ (1980)
Toyota Land Cruiser
Production
Aug 1980
-
Oct 1982
Engine
2F
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )

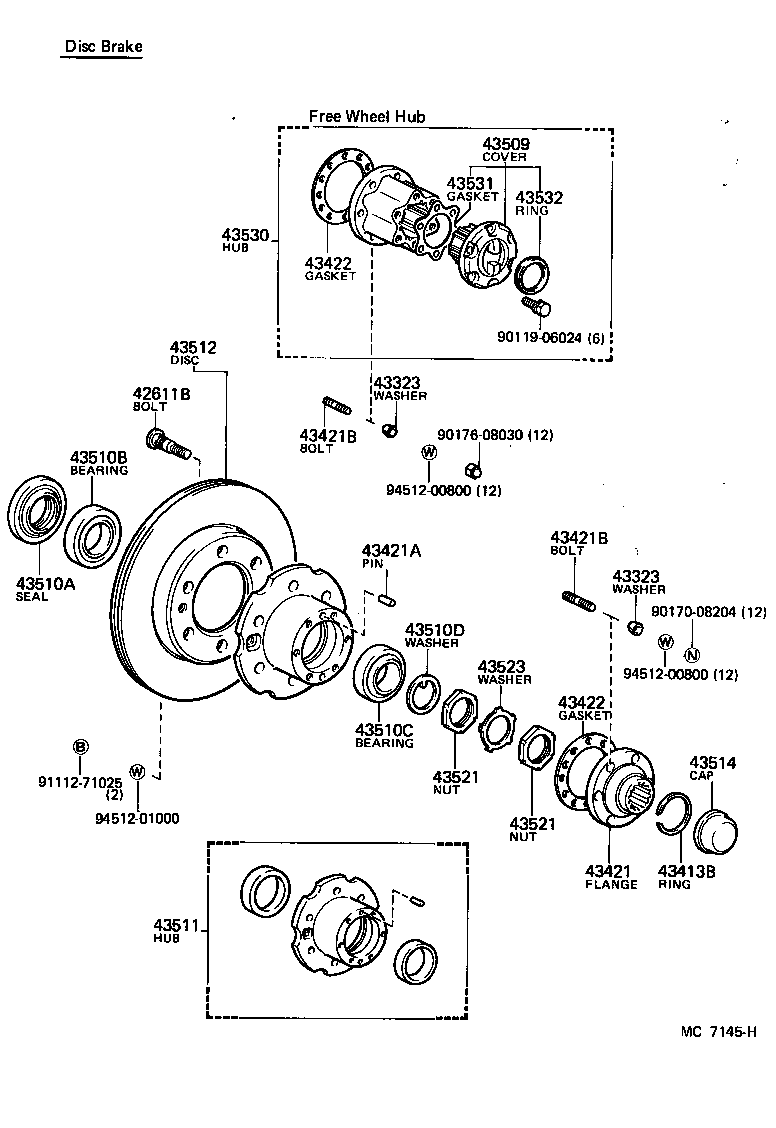

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02044 |
BJ60,FJ60,HJ60 DISC BRAKE |
12 | ||
| 43323 - WASHER, CONE (FOR FRONT AXLE SHAFT) | ||||
| 42323-60010 |
BJ60,FJ6#,HJ6# |
12 | ||
| 43323 - WASHER, CONE (FOR FRONT AXLE SHAFT) | ||||
| 42323-60010 |
BJ60,FJ6#,HJ6# |
12 | ||
| 43413B - RING, DRIVE SHAFT SNAP | ||||
| 90520-31001 |
BJ60,FJ6#,HJ6# |
2 | ||
| 43421 - FLANGE, FRONT AXLE OUTER SHAFT | ||||
| 43421-60013 |
FJ60,HJ60..SOB..EUR;BJ60,FJ60,HJ60..ARL,GEN |
2 | ||
| 43421A - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE) | ||||
| 90250-07057 |
BJ60,FJ6#,HJ6# |
4 | ||
| 43421B - BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE) | ||||
| 90116-08325 |
BJ60,FJ6#,HJ6# |
12 | ||
| 43421B - BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE) | ||||
| 90116-08325 |
BJ60,FJ6#,HJ6# |
12 | ||
| 43422 - GASKET, FRONT AXLE OUTER SHAFT FLANGE | ||||
| 43422-60010 |
BJ60,FJ60,HJ60 |
2 | ||
| 43422 - GASKET, FRONT AXLE OUTER SHAFT FLANGE | ||||
| 43422-60010 |
BJ60,FJ60,HJ60 |
2 | ||
| 43509 - COVER SUB-ASSY, FREE WHEEL HUB | ||||
| 43509-60013 |
BJ60,FJ60,HJ60 |
2 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-62001 |
BJ60,FJ6#,HJ6# |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-49084 |
BJ60,FJ6#,HJ6# |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-45087 |
BJ60,FJ6#,HJ6# |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-42030 |
BJ60,FJ6#,HJ6# |
2 | ||
| 43511 - HUB, FRONT AXLE | ||||
| 43502-60020 |
BJ60,FJ6#,HJ6# DISC BRAKE |
2 | ||
| 43512 - DISC, FRONT | ||||
| 43512-69015 |
BJ60,FJ60,HJ60 |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43423-60011 |
FJ60,HJ60..SOB..EUR;BJ60,FJ60,HJ60..ARL,GEN,ME |
2 | ||
| 43521 - NUT, FRONT WHEEL ADJUSTING | ||||
| 43521-60011 |
BJ60,FJ6#,HJ6# |
4 | ||
| 43521 - NUT, FRONT WHEEL ADJUSTING | ||||
| 43521-60011 |
BJ60,FJ6#,HJ6# |
4 | ||
| 43523 - WASHER, FRONT WHEEL ADJUSTING LOCK | ||||
| 90215-42025 |
BJ60,FJ6#,HJ6# |
2 | ||
| 43530 - HUB ASSY, FREE WHEEL | ||||
| 43530-69016 |
BJ60,FJ60,HJ60 |
2 | ||
| 43531 - GASKET, FREE WHEEL HUB | ||||
| 43531-60010 |
BJ60,FJ60,HJ60 |
2 | ||
| Common parts | ||||
| 90119-06024 | ||||
| 90170-08204 | ||||
| 90176-08030 | ||||
| 91112-71025 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
