FJ60RG-KQ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

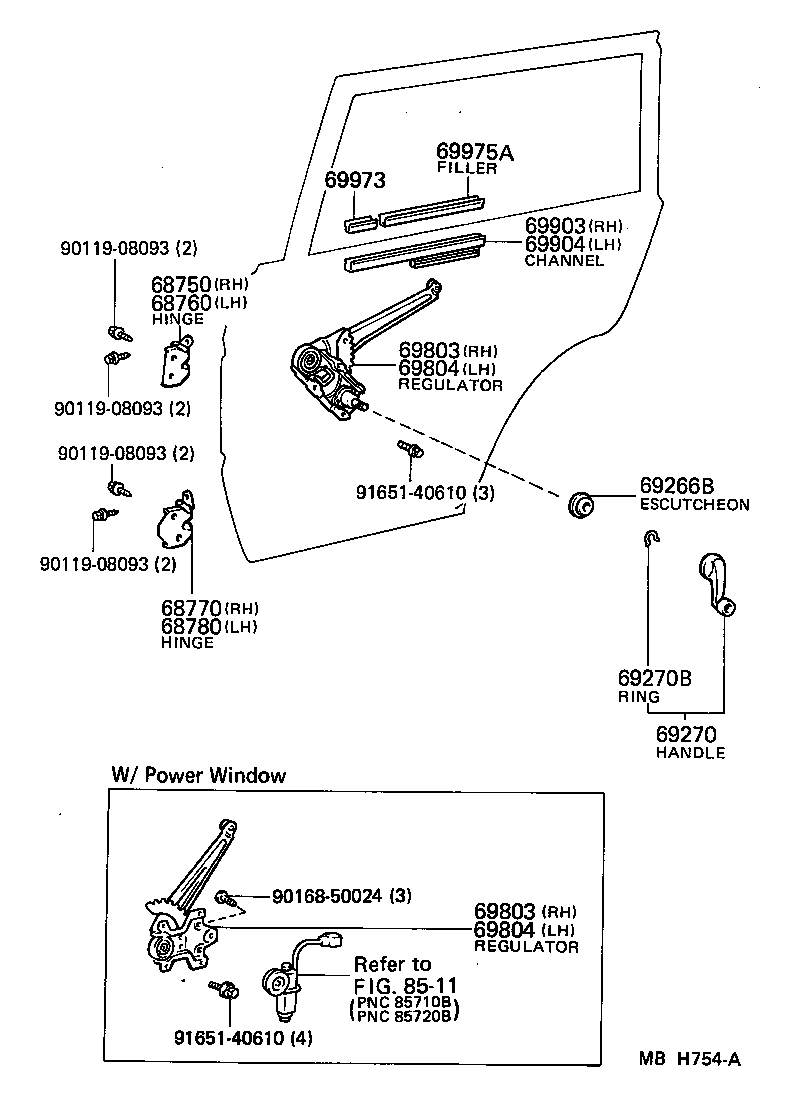

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69266B 69270 69270B 69803 69803 69804 69804 69903 69904 69973 69975A 8511 9011908093 9011908093 9011908093 9011908093 9016850024 9165140610 9165140610
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68710-30080

BJ60,FJ6#,HJ6#

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68720-30020

BJ60,FJ6#,HJ6#

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68730-14020

BJ60,FJ6#,HJ6#

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68740-14020

BJ60,FJ6#,HJ6#

 1
69266B - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR REAR DOOR)
69266-2201008

BJ60,FJ6#,HJ6#

NATURAL,NATURAL WHITE

 2
69270 - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-1201026

BJ60,FJ60,HJ60..ARL,GEN

DARK BROWN,BROWN,TRIM4#

 2
69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01002

BJ60,FJ6#,HJ6#

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-90A00

BJ60,FJ60,HJ60

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-90A00

BJ60,FJ60,HJ60

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-90A00

BJ60,FJ60,HJ60

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-90A00

BJ60,FJ60,HJ60

 1
69903 - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-90A00

BJ60,FJ60,HJ60

 1
69904 - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69906-90A00

BJ60,FJ60,HJ60

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-90A00

BJ60,FJ60,HJ60

 2
Common parts
90119-08093
90168-50024
91651-40610
Linked diagrams
8511
