FJ60RG-KQ (1980)
Toyota Land Cruiser
(8008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

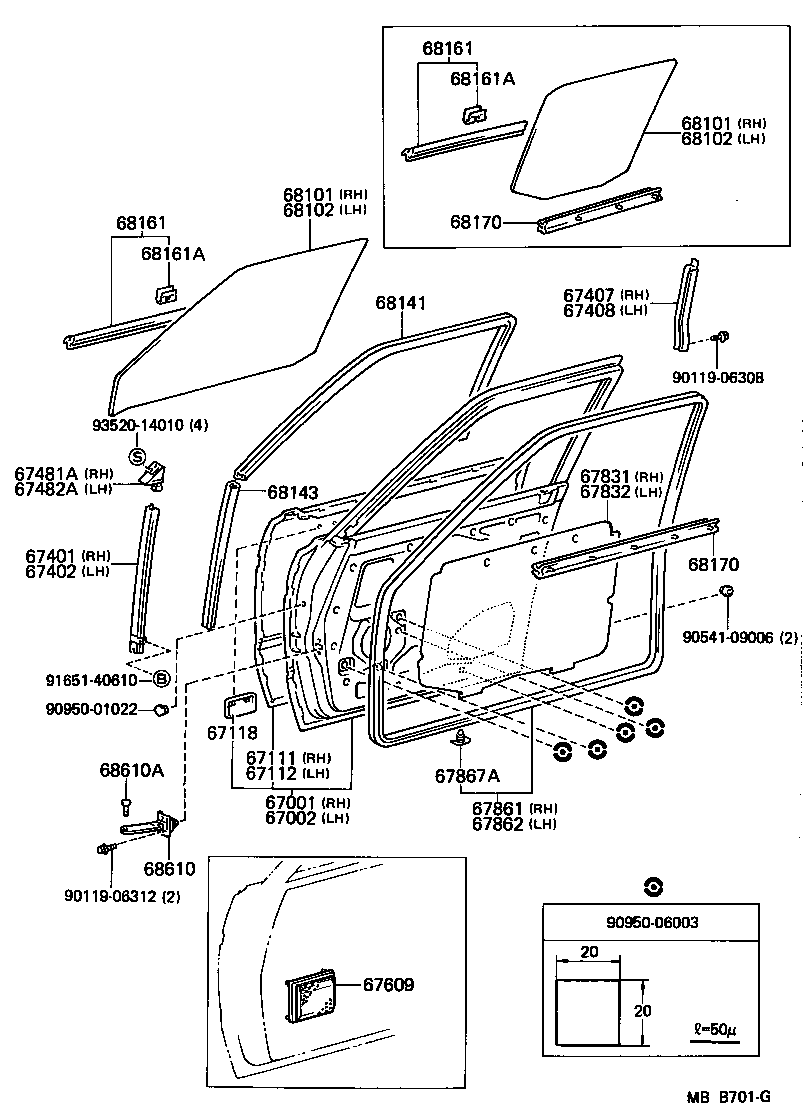

| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-90A04 |
BJ60,FJ60,HJ60 W/MIRROR HOLE |
1 | ||
| 67001-90A05 |
BJ60,FJ60,HJ60..ARL,GEN W/*VW & MIRROR HOLE |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-90A05 |
BJ60,FJ60,HJ60..ARL,GEN W/*VW & *GIS & MIRROR HOLE |
1 | ||
| 67002-90A09 |
FJ60..ARL W/MIRROR HOLE |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-90A05 |
BJ60,FJ6#,HJ6# |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-90A05 |
BJ60,FJ6#,HJ6# |
1 | ||
| 67118 - RETAINER, OUTER MIRROR | ||||
| 67118-90A00 |
BJ60,FJ6#,HJ60 RH |
1 | ||
| 67118-90A00 |
FJ6# LH,W/*RW |
1 | ||
| 67118-90A01 |
FJ6# LH,W/O *RW |
1 | ||
| 67401 - BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH | ||||
| 67401-90A00 |
BJ60,FJ6#,HJ6# W/O *VW |
1 | ||
| 67402 - BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH | ||||
| 67402-90A00 |
BJ60,FJ6#,HJ6# W/O *VW |
1 | ||
| 67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67433-90A00 |
BJ60,FJ60,HJ60 |
1 | ||
| 67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67434-90A00 |
BJ60,FJ60,HJ60 |
1 | ||
| 67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH | ||||
| 67481-90A00 |
BJ60,FJ6#,HJ6# W/BELT MOULDING |
1 | ||
| 67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH | ||||
| 67482-90A00 |
BJ60,FJ6#,HJ6# W/BELT MOULDING |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-90A00 |
BJ60,FJ60,HJ60 W/O DOOR SPEAKER |
1 | ||
| 67831-90A01 |
BJ60,FJ60,HJ60..ARL,GEN W/DOOR SPEAKER |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-90A01 |
BJ60,FJ60,HJ60..ARL,GEN W/DOOR SPEAKER |
1 | ||
| 67831-90A00 |
BJ60,FJ60,HJ60 W/O DOOR SPEAKER |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-90A00 |
BJ60,FJ6#,HJ6# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-90A00 |
BJ60,FJ6#,HJ6# |
1 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67868-30040 |
BJ60,FJ6#,HJ6# |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-90A00 |
FJ60,HJ60..LUB..ARL *TEM,T=4.0,*TEM,T=4.0 |
1 | ||
| 68111-90A02 |
FJ60,HJ60..ARL *TEM,T=4.0,*TEM,T=4.0,W/*VW |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-90A00 |
FJ60,HJ60..LUB..ARL *TEM,T=4.0,*TEM,T=4.0 |
1 | ||
| 68111-90A02 |
FJ60,HJ60..ARL *TEM,T=4.0,*TEM,T=4.0,W/*VW |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-90A00 |
FJ60,HJ60..LUB..ARL *TEM,T=4.0,*TEM,T=4.0 |
1 | ||
| 68112-90A02 |
FJ60,HJ60..ARL *TEM,T=4.0,*TEM,T=4.0,W/*VW |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-90A00 |
FJ60,HJ60..LUB..ARL *TEM,T=4.0,*TEM,T=4.0 |
1 | ||
| 68112-90A02 |
FJ60,HJ60..ARL *TEM,T=4.0,*TEM,T=4.0,W/*VW |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-90A01 |
BJ60,FJ6#,HJ60..ARL,GEN,ME W/*VW |
2 | ||
| 68141-90A00 |
BJ60,FJ6#,HJ60 W/O *VW |
2 | ||
| 68143 - RUN, FRONT DOOR GLASS, LOWER | ||||
| 68143-90A00 |
BJ60,FJ6#,HJ60 W/O *VW |
2 | ||
| 68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER | ||||
| 68160-90A00 |
BJ60,FJ6#,HJ6# RH,W/O *VW |
1 | ||
| 68160-90A01 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME RH,W/*VW |
1 | ||
| 68210-90A01 |
BJ60,FJ6#,HJ6# LH,W/O *VW |
1 | ||
| 68210-90A00 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME LH,W/*VW |
1 | ||
| 68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER | ||||
| 68160-90A00 |
BJ60,FJ6#,HJ6# RH,W/O *VW |
1 | ||
| 68160-90A01 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME RH,W/*VW |
1 | ||
| 68210-90A01 |
BJ60,FJ6#,HJ6# LH,W/O *VW |
1 | ||
| 68210-90A00 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME LH,W/*VW |
1 | ||
| 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-10030 |
BJ60,FJ6#,HJ6# |
12 | ||
| 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-10030 |
BJ60,FJ6#,HJ6# |
12 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-90A03 |
FJ62..HRF;FJ60..HRF..SOB;FJ62..SRF..LUB;FJ60,HJ60..LUB..(ARL,GEN) RH,W/*VW |
1 | ||
| 68170-90A01 |
FJ62..HRF;FJ60..HRF..SOB;FJ60,HJ60..LUB;FJ62..SRF..LUB W/O *VW |
2 | ||
| 68220-90A01 |
FJ62..HRF;FJ60..HRF..SOB;FJ62..SRF..LUB;FJ60,HJ60..LUB..(ARL,GEN) LH,W/*VW |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-90A03 |
FJ62..HRF;FJ60..HRF..SOB;FJ62..SRF..LUB;FJ60,HJ60..LUB..(ARL,GEN) RH,W/*VW |
1 | ||
| 68170-90A01 |
FJ62..HRF;FJ60..HRF..SOB;FJ60,HJ60..LUB;FJ62..SRF..LUB W/O *VW |
2 | ||
| 68220-90A01 |
FJ62..HRF;FJ60..HRF..SOB;FJ62..SRF..LUB;FJ60,HJ60..LUB..(ARL,GEN) LH,W/*VW |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-22010 |
BJ60,FJ6#,HJ6# |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-22010 |
BJ60,FJ60,HJ60 |
2 | ||
| Common parts | ||||
| 90119-06308 | ||||
| 90119-06312 | ||||
| 90541-09006 | ||||
| 90950-01022 | ||||
| 90950-06003 | ||||
| 91651-40610 | ||||
| 93520-14010 | ||||
(8008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

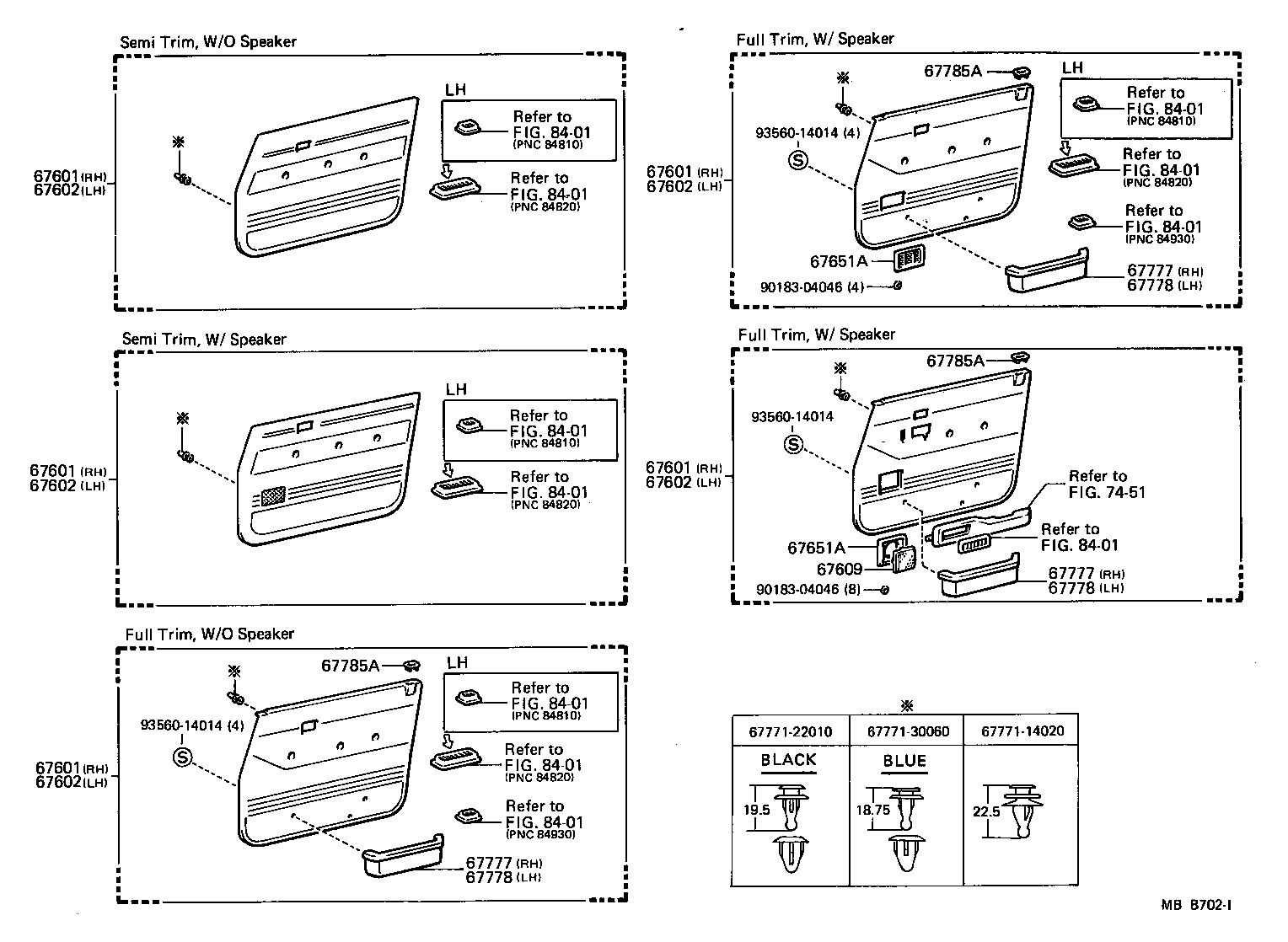

| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-90A0306 |
FJ60,HJ60..LUB DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67610-90A0706 |
FJ60,HJ60..LUB..(ARL,GEN) W/*VW,DOOR SPEAKER,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67610-90A0506 |
FJ60,HJ60..LUB..(ARL,GEN) W/*VW,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67610-90A0906 |
FJ60,HJ60..LUB..(ARL,GEN) W/DOOR SPEAKER,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-90A0306 |
FJ60,HJ60..LUB DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67610-90A0706 |
FJ60,HJ60..LUB..(ARL,GEN) W/*VW,DOOR SPEAKER,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67610-90A0506 |
FJ60,HJ60..LUB..(ARL,GEN) W/*VW,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67610-90A0906 |
FJ60,HJ60..LUB..(ARL,GEN) W/DOOR SPEAKER,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-90A0306 |
FJ60,HJ60..LUB DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67610-90A0706 |
FJ60,HJ60..LUB..(ARL,GEN) W/*VW,DOOR SPEAKER,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67610-90A0506 |
FJ60,HJ60..LUB..(ARL,GEN) W/*VW,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67610-90A0906 |
FJ60,HJ60..LUB..(ARL,GEN) W/DOOR SPEAKER,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-90A0306 |
FJ60,HJ60..LUB DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67610-90A0706 |
FJ60,HJ60..LUB..(ARL,GEN) W/*VW,DOOR SPEAKER,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67610-90A0506 |
FJ60,HJ60..LUB..(ARL,GEN) W/*VW,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67610-90A0906 |
FJ60,HJ60..LUB..(ARL,GEN) W/DOOR SPEAKER,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-90A0306 |
FJ60,HJ60..LUB DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67610-90A0706 |
FJ60,HJ60..LUB..(ARL,GEN) W/*VW,DOOR SPEAKER,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67610-90A0506 |
FJ60,HJ60..LUB..(ARL,GEN) W/*VW,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67610-90A0906 |
FJ60,HJ60..LUB..(ARL,GEN) W/DOOR SPEAKER,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-90A0306 |
FJ60,HJ60..LUB DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67620-90A0706 |
FJ60,HJ60..LUB..(ARL,GEN) W/*VW,DOOR SPEAKER,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67620-90A0906 |
FJ60,HJ60..LUB..(ARL,GEN) W/DOOR SPEAKER,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67620-90A0506 |
FJ60,HJ60..LUB..(ARL,GEN) W/*VW,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-90A0306 |
FJ60,HJ60..LUB DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67620-90A0706 |
FJ60,HJ60..LUB..(ARL,GEN) W/*VW,DOOR SPEAKER,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67620-90A0906 |
FJ60,HJ60..LUB..(ARL,GEN) W/DOOR SPEAKER,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67620-90A0506 |
FJ60,HJ60..LUB..(ARL,GEN) W/*VW,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-90A0306 |
FJ60,HJ60..LUB DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67620-90A0706 |
FJ60,HJ60..LUB..(ARL,GEN) W/*VW,DOOR SPEAKER,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67620-90A0906 |
FJ60,HJ60..LUB..(ARL,GEN) W/DOOR SPEAKER,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67620-90A0506 |
FJ60,HJ60..LUB..(ARL,GEN) W/*VW,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-90A0306 |
FJ60,HJ60..LUB DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67620-90A0706 |
FJ60,HJ60..LUB..(ARL,GEN) W/*VW,DOOR SPEAKER,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67620-90A0906 |
FJ60,HJ60..LUB..(ARL,GEN) W/DOOR SPEAKER,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67620-90A0506 |
FJ60,HJ60..LUB..(ARL,GEN) W/*VW,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-90A0306 |
FJ60,HJ60..LUB DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67620-90A0706 |
FJ60,HJ60..LUB..(ARL,GEN) W/*VW,DOOR SPEAKER,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67620-90A0906 |
FJ60,HJ60..LUB..(ARL,GEN) W/DOOR SPEAKER,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67620-90A0506 |
FJ60,HJ60..LUB..(ARL,GEN) W/*VW,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67651A - GRILLE, SPEAKER DOOR | ||||
| 67651-90A0006 |
FJ60,HJ60..LUB..(ARL,GEN) BROWN,BROWN,TRIM4# |
2 | ||
| 67651A - GRILLE, SPEAKER DOOR | ||||
| 67651-90A0006 |
FJ60,HJ60..LUB..(ARL,GEN) BROWN,BROWN,TRIM4# |
2 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2204016 |
FJ60,HJ60..LUB DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2204016 |
FJ60,HJ60..LUB DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2204016 |
FJ60,HJ60..LUB DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-2203016 |
FJ60,HJ60..LUB DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-2203016 |
FJ60,HJ60..LUB DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-2203016 |
FJ60,HJ60..LUB DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-20040 |
FJ60,HJ60..LUB |
2 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-20040 |
FJ60,HJ60..LUB |
2 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-20040 |
FJ60,HJ60..LUB |
2 | ||
| Common parts | ||||
| 67771-14020 | ||||
| 67771-22010 | ||||
| 67771-30060 | ||||
| 90183-04046 | ||||
| 93560-14014 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 8401 | ||||
