FJ60RG-KQ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9908)FJ70,FZJ70,HZJ70,KZJ70,LJ70,72,PZJ70,RJ70 ; (9908-0701)FZJ70,HZJ70,71 ;

Click highlighted areas on diagram

diagram 57627C 57628C 57663B 57664B 58011A 58012A 58247C 58248C 58266B 58266B 58266B 58267A 58307 58308 58311 58325E 58336B 58339B 58346A 58346A 58346A 58351B 58352B 58357A 58379C 64745C 64746C 65557 65557 66301 66301 66301C 66301C 7441360070 7445360070 76617 76618 9015940223 9015940223 9015940223 9018905016 9033320001 9033320001 9033320001 9033320001 904670502001 904670502001 9046705161C0 9046705161C0 9095001027 9095001027 9095001027 9095001027 9095001027 9095001126 9095001126 9095001759 9095001759 9095001826 9095001826 9095001882 9095001948 9095001955 91511B0620 91511B0620 9353015014 9353025012
Part # Description Qty Price
Common parts
74413-60070
74453-60070
90159-40223
90189-05016
90333-20001
90467-0502001
90467-05161C0
90950-01027
90950-01126
90950-01759
90950-01826
90950-01882
90950-01948
90950-01955
91511-B0620
93530-15014
93530-25012

(9001-9908)FJ75,FZJ75,HJ75,HZJ75,PZJ75 ; (9908-0701)FZJ75,HDJ7#,HZJ75,78,79 ; (9908

Click highlighted areas on diagram

diagram 57023A 57024A 57663B 57664B 57769 57882 58011A 58012A 58037A 58037A 58169F 58307 58308 58311 58325E 58325F 58336B 58339B 58339C 58357A 58379C 64745C 64746C 76617 76618 9004463020 9018905016 9018905016 9033320001 9033320001 9033320001 9046308063 904670502001 904670502001 9046705161C0 9046705161C0 9046708029 9095001011 9095001056 9095001126 9095001759 9095001882 9095001882 9095001882 9095001882 9095001948 9095001955 9095001955 9353015014 9353015014 9353025012 9353025012 9354014008 9356014010
Part # Description Qty Price
Common parts
90044-63020
90189-05016
90333-20001
90463-08063
90467-0502001
90467-05161C0
90467-08029
90950-01011
90950-01056
90950-01126
90950-01759
90950-01882
90950-01948
90950-01955
93530-15014
93530-25012
93540-14008
93560-14010

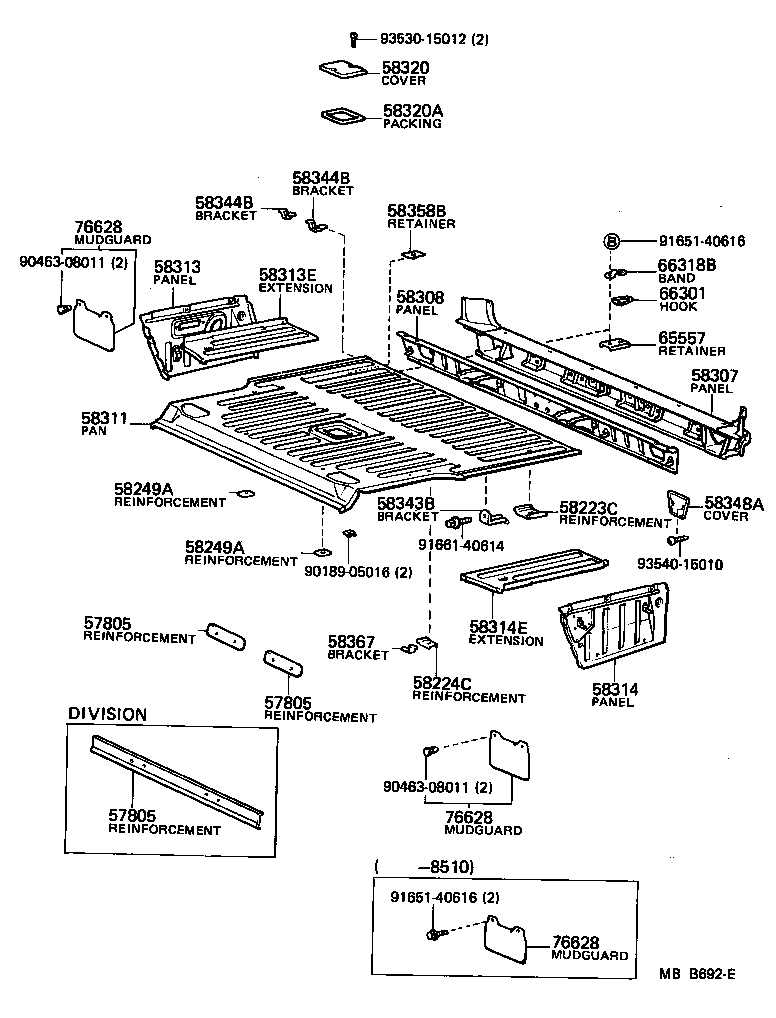

(8008- )

Click highlighted areas on diagram

diagram 57805 57805 57805 58223C 58224C 58249A 58249A 58307 58308 58311 58313 58313E 58314 58314E 58320 58320A 58343B 58344B 58344B 58348A 58358B 58367 65557 66301 66318B 76628 76628 76628 9018905016 9046308011 9046308011 9165140616 9165140616 9166140614 9353015012 9354015010
Part # Description Qty Price
57805 - REINFORCEMENT SUB-ASSY, BELT ANCHOR
57805-90A00

BJ60,FJ60,HJ60

 2
57805 - REINFORCEMENT SUB-ASSY, BELT ANCHOR
57805-90A00

BJ60,FJ60,HJ60

 2
57805 - REINFORCEMENT SUB-ASSY, BELT ANCHOR
57805-90A00

BJ60,FJ60,HJ60

 2
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-90A00

FJ60,HJ60..LUB

 1
58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER
58308-90A01

BJ60,FJ6#,HJ60

 1
58311 - PAN, REAR FLOOR
58311-90A00

BJ60,FJ60,HJ60

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58305-90A00

BJ60,FJ60,HJ60

 1
58313E - EXTENSION, REAR FLOOR SIDE PANEL, RH
58315-90A00

BJ60,FJ60,HJ60

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58306-90A00

BJ60,FJ60,HJ60

 1
58314E - EXTENSION, REAR FLOOR SIDE PANEL, LH
58316-90A00

BJ60,FJ60,HJ60

 1
58320 - COVER, REAR FLOOR SERVICE HOLE
58325-90A00

BJ60,FJ6#,HJ6#

 1
58320A - PACKING, REAR FLOOR SERVICE HOLE
58339-90A00

BJ60,FJ6#,HJ6#

 1
58343B - BRACKET, FUEL HOSE PROTECTOR, FRONT
58343-90A01

BJ60,FJ6#,HJ6#

 1
58344B - BRACKET, FUEL HOSE PROTECTOR, REAR
58344-90A00

BJ60,FJ60,HJ60

LH

 1
58131-90A00

BJ60,FJ6#,HJ6#

RH

 1
58344B - BRACKET, FUEL HOSE PROTECTOR, REAR
58344-90A00

BJ60,FJ60,HJ60

LH

 1
58131-90A00

BJ60,FJ6#,HJ6#

RH

 1
58348A - COVER, REAR BODY MOUNTING SERVICE HOLE
58348-90A00

BJ60,FJ6#,HJ6#

 2
58367 - BRACKET, FUEL TUBE CLAMP
58367-90A00

BJ60,FJ6#,HJ6#

 1
76628 - MUDGUARD, QUARTER PANEL, REAR
76628-90A00

BJ60,FJ6#,HJ60

 2
76628 - MUDGUARD, QUARTER PANEL, REAR
76628-90A00

BJ60,FJ6#,HJ60

 2
76628 - MUDGUARD, QUARTER PANEL, REAR
76628-90A00

BJ60,FJ6#,HJ60

 2
Common parts
90189-05016
90463-08011
91651-40616
91661-40614
93530-15012
93540-15010

(8008- )

Click highlighted areas on diagram

diagram 9048092002 9095001004 9095001006 9095001022 9095001027 9095001028 9095001056 9095001126 9095001447 9095006003
Part # Description Qty Price
Common parts
90480-92002
90950-01004
90950-01006
90950-01022
90950-01027
90950-01028
90950-01056
90950-01126
90950-01447
90950-06003
