FJ60RG-K (1980)
Toyota Land Cruiser
(8008-8510)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-60050 |
BJ60,FJ6#,HJ6# |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04482-60040 |
BJ60,FJ6#,HJ6# |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-60050 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-14190 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB L=190,L=190 |
4 | ||
| 90118-14110 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) L=205 |
2 | ||
| 90118-14190 |
FJ60,HJ60..SRF..LUB L=190,L=190 |
2 | ||
| 90118-14109 |
FJ60,HJ60..SRF..LUB L=195 |
2 | ||
| 90118-14109 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB L=195 |
2 | ||
| 90118-14210 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) L=200,L=200 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-60050 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90389-18002 |
BJ60,FJ6#,HJ6# |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-18002 |
BJ60,FJ6#,HJ6# |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90389-18002 |
BJ60,FJ6#,HJ6# |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90389-18002 |
BJ60,FJ6#,HJ6# |
4 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-60030 |
BJ60,FJ6#,HJ6# |
2 | ||
| 48371 - RETAINER, REAR SPRING PAD | ||||
| 48371-60010 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB |
2 | ||
| 48371-60020 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB W/DISTANCE PLATE |
1 | ||
| 48371-60010 |
FJ60,HJ60..SRF..LUB |
2 | ||
| 48371-60020 |
FJ60,HJ60..SRF..LUB W/DISTANCE PLATE |
1 | ||
| 48371-60030 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) |
2 | ||
| 48371-60040 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) W/DISTANCE PLATE |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-23030 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB |
4 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-23030 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB |
4 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48414-60040 |
BJ60,FJ60,HJ60 |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48415-60040 |
BJ60,FJ60,HJ60 |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 48416-60030 |
BJ60,FJ6#,HJ6# |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 48416-60030 |
BJ60,FJ6#,HJ6# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-69065 |
BJ60,FJ60,HJ60 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-69065 |
BJ60,FJ60,HJ60 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
BJ60,FJ6#,HJ60 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
BJ60,FJ6#,HJ60 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
BJ60,FJ6#,HJ60 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
BJ60,FJ6#,HJ60 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
BJ60,FJ6#,HJ60 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03007 |
BJ60,FJ6#,HJ60 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BJ60,FJ6#,HJ60 |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03007 |
BJ60,FJ6#,HJ60 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
BJ60,FJ6#,HJ60 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-69065 |
BJ60,FJ60,HJ60 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-69065 |
BJ60,FJ60,HJ60 |
1 | ||
| Common parts | ||||
| 90170-14187 | ||||
| 90179-08146 | ||||
| 90385-11021 | ||||
| 90560-10275 | ||||
| 91121-41050 | ||||
| 91611-40822 | ||||
| 91611-61020 | ||||
| 91615-40825 | ||||
| 91651-40825 | ||||
| 94115-41400 | ||||
| 94180-41000 | ||||
| 94512-01400 | ||||
| Linked diagrams | ||||
| 5151 | ||||
(8311-8411)HRF..LUB..GEN ; (8311-8411)SRF..LUB..ARL,GEN ; (8411- )WGG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

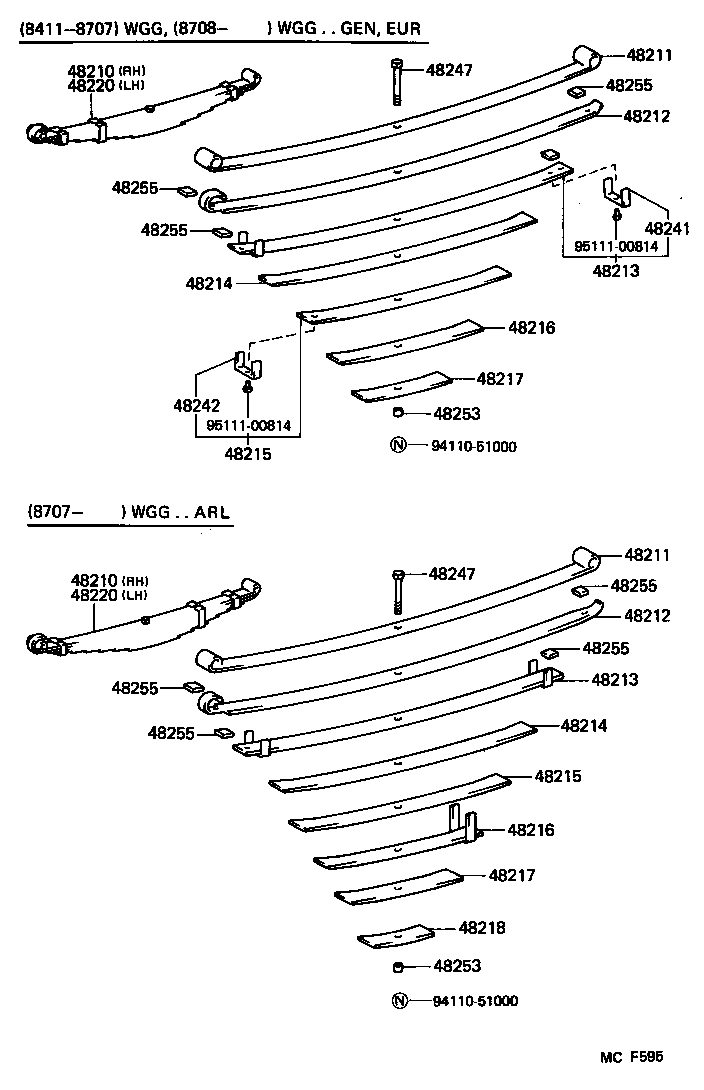

| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-60250 |
FJ60,HJ60..RHD..SRF..LUB |
1 | ||
| 48210-60400 |
FJ60,HJ60..RHD..SRF..LUB..(ARL,GEN) |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-60250 |
FJ60,HJ60..RHD..SRF..LUB |
1 | ||
| 48210-60400 |
FJ60,HJ60..RHD..SRF..LUB..(ARL,GEN) |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-60280 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
1 | ||
| 48211-60250 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
1 | ||
| 48211-60250 |
FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
1 | ||
| 48211-60400 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) DRIVERS SEAT SIDE |
1 | ||
| 48211-60280 |
FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
1 | ||
| 48211-60410 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) PASSENGER SEAT SIDE |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-60280 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
1 | ||
| 48211-60250 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
1 | ||
| 48211-60250 |
FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
1 | ||
| 48211-60400 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) DRIVERS SEAT SIDE |
1 | ||
| 48211-60280 |
FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
1 | ||
| 48211-60410 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) PASSENGER SEAT SIDE |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-60250 |
FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
1 | ||
| 48212-60280 |
FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
1 | ||
| 48212-60250 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
1 | ||
| 48212-60280 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
1 | ||
| 48212-60410 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) PASSENGER SEAT SIDE |
1 | ||
| 48212-60400 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) DRIVERS SEAT SIDE |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-60250 |
FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
1 | ||
| 48212-60280 |
FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
1 | ||
| 48212-60250 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
1 | ||
| 48212-60280 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
1 | ||
| 48212-60410 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) PASSENGER SEAT SIDE |
1 | ||
| 48212-60400 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) DRIVERS SEAT SIDE |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-60280 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
1 | ||
| 48202-60250 |
FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
1 | ||
| 48202-60250 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
1 | ||
| 48202-60400 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) DRIVERS SEAT SIDE |
1 | ||
| 48202-60410 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) PASSENGER SEAT SIDE |
1 | ||
| 48202-60280 |
FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-60280 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
1 | ||
| 48202-60250 |
FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
1 | ||
| 48202-60250 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
1 | ||
| 48202-60400 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) DRIVERS SEAT SIDE |
1 | ||
| 48202-60410 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) PASSENGER SEAT SIDE |
1 | ||
| 48202-60280 |
FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-60250 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
1 | ||
| 48214-60280 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
1 | ||
| 48214-60250 |
FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
1 | ||
| 48214-60400 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) DRIVERS SEAT SIDE |
1 | ||
| 48214-60280 |
FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
1 | ||
| 48214-60410 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) PASSENGER SEAT SIDE |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-60250 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
1 | ||
| 48214-60280 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
1 | ||
| 48214-60250 |
FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
1 | ||
| 48214-60400 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) DRIVERS SEAT SIDE |
1 | ||
| 48214-60280 |
FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
1 | ||
| 48214-60410 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) PASSENGER SEAT SIDE |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48203-60250 |
FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
1 | ||
| 48203-60250 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
1 | ||
| 48203-60280 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
1 | ||
| 48203-60410 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) PASSENGER SEAT SIDE |
1 | ||
| 48203-60280 |
FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
1 | ||
| 48203-60400 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) DRIVERS SEAT SIDE |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48203-60250 |
FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
1 | ||
| 48203-60250 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
1 | ||
| 48203-60280 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
1 | ||
| 48203-60410 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) PASSENGER SEAT SIDE |
1 | ||
| 48203-60280 |
FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
1 | ||
| 48203-60400 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) DRIVERS SEAT SIDE |
1 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-60250 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
1 | ||
| 48216-60280 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
1 | ||
| 48216-60250 |
FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
1 | ||
| 48216-60280 |
FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
1 | ||
| 48216-60400 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) DRIVERS SEAT SIDE |
1 | ||
| 48216-60410 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) PASSENGER SEAT SIDE |
1 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-60250 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
1 | ||
| 48216-60280 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
1 | ||
| 48216-60250 |
FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
1 | ||
| 48216-60280 |
FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
1 | ||
| 48216-60400 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) DRIVERS SEAT SIDE |
1 | ||
| 48216-60410 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) PASSENGER SEAT SIDE |
1 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-60400 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) DRIVERS SEAT SIDE |
1 | ||
| 48217-60410 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) PASSENGER SEAT SIDE |
1 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-60400 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) DRIVERS SEAT SIDE |
1 | ||
| 48217-60410 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) PASSENGER SEAT SIDE |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-60280 |
FJ60,HJ60..RHD..SRF..LUB |
1 | ||
| 48210-60410 |
FJ60,HJ60..RHD..SRF..LUB..(ARL,GEN) |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-60280 |
FJ60,HJ60..RHD..SRF..LUB |
1 | ||
| 48210-60410 |
FJ60,HJ60..RHD..SRF..LUB..(ARL,GEN) |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48141-60081 |
FJ60,HJ60..LUB |
4 | ||
| 48141-60081 |
FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
2 | ||
| 48142-35021 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
2 | ||
| 48141-60081 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
2 | ||
| 48241-60250 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) |
4 | ||
| 48142-35021 |
FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48142-60280 |
FJ60,HJ60..SRF..LUB DRIVERS SEAT SIDE |
2 | ||
| 48142-60081 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB |
2 | ||
| 48142-60081 |
FJ60,HJ60..SRF..LUB PASSENGER SEAT SIDE |
2 | ||
| 48142-60121 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60250 |
FJ60,HJ60..SRF..LUB |
2 | ||
| 48247-60250 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB |
2 | ||
| 48247-60380 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60250 |
FJ60,HJ60..SRF..LUB |
2 | ||
| 48247-60250 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB |
2 | ||
| 48247-60380 |
FJ60,HJ60..SRF..LUB..(ARL,GEN) |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-15010 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-15010 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB |
2 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48252-26070 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB |
8 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48252-26070 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB |
8 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48252-26070 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB |
8 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48252-26070 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB |
8 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48252-26070 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB |
8 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48252-26070 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB |
8 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48252-26070 |
FJ60..5F..HRF;FJ60,HJ60..SRF..LUB |
8 | ||
| Common parts | ||||
| 94110-51000 | ||||
| 95111-00814 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
