FJ60LG-KZ (1982)

Toyota Land Cruiser

Production Oct 1982 - Nov 1984
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )HRF

Click highlighted areas on diagram

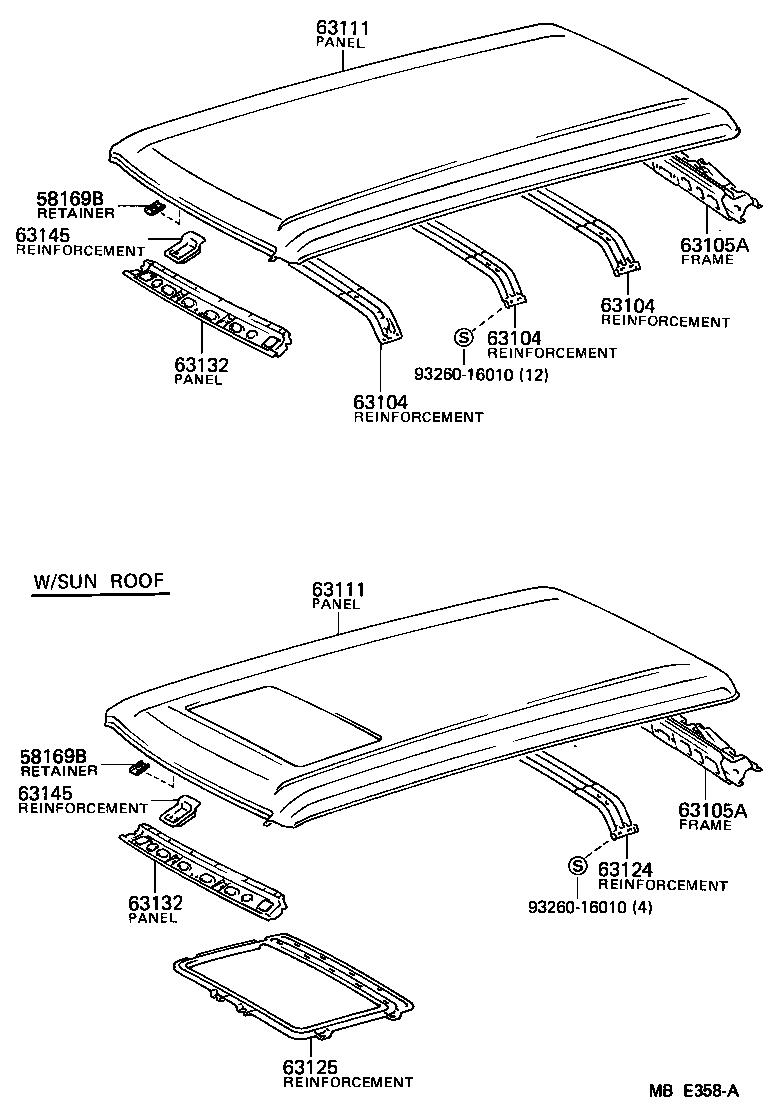

diagram 58169B 58169B 63104 63104 63104 63105A 63105A 63111 63111 63124 63125 63132 63132 63145 63145 9326016010 9326016010
Part # Description Qty Price
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63141-90A00

BJ60,FJ60,HJ60

W/ROOF CARRIER,SUN ROOF

 2
63044-90A00

FJ60..HRF

CTR,W/O SUN ROOF

 1
63045-90A00

FJ60..HRF

RR,W/O SUN ROOF

 1
63141-90A00

BJ60,FJ60,HJ60

W/O ROOF CARRIER

 3
63043-90A00

FJ60..HRF

FR,W/O SUN ROOF

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63141-90A00

BJ60,FJ60,HJ60

W/ROOF CARRIER,SUN ROOF

 2
63044-90A00

FJ60..HRF

CTR,W/O SUN ROOF

 1
63045-90A00

FJ60..HRF

RR,W/O SUN ROOF

 1
63141-90A00

BJ60,FJ60,HJ60

W/O ROOF CARRIER

 3
63043-90A00

FJ60..HRF

FR,W/O SUN ROOF

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63141-90A00

BJ60,FJ60,HJ60

W/ROOF CARRIER,SUN ROOF

 2
63044-90A00

FJ60..HRF

CTR,W/O SUN ROOF

 1
63045-90A00

FJ60..HRF

RR,W/O SUN ROOF

 1
63141-90A00

BJ60,FJ60,HJ60

W/O ROOF CARRIER

 3
63043-90A00

FJ60..HRF

FR,W/O SUN ROOF

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-90A03

FJ60..HRF

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-90A03

FJ60..HRF

 1
63111 - PANEL, ROOF
63101-90A01

BJ60,FJ60,HJ60

W/ROOF CARRIER

 1
63111-90A03

FJ60,HJ60..HRF..(ARL,GEN)

 1
63111-90A00

BJ60,FJ60,HJ60

 1
63111 - PANEL, ROOF
63101-90A01

BJ60,FJ60,HJ60

W/ROOF CARRIER

 1
63111-90A03

FJ60,HJ60..HRF..(ARL,GEN)

 1
63111-90A00

BJ60,FJ60,HJ60

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-90A00

BJ60,FJ6#,HJ6#

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-90A00

BJ60,FJ6#,HJ6#

 1
63145 - REINFORCEMENT, WINDSHIELD HEADER INNER PANEL
63145-90A00

BJ60,FJ6#,HJ6#

 1
63145 - REINFORCEMENT, WINDSHIELD HEADER INNER PANEL
63145-90A00

BJ60,FJ6#,HJ6#

 1
Common parts
93260-16010

(8210- )HRF

Click highlighted areas on diagram

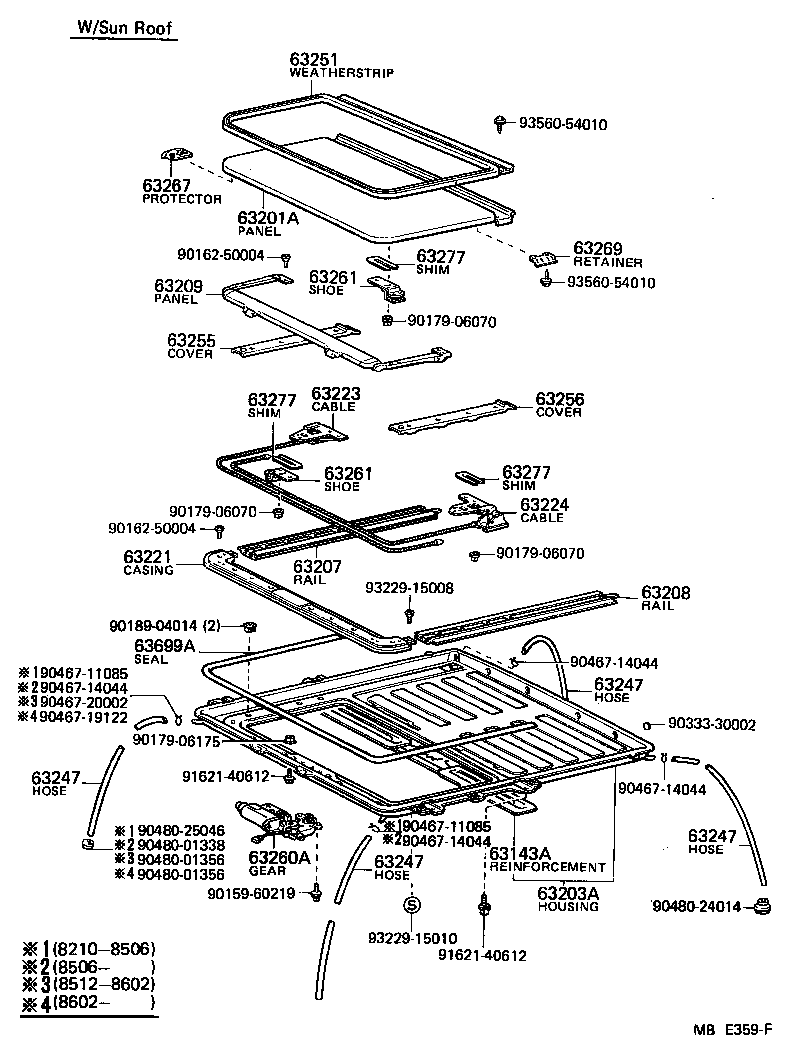

diagram 63143A 63201A 63203A 63207 63208 63209 63221 63223 63224 63247 63247 63247 63247 63251 63255 63256 63260A 63261 63261 63267 63269 63277 63277 63277 63699A 9015960219 9016250004 9016250004 9017906070 9017906070 9017906070 9017906175 9018904014 9033330002 9046711085 9046711085 9046714044 9046714044 9046714044 9046714044 9046719122 9046720002 9048001338 9048001356 9048001356 9048024014 9048025046 9162140612 9162140612 9322915008 9322915010 9356054010 9356054010
Part # Description Qty Price
63203A - HOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF
63203-90A02

FJ60,HJ60..HRF

W/SUN ROOF

 1
63203-90A00

FJ60,HJ60..HRF

W/SUN ROOF

 1
63221 - CASING, SLIDING ROOF CABLE GUIDE
63221-30010

FJ60,HJ60..HRF

W/SUN ROOF

 1
63255 - COVER, SLIDING ROOF GUIDE RAIL, RH
63255-30010

FJ60,HJ60..HRF

W/SUN ROOF

 1
63255-22010

FJ60,HJ60..HRF

W/SUN ROOF

 1
63256 - COVER, SLIDING ROOF GUIDE RAIL, LH
63255-30010

FJ60,HJ60..HRF

W/SUN ROOF

 1
63255-22010

FJ60,HJ60..HRF

W/SUN ROOF

 1
63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260-30010

FJ60,HJ60..HRF..(ARL,GEN)

W/SUN ROOF

 1
63260-30020

FJ60,HJ60..HRF..(ARL,GEN)

W/SUN ROOF

 1
Common parts
90159-60219
90162-50004
90179-06070
90179-06175
90189-04014
90333-30002
90467-11085
90467-14044
90467-19122
90467-20002
90480-01338
90480-01356
90480-24014
90480-25046
91621-40612
93229-15008
93229-15010
93560-54010

(8210-8212)

Click highlighted areas on diagram

diagram 63186 63187A 63189A 63401 63402 63403 63403 63403 63403 63404 63405 63406 63407 63408 63460 63486 63709 9011906145 9011908287 9011908287 9011908287 9166160825 9322016025
Part # Description Qty Price
63186 - BRACKET, ROOF RACK, FRONT
63185-90A00

FJ60,HJ60..HRF..GEN

 2
63185-90A01

FJ60,HJ60..HRF..GEN

 2
63187A - BRACKET, ROOF RACK, REAR
63187-90A00

FJ60..HRF

 2
63187-90A02

FJ60,HJ60..HRF..GEN

 1
63187-90A01

FJ60,HJ60..HRF..GEN

 2
63189A - BRACKET, ROOF RACK, CENTER
63189-90A00

FJ60,HJ60..HRF..GEN

 2
63189-90A01

FJ60,HJ60..HRF..GEN

 2
63401 - FRAME SUB-ASSY, ROOF RACK, UPPER
63401-90A01

BJ60,FJ60,HJ60..GEN

 1
63402 - FRAME SUB-ASSY, ROOF RACK, LOWER
63402-90A02

FJ60..HRF

 1
63403 - DECK SUB-ASSY, ROOF RACK
63403-90A01

FJ60,HJ60..GEN

 4
63403 - DECK SUB-ASSY, ROOF RACK
63403-90A01

FJ60,HJ60..GEN

 4
63403 - DECK SUB-ASSY, ROOF RACK
63403-90A01

FJ60,HJ60..GEN

 4
63403 - DECK SUB-ASSY, ROOF RACK
63403-90A01

FJ60,HJ60..GEN

 4
63460 - RACK ASSY, ROOF
63460-90A02

FJ60..HRF

 1
63486 - CUSHION, ROOF RACK LEG
63486-90A01

FJ60..HRF..GEN

 6
63709 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.3
63777-90A00

FJ60,HJ60..GEN

 1
63706-90A00

FJ60,HJ60..GEN

 1
Common parts
90119-06145
90119-08287
91661-60825
93220-16025
