FJ60LG-KW (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )FJ6#..LHD

Click highlighted areas on diagram

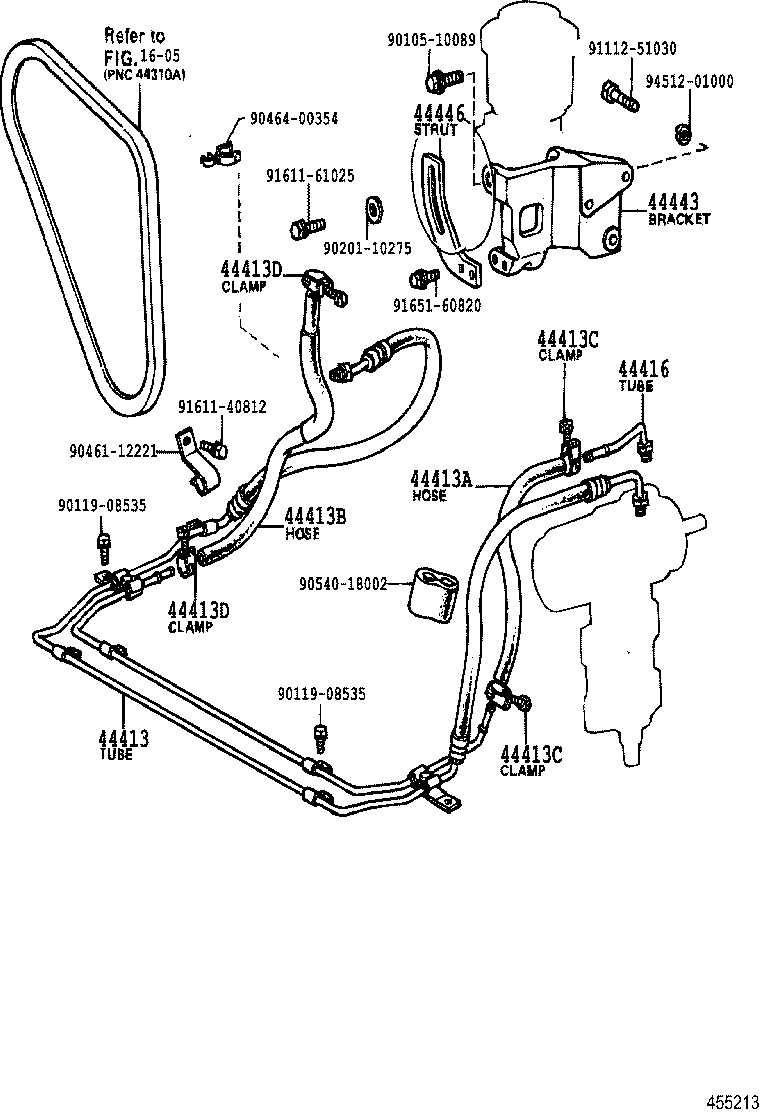

diagram 1605 44413 44413A 44413B 44413C 44413C 44413D 44413D 44416 44443 44446 9010510089 9011908535 9011908535 9020110275 9046112221 9046400354 9054018002 9111251030 9161140812 9161161025 9165160820 9451201000
Part # Description Qty Price
44413 - TUBE, PRESSURE FEED, NO.1
44410-60040

FJ60..LHD

 1
44413A - HOSE(FOR RETURN TUBE OUTLET)
90445-18089

FJ60,HJ60..LHD

 1
44413B - HOSE(FOR RESERVOIR TANK INLET)
90445-18090

FJ6#..LHD

 1
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001

FJ60,HJ60..LHD

 2
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001

FJ60,HJ60..LHD

 2
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90460-01001

FJ60,HJ60..LHD

 2
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90460-01001

FJ60,HJ60..LHD

 2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-60060

HJ60;FJ60..LHD

 1
44443 - BRACKET, PUMP
44443-60010

FJ60

 1
44446 - STRUT, ADJUSTING
44446-60010

FJ60

 1
Common parts
90105-10089
90119-08535
90201-10275
90461-12221
90464-00354
90540-18002
91112-51030
91611-40812
91611-61025
91651-60820
94512-01000
Linked diagrams
1605
