FJ60LG-KW (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )2F,3F

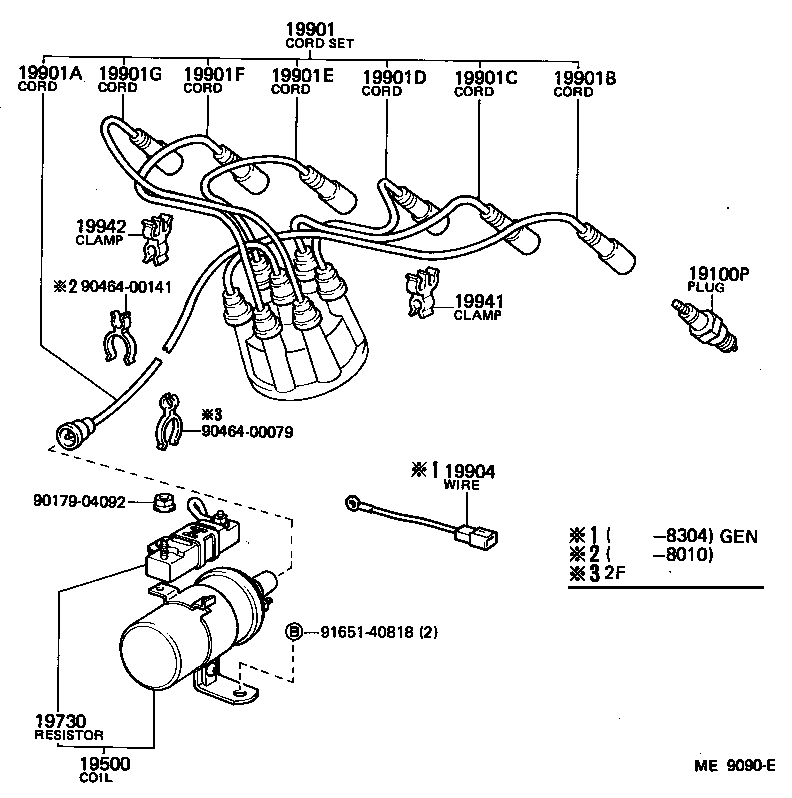

Click highlighted areas on diagram

diagram 19100P 19500 19730 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19904 19941 19942 9017904092 9046400079 9046400141 9165140818
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01065

2F..FJ60..EUR

W14EXR-U,W14EXR-U

 6
19500 - COIL ASSY, IGNITION
90919-02087

2F..FJ60..ARL,EUR

 1
19730 - RESISTOR, IGNITION COIL
90919-04033

2F..FJ60..ARL,EUR

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21321

2F..FJ60

 1
19901A - CORD, COIL RESISTIVE
90919-13061

2F..FJ60

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12169

2F,3F..FJ6#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12168

2F,3F..FJ6#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12167

2F,3F..FJ6#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12167

2F,3F..FJ6#

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-12168

2F,3F..FJ6#

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-12169

2F,3F..FJ6#

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00093

2F,3F..FJ6#

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00105

2F,3F..FJ6#

 1
Common parts
90179-04092
90464-00079
90464-00141
91651-40818
