FJ60LG-K (1980)

Toyota Land Cruiser

Production Aug 1980 - Nov 1984
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

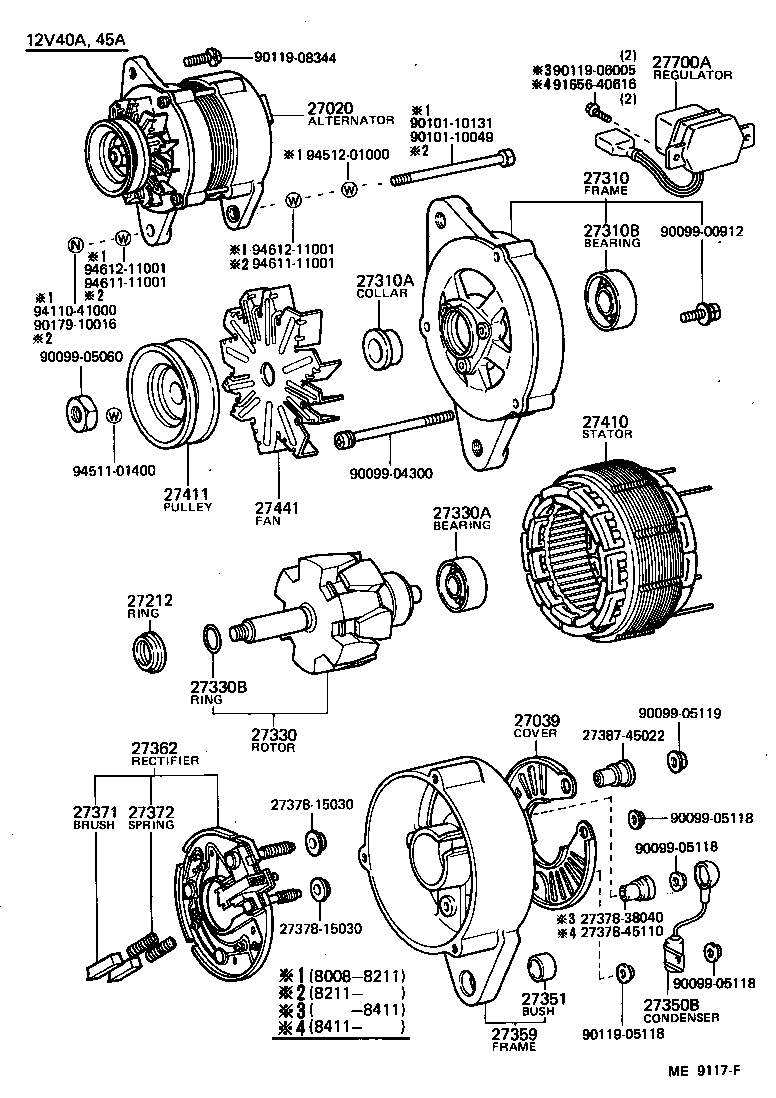

(8008- )2F,3F

Click highlighted areas on diagram

diagram 27020 27039 27212 27310 27310A 27310B 27330 27330A 27330B 27350B 27351 27359 27362 27371 27372 2737815030 2737815030 2737838040 2737845110 2738745022 27410 27411 27441 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9010110049 9010110131 9011905118 9011906005 9011908344 9017910016 9165640616 9411041000 9451101400 9451201000 9461111001 9461111001 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-61150

2F..FJ60

12V 40A,12V 40A

 1
27020-61110

2F..FJ60..LUB;3F..FJ62..HRF;2F..FJ60..HRF..SOB;3F..FJ62..SRF..LUB

12V 45A,12V 45A

 1
27020-61033

2F,3F..FJ6#..GEN,ME

12V 50A,12V 50A

 1
27039 - COVER, ALTERNATOR REAR END
27039-18011

2F,3F..FJ6#

12V 40A,45A

 1
27039-15010

2F,3F..FJ6#

12V 50A,55A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

2F,3F..FJ6#

12V 50A,55A,65A

 1
27212-39050

2F,3F..FJ6#

12V 40A,45A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-18010

2F,3F..FJ6#

12V 40A,45A

 1
27310-26101

2F,3F..FJ6#..GEN,ME

12V 50A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

2F,3F..FJ6#

12V 40A,45A,50A,55A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125

2F,3F..FJ6#

12V 40A,45A,50A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-45020

2F..FJ60..LUB;3F..FJ62..HRF;2F..FJ60..HRF..SOB;3F..FJ62..SRF..LUB

12V 45A

 1
27330-45070

2F,3F..FJ6#..GEN,ME

12V 50A

 1
27330-26050

2F,3F..FJ6#

12V 40A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10111

2F..FJ60

12V 40A,45A,50A

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048

2F,3F..FJ6#

12V 40A,45A

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

2F,3F..FJ6#

12V 40A,45A,50A,55A,65A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

2F,3F..FJ6#

12V 40A,45A,50A,55A,65A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-13050

2F,3F..FJ6#

12V 40A,45A

 1
27359-24100

2F,3F..FJ6#..GEN,ME

12V 50A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-15021

2F,3F..FJ6#..GEN,ME

12V 50A

 1
27362-15030

2F..FJ60

12V 40A,45A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

2F,3F..FJ6#

12V 40A,45A,50A,55A,65A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

2F,3F..FJ6#

12V 40A,45A,50A,55A,65A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-38120

2F,3F..FJ6#

12V 40A

 1
27410-38120

2F..FJ60..LUB;3F..FJ62..HRF;2F..FJ60..HRF..SOB;3F..FJ62..SRF..LUB

12V 45A

 1
27410-41080

2F,3F..FJ6#..EUR,GEN,ME

12V 50A,55A

 1
27411 - PULLEY, ALTERNATOR
27411-60032

2F,3F..FJ6#

12V 40A,45A,50A,55A

 1
27441 - FAN, ALTERNATOR
27441-34030

2F..FJ60

12V 40A,45A,50A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-15011

3B,2F..BJ60,FJ60;2H..HJ60..ARL,GEN

12V,STD TYPE

 1
Common parts
27378-15030
27378-38040
27378-45110
27387-45022
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10049
90101-10131
90119-05118
90119-06005
90119-08344
90179-10016
91656-40616
94110-41000
94511-01400
94512-01000
94611-11001
94612-11001

(8008-8510)2F,3F

Click highlighted areas on diagram

diagram 27020 27039 27061 2706345020 2706445020 27212 27310 27310A 27310B 27330 27330A 27350B 27351 27357 27359 27362 27371 27372 2737845090 2737845090 2738745022 2738745110 27410 27411 27441 2744724061 27700A 9009900912 9009900933 9009904300 9009905060 9009905118 9009905118 9009905118 9009905118 9009905119 9010110049 9010110131 9011908344 9017910033 9322914012 9331515014 9411041000 9451101400 9451201000 9461111001 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-61150

2F..FJ60

12V 40A,12V 40A

 1
27020-61110

2F..FJ60..LUB;3F..FJ62..HRF;2F..FJ60..HRF..SOB;3F..FJ62..SRF..LUB

12V 45A,12V 45A

 1
27020-61033

2F,3F..FJ6#..GEN,ME

12V 50A,12V 50A

 1
27039 - COVER, ALTERNATOR REAR END
27039-18011

2F,3F..FJ6#

12V 40A,45A

 1
27039-15010

2F,3F..FJ6#

12V 50A,55A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

2F,3F..FJ6#

12V 50A,55A,65A

 1
27212-39050

2F,3F..FJ6#

12V 40A,45A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-18010

2F,3F..FJ6#

12V 40A,45A

 1
27310-26101

2F,3F..FJ6#..GEN,ME

12V 50A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

2F,3F..FJ6#

12V 40A,45A,50A,55A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125

2F,3F..FJ6#

12V 40A,45A,50A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-45020

2F..FJ60..LUB;3F..FJ62..HRF;2F..FJ60..HRF..SOB;3F..FJ62..SRF..LUB

12V 45A

 1
27330-45070

2F,3F..FJ6#..GEN,ME

12V 50A

 1
27330-26050

2F,3F..FJ6#

12V 40A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10111

2F..FJ60

12V 40A,45A,50A

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

2F,3F..FJ6#

12V 40A,45A,50A,55A,65A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

2F,3F..FJ6#

12V 40A,45A,50A,55A,65A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-13050

2F,3F..FJ6#

12V 40A,45A

 1
27359-24100

2F,3F..FJ6#..GEN,ME

12V 50A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-15021

2F,3F..FJ6#..GEN,ME

12V 50A

 1
27362-15030

2F..FJ60

12V 40A,45A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

2F,3F..FJ6#

12V 40A,45A,50A,55A,65A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

2F,3F..FJ6#

12V 40A,45A,50A,55A,65A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-38120

2F,3F..FJ6#

12V 40A

 1
27410-38120

2F..FJ60..LUB;3F..FJ62..HRF;2F..FJ60..HRF..SOB;3F..FJ62..SRF..LUB

12V 45A

 1
27410-41080

2F,3F..FJ6#..EUR,GEN,ME

12V 50A,55A

 1
27411 - PULLEY, ALTERNATOR
27411-60032

2F,3F..FJ6#

12V 40A,45A,50A,55A

 1
27441 - FAN, ALTERNATOR
27441-34030

2F..FJ60

12V 40A,45A,50A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-15011

3B,2F..BJ60,FJ60;2H..HJ60..ARL,GEN

12V,STD TYPE

 1
Common parts
27063-45020
27064-45020
27378-45090
27387-45022
27387-45110
27447-24061
90099-00912
90099-00933
90099-04300
90099-05060
90099-05118
90099-05119
90101-10049
90101-10131
90119-08344
90179-10033
93229-14012
93315-15014
94110-41000
94511-01400
94512-01000
94611-11001
94612-11001

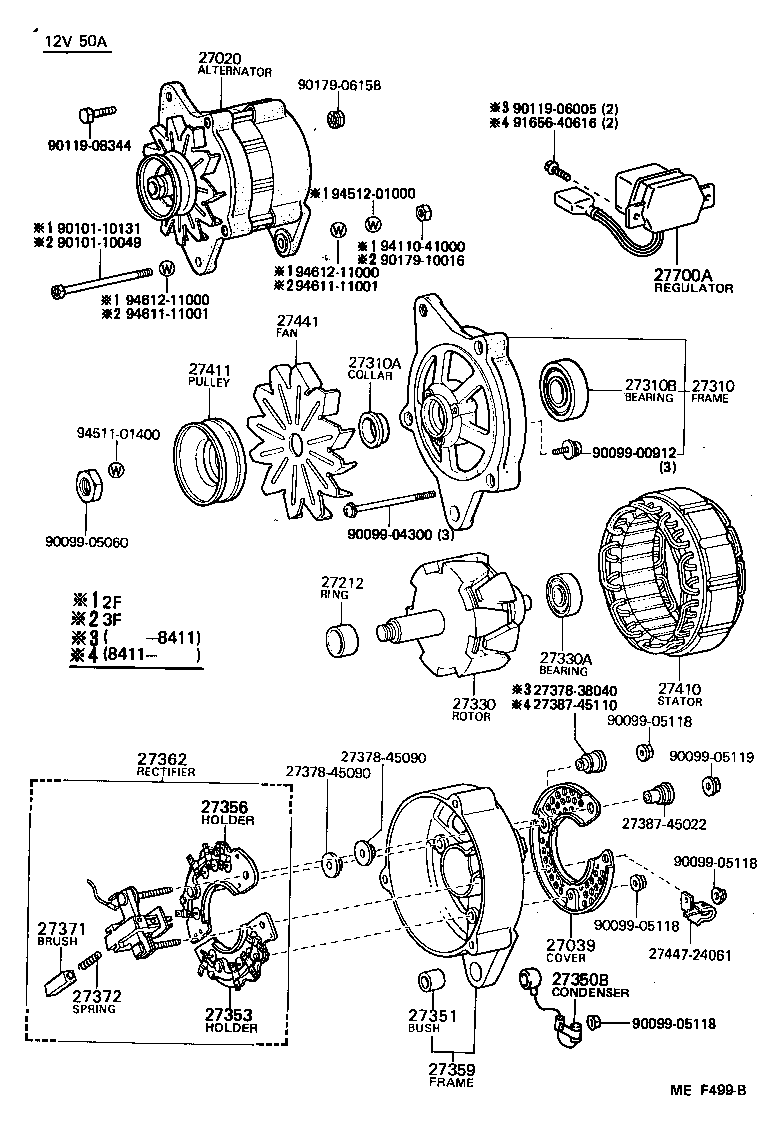

(8008- )2F,3F

Click highlighted areas on diagram

diagram 27020 27039 27212 27310 27310A 27310B 27330 27330A 27350B 27351 27353 27356 27359 27362 27371 27372 2737838040 2737845090 2737845090 2738745022 2738745110 27410 27411 27441 2744724061 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905118 9009905119 9010110049 9010110131 9011906005 9011908344 9017906158 9017910016 9165640616 9411041000 9451101400 9451201000 9461111001 9461111001 9461211000 9461211000
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-61150

2F..FJ60

12V 40A,12V 40A

 1
27020-61110

2F..FJ60..LUB;3F..FJ62..HRF;2F..FJ60..HRF..SOB;3F..FJ62..SRF..LUB

12V 45A,12V 45A

 1
27020-61033

2F,3F..FJ6#..GEN,ME

12V 50A,12V 50A

 1
27039 - COVER, ALTERNATOR REAR END
27039-18011

2F,3F..FJ6#

12V 40A,45A

 1
27039-15010

2F,3F..FJ6#

12V 50A,55A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

2F,3F..FJ6#

12V 50A,55A,65A

 1
27212-39050

2F,3F..FJ6#

12V 40A,45A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-18010

2F,3F..FJ6#

12V 40A,45A

 1
27310-26101

2F,3F..FJ6#..GEN,ME

12V 50A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

2F,3F..FJ6#

12V 40A,45A,50A,55A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125

2F,3F..FJ6#

12V 40A,45A,50A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-45020

2F..FJ60..LUB;3F..FJ62..HRF;2F..FJ60..HRF..SOB;3F..FJ62..SRF..LUB

12V 45A

 1
27330-45070

2F,3F..FJ6#..GEN,ME

12V 50A

 1
27330-26050

2F,3F..FJ6#

12V 40A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10111

2F..FJ60

12V 40A,45A,50A

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

2F,3F..FJ6#

12V 40A,45A,50A,55A,65A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

2F,3F..FJ6#

12V 40A,45A,50A,55A,65A

 1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-34051

2F,3F..FJ6#..GEN,ME

12V 50A

 1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-34051

2F,3F..FJ6#..GEN,ME

12V 50A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-13050

2F,3F..FJ6#

12V 40A,45A

 1
27359-24100

2F,3F..FJ6#..GEN,ME

12V 50A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-15021

2F,3F..FJ6#..GEN,ME

12V 50A

 1
27362-15030

2F..FJ60

12V 40A,45A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

2F,3F..FJ6#

12V 40A,45A,50A,55A,65A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

2F,3F..FJ6#

12V 40A,45A,50A,55A,65A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-38120

2F,3F..FJ6#

12V 40A

 1
27410-38120

2F..FJ60..LUB;3F..FJ62..HRF;2F..FJ60..HRF..SOB;3F..FJ62..SRF..LUB

12V 45A

 1
27410-41080

2F,3F..FJ6#..EUR,GEN,ME

12V 50A,55A

 1
27411 - PULLEY, ALTERNATOR
27411-60032

2F,3F..FJ6#

12V 40A,45A,50A,55A

 1
27441 - FAN, ALTERNATOR
27441-34030

2F..FJ60

12V 40A,45A,50A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-15011

3B,2F..BJ60,FJ60;2H..HJ60..ARL,GEN

12V,STD TYPE

 1
Common parts
27378-38040
27378-45090
27387-45022
27387-45110
27447-24061
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10049
90101-10131
90119-06005
90119-08344
90179-06158
90179-10016
91656-40616
94110-41000
94511-01400
94512-01000
94611-11001
94612-11000
