FJ55RV-KQ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9001-9201)FJ7#..RHD ; (9001-9401)PZJ7#..RHD..CBU ; (9001-9501)PZJ75..5F ; (9001-00

Click highlighted areas on diagram

MAKER OPTION

diagram 88450 88460 88460B 8846714050 8846722060 8846722060 88470 88472 88472 88479 8868890K01 8868890K01 8868890K04 8868890K06 88711 88712 88715A 88716A 88716B 88716E 88717A 88717B 8871860510 8871860520 8871890K04 8871890K27 88723B 88891A 8889560010 8889560010 9009120618 9009901520 9009932128 9011906100 9011906100 9011906336 9011906336 9011906429 9017906032 9017906274 91611B0835 9165140616 9165140616 9165140616 91651F0610 91651F0616
Part # Description Qty Price
Common parts
88467-14050
88467-22060
88688-90K01
88688-90K04
88688-90K06
88718-60510
88718-60520
88718-90K04
88718-90K27
88895-60010
90091-20618
90099-01520
90099-32128
90119-06100
90119-06336
90119-06429
90179-06032
90179-06274
91611-B0835
91651-40616
91651-F0610
91651-F0616

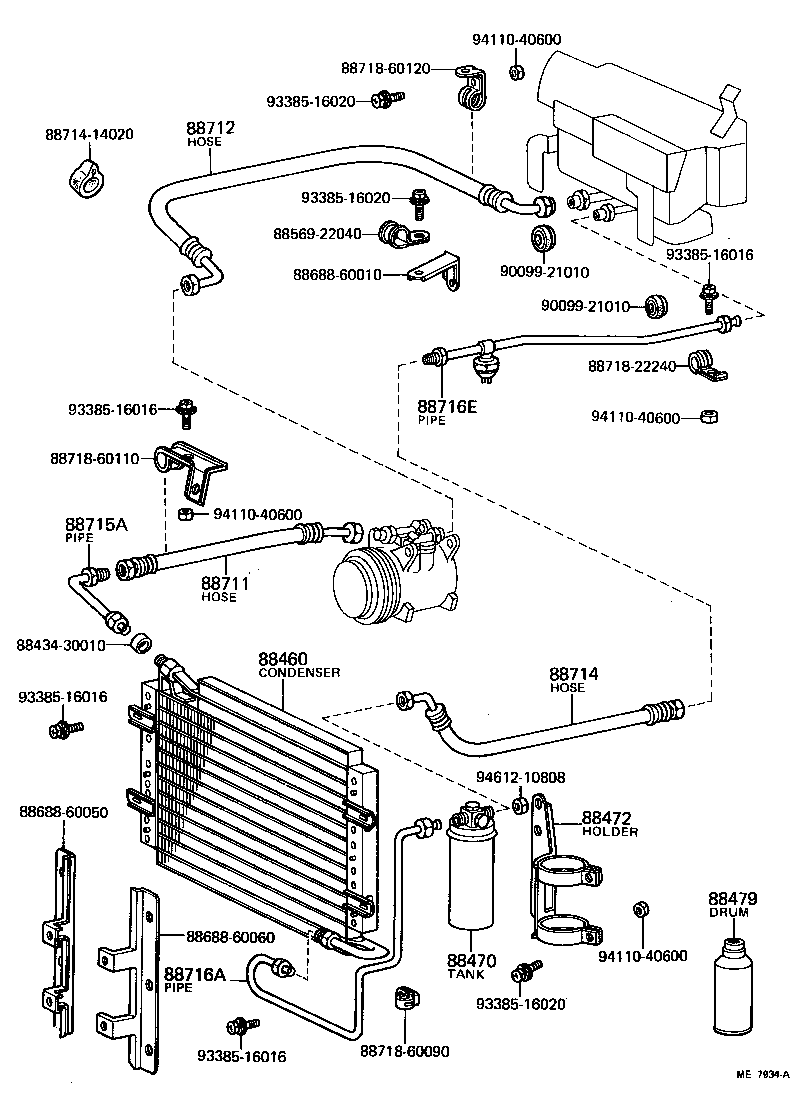

(7901-8007)FJ55..RHD

Click highlighted areas on diagram

diagram 8843430010 88460 88470 88472 88479 8856922040 8868860010 8868860050 8868860060 88711 88712 88714 8871414020 88715A 88716A 88716E 8871822240 8871860090 8871860120 8871868110 9009921010 9009921010 9338516016 9338516016 9338516016 9338516016 9338516020 9338516020 9338516020 9411040600 9411040600 9411040600 9411040600 9461210808
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-60020

FJ55..ARL,GEN

 1
88460-60030

FJ55..ARL,GEN

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-10010

FJ55..ARL,GEN

 1
88470-20070

FJ55..ARL,GEN

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-60030

FJ55..RHD

 1
88472-60020

FJ55..ARL,GEN

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
88434-30010

FJ55..ARL,GEN

 3
90986-02001

FJ55..ARL,GEN

400G

 2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60020

FJ55..ARL,GEN

 1
88711-10011

FJ55..ARL,GEN

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60070

FJ55..RHD

 1
88712-60030

FJ55..RHD..(ARL,GEN)

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-60010

FJ55..RHD

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-60010

FJ55..ARL,GEN

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-60060

FJ55..ARL,GEN

 1
88716-60130

FJ55..RHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88710-60020

FJ55..RHD

 1
88716-60080

FJ55..RHD..(ARL,GEN)

 1
Common parts
88434-30010
88569-22040
88688-60010
88688-60050
88688-60060
88714-14020
88718-22240
88718-60090
88718-60120
88718-68110
90099-21010
93385-16016
93385-16020
94110-40600
94612-10808
