FJ55RV-KQ (1975)
Toyota Land Cruiser
Production
Jan 1975
-
Jul 1980
Engine
2F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(9001-0701) ; (0701-0808)LX
Click highlighted areas on diagram
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90467-08008 | ||||
| 91621-40614 | ||||
| 91661-60616 | ||||
| 93540-55010 | ||||
| 93560-54014 | ||||
ILLUST NO. 2 OF 2(9001-0701) ; (0701-0808)LX
Click highlighted areas on diagram
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-11007 | ||||
| 90183-04046 | ||||
| 90204-11042 | ||||
| 90467-08008 | ||||
| 93540-25012 | ||||
| 93540-55010 | ||||

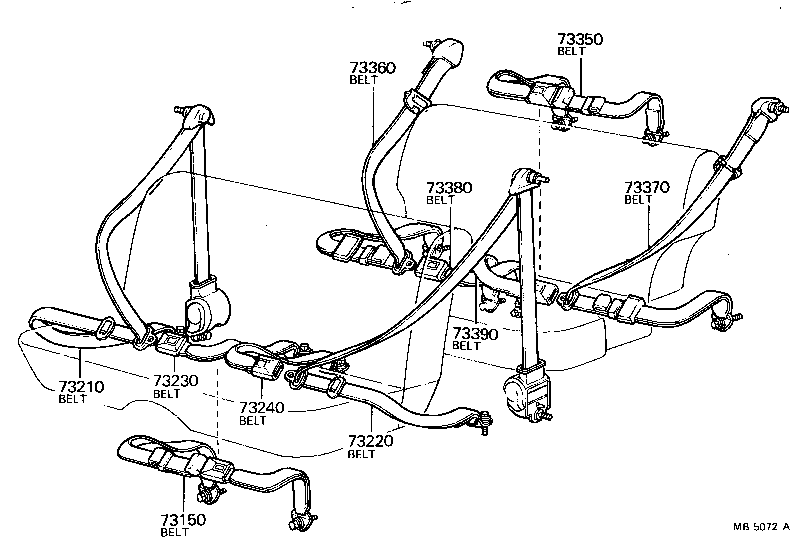

(7505-8007)FJ55..ARL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER | ||||
| 71840-90360 |
FJ55..ARL |
1 | ||
| 71840-90377 |
FJ55..ARL |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 71801-90367 |
FJ55..ARL |
1 | ||
| 71801-90365 |
FJ55..ARL |
1 | ||
| 71801-90356 |
FJ55..ARL |
1 | ||
| 71801-90369 |
FJ55..ARL |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 71801-90365 |
FJ55..ARL |
1 | ||
| 71801-90356 |
FJ55..ARL |
1 | ||
| 71801-90369 |
FJ55..ARL |
1 | ||
| 71801-90367 |
FJ55..ARL |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 71802-90358 |
FJ55..ARL |
1 | ||
| 71802-90358 |
FJ40,45,55,HJ45..ARL |
1 | ||
| 71802-90367 |
FJ55..ARL |
1 | ||
| 71802-90373 |
FJ55..ARL |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 71802-90358 |
FJ40,45,55,HJ45..ARL |
1 | ||
| 71802-90358 |
FJ55..ARL |
1 | ||
| 71802-90373 |
FJ55..ARL |
1 | ||
| 71802-90367 |
FJ55..ARL |
1 | ||
| 73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER | ||||
| 71850-90368 |
FJ55..ARL |
1 | ||
| 71850-90359 |
FJ55..ARL |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 71805-90352 |
FJ55..ARL |
1 | ||
| 71805-90359 |
FJ55..ARL |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 71805-90359 |
FJ55..ARL |
1 | ||
| 71805-90352 |
FJ55..ARL |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 71806-90352 |
FJ55..ARL |
1 | ||
| 71806-90357 |
FJ55..ARL |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 71806-90352 |
FJ55..ARL |
1 | ||
| 71806-90357 |
FJ55..ARL |
1 | ||
(6903-7505)FJ55 ; (7505-7901)FJ55..EUR,GEN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73110 - BELT ASSY, FRONT SEAT 3 POINT TYPE, RH | ||||
| 71840-9035304 |
FJ55 BLUE |
1 | ||
| 71840-90358 |
FJ55 |
1 | ||
| 71840-90364 |
FJ55 |
1 | ||
| 73110 - BELT ASSY, FRONT SEAT 3 POINT TYPE, RH | ||||
| 71840-9035304 |
FJ55 BLUE |
1 | ||
| 71840-90358 |
FJ55 |
1 | ||
| 71840-90364 |
FJ55 |
1 | ||
| 73120 - BELT ASSY, FRONT SEAT 3 POINT TYPE, LH | ||||
| 71840-90358 |
FJ55 |
1 | ||
| 71840-90364 |
FJ55 |
1 | ||
| 73130 - BELT ASSY, FRONT SEAT LAP TYPE, RH | ||||
| 71840-9035104 |
FJ55 BLUE |
1 | ||
| 73330 - BELT ASSY, REAR SEAT LAP TYPE, RH | ||||
| 71850-9035104 |
FJ55 BLUE |
1 | ||
| 73330 - BELT ASSY, REAR SEAT LAP TYPE, RH | ||||
| 71850-9035104 |
FJ55 BLUE |
1 | ||
