FJ55RV-KQ (1975)
Toyota Land Cruiser
Production
Jan 1975
-
Jul 1980
Engine
2F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7901-7909)FJ55..ARL ; (7909-8007)FJ55..RHD

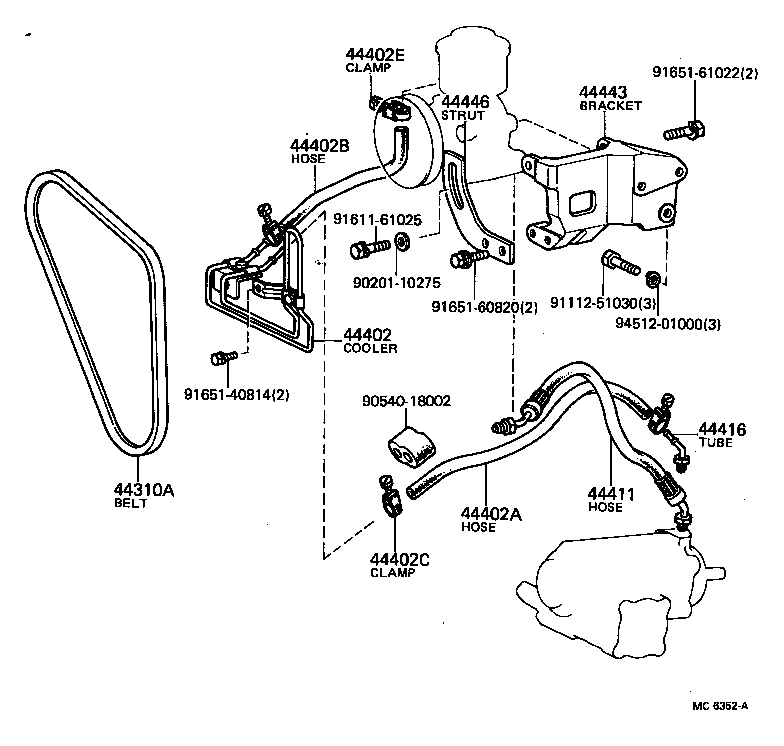

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44420-60040 |
FJ55..RHD |
1 | ||
| 44420-60040 |
FJ55..ARL |
1 | ||
| 44402A - HOSE, POWER STEERING OIL COOLER INLET | ||||
| 90445-18057 |
FJ55..ARL |
1 | ||
| 90445-18057 |
FJ55..RHD |
1 | ||
| 44402B - HOSE, POWER STEERING OIL COOLER OUTLET | ||||
| 90445-18721 |
FJ55..RHD |
1 | ||
| 90445-18721 |
FJ55..ARL |
1 | ||
| 44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE | ||||
| 90460-01001 |
FJ4#,55..RHD |
2 | ||
| 90460-01001 |
FJ40,45,55..ARL |
2 | ||
| 44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE | ||||
| 90460-01001 |
FJ40,45,55..ARL |
2 | ||
| 90460-01001 |
FJ4#,55..RHD |
2 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-60040 |
FJ55..RHD |
1 | ||
| 44411-60040 |
FJ55..ARL |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-60030 |
FJ55..ARL |
1 | ||
| 44416-60030 |
FJ55..RHD |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-60010 |
FJ4#,55..RHD |
1 | ||
| 44443-60010 |
FJ40,45,55..ARL |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-60010 |
FJ4#,55..RHD |
1 | ||
| 44446-60010 |
FJ40,45,55..ARL |
1 | ||
| Common parts | ||||
| 90201-10275 | ||||
| 90540-18002 | ||||
| 91112-51030 | ||||
| 91611-61025 | ||||
| 91651-40814 | ||||
| 91651-60820 | ||||
| 91651-61022 | ||||
| 94512-01000 | ||||
