FJ55LV-KW (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001-0405)FZJ70,75..ARL ; (9001-0405)FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,KZJ7#,LJ7#,

Click highlighted areas on diagram

diagram 45025 45201B 45201B 45201D 45205J 45210 45222F 45225 45225A 45254 45260 45272 45280A 45286 45291A 45291B 45298 45635 45635 45636B 45897 9011908560 9011908560 9016450048 9017910178 9161160616 9161160820 9161160820 9165160616 9165160818 9165160825 9165160825 9331914010 9461211001
Part # Description Qty Price
Common parts
90119-08560
90164-50048
90179-10178
91611-60616
91611-60820
91651-60616
91651-60818
91651-60825
93319-14010
94612-11001

ILLUST NO. 2 OF 2(9001-0907)

Click highlighted areas on diagram

TILT STEERING

diagram 45081 45081A 45081B 45286 45289A 45298 45804 45807 45813 45814 45815 45819 45819A 45821B 45826A 45826B 45890A 45898B 45899A 9010908112 9011408002 9011906029 9011908165 9016450048 9017910178 9020106204 9020108065 9020108065 9098007195 9161160840 9165160616 9331514010 9413000802 9413000802 9418210800 9418210800 9418360601 9453100800 9453100800 9461211001
Part # Description Qty Price
Common parts
90109-08112
90114-08002
90119-06029
90119-08165
90164-50048
90179-10178
90201-06204
90201-08065
90980-07195
91611-60840
91651-60616
93315-14010
94130-00802
94182-10800
94183-60601
94531-00800
94612-11001

ILLUST NO. 1 OF 2(9001-0907)

Click highlighted areas on diagram

TILT STEERING(COLLAPSIBLE)

diagram 45025 45201A 45201A 45201B 45201D 45201G 45205E 45205J 45210 45215 45220 45222F 45225 45225A 45254 45255 45260 45280A 45291 45291B 45635 45635 45636B 45897 9011908042 9011908560 9011908560 9161160618 91611B0816 9165160616 9165160818 9165160825 91651B0820 91651B0822 9331914012
Part # Description Qty Price
Common parts
90119-08042
90119-08560
91611-60618
91611-B0816
91651-60616
91651-60818
91651-60825
91651-B0820
91651-B0822
93319-14012

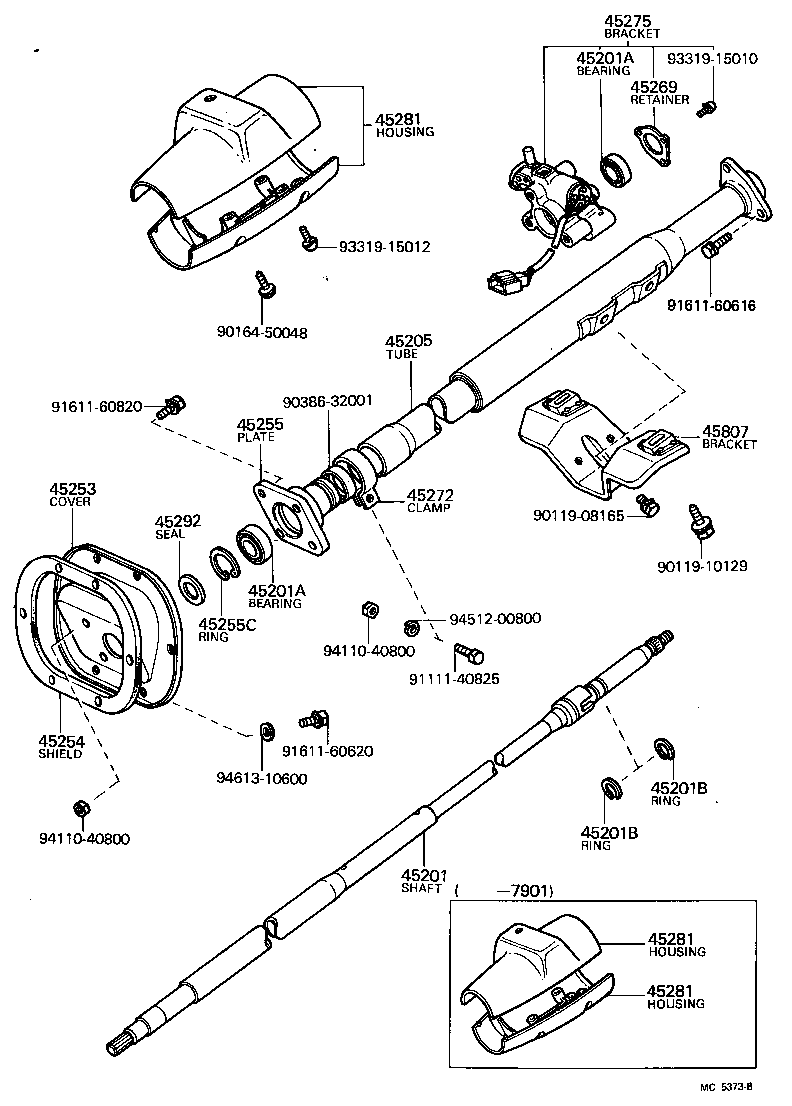

(7709-8007)FJ55

Click highlighted areas on diagram

diagram 45201 45201A 45201A 45201B 45201B 45205 45253 45254 45255 45255C 45269 45272 45275 45281 45281 45281 45292 45807 9011908165 9011910129 9016450048 9038632001 9111140825 9161160616 9161160620 9161160820 9331915010 9331915012 9411040800 9411040800 9451200800 9461310600
Part # Description Qty Price
45201 - SHAFT SUB-ASSY, STEERING MAIN
45201-60040

FJ55

 1
45210-60020

FJ55

FOR COLAPSIBUL STEERING

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-22036

FJ55

LOWER

 1
90369-36003

FJ55

UPPER

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-22036

FJ55

LOWER

 1
90369-36003

FJ55

UPPER

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-18043

FJ55

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-18043

FJ55

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45251-60050

FJ55

 1
45870-60020

FJ55

FOR COLAPSIBUL STEERING

 1
45253 - COVER, STEERING COLUMN HOLE
45253-60020

FJ55..LHD

FOR COLUMN SHIFT

 1
45253-60040

FJ55..LHD

FOR FLOOR SHIFT

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-60010

FJ55

 1
45255 - PLATE, STEERING COLUMN HOLE COVER
45291-60010

FJ55

 1
45255C - RING, HOLE SNAP(FOR STEERING COLUMN TUBE SUPPORT)
90521-55007

FJ55

 1
45272 - CLAMP, STEERING COLUMN, LOWER
45272-55010

FJ4#,55,HJ45

 1
45272-60010

FJ55

FOR COLAPSIBUL STEERING

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45280-60021

FJ4#,55

FOR W/STEERING LOCK

 1
45280-60011

FJ4#;FJ55..EUR,GEN

FOR L/STEERING LOCK

 1
45280-60012

FJ4#;FJ55..EUR,GEN

FOR L/STEERING LOCK

 1
45281 - HOUSING, STEERING COLUMN
45208-60041

FJ55..LHD

FOR COLUMN SHIFT

 1
45208-60031

FJ55

FOR FLOOR SHIFT

 1
45286-60042

BJ4#,FJ4#,55..LHD

UPPER,FOR W/STEERING LOCK

 1
45286-60907

BJ4#,FJ4#,55,HJ45..LHD

FOR L/STEERING LOCK

 1
45287-60021

BJ4#,FJ4#,55,HJ45..LHD

LOWER

 1
45286-60909

BJ4#,FJ4#,55..LHD

FOR W/STEERING LOCK

 1
45286-60022

BJ4#,FJ4#,55,HJ45..LHD

UPPER,FOR L/STEERING LOCK

 1
45287-60022

BJ4#,FJ4#,55,HJ45..LHD

LOWER

 1
45281 - HOUSING, STEERING COLUMN
45208-60041

FJ55..LHD

FOR COLUMN SHIFT

 1
45208-60031

FJ55

FOR FLOOR SHIFT

 1
45286-60042

BJ4#,FJ4#,55..LHD

UPPER,FOR W/STEERING LOCK

 1
45286-60907

BJ4#,FJ4#,55,HJ45..LHD

FOR L/STEERING LOCK

 1
45287-60021

BJ4#,FJ4#,55,HJ45..LHD

LOWER

 1
45286-60909

BJ4#,FJ4#,55..LHD

FOR W/STEERING LOCK

 1
45286-60022

BJ4#,FJ4#,55,HJ45..LHD

UPPER,FOR L/STEERING LOCK

 1
45287-60022

BJ4#,FJ4#,55,HJ45..LHD

LOWER

 1
45281 - HOUSING, STEERING COLUMN
45208-60041

FJ55..LHD

FOR COLUMN SHIFT

 1
45208-60031

FJ55

FOR FLOOR SHIFT

 1
45286-60042

BJ4#,FJ4#,55..LHD

UPPER,FOR W/STEERING LOCK

 1
45286-60907

BJ4#,FJ4#,55,HJ45..LHD

FOR L/STEERING LOCK

 1
45287-60021

BJ4#,FJ4#,55,HJ45..LHD

LOWER

 1
45286-60909

BJ4#,FJ4#,55..LHD

FOR W/STEERING LOCK

 1
45286-60022

BJ4#,FJ4#,55,HJ45..LHD

UPPER,FOR L/STEERING LOCK

 1
45287-60022

BJ4#,FJ4#,55,HJ45..LHD

LOWER

 1
45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT
55661-90351

FJ55..LHD

UPPER

 1
55662-90351

FJ55..LHD

LOWER

 1
55662-90352

FJ55

LOWER

 1
45807-60020

FJ55

FOR COLAPSIBUL STEERING

 1
55661-90352

FJ55

UPPER

 1
Common parts
90119-08165
90119-10129
90164-50048
90386-32001
91111-40825
91611-60616
91611-60620
91611-60820
93319-15010
93319-15012
94110-40800
94512-00800
94613-10600

(7901-8007)FJ55

Click highlighted areas on diagram

diagram 45216 45219 45221 45222 45231C 45231D 45231K 45240 45240A 45240A 45240B 45244 45244 45301 45301A 45301B 45301H 45310 45312 45321 45323 45331 45332 45351 45351A 45352 45357 45372 45401 9011610101 9017012161 9111271032 9112151032 9161160822 9161161022 9161161032 9411051000 9451102200 9451201000 9451201000 9451201000 9645100600
Part # Description Qty Price
45216 - SHAFT, STEERING SLIDING
45216-60012

FJ55

 1
45216-60010

FJ55

 1
45219 - YOKE, STEERING SLIDING
45209-60010

FJ55

 1
45209-60020

FJ55..LHD

 1
45221 - SHAFT, STEERING INTERMEDIATE
45220-60010

FJ55

 1
45220-60021

FJ55..LHD

 1
45220-60020

FJ55..LHD

 1
45222 - COVER, STEERING GEAR DUST
45222-60010

FJ55

 1
45231C - BEARING, UNIVERSAL JOINT SPIDER(FOR STEERING MAIN SHAFT
37402-10020

FJ55

OVER SIZE

 8
45231D - RING, HOLE SNAP(FOR STEERING MAIN SHAFT)
90521-22011

FJ55

T=1.175-1.225

 8
90521-22013

FJ55

T=1.275-1.325

 8
90521-22012

FJ55

T=1.225-1.275

 8
45231K - SPIDER KIT, UNIVERSAL JOINT(FOR STEERING MAIN SHAFT)
04371-10011

FJ55

 2
45240 - WORM ASSY, STEERING
45241-60040

FJ55..LHD

 1
45240A - BEARING(FOR STEERING WORM)
97600-30206

FJ4#,55

FOR FRONT

 1
97600-30205

FJ4#,55

FOR REAR

 1
90363-20003

BJ4#,FJ4#,55,HJ45

 2
45240A - BEARING(FOR STEERING WORM)
97600-30206

FJ4#,55

FOR FRONT

 1
97600-30205

FJ4#,55

FOR REAR

 1
90363-20003

BJ4#,FJ4#,55,HJ45

 2
45240B - SEAL, OIL(FOR STEERING WORM)
90311-18021

FJ55

 1
45244 - YOKE, STEERING WORM
45244-36010

FJ55

 2
45244-55020

FJ55

 2
45244 - YOKE, STEERING WORM
45244-36010

FJ55

 2
45244-55020

FJ55

 2
45301 - HOUSING SUB-ASSY, STEERING GEAR
45301-60030

FJ55..LHD

 1
45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1
90999-73018

FJ4#,55

 1
45301B - SEAL, OIL(FOR SECTOR SHAFT)
90310-32024

BJ4#,FJ4#,55,HJ45

 1
45310 - HOUSING ASSY, STEERING GEAR
45310-60020

FJ55..LHD

 1
45312 - BRACKET, STEERING GEAR HOUSING
45312-60030

FJ55..LHD

 1
45312-60031

FJ55..LHD

 1
45321 - COVER, GEAR HOUSING END
45321-60012

FJ4#,55

 1
45331 - COVER, SECTOR SHAFT END
45304-60010

FJ4#,55

 1
45332 - GASKET, SECTOR SHAFT END COVER
45332-60010

FJ4#,55

 1
45351 - SHAFT, STEERING SECTOR
45350-60020

FJ4#,55..LHD

 1
45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
90170-22058

BJ4#,FJ4#,55,HJ45

 1
45352 - WASHER, SECTOR SHAFT THRUST
45352-55010

FJ4#,55

 1
45357 - SCREW, SECTOR SHAFT ADJUSTING
90113-14012

FJ4#,55

 1
45372 - PLUG, STEERING GEAR HOUSING OIL
90345-53008

FJ4#,55

 1
45401 - ARM SUB-ASSY, PITMAN
45411-60032

FJ55..LHD

 1
Common parts
90116-10101
90170-12161
91112-71032
91121-51032
91611-60822
91611-61022
91611-61032
94110-51000
94511-02200
94512-01000
96451-00600
