FJ45RV-KCQ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )2F,2H..FJ45,HJ47

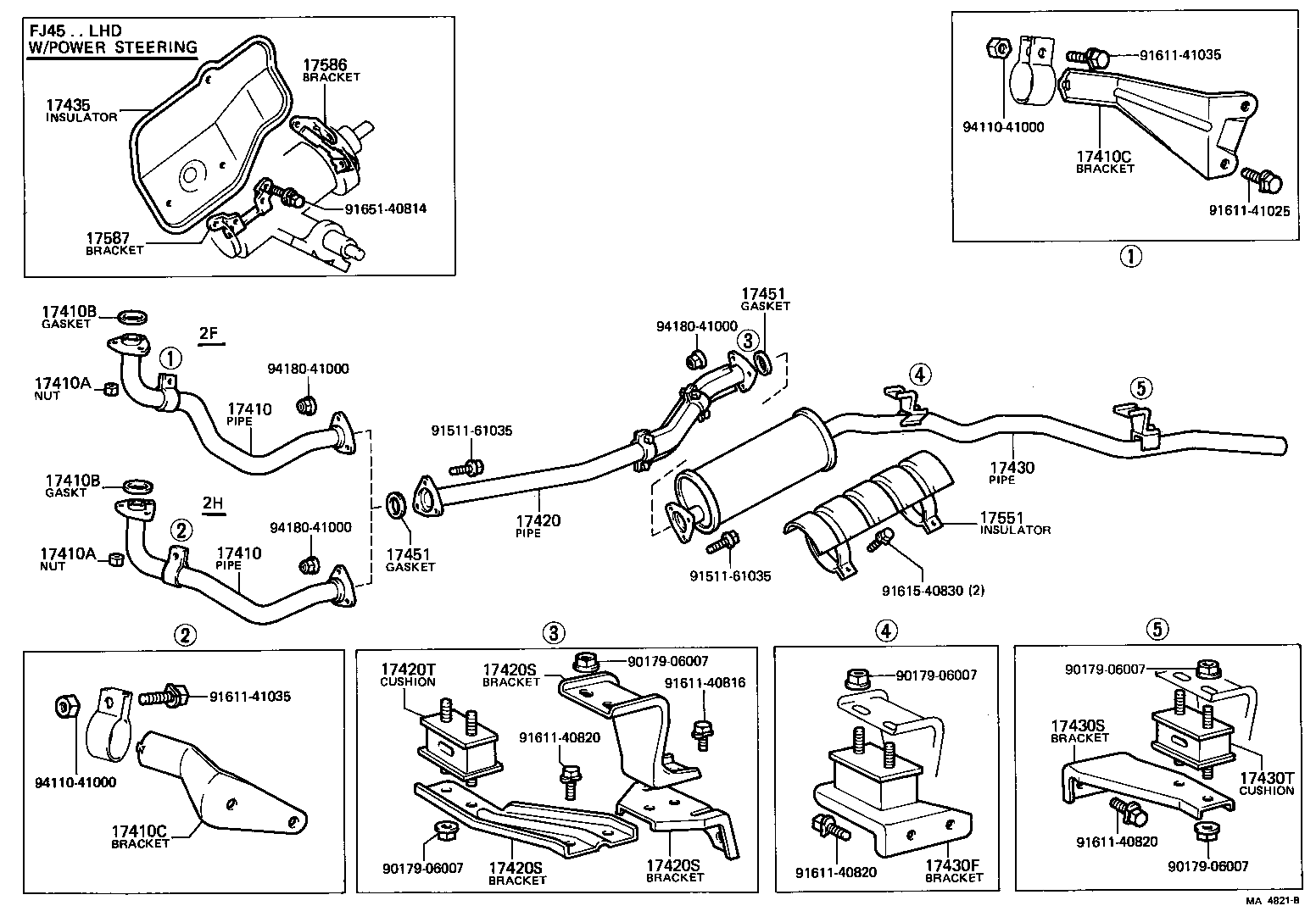

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17410C 17410C 17420 17420S 17420S 17420S 17420T 17430 17430F 17430S 17430T 17435 17451 17451 17551 17586 17587 9017906007 9017906007 9017906007 9017906007 9017906007 9151161035 9151161035 9161140816 9161140820 9161140820 9161140820 9161141025 9161141035 9161141035 9161540830 9165140814 9411041000 9411041000 9418041000 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-61090

2F..FJ4#

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-61090

2F..FJ4#

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

B,3B,2F,2H..BJ4#,FJ4#,HJ47

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

B,3B,2F,2H..BJ4#,FJ4#,HJ47

 3
17410B - GASKET, EXHAUST PIPE
90917-06003

2F..FJ4#

 1
17410B - GASKET, EXHAUST PIPE
90917-06003

2F..FJ4#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-61100

2F..FJ4#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-61100

2F..FJ4#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-61040

2F,2H..FJ45,HJ47

 1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17572-61020

2F,2H..FJ45,HJ47

FRAME TO CUSHION

 1
17568-61010

2F,2H..FJ45,HJ47

UPR

 1
17576-61010

2F,2H..FJ45,HJ47

LWR

 1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17572-61020

2F,2H..FJ45,HJ47

FRAME TO CUSHION

 1
17568-61010

2F,2H..FJ45,HJ47

UPR

 1
17576-61010

2F,2H..FJ45,HJ47

LWR

 1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17572-61020

2F,2H..FJ45,HJ47

FRAME TO CUSHION

 1
17568-61010

2F,2H..FJ45,HJ47

UPR

 1
17576-61010

2F,2H..FJ45,HJ47

LWR

 1
17420T - CUSHION, EXHAUST PIPE CENTER, REAR
17567-61030

B,3B,2F,2H..BJ4#,FJ4#,HJ47

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-61061

2F,2H..FJ45,HJ47

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17508-61020

3B,2F,2H..BJ45,FJ45,HJ47

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-61040

3B,2F,2H..BJ45,FJ45,HJ47

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030

3B,2F,2H..BJ45,FJ45,HJ47

 1
17451 - GASKET, EXHAUST PIPE
90917-06024

2F,2H..FJ4#,HJ47

 2
17451 - GASKET, EXHAUST PIPE
90917-06024

2F,2H..FJ4#,HJ47

 2
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-61010

3B..BJ46..EUR;3B,2F,2H..BJ45,FJ43,45,HJ47

 1
Common parts
90179-06007
91511-61035
91611-40816
91611-40820
91611-41025
91611-41035
91615-40830
91651-40814
94110-41000
94180-41000

(8008-8210)B,3B

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17420 17420 17420 17420F 17420F 17420G 17420G 17420S 17420T 17420T 17430 17430 17430F 17430S 17430S 17430T 17451 17451 17451 17551 17551 17552 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9151161035 9151161035 9151161035 9151161035 9151161035 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161160835 9161540830 9161540830 9165540830 9411040800 9411040800 9418041000 9418041000 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-61090

2F..FJ4#

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

B,3B,2F,2H..BJ4#,FJ4#,HJ47

 3
17410B - GASKET, EXHAUST PIPE
90917-06003

2F..FJ4#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-61100

2F..FJ4#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-61040

2F,2H..FJ45,HJ47

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-61040

2F,2H..FJ45,HJ47

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-61040

2F,2H..FJ45,HJ47

 1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17572-61020

2F,2H..FJ45,HJ47

FRAME TO CUSHION

 1
17568-61010

2F,2H..FJ45,HJ47

UPR

 1
17576-61010

2F,2H..FJ45,HJ47

LWR

 1
17420T - CUSHION, EXHAUST PIPE CENTER, REAR
17567-61030

B,3B,2F,2H..BJ4#,FJ4#,HJ47

 1
17420T - CUSHION, EXHAUST PIPE CENTER, REAR
17567-61030

B,3B,2F,2H..BJ4#,FJ4#,HJ47

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-61061

2F,2H..FJ45,HJ47

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-61061

2F,2H..FJ45,HJ47

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17508-61020

3B,2F,2H..BJ45,FJ45,HJ47

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-61040

3B,2F,2H..BJ45,FJ45,HJ47

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-61040

3B,2F,2H..BJ45,FJ45,HJ47

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030

3B,2F,2H..BJ45,FJ45,HJ47

 1
17451 - GASKET, EXHAUST PIPE
90917-06024

2F,2H..FJ4#,HJ47

 2
17451 - GASKET, EXHAUST PIPE
90917-06024

2F,2H..FJ4#,HJ47

 2
17451 - GASKET, EXHAUST PIPE
90917-06024

2F,2H..FJ4#,HJ47

 2
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-61010

3B..BJ46..EUR;3B,2F,2H..BJ45,FJ43,45,HJ47

 1
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-61010

3B..BJ46..EUR;3B,2F,2H..BJ45,FJ43,45,HJ47

 1
Common parts
90179-06007
91511-61035
91611-40820
91611-60835
91615-40830
91655-40830
94110-40800
94180-41000

(8210-8410)B,3B

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17420 17420 17420S 17420T 17420T 17430 17430 17430F 17430S 17430S 17430T 17451 17451 17451 17551 17552 17586 17587 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9151161035 9151161035 9151161035 9151161035 9161140820 9161140820 9161140820 9161140820 9161160835 9161540830 9165140814 9165540830 9411040800 9418041000 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-61090

2F..FJ4#

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

B,3B,2F,2H..BJ4#,FJ4#,HJ47

 3
17410B - GASKET, EXHAUST PIPE
90917-06003

2F..FJ4#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-61100

2F..FJ4#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-61040

2F,2H..FJ45,HJ47

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-61040

2F,2H..FJ45,HJ47

 1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17572-61020

2F,2H..FJ45,HJ47

FRAME TO CUSHION

 1
17568-61010

2F,2H..FJ45,HJ47

UPR

 1
17576-61010

2F,2H..FJ45,HJ47

LWR

 1
17420T - CUSHION, EXHAUST PIPE CENTER, REAR
17567-61030

B,3B,2F,2H..BJ4#,FJ4#,HJ47

 1
17420T - CUSHION, EXHAUST PIPE CENTER, REAR
17567-61030

B,3B,2F,2H..BJ4#,FJ4#,HJ47

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-61061

2F,2H..FJ45,HJ47

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-61061

2F,2H..FJ45,HJ47

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17508-61020

3B,2F,2H..BJ45,FJ45,HJ47

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-61040

3B,2F,2H..BJ45,FJ45,HJ47

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-61040

3B,2F,2H..BJ45,FJ45,HJ47

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030

3B,2F,2H..BJ45,FJ45,HJ47

 1
17451 - GASKET, EXHAUST PIPE
90917-06024

2F,2H..FJ4#,HJ47

 2
17451 - GASKET, EXHAUST PIPE
90917-06024

2F,2H..FJ4#,HJ47

 2
17451 - GASKET, EXHAUST PIPE
90917-06024

2F,2H..FJ4#,HJ47

 2
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-61010

3B..BJ46..EUR;3B,2F,2H..BJ45,FJ43,45,HJ47

 1
Common parts
90179-06007
91511-61035
91611-40820
91611-60835
91615-40830
91651-40814
91655-40830
94110-40800
94180-41000
