FJ45RP-U (1980)
Toyota Land Cruiser
Production
Aug 1980
-
Oct 1982
Engine
2F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )PIC

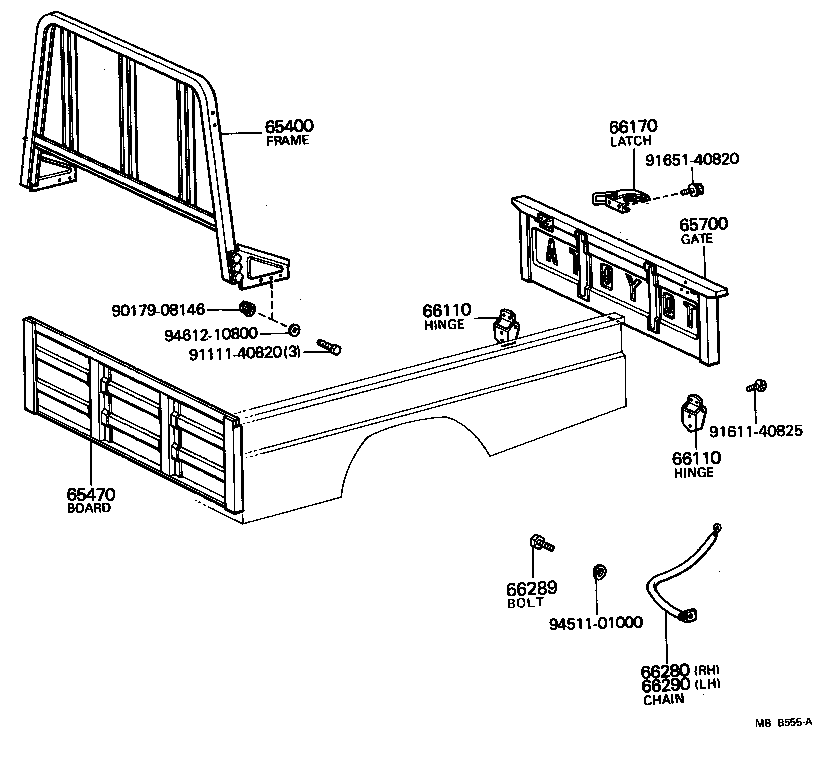

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65400 - FRAME ASSY, REAR BODY GUARD | ||||
| 65410-95016 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 65470 - BOARD ASSY, HEADER | ||||
| 65470-95010 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65700-95019 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 66110 - HINGE ASSY, TAIL GATE | ||||
| 66110-95013 |
BJ45,FJ45,HJ47..PIC |
4 | ||
| 66110 - HINGE ASSY, TAIL GATE | ||||
| 66110-95013 |
BJ45,FJ45,HJ47..PIC |
4 | ||
| 66170 - LATCH ASSY, REAR BODY TAIL GATE | ||||
| 66170-95012 |
BJ45,FJ45,HJ47..PIC |
2 | ||
| 66280 - CHAIN ASSY, TAIL GATE, RH | ||||
| 66280-95110 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| 66289 - BOLT, TAIL GATE CHAIN | ||||
| 66289-95110 |
BJ45,FJ45,HJ47..PIC |
2 | ||
| 66290 - CHAIN ASSY, TAIL GATE, LH | ||||
| 66280-95110 |
BJ45,FJ45,HJ47..PIC |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 91111-40820 | ||||
| 91611-40825 | ||||
| 91651-40820 | ||||
| 94511-01000 | ||||
| 94612-10800 | ||||
(9001-0007)FJ75..LHD..IV ; (9001-0701)PIC..CBU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90150-50005 | ||||
| 93270-18014 | ||||
| Linked diagrams | ||||
| 6552 | ||||
