FJ45RP-KQ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )RHD..PIC

Click highlighted areas on diagram

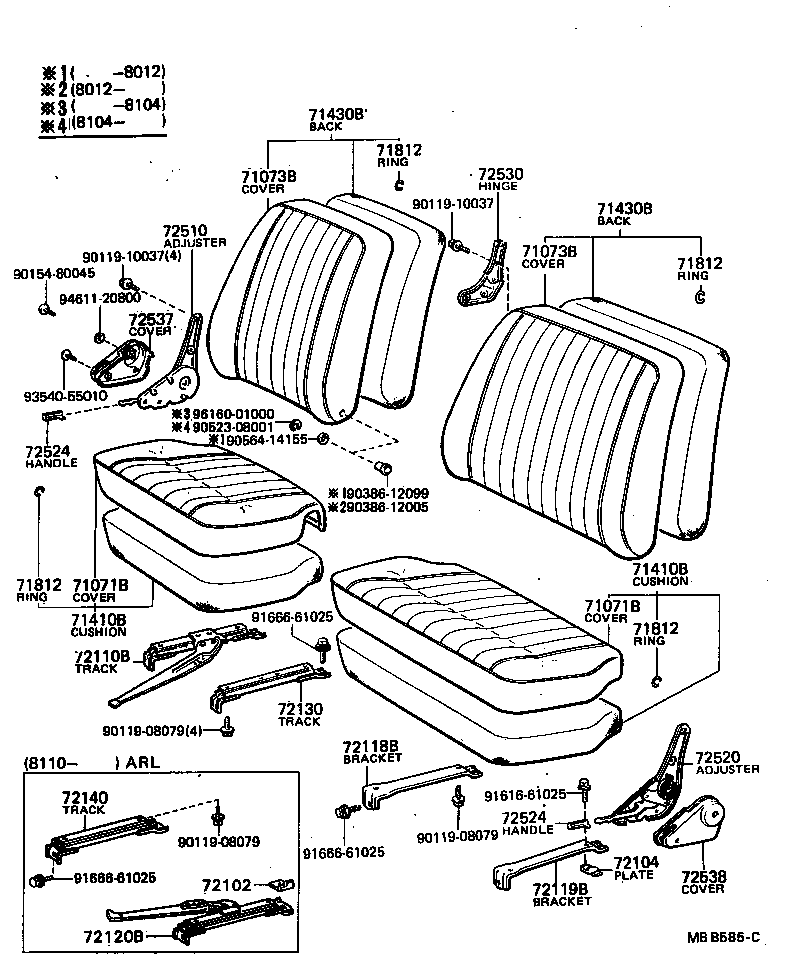

diagram 71071B 71071B 71073B 71073B 71410B 71410B 71430B 71430B 71812 71812 71812 71812 72102 72104 72110B 72118B 72119B 72120B 72130 72140 72510 72520 72524 72524 72530 72537 72538 9011908079 9011908079 9011908079 9011910037 9011910037 9015480045 9038612005 9038612099 9052308001 9056414155 9161661025 9166661025 9166661025 9166661025 9354055010 9461120800 9616001000
Part # Description Qty Price
71071B - COVER, FRONT SEAT CUSHION(FOR BENCH TYPE)
71072-90344

BJ4#,FJ4#,HJ47..RHD

LH

 1
71071-90344

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD

RH

 1
71072-90800

BJ42,FJ40,45,HJ47..ARL

LH

 1
71071B - COVER, FRONT SEAT CUSHION(FOR BENCH TYPE)
71072-90344

BJ4#,FJ4#,HJ47..RHD

LH

 1
71071-90344

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD

RH

 1
71072-90800

BJ42,FJ40,45,HJ47..ARL

LH

 1
71073B - COVER, FRONT SEAT BACK(FOR BENCH TYPE)
71074-90080

BJ45,FJ45,HJ47..RHD..PIC

LH

 1
71073-90080

BJ45,FJ45,HJ47..RHD..PIC

RH

 1
71073B - COVER, FRONT SEAT BACK(FOR BENCH TYPE)
71074-90080

BJ45,FJ45,HJ47..RHD..PIC

LH

 1
71073-90080

BJ45,FJ45,HJ47..RHD..PIC

RH

 1
71410B - CUSHION ASSY, FRONT SEAT(FOR BENCH TYPE)
71410-90081

BJ4#,FJ4#,HJ47..RHD

RH

 1
71460-90081

BJ4#,FJ4#,HJ47..RHD

LH

 1
71420-90807

BJ42,FJ40,45,HJ47..ARL

LH

 1
71410B - CUSHION ASSY, FRONT SEAT(FOR BENCH TYPE)
71410-90081

BJ4#,FJ4#,HJ47..RHD

RH

 1
71460-90081

BJ4#,FJ4#,HJ47..RHD

LH

 1
71420-90807

BJ42,FJ40,45,HJ47..ARL

LH

 1
71430B - BACK ASSY, FRONT SEAT(FOR BENCH TYPE)
71430-90086

BJ45,FJ45,HJ47..RHD..PIC

RH

 1
71470-90086

BJ45,FJ45,HJ47..RHD..PIC

LH

 1
71430B - BACK ASSY, FRONT SEAT(FOR BENCH TYPE)
71430-90086

BJ45,FJ45,HJ47..RHD..PIC

RH

 1
71470-90086

BJ45,FJ45,HJ47..RHD..PIC

LH

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ4#,FJ4#,HJ47

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ4#,FJ4#,HJ47

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ4#,FJ4#,HJ47

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ4#,FJ4#,HJ47

 1
72102 - BRACKET SUB-ASSY, SEAT TRACK, LOWER REAR
72102-90800

FJ45,HJ47..PIC..ARL

 1
72104 - PLATE SUB-ASSY, SEAT TRACK STOPPER
72104-90300

BJ45,FJ45,HJ47..PIC

 1
72110B - TRACK ASSY, SEAT, OUTER RH (FOR BENCH SEAT)
72110-90333

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD

 1
72120B - TRACK ASSY, SEAT, OUTER LH (FOR BENCH SEAT)
72120-90800

BJ42,FJ40,45,HJ47..ARL

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-90333

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD

 1
72140 - TRACK ASSY, LH SEAT, INNER
72140-90800

BJ42,FJ40,45,HJ47..ARL

 1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72530-90300

BJ45,FJ45,HJ47..PIC

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72540-90300

BJ45,FJ45,HJ47..PIC

 1
72524 - HANDLE, RECLINING ADJUSTER RELEASE
72526-1401001

BJ4#,FJ4#,HJ47

LH,BLACK,BLACK

 1
72525-1401001

BJ4#,FJ4#,HJ47

RH,BLACK,BLACK

 1
72524 - HANDLE, RECLINING ADJUSTER RELEASE
72526-1401001

BJ4#,FJ4#,HJ47

LH,BLACK,BLACK

 1
72525-1401001

BJ4#,FJ4#,HJ47

RH,BLACK,BLACK

 1
72530 - HINGE ASSY, PASSENGER SEAT
72580-90300

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD

 1
72537 - COVER, RECLINING HINGE OUTER, RH
71821-90300

BJ4#,FJ4#,HJ47

GRAY

 1
72538 - COVER, RECLINING HINGE OUTER, LH
71822-90300

BJ4#,FJ4#,HJ47

GRAY

 1
Common parts
90119-08079
90119-10037
90154-80045
90386-12005
90386-12099
90523-08001
90564-14155
91616-61025
91666-61025
93540-55010
94611-20800
96160-01000

ILLUST NO. 1 OF 3(9001-9908)LHD..HT,SOT ; (9908-0701)FZJ70,71,73,74,75,HZJ71..LHD..CBU ; (0701-0808)

Click highlighted areas on diagram

BENCH

diagram 71013S 71014S 71071S 71072S 71073S 71074S 71133 71148 7138960040 71396A 71410S 71420S 71430S 71440S 71511S 71512S 71521 71537A 71551S 71552S 71610S 71620S 71705 71706 71811C 71812C 71910A 71931 71931 72053C 72053D 72054A 72054B 72110A 72110A 72110E 72110F 72120 72130A 72130A 72137A 72137A 72137B 72138B 72140A 72157A 72158 72205D 72206B 72210B 72510A 72510B 72510D 72520D 72570B 72580A 73080A 73810A 73847B 74841B 74842B 74843A 74844A 9011908079 9011908079 9011908079 9011908301 9011908301 9011910560 9011910619 9011910708 9011910708 9011910896 9011910896 9011910896 9015940206 9015940269 9015940269 9016740044 9016740044 9016840011 9016840036 9016840049 9020214007 9038612041 9038612051 9038708053 9038908104 9046707032 9046804006 9046804006 9052308001 9056218094 9338315012 9338315012 9338315012 9338315012
Part # Description Qty Price
Common parts
71389-60040
90119-08079
90119-08301
90119-10560
90119-10619
90119-10708
90119-10896
90159-40206
90159-40269
90167-40044
90168-40011
90168-40036
90168-40049
90202-14007
90386-12041
90386-12051
90387-08053
90389-08104
90467-07032
90468-04006
90523-08001
90562-18094
93383-15012

ILLUST NO. 1 OF 3(9001-0701)RHD..PIC

Click highlighted areas on diagram

BENCH

diagram 71013S 71014S 71071S 71072S 71073S 71074S 71133 71148 7138960040 71410S 71420S 71430S 71440S 71511S 71512S 71521 71537A 71551S 71552S 71587 71610S 71620S 71811C 71812C 71910A 71931 71931 72053C 72053D 72054A 72054B 72110A 72120 72130A 72140A 72205D 72206B 72510A 72510B 72510D 72520D 72570B 72580A 73183B 9011908079 9011908301 9011908301 9011910560 9011910560 9011910708 9011910708 9011910896 9011910896 9016740044 9016740044 9016840036 9016840049 9020214007 9038612041 9038612051 9038708053 9038908104 9046707032 9052308001 9054113006 9056218094 9321955016 9321955016 9331215016 9331215016 9338315012 9338315012 9338315012 9338315012
Part # Description Qty Price
Common parts
71389-60040
90119-08079
90119-08301
90119-10560
90119-10708
90119-10896
90167-40044
90168-40036
90168-40049
90202-14007
90386-12041
90386-12051
90387-08053
90389-08104
90467-07032
90523-08001
90541-13006
90562-18094
93219-55016
93312-15016
93383-15012

ILLUST NO. 2 OF 3(9001-0701)FJ70,73,FZJ70,71,73,74,HZJ70,71,73,KZJ70,LJ70,72,PZJ70,73,RJ70 ; (0701-0

Click highlighted areas on diagram

diagram 58048A 71015 71017A 71033 71075B 71077B 71324A 71382A 71611 71651 71651B 71663 71671 71931A 71931A 71955A 71955A 72603 72604 72607 72645 72660A 72660A 72660E 72660E 72665 72666 72690A 72694 78910 78920 78935 78935 78935 78935 78950 79929 8271112120 9010511007 9011910035 9011910037 9011910101 9011910493 9015960108 9016840011 9016840011 9016840011 9018308003 9018308003 9020208039 9020208039 9020208039 9020208039 9020411042 9024908141 9038710069 9038909005 9046708053 9165160620 9331316014 9331616014 9616000600
Part # Description Qty Price
Common parts
82711-12120
90105-11007
90119-10035
90119-10037
90119-10101
90119-10493
90159-60108
90168-40011
90183-08003
90202-08039
90204-11042
90249-08141
90387-10069
90389-09005
90467-08053
91651-60620
93313-16014
93316-16014
96160-00600

ILLUST NO. 2 OF 3(9001-0701)PIC ; (0701-0808)FZJ79

Click highlighted areas on diagram

diagram 71033B 71034A 71034B 71065 71066 71067 71068 71085B 71086B 71088B 71089B 71398A 71398B 71700 71704 71704B 71721 71722 71761A 71761B 71800 79929 79929 7997760040 7997760040 9011908258 9011908300 9011908653 9017908143 9018308003 9018308003 9020208039 9020208039 9020208039 9020208039 9024908141 9024908141 9038708052 9054009060 9331116010 9331116010 9331116010 9453101200 9461310800 9461410800 9616000600 9616000600
Part # Description Qty Price
Common parts
79977-60040
90119-08258
90119-08300
90119-08653
90179-08143
90183-08003
90202-08039
90249-08141
90387-08052
90540-09060
93311-16010
94531-01200
94613-10800
94614-10800
96160-00600

ILLUST NO. 2 OF 3(9001-0701)FJ70,73,FZJ70,71,73,74,HZJ70,71,73,KZJ70,LJ70,72,PZJ70,73,RJ70 ; (0701-0

Click highlighted areas on diagram

diagram 71033B 71034A 71085B 71086B 71088B 71089B 71700 71704 71704B 71710A 71720A 71721 71722 71761A 71761B 71800 7997760040 7997760040 9011908364 9024908141 9024908141 9050820072 9050820072 9616000600 9616000600
Part # Description Qty Price
Common parts
79977-60040
90119-08364
90249-08141
90508-20072
96160-00600
