FJ45R-KJQ (1976)

Toyota Land Cruiser

Production Dec 1976 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

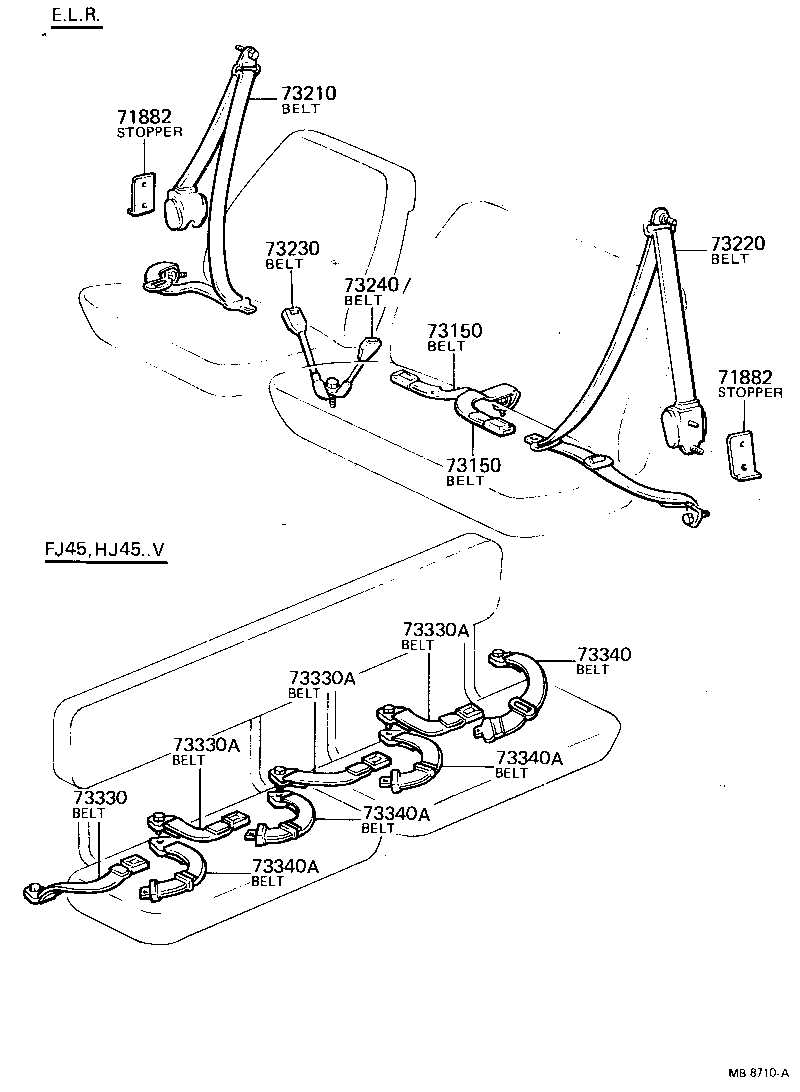

ILLUST NO. 1 OF 2(9001-0701) ; (0701-0808)LX

Click highlighted areas on diagram

FRONT SEAT

diagram 73130 73140 73150 73150 73150 73173 73174 73181C 73181C 73210 73210 73220 73220 73220 73230 73230 73240 73240 73297B 73298B 9046708008 9162140614 9166160616 9354055010 9356054014
Part # Description Qty Price
Common parts
90467-08008
91621-40614
91661-60616
93540-55010
93560-54014

ILLUST NO. 2 OF 2(9001-0701) ; (0701-0808)LX

Click highlighted areas on diagram

REAR SEAT

diagram 73139B 73158 73178A 73219 73298 73299 73320B 73330 73330B 73340 73340B 73350 73350 73350 73350B 73350B 73360 73360 73370 73370 73371A 73371A 73371A 73371A 73380 73380 73390 73390 9010511007 9010511007 9018304046 9020411042 9020411042 9046708008 9354025012 9354055010
Part # Description Qty Price
Common parts
90105-11007
90183-04046
90204-11042
90467-08008
93540-25012
93540-55010

(7901-7909)HJ45..ARL..CBU ; (7901-7909)BJ40,FJ40,45..ARL

Click highlighted areas on diagram

diagram 71882 71882 73150 73150 73210 73220 73230 73240 73330 73330A 73330A 73330A 73340 73340A 73340A 73340A
Part # Description Qty Price
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
71801-90341

HJ45..PIC..ARL;BJ40,FJ40,45..ARL

RH.

 1
71802-90338

HJ45..PIC..ARL;BJ40,FJ40,45..ARL

LH.

 1
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
71801-90341

HJ45..PIC..ARL;BJ40,FJ40,45..ARL

RH.

 1
71802-90338

HJ45..PIC..ARL;BJ40,FJ40,45..ARL

LH.

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
71801-90339

BJ40,FJ40,45..(TP,V)..ARL

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
71801-90340

BJ40,FJ40,45..(TP,V)..ARL

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
71802-90358

BJ40,FJ40,45,HJ45..ARL

 1
71802-90336

HJ45..PIC..ARL;BJ40,FJ40,45..ARL

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
71802-90337

HJ45..PIC..ARL;BJ40,FJ40,45..ARL

 1
71802-90358

BJ40,FJ40,45,HJ45..ARL

 1
