FJ45P-B (1969)

Toyota Land Cruiser

Production Mar 1969 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 19850 19850B 19871 22560 9161160816
Part # Description Qty Price
Common parts
91611-60816

(6903-7501)F

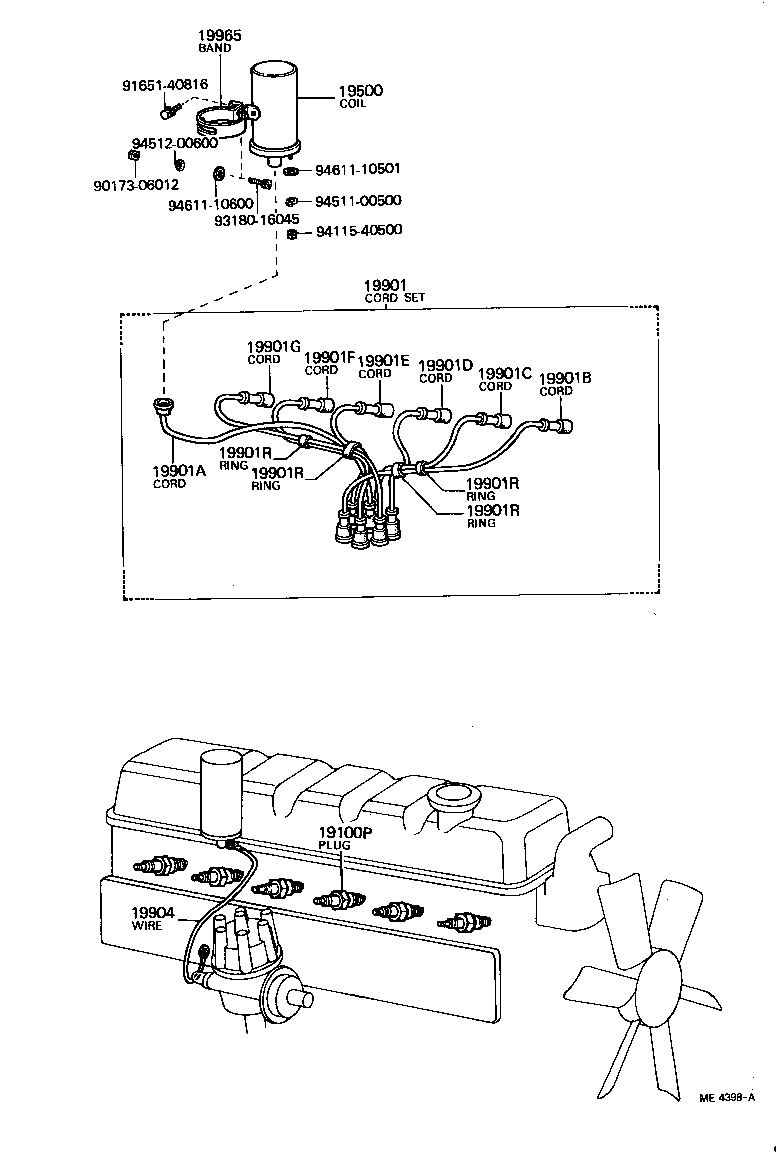

Click highlighted areas on diagram

diagram 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19901R 19901R 19901R 19901R 19904 19965 9017306012 9165140816 9318016045 9411540500 9451100500 9451200600 9461110501 9461110600
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01004

F..FJ4#,55

W17ES

 6
90919-01020

F..FJ4#,55

W14EP

 6
19500 - COIL ASSY, IGNITION
90919-02004

F,2F..FJ4#,55

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
19901-60060

F..FJ4#,55

 1
90919-21017

F..FJ4#,55

 1
19901A - CORD, COIL RESISTIVE
90919-13007

F..FJ4#,55

 1
99231-10570

F..FJ4#

 1
99231-10230

F..FJ4#,55

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12026

F..FJ4#,55

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12029

F..FJ4#,55

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12006

F..FJ4#,55

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12006

F..FJ4#,55

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-12029

F..FJ4#,55

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-12026

F..FJ4#,55

 1
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90562-15001

F,2F..FJ4#,55

T=10.0

 2
90202-11067

F,2F..FJ4#,55

T=4.0

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90562-15001

F,2F..FJ4#,55

T=10.0

 2
90202-11067

F,2F..FJ4#,55

T=4.0

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90562-15001

F,2F..FJ4#,55

T=10.0

 2
90202-11067

F,2F..FJ4#,55

T=4.0

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90562-15001

F,2F..FJ4#,55

T=10.0

 2
90202-11067

F,2F..FJ4#,55

T=4.0

 2
19904 - WIRE SUB-ASSY, DISTRIBUTOR PRIMARY
19904-60010

F..FJ4#,55

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03003

F,2F..FJ4#,55

 1
Common parts
90173-06012
91651-40816
93180-16045
94115-40500
94511-00500
94512-00600
94611-10501
94611-10600
