FJ43L-MC (1983)

Toyota Land Cruiser

Production Sep 1983 - Oct 1984
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 15104 15104C 15104C 15115 15121 15122 15131 15132 15133 15134 15403 15403A 15403B 15403B 15706 15706A 15706B 15706B 9017908123 9017908123 9166160816 9212260832 9212260832 9322016012
Part # Description Qty Price
15121 - GEAR, OIL PUMP DRIVE
15121-88111

2F..FJ4#

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-79410

2F..FJ4#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

2F..FJ4#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

2F..FJ4#

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-24010

2F..FJ4#

 1
Common parts
90179-08123
91661-60816
92122-60832
93220-16012

(9001-9305)2LT ; (9004-9604)3L

Click highlighted areas on diagram

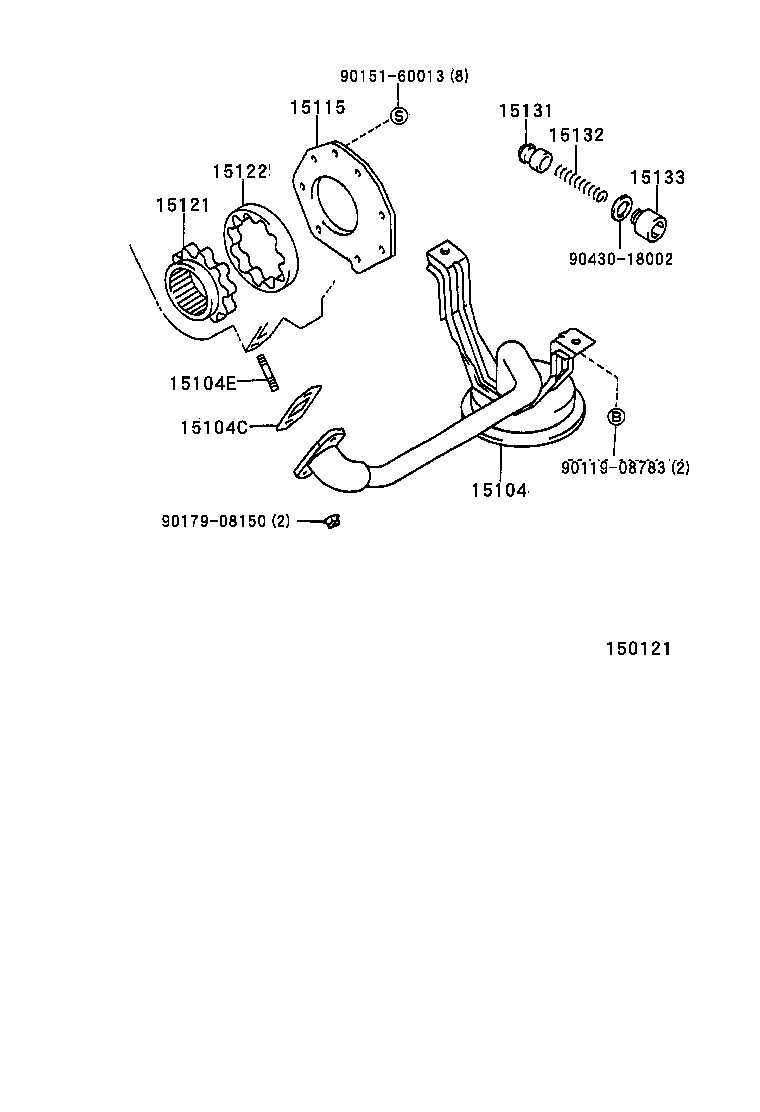

diagram 15104 15104C 15104E 15115 15121 15122 15131 15132 15133 9011908783 9015160013 9017908150 9043018002
Part # Description Qty Price
Common parts
90119-08783
90151-60013
90179-08150
90430-18002
