FJ40R-KCJ (1980)
Toyota Land Cruiser
Production
Aug 1980
-
Oct 1982
Engine
2F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )FJ4#..RHD

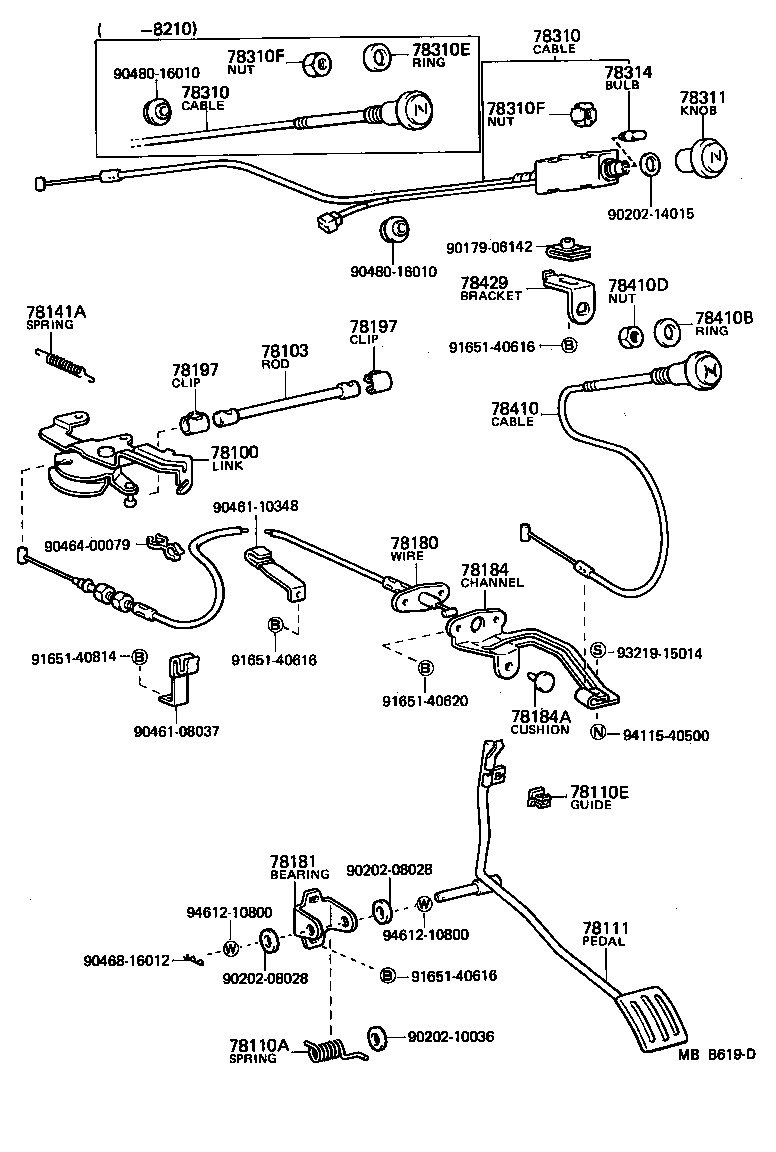

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-90A00 |
FJ4#..RHD;FJ40..TPC..5F |
1 | ||
| 78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1 | ||||
| 78016-90353 |
FJ4#..RHD;FJ40..TPC..5F |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-26125 |
BJ4#;FJ40..TPC..5F;FJ4#,HJ47..RHD |
1 | ||
| 78110E - GUIDE, THROTTLE WIRE | ||||
| 78449-90300 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78101-60030 |
FJ4#..RHD;FJ40..TPC..5F |
1 | ||
| 78101-90300 |
FJ4#..RHD;FJ40..TPC..5F W/THEROTTLE ROD |
1 | ||
| 78141A - SPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING) | ||||
| 90506-10005 |
FJ4#..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-90800 |
FJ4#..RHD;FJ40..TPC..5F |
1 | ||
| 78181 - BEARING, ACCELERATOR PEDAL ROD SUPPORT | ||||
| 78181-60030 |
FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD |
1 | ||
| 78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER | ||||
| 78441-90300 |
FJ4#..RHD;FJ40..TPC..5F W/THROTTLE ROD |
1 | ||
| 78184-60010 |
FJ4#..RHD;FJ40..TPC..5F |
1 | ||
| 78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL) | ||||
| 90541-06008 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-10010 |
FJ4#..RHD;FJ40..TPC..5F |
2 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-10010 |
FJ4#..RHD;FJ40..TPC..5F |
2 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 78310-90800 |
FJ4#..RHD..GEN |
1 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 78310-90800 |
FJ4#..RHD..GEN |
1 | ||
| 78310E - RING, CHOKE | ||||
| 78311-90351 |
FJ4# |
1 | ||
| 78310F - NUT, CHOKE | ||||
| 90170-11002 |
FJ4# |
1 | ||
| 78310F - NUT, CHOKE | ||||
| 90170-11002 |
FJ4# |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-90800 |
BJ4#,FJ4#,HJ47..EUR,GEN |
1 | ||
| 78410B - RING, THROTTLE | ||||
| 78311-90351 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 90170-11002 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 78429 - BRACKET, THROTTLE ROD | ||||
| 78442-90302 |
FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD |
1 | ||
| Common parts | ||||
| 90179-06142 | ||||
| 90202-08028 | ||||
| 90202-10036 | ||||
| 90202-14015 | ||||
| 90461-08037 | ||||
| 90461-10348 | ||||
| 90464-00079 | ||||
| 90468-16012 | ||||
| 90480-16010 | ||||
| 91651-40616 | ||||
| 91651-40620 | ||||
| 91651-40814 | ||||
| 93219-15014 | ||||
| 94115-40500 | ||||
| 94612-10800 | ||||
