FJ40R-KCJ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )TPC

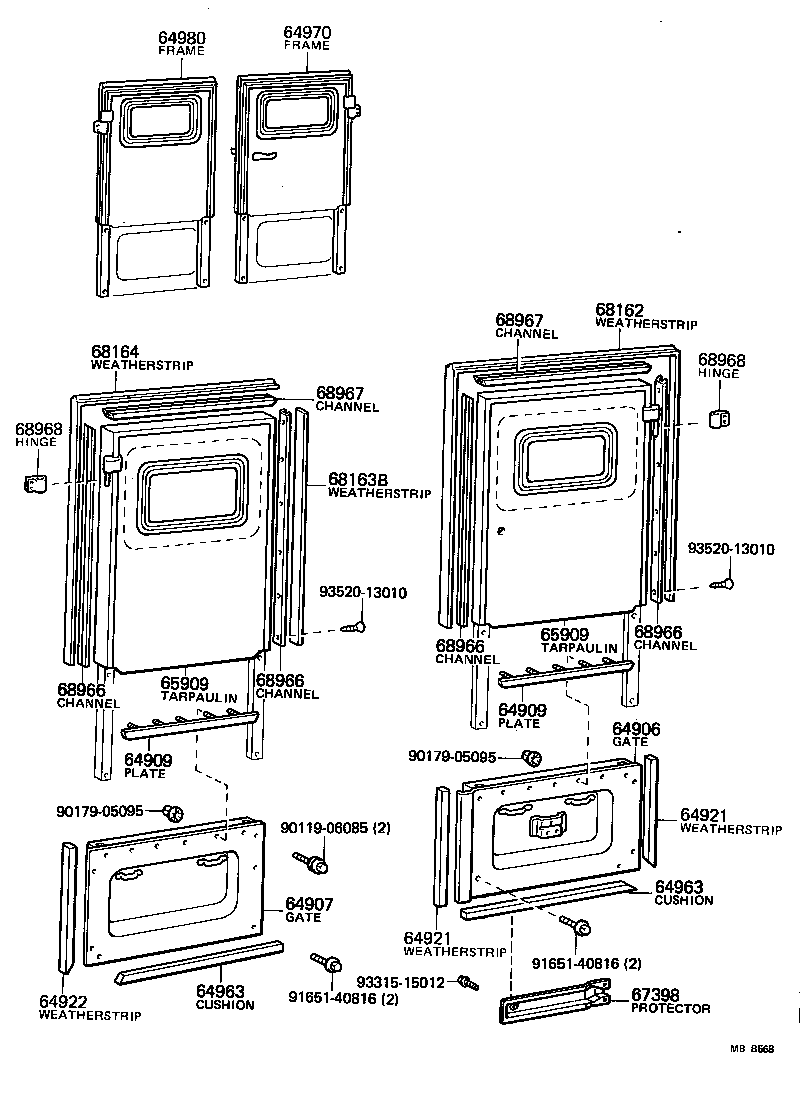

Click highlighted areas on diagram

diagram 64906 64907 64909 64909 64921 64921 64922 64963 64963 64970 64980 65909 65909 67398 68162 68163B 68164 68966 68966 68966 68966 68967 68967 68968 68968 9011906085 9017905095 9017905095 9165140816 9165140816 9331515012 9352013010 9352013010
Part # Description Qty Price
64906 - GATE SUB-ASSY, REAR SWING, RH
67005-90801

BJ40,42,43,46,FJ4#..TPC..GEN

 1
64907 - GATE SUB-ASSY, REAR SWING, LH
64906-90309

BJ40,42,43,46,FJ4#..TPC..GEN

 1
64909 - PLATE SUB-ASSY, REAR SWING DOOR TARPAULIN
64909-90315

BJ40,42,43,46,FJ4#..TPC

 2
64909 - PLATE SUB-ASSY, REAR SWING DOOR TARPAULIN
64909-90315

BJ40,42,43,46,FJ4#..TPC

 2
64921 - WEATHERSTRIP, REAR SWING GATE, RH
64963-90314

BJ40,42,43,46,FJ4#..TPC

 2
64921 - WEATHERSTRIP, REAR SWING GATE, RH
64963-90314

BJ40,42,43,46,FJ4#..TPC

 2
64922 - WEATHERSTRIP, REAR SWING GATE, LH
64963-90314

BJ40,42,43,46,FJ4#..TPC

 1
64963 - CUSHION, REAR SWING GATE, LOWER
64962-90314

BJ40,42,43,46,FJ4#..TPC

 2
64963 - CUSHION, REAR SWING GATE, LOWER
64962-90314

BJ40,42,43,46,FJ4#..TPC

 2
64970 - FRAME ASSY, REAR SWING DOOR, RH
64970-90304

BJ40,42,43,46,FJ4#..TPC..GEN

 1
64980 - FRAME ASSY, REAR SWING DOOR, LH
64980-90303

BJ40,42,43,46,FJ4#..TPC..GEN

 1
65909 - TARPAULIN SUB-ASSY, REAR SWING DOOR
65908-90315

BJ40,42,43,46,FJ4#..TPC

 2
65909 - TARPAULIN SUB-ASSY, REAR SWING DOOR
65908-90315

BJ40,42,43,46,FJ4#..TPC

 2
67398 - PROTECTOR, BACK DOOR HARNESS
67398-90800

BJ40,42,43,46,FJ4#..TPC,VLS

 1
68162 - WEATHERSTRIP, REAR SWING DOOR, RH
68163-90300

BJ40,42,43,46,FJ4#..TPC

 1
68163B - WEATHERSTRIP, REAR SWING DOOR, CENTER
68161-90314

BJ40,42,43,46,FJ4#..TPC

 1
68164 - WEATHERSTRIP, REAR SWING DOOR, LH
68162-90300

BJ40,42,43,46,FJ4#..TPC

 1
68966 - CHANNEL, REAR SWING DOOR, SIDE
68966-90314

BJ40,42,43,46,FJ4#..TPC

 3
68966 - CHANNEL, REAR SWING DOOR, SIDE
68966-90314

BJ40,42,43,46,FJ4#..TPC

 3
68966 - CHANNEL, REAR SWING DOOR, SIDE
68966-90314

BJ40,42,43,46,FJ4#..TPC

 3
68966 - CHANNEL, REAR SWING DOOR, SIDE
68966-90314

BJ40,42,43,46,FJ4#..TPC

 3
68967 - CHANNEL, REAR SWING DOOR, UPPER
68967-90314

BJ40,42,43,46,FJ4#..TPC

 2
68967 - CHANNEL, REAR SWING DOOR, UPPER
68967-90314

BJ40,42,43,46,FJ4#..TPC

 2
68968 - HINGE ASSY, BACK DOOR, UPPER
68908-90314

BJ40,42,43,46,FJ4#..TPC

LH

 1
68907-90314

BJ40,42,43,46,FJ4#..TPC

RH

 1
68968 - HINGE ASSY, BACK DOOR, UPPER
68908-90314

BJ40,42,43,46,FJ4#..TPC

LH

 1
68907-90314

BJ40,42,43,46,FJ4#..TPC

RH

 1
Common parts
90119-06085
90179-05095
91651-40816
93315-15012
93520-13010
