FJ40L-U (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

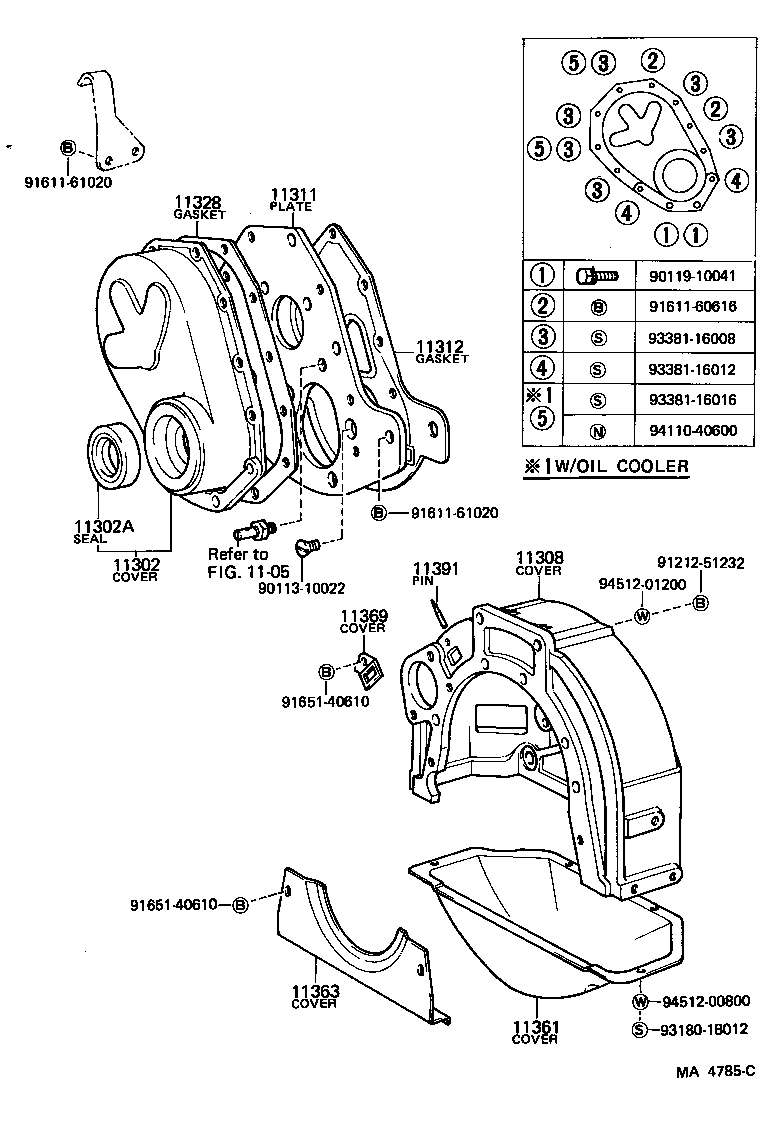

(8008-8210)2F..3F

Click highlighted areas on diagram

diagram 1105 11302 11302A 11308 11311 11312 11328 11361 11363 11369 11391 9011310022 9011910041 9121251232 9161160616 9161161020 9161161020 9165140610 9165140610 9318018012 9338116008 9338116012 9338116016 9411040600 9451200800 9451201200
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-61020

2F..FJ4#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45069

2F..FJ4#

 1
11308 - COVER SUB-ASSY, FLYWHEEL HOUSING
31111-60090

2F..FJ4#..3F

 1
11311 - PLATE, FRONT END
11311-61010

2F..FJ4#

 1
11312 - GASKET, FRONT END PLATE
11312-61010

2F..FJ4#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-60010

2F..FJ4#

 1
11361 - COVER, FLYWHEEL HOUSING UNDER
11361-60070

2F..FJ4#..3F

 1
11363 - COVER, FLYWHEEL SIDE
11363-60010

2F..FJ4#..3F

 1
11369 - COVER, FLYWHEEL HOUSING FRONT
11369-60011

2F..FJ4#

 1
11391 - POINTER, TIMING
11391-60010

2F..FJ4#

 1
Common parts
90113-10022
90119-10041
91212-51232
91611-60616
91611-61020
91651-40610
93180-18012
93381-16008
93381-16012
93381-16016
94110-40600
94512-00800
94512-01200
Linked diagrams
1105

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 11301 11301A 11301B 11302 11302A 11312 11328 11345 11355 11381 11381A 11383 11391 1501 9161160814 9161160825 9161161016 9161161016
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-61020

2F..FJ4#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45069

2F..FJ4#

 1
11312 - GASKET, FRONT END PLATE
11312-61010

2F..FJ4#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-60010

2F..FJ4#

 1
11391 - POINTER, TIMING
11391-60010

2F..FJ4#

 1
Common parts
91611-60814
91611-60825
91611-61016
Linked diagrams
1501

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 9011908145 9011910073 9011910073 9161160825 9161160835 9161161060
Part # Description Qty Price
Common parts
90119-08145
90119-10073
91611-60825
91611-60835
91611-61060

(8008-8210)2F..4F ; (8210- )2F

Click highlighted areas on diagram

diagram 1105 11302 11302A 11308 11311 11312 11328 11361 11361A 11361B 11361C 11361D 11361D 11361E 11361E 11361F 11361G 11361H 11361K 11369 11391 9011310022 9011910041 9014910001 9017906158 9121251232 9161161020 9161161020 9161540816 9165140610 9338116008 9338116016 9338126014 9451201200
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-61020

2F..FJ4#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45069

2F..FJ4#

 1
11308 - COVER SUB-ASSY, FLYWHEEL HOUSING
31111-60090

2F..FJ4#..3F

 1
11311 - PLATE, FRONT END
11311-61010

2F..FJ4#

 1
11312 - GASKET, FRONT END PLATE
11312-61010

2F..FJ4#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-60010

2F..FJ4#

 1
11361 - COVER, FLYWHEEL HOUSING UNDER
11361-60070

2F..FJ4#..3F

 1
11369 - COVER, FLYWHEEL HOUSING FRONT
11369-60011

2F..FJ4#

 1
11391 - POINTER, TIMING
11391-60010

2F..FJ4#

 1
Common parts
90113-10022
90119-10041
90149-10001
90179-06158
91212-51232
91611-61020
91615-40816
91651-40610
93381-16008
93381-16016
93381-26014
94512-01200
Linked diagrams
1105

(9001-9208)3F

Click highlighted areas on diagram

diagram 04317 1105 11302 11302A 11311 11312 11328 11369 11391 31104 31104A 31111D 31131A 31132 31133 31134A 31134B 31135A 31135B 31136 31137 9011910041 9011912118 9014910001 9014960081 9014960082 9161161020 9161161020 9161560816 9165140610
Part # Description Qty Price
Common parts
90119-10041
90119-12118
90149-10001
90149-60081
90149-60082
91611-61020
91615-60816
91651-40610
Linked diagrams
1105
