FJ40L-KCJ (1980)
Toyota Land Cruiser
(8008-8210)FJ40,43 ; (8210- )FJ40,45..ARL,EUR; (8301-8506)FJ45..RHD..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-30340 |
FJ40,43 TANDEM BOOSTER |
1 | ||
| 44606-35100 |
BJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN SINGLE BOOSTER |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-60160 |
FJ45;FJ40,43..ARL,GEN FR DRUM BRAKE,SINGLE BOOSTER |
1 | ||
| 44610-60170 |
FJ40,43 FR DRUM BRAKE,TANDEM BOOSTER |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-60120 |
FJ45;FJ40,43..ARL,GEN FR DRUM BRAKE,SINGLE BOOSTER |
1 | ||
| 04443-60130 |
FJ40,43 FR DRUM BRAKE,TANDEM BOOSTER |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-60010 |
BJ45,FJ40,45;BJ40,42,43,46,FJ43,HJ47..ARL,GEN |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-30340 |
FJ40,43 TANDEM BOOSTER |
1 | ||
| 44642-14170 |
BJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN SINGLE BOOSTER |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-60010 |
BJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN SINGLE BOOSTER |
1 | ||
| 44643-30340 |
FJ40,43 TANDEM BOOSTER |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44626-60010 |
FJ40,43 |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-30340 |
FJ40,43 |
1 | ||
| 44666 - CASE, REACTION DISC | ||||
| 44657-60090 |
FJ40,43 |
1 | ||
| 44671 - BODY SUB-ASSY, NO.3 | ||||
| 44607-30340 |
FJ40,43 |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
BJ45,FJ40,45;BJ40,42,43,46,FJ43,HJ47..ARL,GEN AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22070 |
BJ45,FJ40,45;BJ40,42,43,46,FJ43,HJ47..ARL,GEN AISIN |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
(8008- )FJ4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

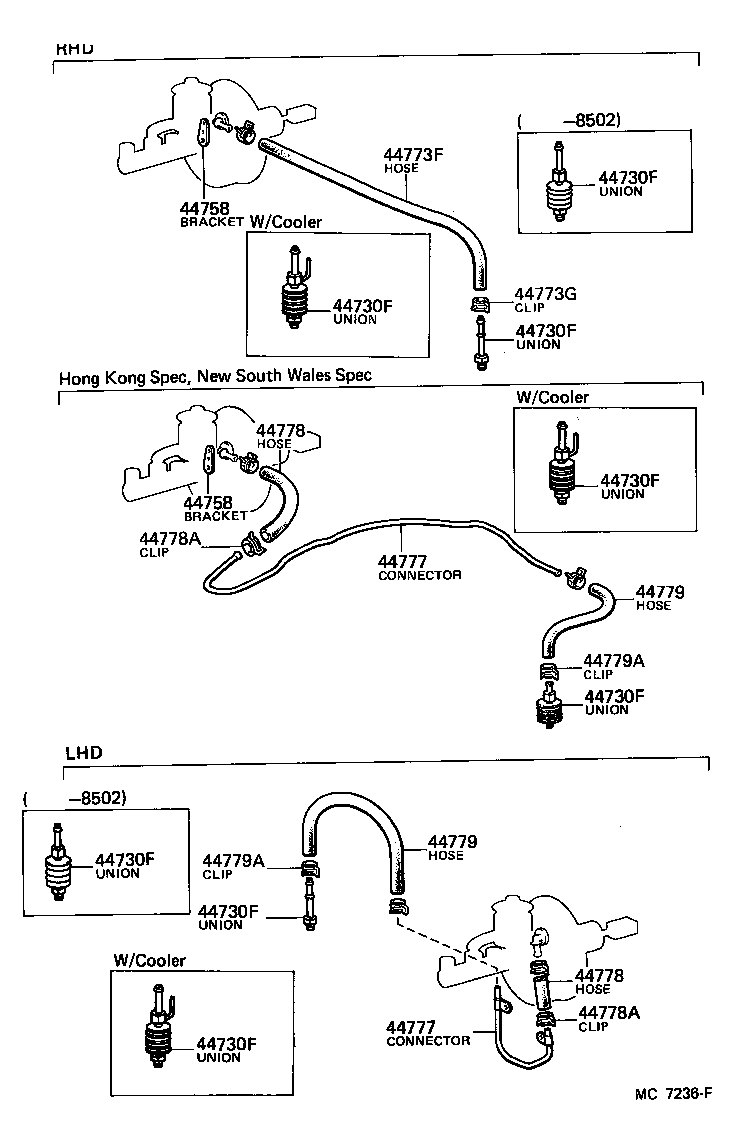

| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51037 |
FJ4# |
1 | ||
| 90404-51038 |
FJ4# W/AIR CONDITIONER |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51037 |
FJ4# |
1 | ||
| 90404-51038 |
FJ4# W/AIR CONDITIONER |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51037 |
FJ4# |
1 | ||
| 90404-51038 |
FJ4# W/AIR CONDITIONER |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51037 |
FJ4# |
1 | ||
| 90404-51038 |
FJ4# W/AIR CONDITIONER |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51037 |
FJ4# |
1 | ||
| 90404-51038 |
FJ4# W/AIR CONDITIONER |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51037 |
FJ4# |
1 | ||
| 90404-51038 |
FJ4# W/AIR CONDITIONER |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51037 |
FJ4# |
1 | ||
| 90404-51038 |
FJ4# W/AIR CONDITIONER |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51037 |
FJ4# |
1 | ||
| 90404-51038 |
FJ4# W/AIR CONDITIONER |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44763-60020 |
FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44763-60020 |
FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 90445-17044 |
FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 90445-17044 |
FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F |
1 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16141 |
FJ4#..LHD |
2 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16141 |
FJ4#..LHD |
2 | ||
| 44779 - HOSE, UNION TO CONNECTOR | ||||
| 44773-22020 |
FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F |
1 | ||
| 44779 - HOSE, UNION TO CONNECTOR | ||||
| 44773-22020 |
FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F |
1 | ||
| 44779A - CLIP(FOR UNION TO CONNECTOR HOSE) | ||||
| 90467-16141 |
FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F |
2 | ||
| 44779A - CLIP(FOR UNION TO CONNECTOR HOSE) | ||||
| 90467-16141 |
FJ43,45..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F |
2 | ||
(8008-8210)ARL,GEN ; (8210- )GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-30340 |
FJ40,43 TANDEM BOOSTER |
1 | ||
| 44606-35100 |
BJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN SINGLE BOOSTER |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-60160 |
FJ45;FJ40,43..ARL,GEN FR DRUM BRAKE,SINGLE BOOSTER |
1 | ||
| 44610-60170 |
FJ40,43 FR DRUM BRAKE,TANDEM BOOSTER |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-60120 |
FJ45;FJ40,43..ARL,GEN FR DRUM BRAKE,SINGLE BOOSTER |
1 | ||
| 04443-60130 |
FJ40,43 FR DRUM BRAKE,TANDEM BOOSTER |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
BJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-60010 |
BJ45,FJ40,45;BJ40,42,43,46,FJ43,HJ47..ARL,GEN |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-30340 |
FJ40,43 TANDEM BOOSTER |
1 | ||
| 44642-14170 |
BJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN SINGLE BOOSTER |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-60010 |
BJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN SINGLE BOOSTER |
1 | ||
| 44643-30340 |
FJ40,43 TANDEM BOOSTER |
1 | ||
| 44647 - RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER) | ||||
| 44629-30090 |
BJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
BJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN SINGLE BOOSTER |
1 | ||
| 44657B - WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 44645-20100 |
BJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN |
1 | ||
| 44662 - RETAINER, REACTION, NO.1 | ||||
| 44662-35100 |
BJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN |
1 | ||
| 44662B - LEVER, REACTION | ||||
| 44661-35100 |
BJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN |
1 | ||
| 44662C - PLATE, REACTION, NO.1 | ||||
| 44607-27050 |
BJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN FR DRUM BRAKE |
1 | ||
| 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER | ||||
| 44669-60010 |
BJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN |
1 | ||
| 44683 - CONNECTOR, BOOSTER BODY | ||||
| 44682-20150 |
BJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN |
1 | ||
| 44683A - LOCK, CONNECTOR | ||||
| 44683-20100 |
BJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
BJ45,FJ40,45;BJ40,42,43,46,FJ43,HJ47..ARL,GEN AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22070 |
BJ45,FJ40,45;BJ40,42,43,46,FJ43,HJ47..ARL,GEN AISIN |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 93319-14008 | ||||
