FJ40L-B (1969)

Toyota Land Cruiser

Production Mar 1969 - Aug 1974
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-7309)

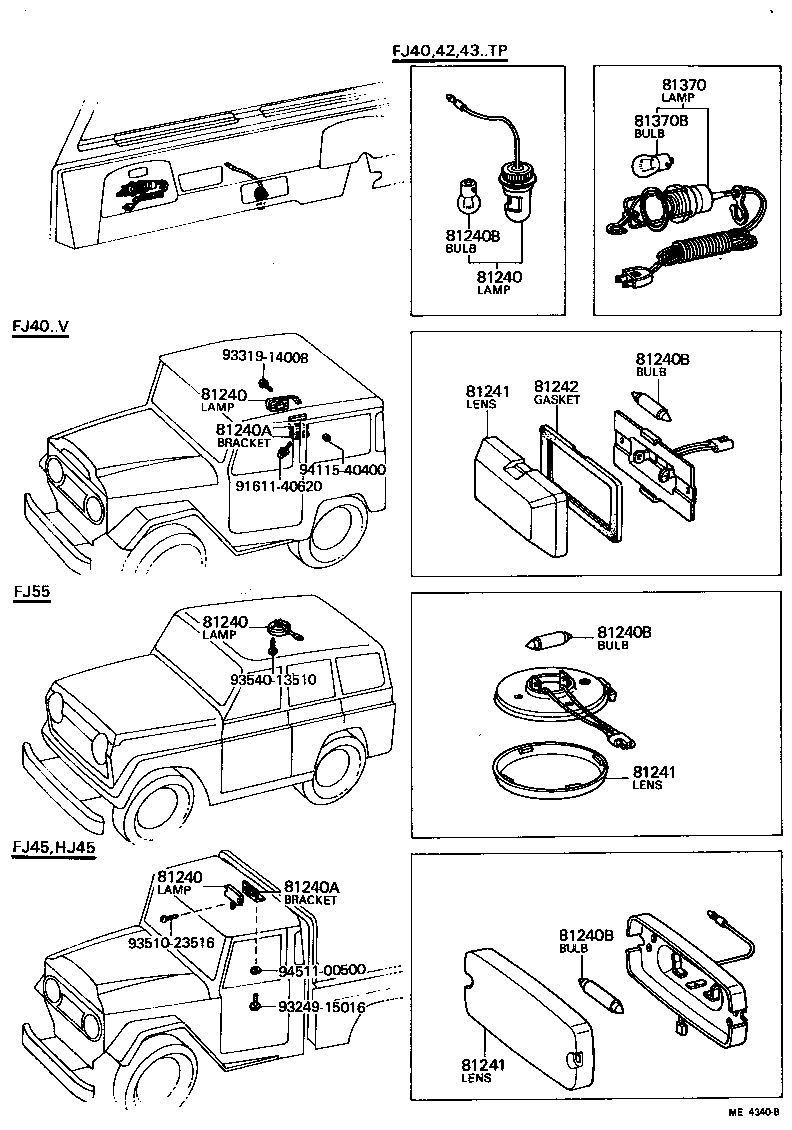

Click highlighted areas on diagram

diagram 81240 81240 81240 81240 81240A 81240A 81240B 81240B 81240B 81240B 81241 81241 81241 81242 81370 81370B 9161140620 9324915016 9331914008 9351023516 9354013510 9411540400 9451100500
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81230-60011

FJ40,42,43..TP

 1
81240 - LAMP ASSY, ROOM, NO.1
81230-60011

FJ40,42,43..TP

 1
81240 - LAMP ASSY, ROOM, NO.1
81230-60011

FJ40,42,43..TP

 1
81240 - LAMP ASSY, ROOM, NO.1
81230-60011

FJ40,42,43..TP

 1
81240B - BULB, ROOM LAMP, NO.1
99132-11075

FJ40,42,43..TP

12V 7.5W,12V 7.5W

 1
81240B - BULB, ROOM LAMP, NO.1
99132-11075

FJ40,42,43..TP

12V 7.5W,12V 7.5W

 1
81240B - BULB, ROOM LAMP, NO.1
99132-11075

FJ40,42,43..TP

12V 7.5W,12V 7.5W

 1
81240B - BULB, ROOM LAMP, NO.1
99132-11075

FJ40,42,43..TP

12V 7.5W,12V 7.5W

 1
81370 - LAMP ASSY, INSPECTION
81370-60010

FJ4#,55,HJ45

 1
81370B - BULB, INSPECTION LAMP
90981-12003

FJ4#,55

12V 24W

 1
Common parts
91611-40620
93249-15016
93319-14008
93510-23516
93540-13510
94115-40400
94511-00500
