FJ40-B (1969)

Toyota Land Cruiser

Production Mar 1969 - Aug 1974
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001-0701)FJ7#,FZJ70,73,74,75,HDJ7#,HJ75,HZJ7#,KZJ7#,LJ7#,PZJ7#,RJ7# ; (9001-0808)

Click highlighted areas on diagram

diagram 51900 51900 51900 51900C 51903B 51903B 51903B 51904 51906B 51907D 51908 51911 51911 51911 51923A 51933A 51933A 51933C 51937B 51938F 51938F 51941A 51944 51959 51976 51998 64771 9011908701 9011908701 9011908867 9011908A78 9011910769 9017914064 9020112061 9038638004 9091007022 9161160820 9161160820 9323915014 9413061200
Part # Description Qty Price
Common parts
90119-08701
90119-08867
90119-08A78
90119-10769
90179-14064
90201-12061
90386-38004
90910-07022
91611-60820
93239-15014
94130-61200

(9001-0701)FZJ79..CBU ; (9001-0701)FZJ79..ARL ;(9001-0701)FZJ71,78..GCC ; (9001-07

Click highlighted areas on diagram

diagram 51900 51900 51900 51900C 51903B 51903B 51903B 51904 51906B 51907D 51908 51911 51911 51911 51923A 51933A 51933A 51933C 51937B 51938F 51938F 51941A 51944 51959 51976 51998 64771 9011908701 9011908701 9011908867 9011908A78 9011910769 9017914064 9020112061 9038638004 9091007022 9161160820 9161160820 9323915014 9413061200
Part # Description Qty Price
Common parts
90119-08701
90119-08867
90119-08A78
90119-10769
90179-14064
90201-12061
90386-38004
90910-07022
91611-60820
93239-15014
94130-61200

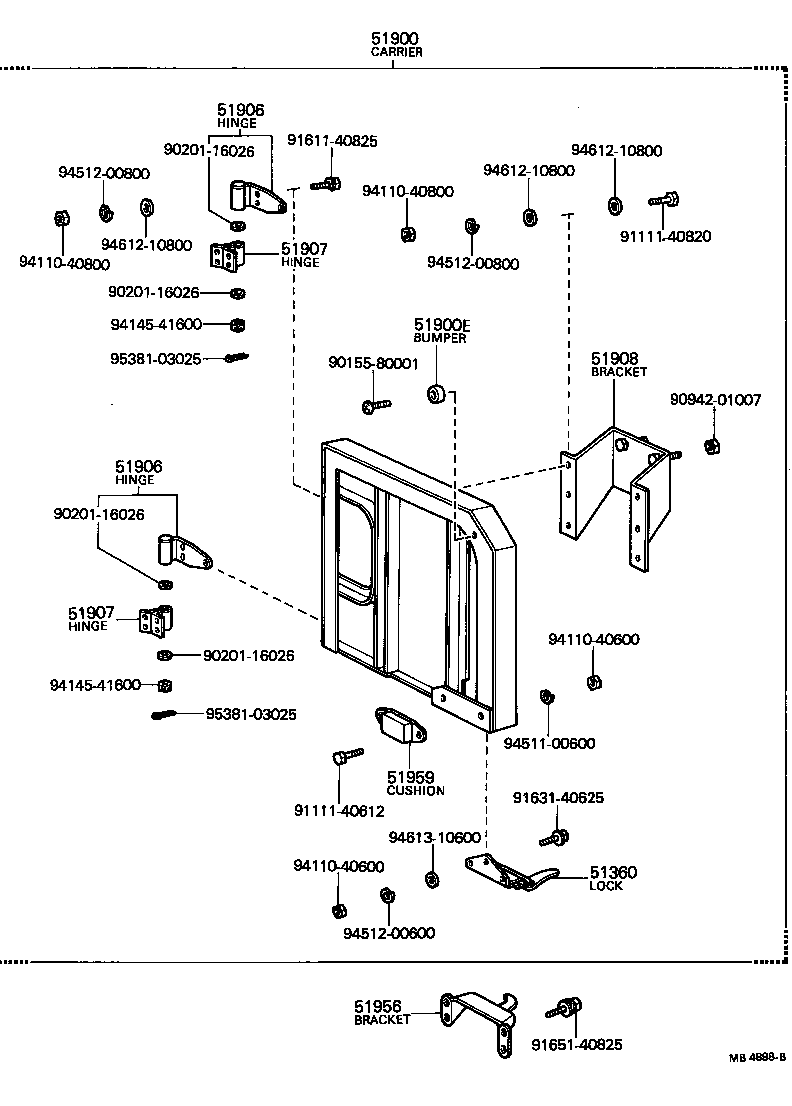

(6903-7109)FJ40,42,43

Click highlighted areas on diagram

diagram 51360 51900 51900E 51906 51906 51907 51907 51908 51956 51959 9015580001 9020116026 9020116026 9020116026 9020116026 9094201007 9111140612 9111140820 9161140825 9163140625 9165140825 9411040600 9411040600 9411040800 9411040800 9414541600 9414541600 9451100600 9451200600 9451200800 9451200800 9461210800 9461210800 9461210800 9461310600 9538103025 9538103025
Part # Description Qty Price
51360 - LOCK ASSY, SPARE WHEEL
69360-60010

BJ4#,FJ40,43..RHD

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-60060

FJ40,43..RHD..(TPB,TPC,VLS)

 1
51900E - BUMPER, SPARE WHEEL CARRIER
53382-20011

FJ40,42,43

 1
53381-30010

FJ40,42,43

 1
51906 - HINGE SUB-ASSY, SPARE WHEEL CARRIER MALE
51906-60010

FJ40,43..RHD

 2
51906 - HINGE SUB-ASSY, SPARE WHEEL CARRIER MALE
51906-60010

FJ40,43..RHD

 2
51907 - HINGE SUB-ASSY, SPARE WHEEL CARRIER
51907-60030

FJ40,42,43

 2
51907 - HINGE SUB-ASSY, SPARE WHEEL CARRIER
51907-60030

FJ40,42,43

 2
51908 - BRACKET SUB-ASSY, SPARE WHEEL CARRIER
51904-60010

BJ4#,FJ40,42,43

 1
51956 - BRACKET, SPARE WHEEL CARRIER SUPPORT
51955-60010

BJ4#,FJ40,43..RHD

 1
51959 - CUSHION, SPARE WHEEL
51907-60010

FJ40,43..TPB,TPC,VLS

 1
Common parts
90155-80001
90201-16026
90942-01007
91111-40612
91111-40820
91611-40825
91631-40625
91651-40825
94110-40600
94110-40800
94145-41600
94511-00600
94512-00600
94512-00800
94612-10800
94613-10600
95381-03025
