FJ40-B (1969)

Toyota Land Cruiser

Production Mar 1969 - Aug 1974
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-7209)FJ4#,HJ45

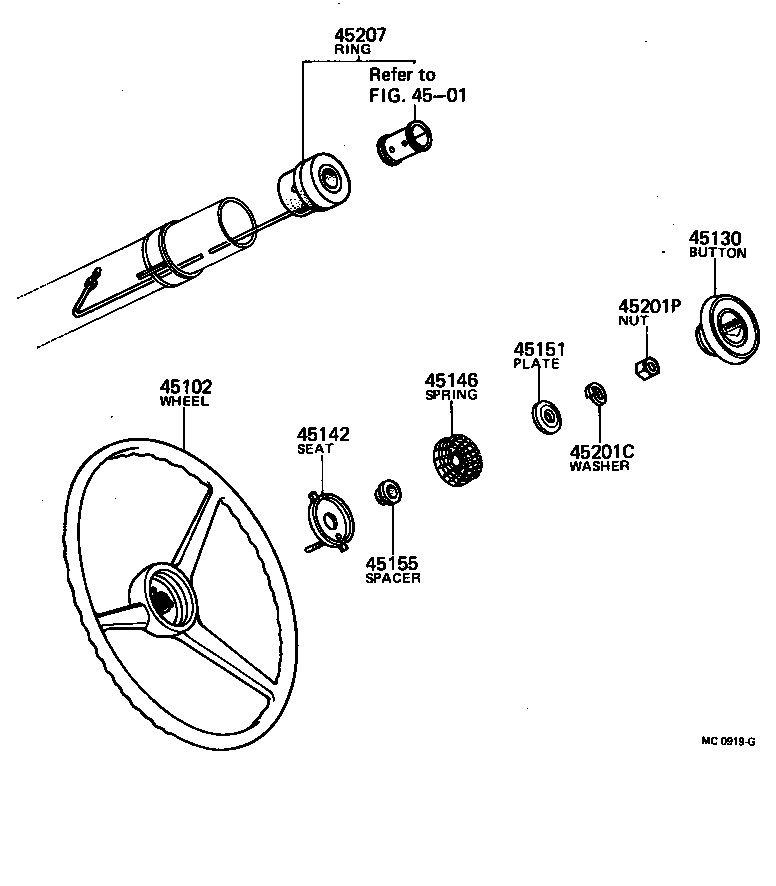

Click highlighted areas on diagram

diagram 4501 45102 45130 45142 45146 45151 45155 45201C 45201P 45207
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45100-60020

FJ40,43,45..RHD

SPLINE N=36

 1
45100-60021

FJ40,43,45,HJ45..RHD

SPLINE N=33

 1
45130 - BUTTON ASSY, HORN
45130-60010

FJ4#,HJ45

 1
45142 - SEAT, HORN BUTTON CONTACT, NO.1
45109-60010

FJ4#,HJ45

 1
45146 - SPRING, HORN BUTTON CONTACT
45146-60010

FJ4#

 1
45146-60011

FJ4#,HJ45

 1
45146-60021

FJ4#,55,HJ45

 3
45151 - PLATE,HORN CONTACT SPRING SET
45151-60011

FJ4#,HJ45

 1
45151-60010

FJ4#

 1
45155 - SPACER, HORN BUTTON CONTACT PLATE
45155-60010

FJ4#,HJ45

 1
45201C - WASHER, SPRING(FOR STEERING WHEEL SET)
90204-13012

FJ4#,55

 1
45201P - NUT, STEERING WHEEL SET
94120-41300

FJ4#,55

 1
45207 - RING, HORN CONTACT
45206-60010

FJ4#,HJ45

 1
45017-60011

FJ4#,55,HJ45

 1
Linked diagrams
4501
