BJ75RV-KR (1984)
Toyota Land Cruiser

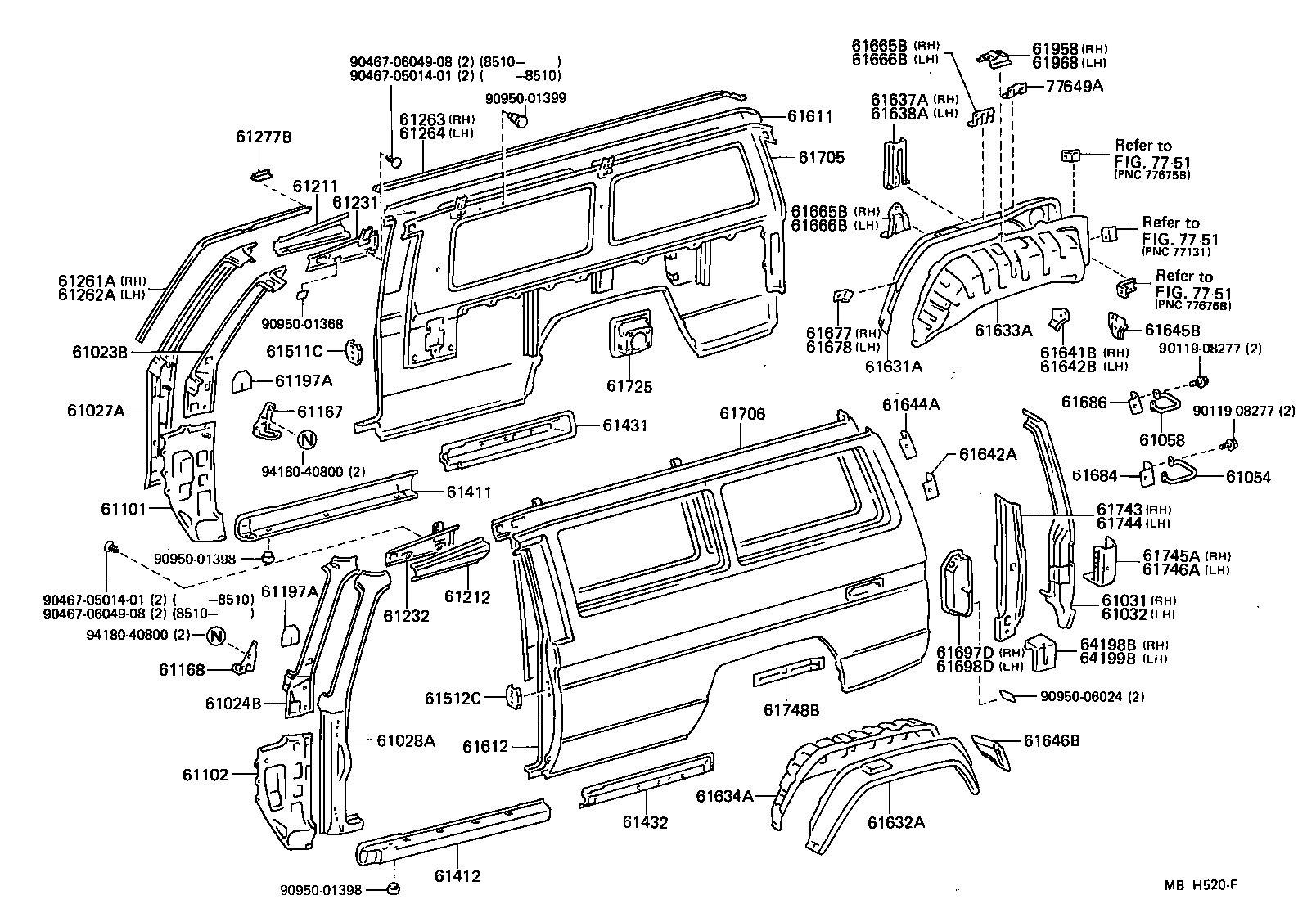

ILLUST NO. 1 OF 2(8411- )BJ75,FJ75,HJ75..HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-90K05 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..RHD..HT |
1 | ||
| 61023-90K02 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..HT |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-90K02 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..RHD..HT |
1 | ||
| 61024-90K02 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..HT |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-90K04 |
BJ70,75,FJ70,75,HJ75..HT..MTM W/SNORKEL |
1 | ||
| 61027-90K00 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..HT |
1 | ||
| 61027-90K04 |
BJ70,75,FJ70,75,HJ75..HT..MTM W/SNORKEL |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-90K00 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..HT |
1 | ||
| 61031 - EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER RH | ||||
| 61031-90K04 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61032 - EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH | ||||
| 61032-90K05 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61054 - STEP SUB-ASSY, QUARTER PANEL, NO.1 LH | ||||
| 61054-90K03 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 61054-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 61058 - STEP SUB-ASSY, QUARTER PANEL, NO.2 LH | ||||
| 61058-90K03 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 61058-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 61101-90K04 |
BJ7#,FJ7#,HJ75..RHD..MTM..(ARL,GEN) W/SNORKEL |
1 | ||
| 61101-90K04 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD W/O RADIO,SNORKEL |
1 | ||
| 61101-90K01 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD W/RADIO,W/O SNORKEL |
1 | ||
| 61101-90K16 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/SNORKEL |
1 | ||
| 61101-90K17 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD..(ARL,GEN) W/O RADIO,SNORKEL |
1 | ||
| 61101-90K04 |
BJ7#,FJ7#,HJ75..RHD W/SNORKEL |
1 | ||
| 61101-90K16 |
BJ70,73,75,FJ70,75,HJ75,LJ70,RJ70..RHD..STD W/O RADIO,SNORKEL |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 61102-90K10 |
BJ7#,FJ7#,HJ75..RHD W/SNORKEL,RADIO |
1 | ||
| 61102-90K10 |
BJ7#,FJ7#,HJ75..RHD..MTM..(ARL,GEN) W/SNORKEL,RADIO |
1 | ||
| 61102-90K17 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD |
1 | ||
| 61102-90K21 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) W/SNORKEL,RADIO |
1 | ||
| 61102-90K06 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD W/EXTINGUISHER |
1 | ||
| 61167 - BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH | ||||
| 61165-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 61165-90K01 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 61168 - BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61166-90K01 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 61166-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 61197A - COVER, FRONT PILLAR, RH | ||||
| 61197-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
3 | ||
| 61197A - COVER, FRONT PILLAR, RH | ||||
| 61197-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
3 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-90K03 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-90K03 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61203-90K01 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61204-90K01 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61261A - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61263-90K02 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61263-90K05 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61262A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61264-90K05 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61264-90K02 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61263 - CHANNEL, ROOF DRIP, REAR RH | ||||
| 61267-90K02 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61264 - CHANNEL, ROOF DRIP, REAR LH | ||||
| 61268-90K02 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61277B - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-90K00 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..HT..(ARL,GEN) |
4 | ||
| 61277-90K00 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..HT |
4 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-90K01 |
BJ75,FJ75,HJ75 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-90K01 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61431 - PANEL, ROCKER, OUTER REAR RH | ||||
| 61431-90K00 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61432 - PANEL, ROCKER, OUTER REAR LH | ||||
| 61432-90K00 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61511C - REINFORCEMENT, QUARTER LOCK PILLAR, RH | ||||
| 61503-20030 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT |
1 | ||
| 61512C - REINFORCEMENT, QUARTER LOCK PILLAR, LH | ||||
| 61503-20030 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-90K10 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61611-90K05 |
BJ75,FJ75,HJ75..HT W/FULL SUB TANK |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-90K11 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-90K01 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-90K01 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT |
1 | ||
| 61637A - BRACE, QUARTER PANEL, RH | ||||
| 61637-90K00 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61638A - BRACE, QUARTER PANEL, LH | ||||
| 61638-90K00 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61641B - GUSSET, QUARTER WHEEL HOUSE, RH | ||||
| 61641-90K00 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61642A - RETAINER, QUARTER PANEL STEP, NO.1 LH | ||||
| 61642-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 61642B - GUSSET, QUARTER WHEEL HOUSE, LH | ||||
| 61642-90K02 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61644A - RETAINER, QUARTER PANEL STEP, NO.2 LH | ||||
| 61644-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT |
1 | ||
| 61665B - REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, | ||||
| 61665-90K00 |
BJ75,FJ75,HJ75..HT..(ARL,GEN) W/*FFRS |
1 | ||
| 61665B - REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, | ||||
| 61665-90K00 |
BJ75,FJ75,HJ75..HT..(ARL,GEN) W/*FFRS |
1 | ||
| 61666B - REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, | ||||
| 61666-90K00 |
BJ75,FJ75,HJ75..HT..(ARL,GEN) W/*FFRS |
1 | ||
| 61666B - REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, | ||||
| 61666-90K00 |
BJ75,FJ75,HJ75..HT..(ARL,GEN) W/*FFRS |
1 | ||
| 61677 - REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER RH | ||||
| 61677-90K04 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61677-90K00 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61678 - REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER LH | ||||
| 61678-90K05 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61678-90K00 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61684 - ORNAMENT, QUARTER PANEL STEP, NO.1 LH | ||||
| 61684-90K01 |
BJ75,FJ75,HJ75..HT..(GEN,ME) |
1 | ||
| 61697D - HOUSING, QUARTER PANEL END, RH | ||||
| 61065-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT |
1 | ||
| 61698D - HOUSING, QUARTER PANEL END, LH | ||||
| 61066-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-90K10 |
BJ75,FJ75,HJ75..HT..(GEN,ME) W/*FFRS |
1 | ||
| 61705-90K21 |
BJ75,FJ75,HJ75..HT..(ARL,GEN) W/O RR SEAT |
1 | ||
| 61705-90K28 |
BJ75..RHD..HT ZIMBABWE SPEC |
1 | ||
| 61705-90K25 |
BJ75,FJ75,HJ75..HT W/PARALLEL RR SEAT,*ODAC |
1 | ||
| 61705-90K09 |
BJ75,FJ75,HJ75..HT W/PARALLEL RR SEAT |
1 | ||
| 61705-90K41 |
BJ75,FJ75,HJ75..HT W/PARALLEL RR SEAT,*ODAC |
1 | ||
| 61705-90K38 |
BJ75,FJ75,HJ75..HT W/PARALLEL RR SEAT |
1 | ||
| 61705-90K44 |
BJ75..RHD..HT ZIMBABWE SPEC |
1 | ||
| 61705-90K39 |
BJ75,FJ75,HJ75..HT..GEN W/*FFRS |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-90K09 |
BJ75,FJ75,HJ75..HT W/PARALLEL RR SEAT |
1 | ||
| 61706-90K10 |
BJ75,FJ75,HJ75..HT..(GEN,ME) W/*FFRS |
1 | ||
| 61706-90K20 |
BJ75,FJ75,HJ75..HT..(ARL,GEN) W/O RR SEAT |
1 | ||
| 61706-90K40 |
BJ75..RHD..HT ZIMBABWE SPEC |
1 | ||
| 61706-90K36 |
BJ75,FJ75,HJ75..HT W/PARALLEL RR SEAT |
1 | ||
| 61706-90K37 |
BJ75,FJ75,HJ75..HT..GEN W/*FFRS |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61709-90K00 |
BJ75,FJ75,HJ75..HT W/FUEL SUB TANK |
1 | ||
| 61709-90K01 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61743 - REINFORCEMENT, BACK DOOR OPENING, INNER RH | ||||
| 61743-90K05 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61744 - REINFORCEMENT, BACK DOOR OPENING, INNER LH | ||||
| 61744-90K05 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT |
1 | ||
| 61748B - REINFORCEMENT, ROOF SIDE, INNER REAR, LH | ||||
| 61749-90K01 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61958 - BRACKET, REAR SEAT LEG, NO.1 RH | ||||
| 61958-90K01 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 61968 - BRACKET, REAR SEAT LEG, NO.1 LH | ||||
| 61958-90K01 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 64198B - BRACKET, LOWER BACK RAIL, INNER SIDE RH | ||||
| 64198-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT |
1 | ||
| 64199B - BRACKET, LOWER BACK RAIL, INNER SIDE LH | ||||
| 64199-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT |
1 | ||
| 77649A - RETAINER, JACK HANDLE CLAMP | ||||
| 77649-90K00 |
BJ75,FJ75,HJ75..HT |
1 | ||
| 77649-90K01 |
BJ75,FJ75,HJ75..HT |
1 | ||
| Common parts | ||||
| 90119-08277 | ||||
| 90467-0501401 | ||||
| 90467-0604908 | ||||
| 90950-01368 | ||||
| 90950-01398 | ||||
| 90950-01399 | ||||
| 90950-06024 | ||||
| 94180-40800 | ||||
| Linked diagrams | ||||
| 7751 | ||||
ILLUST NO. 2 OF 2(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT |
1 | ||
| 76607-90K00 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..(HT,SOT)..(GEN,ME) |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT |
1 | ||
| 76607-90K00 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..(HT,SOT)..(GEN,ME) |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT |
1 | ||
| 76608-90K00 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..(HT,SOT)..(GEN,ME) |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,SOT |
1 | ||
| 76608-90K00 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..(HT,SOT)..(GEN,ME) |
1 | ||
| Common parts | ||||
| 90119-06100 | ||||
| 90119-06278 | ||||
| 90159-60320 | ||||
| 90189-06006 | ||||
| 90189-06134 | ||||
| 90269-05020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
