BJ75LP-MRV (1987)
Toyota Land Cruiser
(8808- )3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-64230 |
3B..BJ70,73,75 |
1 | ||
| 22101-54250 |
3B..BJ70,73,75..GEN,ME W/HAC |
1 | ||
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| 90099-14053 |
3B..BJ70,73,75 |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-77020 |
3B..BJ70,73,75 |
4 | ||
| 22104-54060 |
3B..BJ70,73,75 |
4 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-54010 |
3B..BJ70,73,75 |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
3B..BJ70,73,75 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
3B..BJ70,73,75 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
3B..BJ70,73,75 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
3B..BJ70,73,75 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
3B..BJ70,73,75 |
5 | ||
| 22128A - BOLT, DISTRIBUTIVE HEAD | ||||
| 22128-54010 |
3B..BJ70,73,75 |
1 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-58200 |
3B..BJ70,73,75 |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22131-54110 |
3B..BJ70,73,75 |
4 | ||
| 22131-77020 |
3B..BJ70,73,75 |
6 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-58690 |
3B..BJ70,73,75 |
1 | ||
| 22141 - SEAT, DELIVERY VALVE SPRING | ||||
| 22141-54010 |
3B..BJ70,73,75 |
4 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-77020 |
13BT,3B..BJ7# |
6 | ||
| 22143-54010 |
3B..BJ70,73,75 |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-46010 |
13BT,3B..BJ7# |
6 | ||
| 22144-54180 |
3B..BJ70,73,75 |
2 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-54010 |
3B..BJ70,73,75 |
1 | ||
| 22145-46010 |
3B..BJ70,73,75 |
6 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
3B..BJ70,73,75 |
1 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 22544-64740 |
3B..BJ70,73,75 |
1 | ||
| 22147A - WASHER, DRIVE SHAFT | ||||
| 22161-54010 |
3B..BJ70,73,75 |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54290 |
3B..BJ70,73,75 |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-46010 |
3B..BJ70,73,75 |
4 | ||
| 22148-54010 |
3B..BJ70,73,75 |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-54010 |
3B..BJ70,73,75 |
4 | ||
| 22149-76010 |
3B..BJ70,73,75 |
6 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-64010 |
3B..BJ70,73,75 |
1 | ||
| 22162 - PLATE, PLUNGER UPPER | ||||
| 22162-54010 |
3B..BJ70,73,75 |
1 | ||
| 22163 - PLATE, PLUNGER LOWER | ||||
| 22163-54010 |
3B..BJ70,73,75 |
1 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
3B..BJ70,73,75 |
2 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
3B..BJ70,73,75 |
2 | ||
| 22170 - SHAFT SUB-ASSY, DRIVE | ||||
| 22170-54180 |
3B..BJ70,73,75 |
1 | ||
| 22170A - KEY(FOR DRIVE SHAFT) | ||||
| 90099-13017 |
3B..BJ70,73,75 |
1 | ||
| 22174 - SHAFT, SPLINE | ||||
| 22174-47010 |
3B..BJ70,73,75 |
1 | ||
| 22174-58201 |
3B..BJ70,73,75 |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-54020 |
3B..BJ70,73,75 |
1 | ||
| 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) | ||||
| 90099-14052 |
3B..BJ70,73,75 |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-54012 |
3B..BJ70,73,75 T=2.1,T=2.1 |
1 | ||
| 22179-54020 |
3B..BJ70,73,75 T=2.9,T=2.9 |
1 | ||
| 22179-54016 |
3B..BJ70,73,75 T=2.5,T=2.5 |
1 | ||
| 22179-54010 |
3B..BJ70,73,75 T=1.9,T=1.9 |
1 | ||
| 22179-54014 |
3B..BJ70,73,75 T=2.3,T=2.3 |
1 | ||
| 22179-54017 |
3B..BJ70,73,75 T=2.6,T=2.6 |
1 | ||
| 22179-54011 |
3B..BJ70,73,75 T=2.0,T=2.0 |
1 | ||
| 22179-54015 |
3B..BJ70,73,75 T=2.4,T=2.4 |
1 | ||
| 22179-54018 |
3B..BJ70,73,75 T=2.7,T=2.7 |
1 | ||
| 22179-54013 |
3B..BJ70,73,75 T=2.2,T=2.2 |
1 | ||
| 22179-54019 |
3B..BJ70,73,75 T=2.8,T=2.8 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-58200 |
3B..BJ70,73,75 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22184-46010 |
13BT,3B..BJ7# T=0.30,T=0.3 |
6 | ||
| 22186-46010 |
13BT,3B..BJ7# T=0.50,T=0.5 |
6 | ||
| 22186-48010 |
13BT,3B..BJ7# T=0.15,T=0.15 |
6 | ||
| 22182-46010 |
13BT,3B..BJ7# T=0.10,T=0.1 |
6 | ||
| 22189-46010 |
13BT,3B..BJ7# T=0.80,T=0.8 |
6 | ||
| 22183-46010 |
13BT,3B..BJ7# T=0.20,T=0.2 |
6 | ||
| 22187-46010 |
13BT,3B..BJ7# T=0.60,T=0.6 |
6 | ||
| 22185-46010 |
13BT,3B..BJ7# T=0.40,T=0.4 |
6 | ||
| 22189-48031 |
13BT,3B..BJ7# T=0.90,T=0.9 |
6 | ||
| 22188-46010 |
13BT,3B..BJ7# T=0.70,T=0.7 |
6 | ||
| 22189-48034 |
13BT,3B..BJ7# T=1.20,T=1.2 |
6 | ||
| 22189-48032 |
13BT,3B..BJ7# T=1.00,T=1.0 |
6 | ||
| 22189-48033 |
13BT,3B..BJ7# T=1.10,T=1.1 |
6 | ||
| 22189-48036 |
13BT,3B..BJ7# T=1.40,T=1.4 |
6 | ||
| 22189-48035 |
13BT,3B..BJ7# T=1.30,T=1.3 |
6 | ||
| 22183-54010 |
3B..BJ70,73,75 T=0.8,T=0.8 |
2 | ||
| 22184-54010 |
3B..BJ70,73,75 T=1.0,T=1.0 |
2 | ||
| 22182-54010 |
3B..BJ70,73,75 T=0.5,T=0.5 |
2 | ||
| 22186-54010 |
3B..BJ70,73,75 T=1.5,T=1.5 |
2 | ||
| 22185-54010 |
3B..BJ70,73,75 T=1.2,T=1.2 |
2 | ||
| 22188-54010 |
3B..BJ70,73,75 T=2.0,T=2.0 |
2 | ||
| 22187-54010 |
3B..BJ70,73,75 T=1.8,T=1.8 |
2 | ||
| 22192 - GUIDE SUB-ASSY, PLUNGER SPRING | ||||
| 22192-54010 |
3B..BJ70,73,75 |
2 | ||
| 22314A - SPRING, LEVER SUPPORT | ||||
| 22314-54010 |
3B..BJ70,73,75 |
2 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-64640 |
3B..BJ70,73,75 MARK 23 |
1 | ||
| 22316B - BEARING, BALL(FOR GOVERNOR SLEEVE) | ||||
| 90099-10148 |
3B..BJ70,73,75 |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-54010 |
3B..BJ70,73,75 K=0.2,L=6.5 |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-54450 |
3B..BJ70,73,75 |
1 | ||
| 22341C - GEAR, GOVERNOR DRIVE | ||||
| 22341-54010 |
3B..BJ70,73,75 |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-58200 |
3B..BJ70,73,75 |
1 | ||
| 22354A - SEAL, ROD | ||||
| 22354-77050 |
3B..BJ70,73,75 |
1 | ||
| 22355A - WIRE, GOVERNOR HOUSING SEAL | ||||
| 22355-78030 |
3B..BJ70,73,75 |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54010 |
3B..BJ70,73,75 |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-64010 |
3B..BJ70,73,75 |
1 | ||
| 22384D - SHAFT, GOVERNOR | ||||
| 22384-54010 |
3B..BJ70,73,75 |
1 | ||
| 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) | ||||
| 90099-14049 |
3B..BJ70,73,75 |
1 | ||
| 22390A - SOLENOID ASSY, FUEL CUT | ||||
| 22390-6A510 |
3B..BJ70,73,75 |
1 | ||
| 22505 - PUMP SUB-ASSY, FUEL FEED | ||||
| 22505-54010 |
3B..BJ70,73,75 |
1 | ||
| 22505A - SCREW(FOR FUEL FEED PUMP) | ||||
| 90099-00723 |
3B..BJ70,73,75 |
2 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-54020 |
3B..BJ70,73,75 |
1 | ||
| 22602 - FILTER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22602-56350 |
3B..BJ70,73,75 |
1 | ||
| 22611 - NUT, TIMER ROUND | ||||
| 22611-46010 |
3B..BJ70,73,75 |
1 | ||
| 22611-58200 |
3B..BJ70,73,75 |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-54010 |
3B..BJ70,73,75 |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-54450 |
3B..BJ70,73,75 |
1 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
3B..BJ70,73,75 |
2 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
3B..BJ70,73,75 |
2 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-54290 |
3B..BJ70,73,75 K=2.30,L=37.9,CW=8.0,WD=2.6 |
1 | ||
| 22621A - WASHER, TIMER ADJUSTING | ||||
| 22625-54272 |
3B..BJ70,73,75 T=0.5 |
1 | ||
| 22621A - WASHER, TIMER ADJUSTING | ||||
| 22625-54272 |
3B..BJ70,73,75 T=0.5 |
1 | ||
| 22632A - COUPLING, INJECTION PUMP | ||||
| 22632-54010 |
3B..BJ70,73,75 |
1 | ||
| 22654 - PISTON, TIMER | ||||
| 22654-58200 |
3B..BJ70,73,75 |
1 | ||
| 22655A - PIN, TIMER SLIDE | ||||
| 22655-54010 |
3B..BJ70,73,75 |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-54010 |
3B..BJ70,73,75 |
1 | ||
| 22657 - CLIP, TIMER | ||||
| 22657-54010 |
3B..BJ70,73,75 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-54010 |
3B..BJ70,73,75 |
1 | ||
| 22659 - SPRING, COUPLING | ||||
| 22659-64150 |
3B..BJ70,73,75 |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-58211 |
3B..BJ70,73,75 MARK"37" |
1 | ||
| 22701-58210 |
3B..BJ70,73,75 MARK"36" |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-54132 |
3B..BJ70,73,75 |
1 | ||
| 22713 - WASHER, GOVERNOR GEAR ADJUSTING | ||||
| 22714-54010 |
3B..BJ70,73,75 T=1.25,T=1.25 |
1 | ||
| 22716-54010 |
3B..BJ70,73,75 T=1.65,T=1.65 |
1 | ||
| 22717-54010 |
3B..BJ70,73,75 T=1.85,T=1.85 |
1 | ||
| 22713-54010 |
3B..BJ70,73,75 T=1.05,T=1.05 |
1 | ||
| 22715-54010 |
3B..BJ70,73,75 T=1.45,T=1.45 |
1 | ||
| 22726 - SPRING, SPEED CONTROL | ||||
| 22726-58200 |
3B..BJ70,73,75 |
1 | ||
| 22739 - BOLT, GOVERNOR LINK SUPPORT | ||||
| 22739-54020 |
3B..BJ70,73,75 |
2 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-58210 |
3B..BJ70,73,75 |
1 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 90099-14048 |
3B..BJ70,73,75 |
1 | ||
| 22741 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22741-54020 |
3B..BJ70,73,75 |
1 | ||
| 22745 - FLYWEIGHT, DISTRIBUTIVE PUMP | ||||
| 22745-54010 |
3B..BJ70,73,75 |
4 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-54311 |
3B..BJ70,73,75 |
1 | ||
| 22753A - WASHER, FLYWEIGHT, NO.1 | ||||
| 22753-54010 |
3B..BJ70,73,75 |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54290 |
3B..BJ70,73,75 |
1 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54010 |
3B..BJ70,73,75 |
1 | ||
| 22775 - NUT, LOCK(FOR INJECTION PUMP) | ||||
| 22775-77121 |
3B..BJ70,73,75 |
1 | ||
| 22776 - SCREW, SMOKE SET ADJUSTING | ||||
| 22776-54110 |
3B..BJ70,73,75 |
1 | ||
| 22776A - RING, O(FOR SMOKE SET SCREW) | ||||
| 90099-14047 |
3B..BJ70,73,75 |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-64662 |
3B..BJ70,73,75 L=2.4,L=2.4 |
1 | ||
| 22787-64661 |
3B..BJ70,73,75 L=2.3,L=2.3 |
1 | ||
| 22787-54027 |
3B..BJ70,73,75 L=3.4,L=3.4 |
1 | ||
| 22787-54026 |
3B..BJ70,73,75 L=3.3,L=3.3 |
1 | ||
| 22787-64664 |
3B..BJ70,73,75 L=2.6,L=2.6 |
1 | ||
| 22787-64660 |
3B..BJ70,73,75 L=2.2,L=2.2 |
1 | ||
| 22787-64663 |
3B..BJ70,73,75 L=2.5,L=2.5 |
1 | ||
| 22787-64665 |
3B..BJ70,73,75 L=2.7,L=2.7 |
1 | ||
| Common parts | ||||
| 22149-56200 | ||||
| 22172-54263 | ||||
| 22172-56290 | ||||
| 22395-54010 | ||||
| 22395-54270 | ||||
| 22395-56290 | ||||
| 22395-56350 | ||||
| 22395-58200 | ||||
| 22689-56350 | ||||
| 22722-54470 | ||||
| 90090-50605 | ||||
| 90093-00802 | ||||
| 90093-01003 | ||||
| 90096-90024 | ||||
| 90099-01449 | ||||
| 90099-04576 | ||||
| 90099-04946 | ||||
| 90099-05140 | ||||
| 90099-05161 | ||||
| 90099-18022 | ||||
| 90179-06009 | ||||
| 90201-08106 | ||||
| 93381-16016 | ||||
| 94120-40600 | ||||

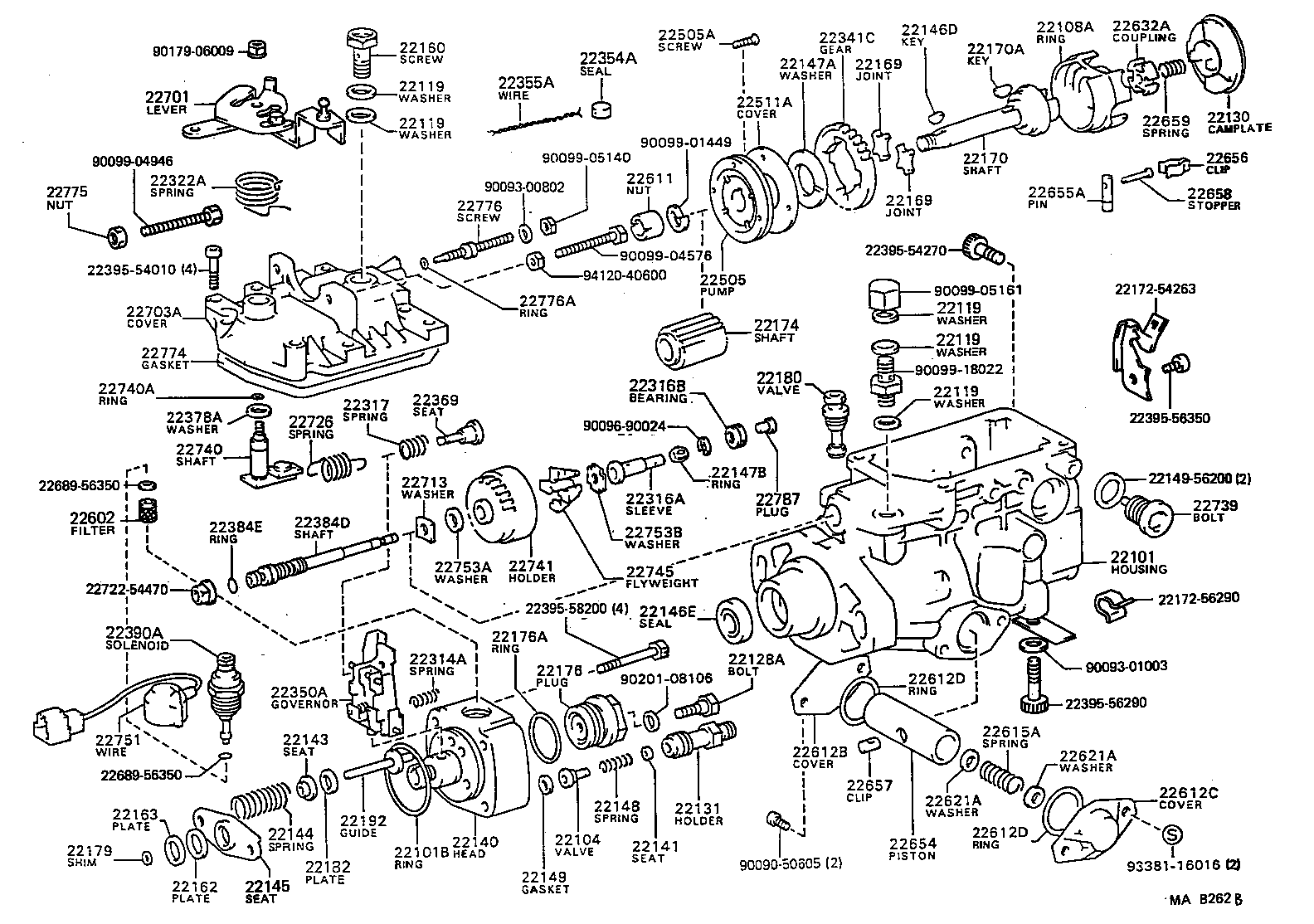

(8808- )3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-64230 |
3B..BJ70,73,75 |
1 | ||
| 22101-54250 |
3B..BJ70,73,75..GEN,ME W/HAC |
1 | ||
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| 90099-14053 |
3B..BJ70,73,75 |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-77020 |
3B..BJ70,73,75 |
4 | ||
| 22104-54060 |
3B..BJ70,73,75 |
4 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-54010 |
3B..BJ70,73,75 |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
3B..BJ70,73,75 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
3B..BJ70,73,75 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
3B..BJ70,73,75 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
3B..BJ70,73,75 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
3B..BJ70,73,75 |
5 | ||
| 22128A - BOLT, DISTRIBUTIVE HEAD | ||||
| 22128-54010 |
3B..BJ70,73,75 |
1 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-58200 |
3B..BJ70,73,75 |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22131-54110 |
3B..BJ70,73,75 |
4 | ||
| 22131-77020 |
3B..BJ70,73,75 |
6 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-58690 |
3B..BJ70,73,75 |
1 | ||
| 22141 - SEAT, DELIVERY VALVE SPRING | ||||
| 22141-54010 |
3B..BJ70,73,75 |
4 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-77020 |
13BT,3B..BJ7# |
6 | ||
| 22143-54010 |
3B..BJ70,73,75 |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-46010 |
13BT,3B..BJ7# |
6 | ||
| 22144-54180 |
3B..BJ70,73,75 |
2 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-54010 |
3B..BJ70,73,75 |
1 | ||
| 22145-46010 |
3B..BJ70,73,75 |
6 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
3B..BJ70,73,75 |
1 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 22544-64740 |
3B..BJ70,73,75 |
1 | ||
| 22147A - WASHER, DRIVE SHAFT | ||||
| 22161-54010 |
3B..BJ70,73,75 |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54290 |
3B..BJ70,73,75 |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-46010 |
3B..BJ70,73,75 |
4 | ||
| 22148-54010 |
3B..BJ70,73,75 |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-54010 |
3B..BJ70,73,75 |
4 | ||
| 22149-76010 |
3B..BJ70,73,75 |
6 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-64010 |
3B..BJ70,73,75 |
1 | ||
| 22162 - PLATE, PLUNGER UPPER | ||||
| 22162-54010 |
3B..BJ70,73,75 |
1 | ||
| 22163 - PLATE, PLUNGER LOWER | ||||
| 22163-54010 |
3B..BJ70,73,75 |
1 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
3B..BJ70,73,75 |
2 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
3B..BJ70,73,75 |
2 | ||
| 22170 - SHAFT SUB-ASSY, DRIVE | ||||
| 22170-54180 |
3B..BJ70,73,75 |
1 | ||
| 22170A - KEY(FOR DRIVE SHAFT) | ||||
| 90099-13017 |
3B..BJ70,73,75 |
1 | ||
| 22174 - SHAFT, SPLINE | ||||
| 22174-47010 |
3B..BJ70,73,75 |
1 | ||
| 22174-58201 |
3B..BJ70,73,75 |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-54020 |
3B..BJ70,73,75 |
1 | ||
| 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) | ||||
| 90099-14052 |
3B..BJ70,73,75 |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-54012 |
3B..BJ70,73,75 T=2.1,T=2.1 |
1 | ||
| 22179-54020 |
3B..BJ70,73,75 T=2.9,T=2.9 |
1 | ||
| 22179-54016 |
3B..BJ70,73,75 T=2.5,T=2.5 |
1 | ||
| 22179-54010 |
3B..BJ70,73,75 T=1.9,T=1.9 |
1 | ||
| 22179-54014 |
3B..BJ70,73,75 T=2.3,T=2.3 |
1 | ||
| 22179-54017 |
3B..BJ70,73,75 T=2.6,T=2.6 |
1 | ||
| 22179-54011 |
3B..BJ70,73,75 T=2.0,T=2.0 |
1 | ||
| 22179-54015 |
3B..BJ70,73,75 T=2.4,T=2.4 |
1 | ||
| 22179-54018 |
3B..BJ70,73,75 T=2.7,T=2.7 |
1 | ||
| 22179-54013 |
3B..BJ70,73,75 T=2.2,T=2.2 |
1 | ||
| 22179-54019 |
3B..BJ70,73,75 T=2.8,T=2.8 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-58200 |
3B..BJ70,73,75 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22184-46010 |
13BT,3B..BJ7# T=0.30,T=0.3 |
6 | ||
| 22186-46010 |
13BT,3B..BJ7# T=0.50,T=0.5 |
6 | ||
| 22186-48010 |
13BT,3B..BJ7# T=0.15,T=0.15 |
6 | ||
| 22182-46010 |
13BT,3B..BJ7# T=0.10,T=0.1 |
6 | ||
| 22189-46010 |
13BT,3B..BJ7# T=0.80,T=0.8 |
6 | ||
| 22183-46010 |
13BT,3B..BJ7# T=0.20,T=0.2 |
6 | ||
| 22187-46010 |
13BT,3B..BJ7# T=0.60,T=0.6 |
6 | ||
| 22185-46010 |
13BT,3B..BJ7# T=0.40,T=0.4 |
6 | ||
| 22189-48031 |
13BT,3B..BJ7# T=0.90,T=0.9 |
6 | ||
| 22188-46010 |
13BT,3B..BJ7# T=0.70,T=0.7 |
6 | ||
| 22189-48034 |
13BT,3B..BJ7# T=1.20,T=1.2 |
6 | ||
| 22189-48032 |
13BT,3B..BJ7# T=1.00,T=1.0 |
6 | ||
| 22189-48033 |
13BT,3B..BJ7# T=1.10,T=1.1 |
6 | ||
| 22189-48036 |
13BT,3B..BJ7# T=1.40,T=1.4 |
6 | ||
| 22189-48035 |
13BT,3B..BJ7# T=1.30,T=1.3 |
6 | ||
| 22183-54010 |
3B..BJ70,73,75 T=0.8,T=0.8 |
2 | ||
| 22184-54010 |
3B..BJ70,73,75 T=1.0,T=1.0 |
2 | ||
| 22182-54010 |
3B..BJ70,73,75 T=0.5,T=0.5 |
2 | ||
| 22186-54010 |
3B..BJ70,73,75 T=1.5,T=1.5 |
2 | ||
| 22185-54010 |
3B..BJ70,73,75 T=1.2,T=1.2 |
2 | ||
| 22188-54010 |
3B..BJ70,73,75 T=2.0,T=2.0 |
2 | ||
| 22187-54010 |
3B..BJ70,73,75 T=1.8,T=1.8 |
2 | ||
| 22192 - GUIDE SUB-ASSY, PLUNGER SPRING | ||||
| 22192-54010 |
3B..BJ70,73,75 |
2 | ||
| 22314A - SPRING, LEVER SUPPORT | ||||
| 22314-54010 |
3B..BJ70,73,75 |
2 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-64640 |
3B..BJ70,73,75 MARK 23 |
1 | ||
| 22316B - BEARING, BALL(FOR GOVERNOR SLEEVE) | ||||
| 90099-10148 |
3B..BJ70,73,75 |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-54010 |
3B..BJ70,73,75 K=0.2,L=6.5 |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-54450 |
3B..BJ70,73,75 |
1 | ||
| 22341C - GEAR, GOVERNOR DRIVE | ||||
| 22341-54010 |
3B..BJ70,73,75 |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-58200 |
3B..BJ70,73,75 |
1 | ||
| 22354A - SEAL, ROD | ||||
| 22354-77050 |
3B..BJ70,73,75 |
1 | ||
| 22355A - WIRE, GOVERNOR HOUSING SEAL | ||||
| 22355-78030 |
3B..BJ70,73,75 |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54010 |
3B..BJ70,73,75 |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-64010 |
3B..BJ70,73,75 |
1 | ||
| 22384D - SHAFT, GOVERNOR | ||||
| 22384-54010 |
3B..BJ70,73,75 |
1 | ||
| 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) | ||||
| 90099-14049 |
3B..BJ70,73,75 |
1 | ||
| 22390A - SOLENOID ASSY, FUEL CUT | ||||
| 22390-6A510 |
3B..BJ70,73,75 |
1 | ||
| 22505 - PUMP SUB-ASSY, FUEL FEED | ||||
| 22505-54010 |
3B..BJ70,73,75 |
1 | ||
| 22505A - SCREW(FOR FUEL FEED PUMP) | ||||
| 90099-00723 |
3B..BJ70,73,75 |
2 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-54020 |
3B..BJ70,73,75 |
1 | ||
| 22602 - FILTER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22602-56350 |
3B..BJ70,73,75 |
1 | ||
| 22611 - NUT, TIMER ROUND | ||||
| 22611-46010 |
3B..BJ70,73,75 |
1 | ||
| 22611-58200 |
3B..BJ70,73,75 |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-54010 |
3B..BJ70,73,75 |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-54450 |
3B..BJ70,73,75 |
1 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
3B..BJ70,73,75 |
2 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
3B..BJ70,73,75 |
2 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-54290 |
3B..BJ70,73,75 K=2.30,L=37.9,CW=8.0,WD=2.6 |
1 | ||
| 22621A - WASHER, TIMER ADJUSTING | ||||
| 22625-54272 |
3B..BJ70,73,75 T=0.5 |
1 | ||
| 22621A - WASHER, TIMER ADJUSTING | ||||
| 22625-54272 |
3B..BJ70,73,75 T=0.5 |
1 | ||
| 22632A - COUPLING, INJECTION PUMP | ||||
| 22632-54010 |
3B..BJ70,73,75 |
1 | ||
| 22654 - PISTON, TIMER | ||||
| 22654-58200 |
3B..BJ70,73,75 |
1 | ||
| 22655A - PIN, TIMER SLIDE | ||||
| 22655-54010 |
3B..BJ70,73,75 |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-54010 |
3B..BJ70,73,75 |
1 | ||
| 22657 - CLIP, TIMER | ||||
| 22657-54010 |
3B..BJ70,73,75 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-54010 |
3B..BJ70,73,75 |
1 | ||
| 22659 - SPRING, COUPLING | ||||
| 22659-64150 |
3B..BJ70,73,75 |
1 | ||
| 22680D - BELLOWS ASSY, PNEUMATIC | ||||
| 22680-56310 |
3B..BJ70,73,75..GEN,ME W/HAC |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-58211 |
3B..BJ70,73,75 MARK"37" |
1 | ||
| 22701-58210 |
3B..BJ70,73,75 MARK"36" |
1 | ||
| 22713 - WASHER, GOVERNOR GEAR ADJUSTING | ||||
| 22714-54010 |
3B..BJ70,73,75 T=1.25,T=1.25 |
1 | ||
| 22716-54010 |
3B..BJ70,73,75 T=1.65,T=1.65 |
1 | ||
| 22717-54010 |
3B..BJ70,73,75 T=1.85,T=1.85 |
1 | ||
| 22713-54010 |
3B..BJ70,73,75 T=1.05,T=1.05 |
1 | ||
| 22715-54010 |
3B..BJ70,73,75 T=1.45,T=1.45 |
1 | ||
| 22726 - SPRING, SPEED CONTROL | ||||
| 22726-58200 |
3B..BJ70,73,75 |
1 | ||
| 22739 - BOLT, GOVERNOR LINK SUPPORT | ||||
| 22739-54020 |
3B..BJ70,73,75 |
2 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-58210 |
3B..BJ70,73,75 |
1 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 90099-14048 |
3B..BJ70,73,75 |
1 | ||
| 22741 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22741-54020 |
3B..BJ70,73,75 |
1 | ||
| 22745 - FLYWEIGHT, DISTRIBUTIVE PUMP | ||||
| 22745-54010 |
3B..BJ70,73,75 |
4 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-54311 |
3B..BJ70,73,75 |
1 | ||
| 22753A - WASHER, FLYWEIGHT, NO.1 | ||||
| 22753-54010 |
3B..BJ70,73,75 |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54290 |
3B..BJ70,73,75 |
1 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54010 |
3B..BJ70,73,75 |
1 | ||
| 22775 - NUT, LOCK(FOR INJECTION PUMP) | ||||
| 22775-77121 |
3B..BJ70,73,75 |
1 | ||
| 22776 - SCREW, SMOKE SET ADJUSTING | ||||
| 22776-54110 |
3B..BJ70,73,75 |
1 | ||
| 22776A - RING, O(FOR SMOKE SET SCREW) | ||||
| 90099-14047 |
3B..BJ70,73,75 |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-64662 |
3B..BJ70,73,75 L=2.4,L=2.4 |
1 | ||
| 22787-64661 |
3B..BJ70,73,75 L=2.3,L=2.3 |
1 | ||
| 22787-54027 |
3B..BJ70,73,75 L=3.4,L=3.4 |
1 | ||
| 22787-54026 |
3B..BJ70,73,75 L=3.3,L=3.3 |
1 | ||
| 22787-64664 |
3B..BJ70,73,75 L=2.6,L=2.6 |
1 | ||
| 22787-64660 |
3B..BJ70,73,75 L=2.2,L=2.2 |
1 | ||
| 22787-64663 |
3B..BJ70,73,75 L=2.5,L=2.5 |
1 | ||
| 22787-64665 |
3B..BJ70,73,75 L=2.7,L=2.7 |
1 | ||

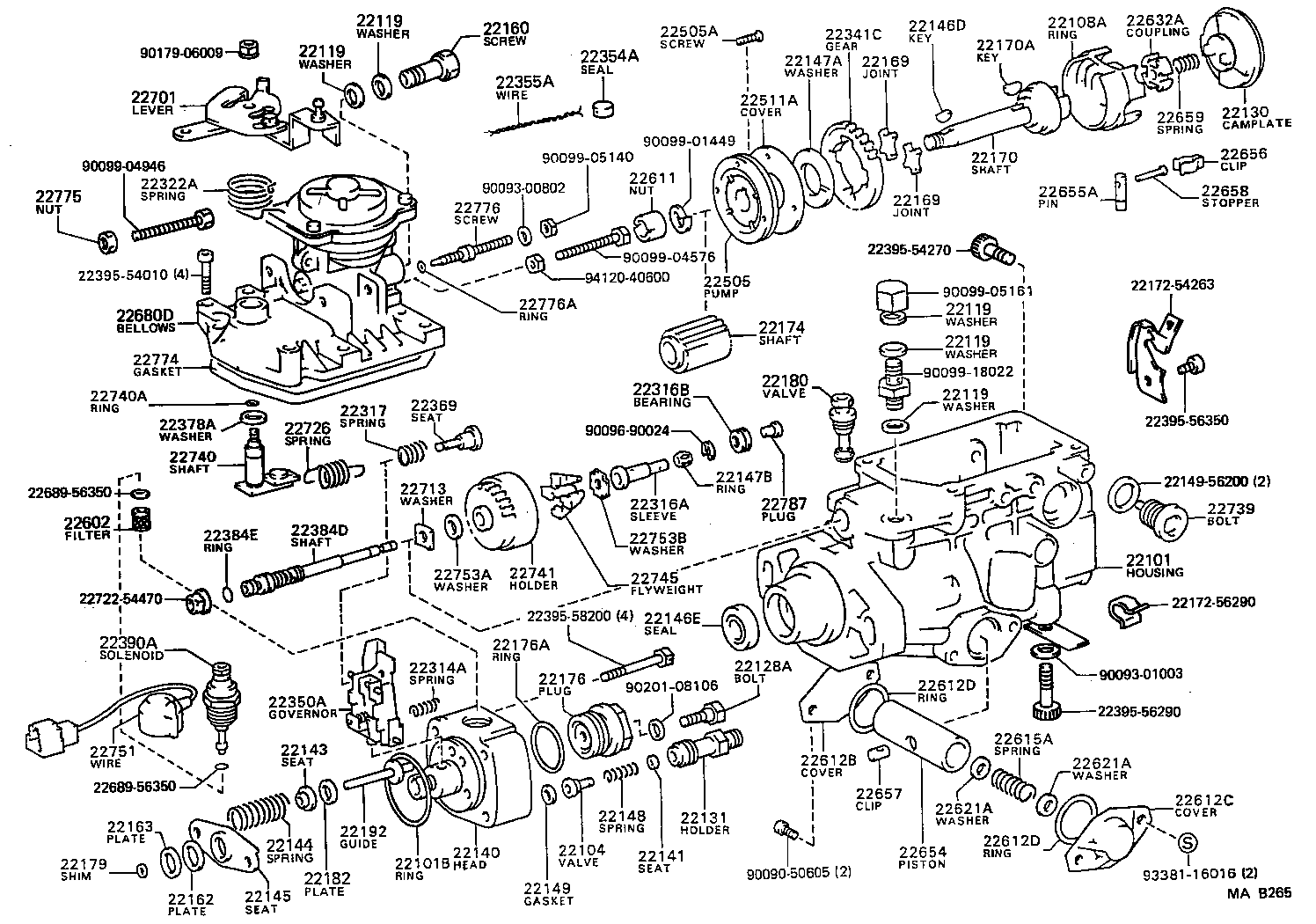

| Common parts | ||||
| 22149-56200 | ||||
| 22172-54263 | ||||
| 22172-56290 | ||||
| 22395-54010 | ||||
| 22395-54270 | ||||
| 22395-56290 | ||||
| 22395-56350 | ||||
| 22395-58200 | ||||
| 22689-56350 | ||||
| 22722-54470 | ||||
| 90090-50605 | ||||
| 90093-00802 | ||||
| 90093-01003 | ||||
| 90096-90024 | ||||
| 90099-01449 | ||||
| 90099-04576 | ||||
| 90099-04946 | ||||
| 90099-05140 | ||||
| 90099-05161 | ||||
| 90099-18022 | ||||
| 90179-06009 | ||||
| 90201-08106 | ||||
| 93381-16016 | ||||
| 94120-40600 | ||||

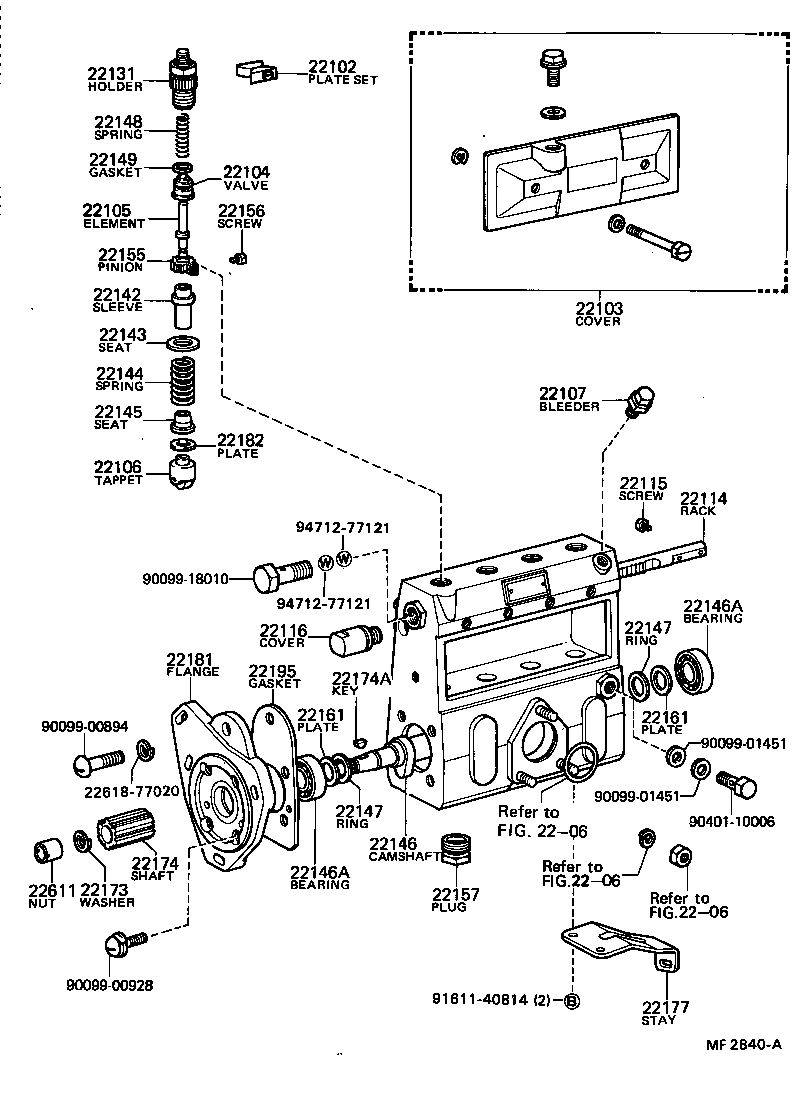

(8411-8808)3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22102 - PLATE SET, VALVE HOLDER LOCK | ||||
| 22102-77021 |
3B..BJ70,73,75 |
3 | ||
| 22103 - COVER SUB-ASSY, INJECTION PUMP | ||||
| 22103-48030 |
3B..BJ70,73,75 |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-77020 |
3B..BJ70,73,75 |
4 | ||
| 22104-54060 |
3B..BJ70,73,75 |
4 | ||
| 22105 - ELEMENT SUB-ASSY, INJECTION PUMP | ||||
| 22105-58010 |
3B..BJ70,73,75 |
4 | ||
| 22106 - TAPPET SUB-ASSY, INJECTION PUMP | ||||
| 22106-46010 |
13BT,3B..BJ7# |
6 | ||
| 22107 - BLEEDER SUB-ASSY, AIR | ||||
| 22150-67010 |
3B..BJ70,73,75 |
1 | ||
| 22114 - RACK, CONTROL | ||||
| 22114-48030 |
3B..BJ70,73,75 |
1 | ||
| 22115 - SCREW, RACK GUIDE | ||||
| 22115-77020 |
13BT,3B..BJ7# |
1 | ||
| 22116 - COVER, CONTROL RACK | ||||
| 22116-46010 |
3B..BJ70,73,75 |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22131-54110 |
3B..BJ70,73,75 |
4 | ||
| 22131-77020 |
3B..BJ70,73,75 |
6 | ||
| 22142 - SLEEVE, PLUNGER CONTROL | ||||
| 22142-77020 |
3B..BJ70,73,75 |
6 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-77020 |
13BT,3B..BJ7# |
6 | ||
| 22143-54010 |
3B..BJ70,73,75 |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-46010 |
13BT,3B..BJ7# |
6 | ||
| 22144-54180 |
3B..BJ70,73,75 |
2 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-54010 |
3B..BJ70,73,75 |
1 | ||
| 22145-46010 |
3B..BJ70,73,75 |
6 | ||
| 22146 - CAMSHAFT, INJECTION PUMP | ||||
| 22146-56010 |
3B..BJ70,73,75 |
1 | ||
| 22146A - BEARING(FOR INJECTION CAMSHAFT) | ||||
| 90099-10087 |
3B..BJ70,73,75 |
2 | ||
| 22146A - BEARING(FOR INJECTION CAMSHAFT) | ||||
| 90099-10087 |
3B..BJ70,73,75 |
2 | ||
| 22147 - RING, CAMSHAFT ADJUST | ||||
| 22147-77020 |
13BT,3B..BJ7# NO.1 |
2 | ||
| 22147 - RING, CAMSHAFT ADJUST | ||||
| 22147-77020 |
13BT,3B..BJ7# NO.1 |
2 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-46010 |
3B..BJ70,73,75 |
4 | ||
| 22148-54010 |
3B..BJ70,73,75 |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-54010 |
3B..BJ70,73,75 |
4 | ||
| 22149-76010 |
3B..BJ70,73,75 |
6 | ||
| 22155 - PINION, PLUNGER CONTROL | ||||
| 22155-76010 |
13BT,3B..BJ7# |
6 | ||
| 22156 - SCREW, PLUNGER CONTROL PINION CLAMP | ||||
| 22156-76010 |
13BT,3B..BJ7# |
6 | ||
| 22157 - PLUG, INJECTION PUMP FELT PLATE | ||||
| 22157-48023 |
3B..BJ7# |
6 | ||
| 22161 - PLATE, CAMSHAFT SHIM | ||||
| 22163-76010 |
13BT,3B..BJ7# T=0.14,T=0.14 |
2 | ||
| 22161-76010 |
13BT,3B..BJ7# T=0.10,T=0.10 |
2 | ||
| 22162-76010 |
13BT,3B..BJ7# T=0.12,T=0.12 |
2 | ||
| 22165-76010 |
13BT,3B..BJ7# T=0.18,T=0.18 |
2 | ||
| 22164-76010 |
13BT,3B..BJ7# T=0.16,T=0.16 |
2 | ||
| 22166-76010 |
13BT,3B..BJ7# T=0.50,T=0.50 |
2 | ||
| 22161 - PLATE, CAMSHAFT SHIM | ||||
| 22163-76010 |
13BT,3B..BJ7# T=0.14,T=0.14 |
2 | ||
| 22161-76010 |
13BT,3B..BJ7# T=0.10,T=0.10 |
2 | ||
| 22162-76010 |
13BT,3B..BJ7# T=0.12,T=0.12 |
2 | ||
| 22165-76010 |
13BT,3B..BJ7# T=0.18,T=0.18 |
2 | ||
| 22164-76010 |
13BT,3B..BJ7# T=0.16,T=0.16 |
2 | ||
| 22166-76010 |
13BT,3B..BJ7# T=0.50,T=0.50 |
2 | ||
| 22173 - WASHER, SPRING | ||||
| 22173-46010 |
3B..BJ70,73,75 |
1 | ||
| 22174 - SHAFT, SPLINE | ||||
| 22174-47010 |
3B..BJ70,73,75 |
1 | ||
| 22174-58201 |
3B..BJ70,73,75 |
1 | ||
| 22174A - KEY(FOR SPLINE SHAFT) | ||||
| 90099-13002 |
3B..BJ70,73,75 |
1 | ||
| 22177 - STAY, INJECTION PUMP BODY | ||||
| 22177-56042 |
3B..BJ70,73,75 |
1 | ||
| 22181 - FLANGE, INJECTION PUMP | ||||
| 22181-56040 |
3B..BJ70,73,75 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22184-46010 |
13BT,3B..BJ7# T=0.30,T=0.3 |
6 | ||
| 22186-46010 |
13BT,3B..BJ7# T=0.50,T=0.5 |
6 | ||
| 22186-48010 |
13BT,3B..BJ7# T=0.15,T=0.15 |
6 | ||
| 22182-46010 |
13BT,3B..BJ7# T=0.10,T=0.1 |
6 | ||
| 22189-46010 |
13BT,3B..BJ7# T=0.80,T=0.8 |
6 | ||
| 22183-46010 |
13BT,3B..BJ7# T=0.20,T=0.2 |
6 | ||
| 22187-46010 |
13BT,3B..BJ7# T=0.60,T=0.6 |
6 | ||
| 22185-46010 |
13BT,3B..BJ7# T=0.40,T=0.4 |
6 | ||
| 22189-48031 |
13BT,3B..BJ7# T=0.90,T=0.9 |
6 | ||
| 22188-46010 |
13BT,3B..BJ7# T=0.70,T=0.7 |
6 | ||
| 22189-48034 |
13BT,3B..BJ7# T=1.20,T=1.2 |
6 | ||
| 22189-48032 |
13BT,3B..BJ7# T=1.00,T=1.0 |
6 | ||
| 22189-48033 |
13BT,3B..BJ7# T=1.10,T=1.1 |
6 | ||
| 22189-48036 |
13BT,3B..BJ7# T=1.40,T=1.4 |
6 | ||
| 22189-48035 |
13BT,3B..BJ7# T=1.30,T=1.3 |
6 | ||
| 22183-54010 |
3B..BJ70,73,75 T=0.8,T=0.8 |
2 | ||
| 22184-54010 |
3B..BJ70,73,75 T=1.0,T=1.0 |
2 | ||
| 22182-54010 |
3B..BJ70,73,75 T=0.5,T=0.5 |
2 | ||
| 22186-54010 |
3B..BJ70,73,75 T=1.5,T=1.5 |
2 | ||
| 22185-54010 |
3B..BJ70,73,75 T=1.2,T=1.2 |
2 | ||
| 22188-54010 |
3B..BJ70,73,75 T=2.0,T=2.0 |
2 | ||
| 22187-54010 |
3B..BJ70,73,75 T=1.8,T=1.8 |
2 | ||
| 22195 - GASKET, BEARING COVER | ||||
| 22195-48030 |
3B..BJ70,73,75 |
1 | ||
| 22611 - NUT, TIMER ROUND | ||||
| 22611-46010 |
3B..BJ70,73,75 |
1 | ||
| 22611-58200 |
3B..BJ70,73,75 |
1 | ||
| Common parts | ||||
| 22618-77020 | ||||
| 90099-00894 | ||||
| 90099-00928 | ||||
| 90099-01451 | ||||
| 90099-18010 | ||||
| 90401-10006 | ||||
| 91611-40814 | ||||
| 94712-77121 | ||||
| Linked diagrams | ||||
| 2206 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
