BJ74RV-PRXQ (1985)

Toyota Land Cruiser

Production Oct 1985 - Aug 1986
Engine 13BT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )BJ74..4FC

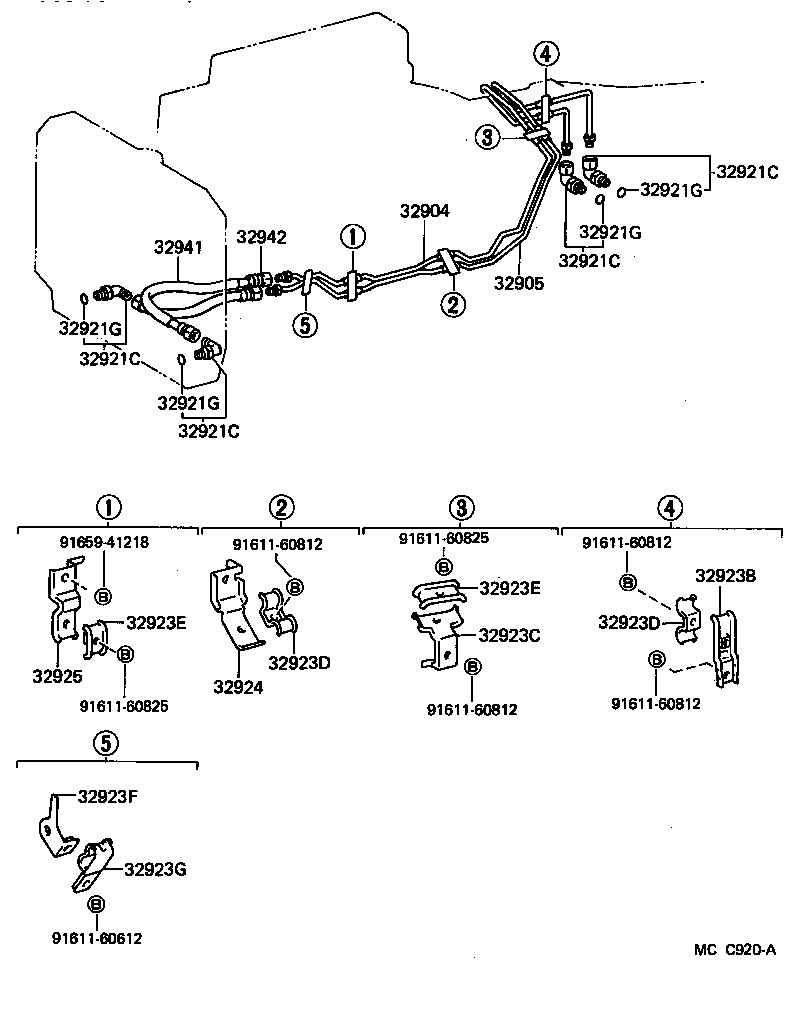

Click highlighted areas on diagram

diagram 32904 32905 32921C 32921C 32921C 32921C 32921G 32921G 32921G 32921G 32923B 32923C 32923D 32923D 32923E 32923E 32923F 32923G 32924 32925 32941 32942 9161160612 9161160812 9161160812 9161160812 9161160812 9161160825 9161160825 9165941218
Part # Description Qty Price
32921C - UNION(FOR OIL COOLER TUBE)
90407-16006

BJ74,FJ70,73..4FC

TRANSMISSION SIDE

 2
32921C - UNION(FOR OIL COOLER TUBE)
90407-16006

BJ74,FJ70,73..4FC

TRANSMISSION SIDE

 2
32921C - UNION(FOR OIL COOLER TUBE)
90407-16006

BJ74,FJ70,73..4FC

TRANSMISSION SIDE

 2
32921C - UNION(FOR OIL COOLER TUBE)
90407-16006

BJ74,FJ70,73..4FC

TRANSMISSION SIDE

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

BJ74,FJ70,73..4FC

 4
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

BJ74,FJ70,73..4FC

 4
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

BJ74,FJ70,73..4FC

 4
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

BJ74,FJ70,73..4FC

 4
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-36010

BJ74,FJ70,73..4FC

 1
Common parts
91611-60612
91611-60812
91611-60825
91659-41218
