BJ74RV-MRXQ (1985)

Toyota Land Cruiser

Production Oct 1985 - Aug 1986
Engine 13BT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411-8808)3B

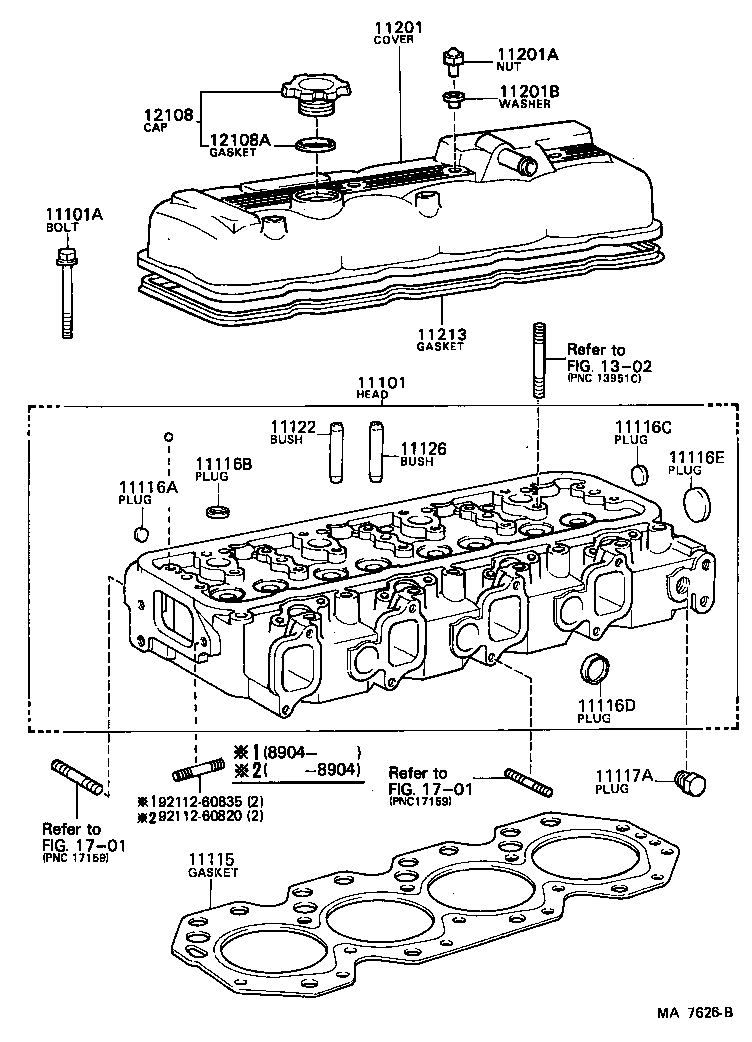

Click highlighted areas on diagram

diagram 11101 11101A 11115 11116A 11116B 11116C 11116D 11116E 11117A 11122 11126 11201 11201A 11201B 11213 12108 12108A 1302 1701 1701
Part # Description Qty Price
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02046

13BT,3B..BJ7#

*12-1.25PX119-25

 18
11116A - PLUG, TIGHT, NO.1
96411-11200

3B..BJ7#

OD=12

 4
11116B - PLUG, TIGHT, NO.2
96411-12500

3B..BJ7#

OD=25

 4
11116C - PLUG, TIGHT, NO.3
90331-21001

13BT,3B..BJ7#

OD=21

 5
11116D - PLUG, TIGHT, NO.4
96411-12800

3B..BJ7#

OD=28

 3
11116E - PLUG, TIGHT, NO.5
90331-40024

13BT,3B..BJ7#

OD=40

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-54005

13BT,3B..BJ7#

 4
11122 - BUSH, INTAKE VALVE GUIDE
11122-56021

13BT,3B..BJ7#

STD

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-56021

13BT,3B..BJ7#

STD

 4
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
11295-46010

13BT,3B..BJ7#

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-12001

13BT,3B..BJ7#

 4
12108 - CAP SUB-ASSY, OIL FILLER
12180-70010

3B..BJ7#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

13BT,3B..BJ7#

 1
Linked diagrams
1302
1701

(8510- )13BT

Click highlighted areas on diagram

diagram 11101 11101A 11115 11116A 11116B 11116C 11116D 11116E 11117A 11122 11126 11201 11201A 11201B 11213 12108 12108A 1302 1701 1701 9211260820 9211260835
Part # Description Qty Price
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02046

13BT,3B..BJ7#

*12-1.25PX119-25

 18
11116A - PLUG, TIGHT, NO.1
96411-11200

3B..BJ7#

OD=12

 4
11116B - PLUG, TIGHT, NO.2
96411-12500

3B..BJ7#

OD=25

 4
11116C - PLUG, TIGHT, NO.3
90331-21001

13BT,3B..BJ7#

OD=21

 5
11116D - PLUG, TIGHT, NO.4
96411-12800

3B..BJ7#

OD=28

 3
11116E - PLUG, TIGHT, NO.5
90331-40024

13BT,3B..BJ7#

OD=40

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-54005

13BT,3B..BJ7#

 4
11122 - BUSH, INTAKE VALVE GUIDE
11122-56021

13BT,3B..BJ7#

STD

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-56021

13BT,3B..BJ7#

STD

 4
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
11295-46010

13BT,3B..BJ7#

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-12001

13BT,3B..BJ7#

 4
12108 - CAP SUB-ASSY, OIL FILLER
12180-70010

3B..BJ7#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

13BT,3B..BJ7#

 1
Common parts
92112-60820
92112-60835
Linked diagrams
1302
1701
