BJ73RV-MRQ (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1986
Engine 3B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

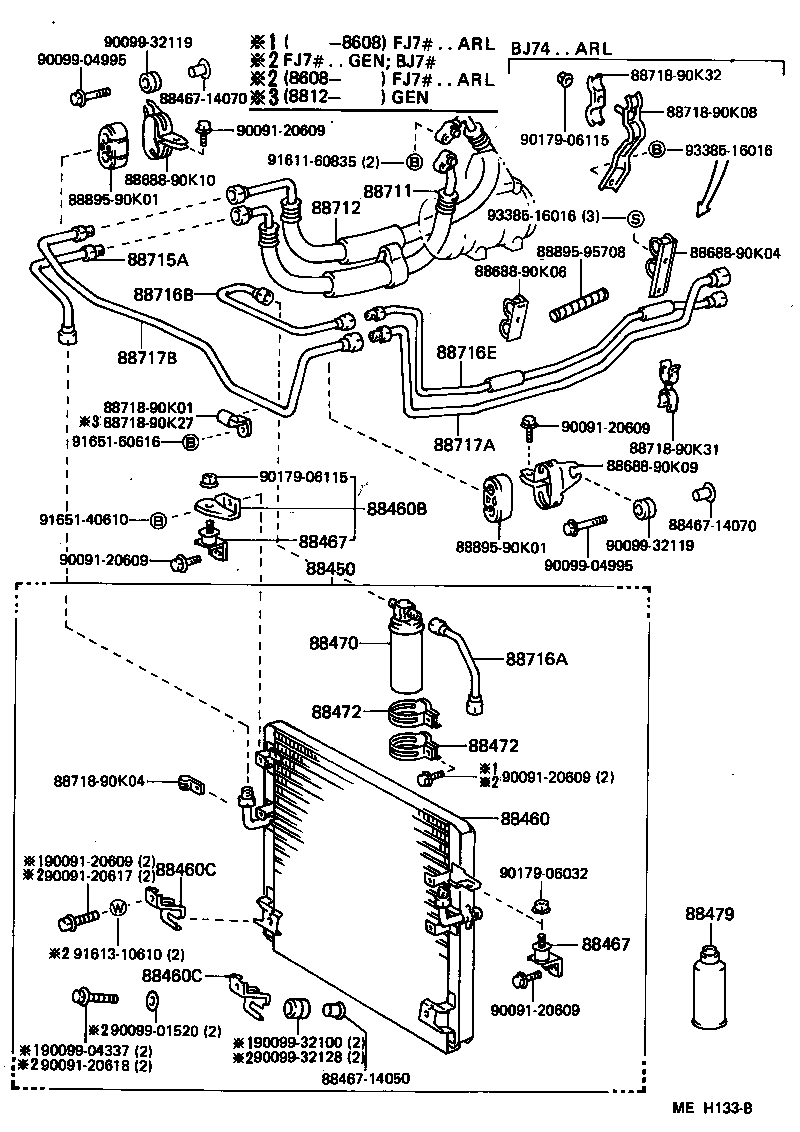

ILLUST NO. 1 OF 2(8411- )BJ7#,FJ7#..RHD

Click highlighted areas on diagram

diagram 88450 88460 88460B 88460C 88460C 88467 88467 8846714050 8846714070 8846714070 88470 88472 88472 88479 8868890K04 8868890K06 8868890K09 8868890K10 88711 88712 88715A 88716A 88716B 88716E 88717A 88717B 8871890K01 8871890K04 8871890K08 8871890K27 8871890K31 8871890K32 8889590K01 8889590K01 8889595708 9009120609 9009120609 9009120609 9009120609 9009120609 9009120609 9009120617 9009120618 9009901520 9009904337 9009904995 9009904995 9009932100 9009932119 9009932119 9009932128 9017906032 9017906115 9017906115 9161160835 9161310610 9165140610 9165160616 9338516016 9338516016
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88340-90K00

BJ7#,FJ7#,HJ75..HT,SOT

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88409-90K01

BJ7#,FJ7#,HJ75..ARL,GEN,ME

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-90K01

BJ7#,FJ7#,HJ75..ARL,GEN,ME

 2
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-90K01

BJ7#,FJ7#,HJ75..ARL,GEN,ME

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-22060

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-22060

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

 2
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12050

BJ70,73,74,FJ7#,HJ75..ARL

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

 2
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

BJ70,73,74,FJ7#,RJ70..ARL

400G

 2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-90K01

BJ7#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-90K02

BJ7#..RHD

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-90K00

BJ7#,FJ7#..ARL,GEN,ME

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-90K02

BJ7#,FJ7#,HJ75..ARL,GEN,ME

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-90K12

BJ7#,FJ7#,HJ75..RHD..(ARL,GEN)

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-90K13

BJ7#,FJ7#..RHD..(ARL,GEN)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-90K01

BJ7#,FJ7#..RHD..(ARL,GEN)

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-90K00

BJ7#,FJ7#..RHD..(ARL,GEN)

 1
Common parts
88467-14050
88467-14070
88688-90K04
88688-90K06
88688-90K09
88688-90K10
88718-90K01
88718-90K04
88718-90K08
88718-90K27
88718-90K31
88718-90K32
88895-90K01
88895-95708
90091-20609
90091-20617
90091-20618
90099-01520
90099-04337
90099-04995
90099-32100
90099-32119
90099-32128
90179-06032
90179-06115
91611-60835
91613-10610
91651-40610
91651-60616
93385-16016
