BJ73RV-MRQ (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1986
Engine 3B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8411- )3B

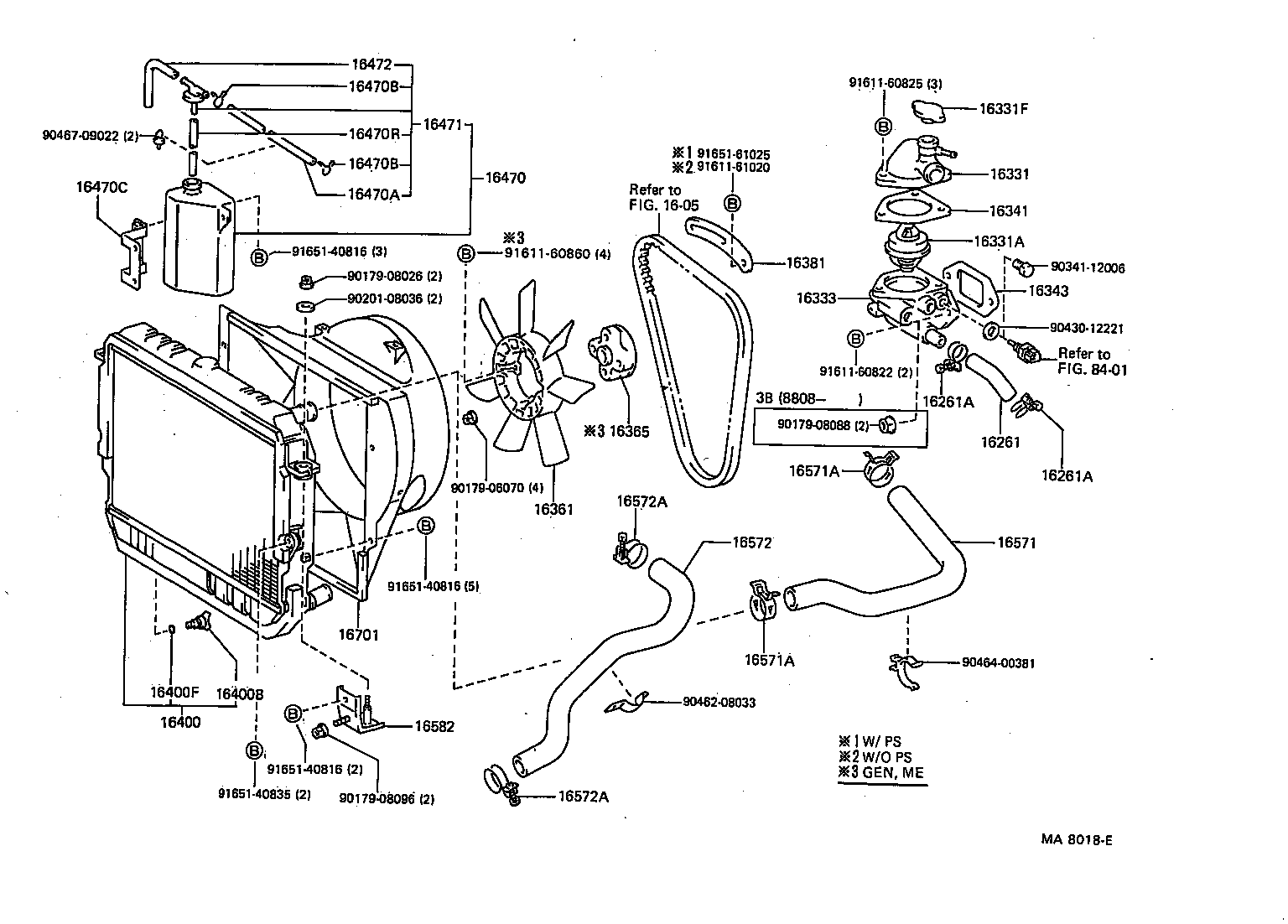

Click highlighted areas on diagram

diagram 1605 16261 16261A 16261A 16331 16331A 16331F 16333 16341 16343 16361 16365 16381 16400 16400B 16400F 16470 16470A 16470B 16470B 16470C 16470R 16471 16472 16571 16571A 16571A 16572 16572A 16572A 16582 16701 8401 9017906070 9017908026 9017908088 9017908096 9020108036 9034112006 9043012221 9046208033 9046400381 9046709022 9161160822 9161160825 9161160860 9161161020 9165140816 9165140816 9165140816 9165140835 9165161025
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-56012

13BT,3B..BJ7#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90044-60053

13BT,3B..BJ7#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90044-60053

13BT,3B..BJ7#

 2
16331 - OUTLET, WATER
16331-58010

3B..BJ70,73,75

 1
16331A - THERMOSTAT
90916-03066

13BT,3B..BJ7#

*WAX 82-95

 1
16331F - CAP SUB-ASSY(FOR WATER OUTLET)
16401-71010

13BT,3B..BJ7#

 1
16333 - HOUSING, WATER OUTLET
16333-56060

13BT,3B..BJ7#

 1
16341 - GASKET, WATER OUTLET
16341-56020

13BT,3B..BJ7#

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-56020

13BT,3B..BJ7#

 1
16361 - FAN
16361-41070

13BT,3B..BJ70,73,74..ARL

 1
16381 - BAR, FAN BELT ADJUSTING
16381-56030

13BT,3B..BJ7#

 1
16381-58020

13BT,3B..BJ7#

W/PS

 1
16400 - RADIATOR ASSY
16400-58170

13BT,3B..BJ7#..MTM

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-24200

13BT,3B..BJ7#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-24200

13BT,3B..BJ7#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-58040

13BT,3B..BJ7#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90099-33534

13BT,3B..BJ7#

*H,L=960

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

13BT,3B..BJ7#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

13BT,3B..BJ7#

 2
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16611-68020

13BT,3B..BJ7#

 1
16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK)
90445-12078

13BT,3B..BJ7#

*H,L=220

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-58020

13BT,3B..BJ7#

 1
16472 - HOSE, BREATHER
85338-30010

13BT,3B..BJ7#

 1
16571 - HOSE, RADIATOR, INLET
16571-58040

13BT,3B..BJ7#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-42001

13BT,3B..BJ7#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-42001

13BT,3B..BJ7#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-58040

13BT,3B..BJ7#..MTM

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-50016

13BT,3B..BJ7#

RADIATOR SIDE

 1
96111-10560

13BT,3B..BJ7#

WATER PUMP SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-50016

13BT,3B..BJ7#

RADIATOR SIDE

 1
96111-10560

13BT,3B..BJ7#

WATER PUMP SIDE

 1
16582 - BRACKET, RADIATOR, NO.1
16582-68010

13BT,3B..BJ7#

 2
16701 - SHROUD SUB-ASSY, FAN
16711-58030

13BT,3B..BJ7#..MTM

 1
Common parts
90179-06070
90179-08026
90179-08088
90179-08096
90201-08036
90341-12006
90430-12221
90462-08033
90464-00381
90467-09022
91611-60822
91611-60825
91611-60860
91611-61020
91651-40816
91651-40835
91651-61025
Linked diagrams
1605
8401
