BJ73RV-MNQ (1986)

Toyota Land Cruiser

Production Aug 1986 - Jan 1990
Engine 3B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

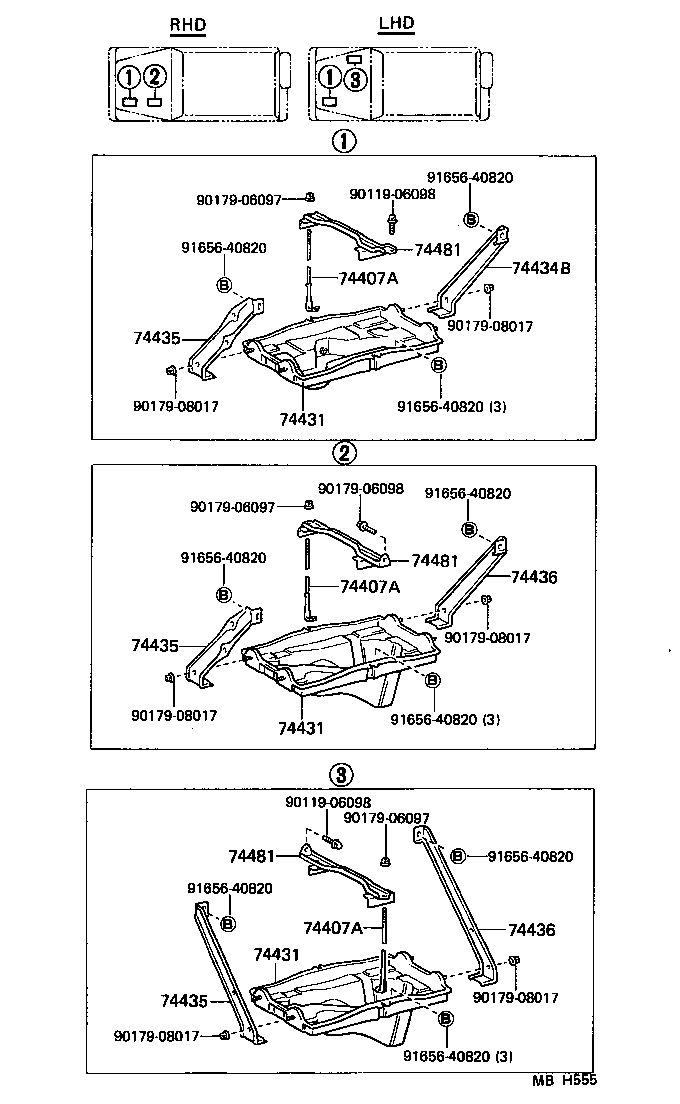

(8411-8704)BJ7#,FJ7#,HJ75

Click highlighted areas on diagram

diagram 74407A 74407A 74407A 74431 74431 74431 74434B 74435 74435 74435 74436 74436 74481 74481 74481 9011906098 9011906098 9017906097 9017906097 9017906097 9017906098 9017908017 9017908017 9017908017 9017908017 9017908017 9017908017 9165640820 9165640820 9165640820 9165640820 9165640820 9165640820 9165640820 9165640820 9165640820
Part # Description Qty Price
74407A - BOLT SUB-ASSY, BATTERY CLAMP
74407-90K00

BJ7#

12V

 1
74407A - BOLT SUB-ASSY, BATTERY CLAMP
74407-90K00

BJ7#

12V

 1
74407A - BOLT SUB-ASSY, BATTERY CLAMP
74407-90K00

BJ7#

12V

 1
74431 - TRAY, BATTERY
74431-90K00

BJ7#

12V

 1
74431 - TRAY, BATTERY
74431-90K00

BJ7#

12V

 1
74431 - TRAY, BATTERY
74431-90K00

BJ7#

12V

 1
74434B - SUPPORT, BATTERY TRAY, NO.2
74434-90K02

BJ7#

 1
74435 - SUPPORT, BATTERY TRAY, NO.3
74435-90K02

BJ70,73,75

12V

 1
74435 - SUPPORT, BATTERY TRAY, NO.3
74435-90K02

BJ70,73,75

12V

 1
74435 - SUPPORT, BATTERY TRAY, NO.3
74435-90K02

BJ70,73,75

12V

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-90K01

BJ7#

12V

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-90K01

BJ7#

12V

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-90K01

BJ7#

12V

 1
Common parts
90119-06098
90179-06097
90179-06098
90179-08017
91656-40820

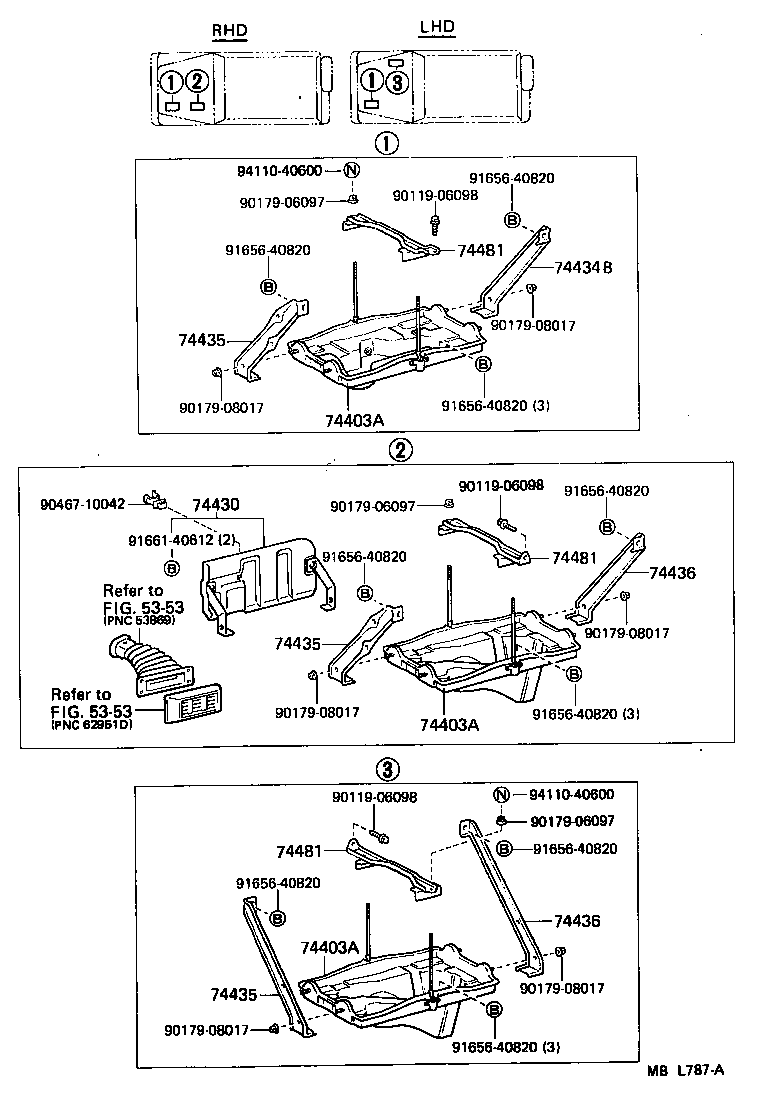

(8704- )BJ7#,FJ7#,HJ75

Click highlighted areas on diagram

diagram 5353 5353 74403A 74403A 74403A 74430 74434B 74435 74435 74435 74436 74436 74481 74481 74481 9011906098 9011906098 9011906098 9017906097 9017906097 9017906097 9017908017 9017908017 9017908017 9017908017 9017908017 9017908017 9046710042 9165640820 9165640820 9165640820 9165640820 9165640820 9165640820 9165640820 9165640820 9165640820 9166140612 9411040600 9411040600
Part # Description Qty Price
74403A - CARRIER SUB-ASSY, BATTERY
74403-90K04

BJ7#

12V

 1
74403A - CARRIER SUB-ASSY, BATTERY
74403-90K04

BJ7#

12V

 1
74403A - CARRIER SUB-ASSY, BATTERY
74403-90K04

BJ7#

12V

 1
74434B - SUPPORT, BATTERY TRAY, NO.2
74434-90K02

BJ7#

 1
74435 - SUPPORT, BATTERY TRAY, NO.3
74435-90K02

BJ70,73,75

12V

 1
74435 - SUPPORT, BATTERY TRAY, NO.3
74435-90K02

BJ70,73,75

12V

 1
74435 - SUPPORT, BATTERY TRAY, NO.3
74435-90K02

BJ70,73,75

12V

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-90K01

BJ7#

12V

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-90K01

BJ7#

12V

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-90K01

BJ7#

12V

 1
Common parts
90119-06098
90179-06097
90179-08017
90467-10042
91656-40820
91661-40612
94110-40600
Linked diagrams
5353
