BJ70LV-MR (1984)
Toyota Land Cruiser
ILLUST NO. 1 OF 2(8411- )13BT,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-58160 |
3B..BJ70,75..GEN |
1 | ||
| 17700-58160 |
3B..BJ70,75..GEN |
1 | ||
| 17700-58160 |
3B..BJ70,75..GEN |
1 | ||
| 17700-61180 |
13BT,3B..BJ7# SCHNORKEL TYPE & CYCLONE TYPE |
1 | ||
| 17700-61180 |
13BT,3B..BJ7# SCHNORKEL TYPE & CYCLONE TYPE |
1 | ||
| 17700-61180 |
13BT,3B..BJ7# SCHNORKEL TYPE & CYCLONE TYPE |
1 | ||
| 17700-58170 |
13BT,3B..BJ7# CYCLONE TYPE |
1 | ||
| 17700-58170 |
13BT,3B..BJ7# CYCLONE TYPE |
1 | ||
| 17700-58170 |
13BT,3B..BJ7# CYCLONE TYPE |
1 | ||
| 17700-58200 |
3B..BJ70,73,75..GEN |
1 | ||
| 17700-58200 |
3B..BJ70,73,75..GEN |
1 | ||
| 17700-58200 |
3B..BJ70,73,75..GEN |
1 | ||
| 17700-58210 |
13BT,3B..BJ7# CYCLONE TYPE |
1 | ||
| 17700-58210 |
13BT,3B..BJ7# CYCLONE TYPE |
1 | ||
| 17700-58210 |
13BT,3B..BJ7# CYCLONE TYPE |
1 | ||
| 17700-61181 |
13BT,3B..BJ7# SCHNORKEL TYPE & CYCLONE TYPE |
1 | ||
| 17700-61181 |
13BT,3B..BJ7# SCHNORKEL TYPE & CYCLONE TYPE |
1 | ||
| 17700-61181 |
13BT,3B..BJ7# SCHNORKEL TYPE & CYCLONE TYPE |
1 | ||
| 17700-61190 |
3B..BJ70,73,75..GEN,ME SCHNORKEL TYPE & OIL BATH |
1 | ||
| 17700-61190 |
3B..BJ70,73,75..GEN,ME SCHNORKEL TYPE & OIL BATH |
1 | ||
| 17700-61190 |
3B..BJ70,73,75..GEN,ME SCHNORKEL TYPE & OIL BATH |
1 | ||
| 17700-58180 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17700-58180 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17700-58180 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17700-61190 |
3B..BJ70,73,75..GEN OIL BATH TYPE & SCHNORKEL TYPE |
1 | ||
| 17700-61190 |
3B..BJ70,73,75..GEN OIL BATH TYPE & SCHNORKEL TYPE |
1 | ||
| 17700-61190 |
3B..BJ70,73,75..GEN OIL BATH TYPE & SCHNORKEL TYPE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
13BT,3B..BJ7# |
1 | ||
| 90175-08008 |
13BT,3B..BJ7# |
1 | ||
| 90175-08008 |
13BT,3B..BJ7# |
1 | ||
| 17703 - CASE SUB-ASSY, BOTTOM AIR CLEANER FILTER | ||||
| 17703-68010 |
13BT,3B..BJ7# CYCLONE TYPE |
1 | ||
| 17703-68010 |
13BT,3B..BJ7# CYCLONE TYPE |
1 | ||
| 17703-68010 |
13BT,3B..BJ7# CYCLONE TYPE |
1 | ||
| 17703A - GASKET(FOR BOTTOM AIR CLEANER FILTER CASE) | ||||
| 90430-98001 |
13BT,3B..BJ7# CYCLONE TYPE |
1 | ||
| 90430-98001 |
13BT,3B..BJ7# CYCLONE TYPE |
1 | ||
| 90430-98001 |
13BT,3B..BJ7# CYCLONE TYPE |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-61090 |
13BT,3B..BJ7# |
1 | ||
| 17705-61090 |
13BT,3B..BJ7# |
1 | ||
| 17705-61090 |
13BT,3B..BJ7# |
1 | ||
| 17705-61100 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17705-61100 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17705-61100 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-68010 |
3B..BJ70,73,75..GEN,ME OIL BATH |
1 | ||
| 17801-68010 |
3B..BJ70,73,75..GEN,ME OIL BATH |
1 | ||
| 17801-68010 |
3B..BJ70,73,75..GEN,ME OIL BATH |
1 | ||
| 17801-68020 |
13BT,3B..BJ7# |
1 | ||
| 17801-68020 |
13BT,3B..BJ7# |
1 | ||
| 17801-68020 |
13BT,3B..BJ7# |
1 | ||
| 17801-61030 |
13BT,3B..BJ7# |
1 | ||
| 17801-61030 |
13BT,3B..BJ7# |
1 | ||
| 17801-61030 |
13BT,3B..BJ7# |
1 | ||
| 17801-68010 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17801-68010 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17801-68010 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68040 |
3B..BJ70,73,75..GEN,ME OIL BATH |
1 | ||
| 17841-68040 |
3B..BJ70,73,75..GEN,ME OIL BATH |
1 | ||
| 17841-68040 |
3B..BJ70,73,75..GEN,ME OIL BATH |
1 | ||
| 17841-68010 |
13BT,3B..BJ7# |
2 | ||
| 17841-68010 |
13BT,3B..BJ7# |
2 | ||
| 17841-68010 |
13BT,3B..BJ7# |
2 | ||
| 17841-68040 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17841-68040 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17841-68040 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68040 |
3B..BJ70,73,75..GEN,ME OIL BATH |
1 | ||
| 17841-68040 |
3B..BJ70,73,75..GEN,ME OIL BATH |
1 | ||
| 17841-68040 |
3B..BJ70,73,75..GEN,ME OIL BATH |
1 | ||
| 17841-68010 |
13BT,3B..BJ7# |
2 | ||
| 17841-68010 |
13BT,3B..BJ7# |
2 | ||
| 17841-68010 |
13BT,3B..BJ7# |
2 | ||
| 17841-68040 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17841-68040 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17841-68040 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-61011 |
13BT,3B..BJ7# *G,L=933 |
1 | ||
| 17845-61011 |
13BT,3B..BJ7# *G,L=933 |
1 | ||
| 17845-61011 |
13BT,3B..BJ7# *G,L=933 |
1 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90179-08096 | ||||
| Linked diagrams | ||||
| 1709 | ||||
ILLUST NO. 1 OF 2(8411- )3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-58160 |
3B..BJ70,75..GEN |
1 | ||
| 17700-58160 |
3B..BJ70,75..GEN |
1 | ||
| 17700-58160 |
3B..BJ70,75..GEN |
1 | ||
| 17700-61180 |
13BT,3B..BJ7# SCHNORKEL TYPE & CYCLONE TYPE |
1 | ||
| 17700-61180 |
13BT,3B..BJ7# SCHNORKEL TYPE & CYCLONE TYPE |
1 | ||
| 17700-61180 |
13BT,3B..BJ7# SCHNORKEL TYPE & CYCLONE TYPE |
1 | ||
| 17700-58170 |
13BT,3B..BJ7# CYCLONE TYPE |
1 | ||
| 17700-58170 |
13BT,3B..BJ7# CYCLONE TYPE |
1 | ||
| 17700-58170 |
13BT,3B..BJ7# CYCLONE TYPE |
1 | ||
| 17700-58200 |
3B..BJ70,73,75..GEN |
1 | ||
| 17700-58200 |
3B..BJ70,73,75..GEN |
1 | ||
| 17700-58200 |
3B..BJ70,73,75..GEN |
1 | ||
| 17700-58210 |
13BT,3B..BJ7# CYCLONE TYPE |
1 | ||
| 17700-58210 |
13BT,3B..BJ7# CYCLONE TYPE |
1 | ||
| 17700-58210 |
13BT,3B..BJ7# CYCLONE TYPE |
1 | ||
| 17700-61181 |
13BT,3B..BJ7# SCHNORKEL TYPE & CYCLONE TYPE |
1 | ||
| 17700-61181 |
13BT,3B..BJ7# SCHNORKEL TYPE & CYCLONE TYPE |
1 | ||
| 17700-61181 |
13BT,3B..BJ7# SCHNORKEL TYPE & CYCLONE TYPE |
1 | ||
| 17700-61190 |
3B..BJ70,73,75..GEN,ME SCHNORKEL TYPE & OIL BATH |
1 | ||
| 17700-61190 |
3B..BJ70,73,75..GEN,ME SCHNORKEL TYPE & OIL BATH |
1 | ||
| 17700-61190 |
3B..BJ70,73,75..GEN,ME SCHNORKEL TYPE & OIL BATH |
1 | ||
| 17700-58180 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17700-58180 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17700-58180 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17700-61190 |
3B..BJ70,73,75..GEN OIL BATH TYPE & SCHNORKEL TYPE |
1 | ||
| 17700-61190 |
3B..BJ70,73,75..GEN OIL BATH TYPE & SCHNORKEL TYPE |
1 | ||
| 17700-61190 |
3B..BJ70,73,75..GEN OIL BATH TYPE & SCHNORKEL TYPE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
13BT,3B..BJ7# |
1 | ||
| 90175-08008 |
13BT,3B..BJ7# |
1 | ||
| 90175-08008 |
13BT,3B..BJ7# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-61090 |
13BT,3B..BJ7# |
1 | ||
| 17705-61090 |
13BT,3B..BJ7# |
1 | ||
| 17705-61090 |
13BT,3B..BJ7# |
1 | ||
| 17705-61100 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17705-61100 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17705-61100 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-68010 |
3B..BJ70,73,75..GEN,ME OIL BATH |
1 | ||
| 17801-68010 |
3B..BJ70,73,75..GEN,ME OIL BATH |
1 | ||
| 17801-68010 |
3B..BJ70,73,75..GEN,ME OIL BATH |
1 | ||
| 17801-68020 |
13BT,3B..BJ7# |
1 | ||
| 17801-68020 |
13BT,3B..BJ7# |
1 | ||
| 17801-68020 |
13BT,3B..BJ7# |
1 | ||
| 17801-61030 |
13BT,3B..BJ7# |
1 | ||
| 17801-61030 |
13BT,3B..BJ7# |
1 | ||
| 17801-61030 |
13BT,3B..BJ7# |
1 | ||
| 17801-68010 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17801-68010 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17801-68010 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68040 |
3B..BJ70,73,75..GEN,ME OIL BATH |
1 | ||
| 17841-68040 |
3B..BJ70,73,75..GEN,ME OIL BATH |
1 | ||
| 17841-68040 |
3B..BJ70,73,75..GEN,ME OIL BATH |
1 | ||
| 17841-68010 |
13BT,3B..BJ7# |
2 | ||
| 17841-68010 |
13BT,3B..BJ7# |
2 | ||
| 17841-68010 |
13BT,3B..BJ7# |
2 | ||
| 17841-68040 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17841-68040 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17841-68040 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17842 - GASKET, FILTER ELEMENT, NO.2 | ||||
| 17841-68050 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17841-68050 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17841-68050 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17843 - GASKET, FILTER ELEMENT, NO.3 | ||||
| 17841-68060 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17841-68060 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17841-68060 |
3B..BJ70,73,75..GEN OIL BATH |
1 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-61011 |
13BT,3B..BJ7# *G,L=933 |
1 | ||
| 17845-61011 |
13BT,3B..BJ7# *G,L=933 |
1 | ||
| 17845-61011 |
13BT,3B..BJ7# *G,L=933 |
1 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90179-08096 | ||||

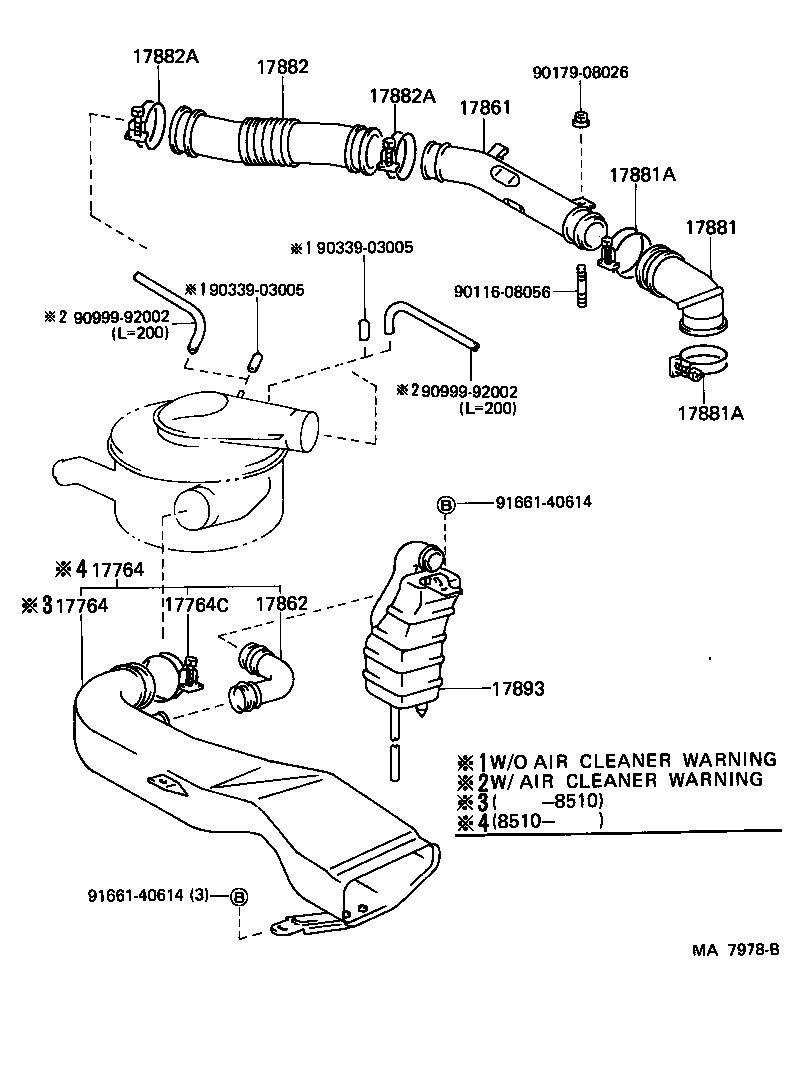

ILLUST NO. 2 OF 2(8411- )3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17764 - DUCT, AIR CLEANER | ||||
| 53207-90K04 |
3B..BJ70,73,75 |
1 | ||
| 53285-90K00 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 53299-90K05 |
3B..BJ7# |
1 | ||
| 53207-90K04 |
13BT,3B..BJ7# |
1 | ||
| 17764 - DUCT, AIR CLEANER | ||||
| 53207-90K04 |
3B..BJ70,73,75 |
1 | ||
| 53285-90K00 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 53299-90K05 |
3B..BJ7# |
1 | ||
| 53207-90K04 |
13BT,3B..BJ7# |
1 | ||
| 17764C - CLAMP, HOSE(FOR AIR CLEANER DUCT) | ||||
| 96111-10800 |
13BT,3B..BJ7# |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17885-58070 |
3B..BJ70,73,75 |
1 | ||
| 17862 - CONNECTOR, INTAKE AIR, NO.2 | ||||
| 53297-90K00 |
13BT,3B..BJ7# |
1 | ||
| 53297-90K00 |
3B..BJ70,73,75 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58090 |
3B..BJ70,73,75 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
3B..BJ70,73,75 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
3B..BJ70,73,75 |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-58060 |
3B..BJ70,73,75 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10710 |
3B..BJ70,73,75 CONNECTOR SIDE |
1 | ||
| 96111-10830 |
3B..BJ70,73,75 CLEANER SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10710 |
3B..BJ70,73,75 CONNECTOR SIDE |
1 | ||
| 96111-10830 |
3B..BJ70,73,75 CLEANER SIDE |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 53295-90K00 |
3B..BJ70,73,75 |
1 | ||
| 53295-90K00 |
13BT,3B..BJ7# |
1 | ||
| Common parts | ||||
| 90116-08056 | ||||
| 90179-08026 | ||||
| 90339-03005 | ||||
| 90999-92002 | ||||
| 91661-40614 | ||||
ILLUST NO. 2 OF 2(8411- )3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17709 - INLET SUB-ASSY, AIR CLEANER | ||||
| 53299-90K08 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 53299-90K08 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 53299-90K08 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17709-61030 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 17709-61030 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 17709-61030 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 17709-61031 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 17709-61031 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 17709-61031 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 17730E - BRACKET, PRECLEANER, NO.1 | ||||
| 53772-90K00 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 53772-90K00 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 53772-90K00 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 17730F - BRACKET, PRECLEANER, NO.2 | ||||
| 53773-90K00 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 53773-90K00 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 53773-90K00 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 17730G - PAD, PRECLEANER | ||||
| 53966-90K00 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 53966-90K00 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 53966-90K00 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 17764 - DUCT, AIR CLEANER | ||||
| 53207-90K04 |
3B..BJ70,73,75 |
1 | ||
| 53207-90K04 |
3B..BJ70,73,75 |
1 | ||
| 53207-90K04 |
3B..BJ70,73,75 |
1 | ||
| 53285-90K00 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 53285-90K00 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 53285-90K00 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 53299-90K05 |
3B..BJ7# |
1 | ||
| 53299-90K05 |
3B..BJ7# |
1 | ||
| 53299-90K05 |
3B..BJ7# |
1 | ||
| 53207-90K04 |
13BT,3B..BJ7# |
1 | ||
| 53207-90K04 |
13BT,3B..BJ7# |
1 | ||
| 53207-90K04 |
13BT,3B..BJ7# |
1 | ||
| 17764B - PLATE, AIR CLEANER SEALD | ||||
| 53964-90K00 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 53964-90K00 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 53964-90K00 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17885-58070 |
3B..BJ70,73,75 |
1 | ||
| 17885-58070 |
3B..BJ70,73,75 |
1 | ||
| 17885-58070 |
3B..BJ70,73,75 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58090 |
3B..BJ70,73,75 |
1 | ||
| 17881-58090 |
3B..BJ70,73,75 |
1 | ||
| 17881-58090 |
3B..BJ70,73,75 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58090 |
3B..BJ70,73,75 |
1 | ||
| 17881-58090 |
3B..BJ70,73,75 |
1 | ||
| 17881-58090 |
3B..BJ70,73,75 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
3B..BJ70,73,75 |
2 | ||
| 96111-10710 |
3B..BJ70,73,75 |
2 | ||
| 96111-10710 |
3B..BJ70,73,75 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
3B..BJ70,73,75 |
2 | ||
| 96111-10710 |
3B..BJ70,73,75 |
2 | ||
| 96111-10710 |
3B..BJ70,73,75 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
3B..BJ70,73,75 |
2 | ||
| 96111-10710 |
3B..BJ70,73,75 |
2 | ||
| 96111-10710 |
3B..BJ70,73,75 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
3B..BJ70,73,75 |
2 | ||
| 96111-10710 |
3B..BJ70,73,75 |
2 | ||
| 96111-10710 |
3B..BJ70,73,75 |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-58060 |
3B..BJ70,73,75 |
1 | ||
| 17882-58060 |
3B..BJ70,73,75 |
1 | ||
| 17882-58060 |
3B..BJ70,73,75 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-58060 |
3B..BJ70,73,75 |
1 | ||
| 17882-58060 |
3B..BJ70,73,75 |
1 | ||
| 17882-58060 |
3B..BJ70,73,75 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10710 |
3B..BJ70,73,75 CONNECTOR SIDE |
1 | ||
| 96111-10710 |
3B..BJ70,73,75 CONNECTOR SIDE |
1 | ||
| 96111-10710 |
3B..BJ70,73,75 CONNECTOR SIDE |
1 | ||
| 96111-10830 |
3B..BJ70,73,75 CLEANER SIDE |
1 | ||
| 96111-10830 |
3B..BJ70,73,75 CLEANER SIDE |
1 | ||
| 96111-10830 |
3B..BJ70,73,75 CLEANER SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10710 |
3B..BJ70,73,75 CONNECTOR SIDE |
1 | ||
| 96111-10710 |
3B..BJ70,73,75 CONNECTOR SIDE |
1 | ||
| 96111-10710 |
3B..BJ70,73,75 CONNECTOR SIDE |
1 | ||
| 96111-10830 |
3B..BJ70,73,75 CLEANER SIDE |
1 | ||
| 96111-10830 |
3B..BJ70,73,75 CLEANER SIDE |
1 | ||
| 96111-10830 |
3B..BJ70,73,75 CLEANER SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10710 |
3B..BJ70,73,75 CONNECTOR SIDE |
1 | ||
| 96111-10710 |
3B..BJ70,73,75 CONNECTOR SIDE |
1 | ||
| 96111-10710 |
3B..BJ70,73,75 CONNECTOR SIDE |
1 | ||
| 96111-10830 |
3B..BJ70,73,75 CLEANER SIDE |
1 | ||
| 96111-10830 |
3B..BJ70,73,75 CLEANER SIDE |
1 | ||
| 96111-10830 |
3B..BJ70,73,75 CLEANER SIDE |
1 | ||
| 17911A - HOSE, COOL AIR INTAKE, NO.1 | ||||
| 52831-90K00 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 52831-90K00 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 52831-90K00 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 17911C - CLAMP, COOL AIR INTAKE DUCT, NO.1 | ||||
| 96111-10800 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 96111-10800 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| 96111-10800 |
13BT,3B..BJ7# SCHNORKEL TYPE |
1 | ||
| Common parts | ||||
| 90116-08056 | ||||
| 90119-08517 | ||||
| 90119-08518 | ||||
| 90176-08029 | ||||
| 90179-06027 | ||||
| 90179-08026 | ||||
| 90339-03005 | ||||
| 90387-10078 | ||||
| 90461-08430 | ||||
| 90480-16013 | ||||
| 90950-01286 | ||||
| 90999-92002 | ||||
| 91621-40816 | ||||
| 93560-54010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
