BJ70L-KR (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1988
Engine 3B
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

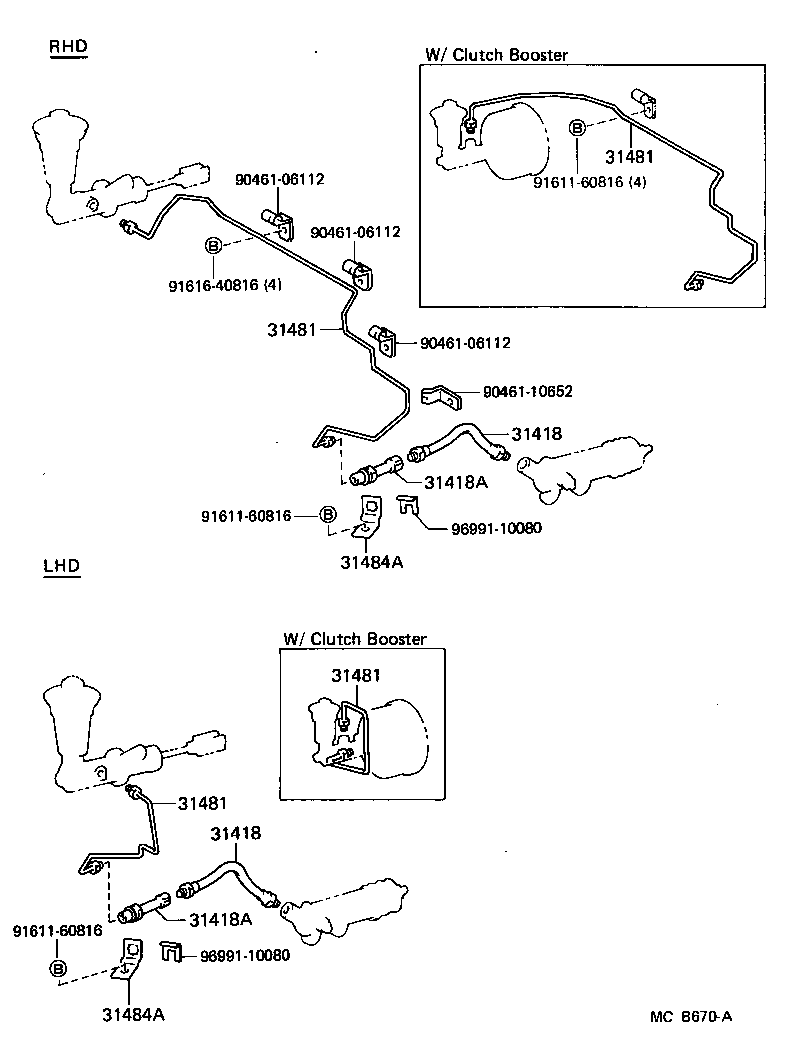

ILLUST NO. 2 OF 2(8411- )BJ7#..MTM

Click highlighted areas on diagram

diagram 31418 31418 31418A 31418A 31481 31481 31481 31481 31484A 31484A 9046106112 9046106112 9046106112 9046110652 9161160816 9161160816 9161160816 9161640816 9699110080 9699110080
Part # Description Qty Price
31418 - HOSE, CLUTCH
90931-01017

BJ7#

 1
31418 - HOSE, CLUTCH
90931-01017

BJ7#

 1
31418A - UNION(FOR CLUTCH HOSE)
90404-10028

BJ7#..MTM

 1
31418A - UNION(FOR CLUTCH HOSE)
90404-10028

BJ7#..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60440

BJ70,73,75..LHD

 1
31481-60420

BJ70,73,75..LHD

W/CLUTCH BOOSTER

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60440

BJ70,73,75..LHD

 1
31481-60420

BJ70,73,75..LHD

W/CLUTCH BOOSTER

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60440

BJ70,73,75..LHD

 1
31481-60420

BJ70,73,75..LHD

W/CLUTCH BOOSTER

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60440

BJ70,73,75..LHD

 1
31481-60420

BJ70,73,75..LHD

W/CLUTCH BOOSTER

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-60050

BJ7#..MTM

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-60050

BJ7#..MTM

 1
Common parts
90461-06112
90461-10652
91611-60816
91616-40816
96991-10080

ILLUST NO. 1 OF 2(8411- )MTM

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31305D 31321 31324 31324A 31453A 31453B 9017908038 9046816142 9165660820 9166560835 9411041000 9412040800 9451201000 9461110800
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-60100

BJ70,75,FJ7#,HJ75,LJ70,RJ70..LHD..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14015

BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
91131-50828

BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM

 1
31305D - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-90K01

BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51070

BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08018

BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM

L=29.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM

 1
Common parts
90179-08038
90468-16142
91656-60820
91665-60835
94110-41000
94120-40800
94512-01000
94611-10800
