BJ60RG-KRC (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 3B
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

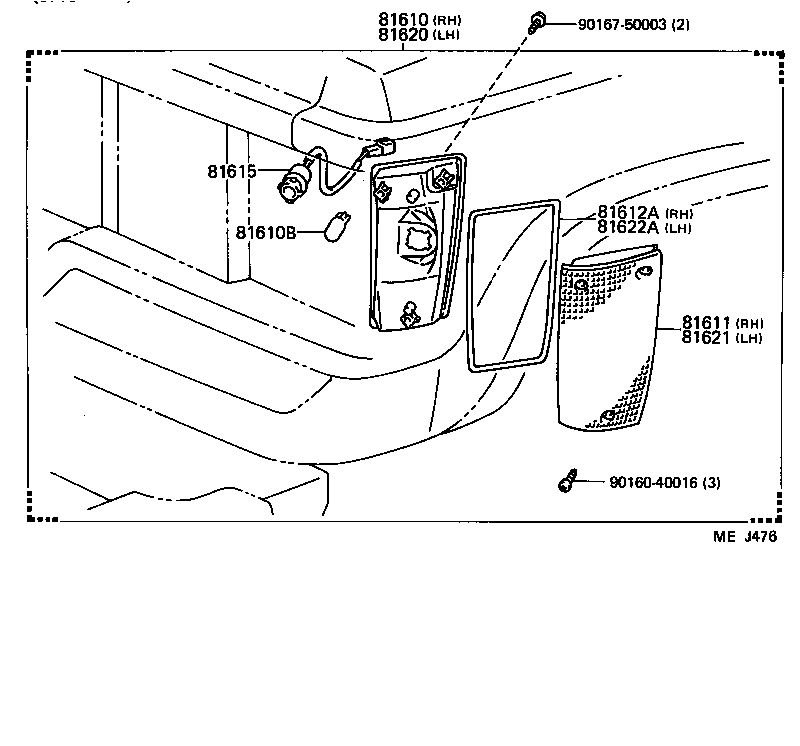

Click highlighted areas on diagram

diagram 81610 81610B 81611 81612A 81615 81620 81621 81622A 9016040016 9016750003
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-90A02

BJ60,FJ62,HJ6#

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

BJ60,FJ62,HJ6#

12V 5W

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-90A00

BJ60,FJ62,HJ6#

 1
81612A - GASKET, PARKING AND CLEARANCE LAMP LENS, RH
81612-90A00

BJ60,FJ62,HJ6#

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-90A02

BJ60,FJ62,HJ6#

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-90A02

BJ60,FJ62,HJ6#

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-90A00

BJ60,FJ62,HJ6#

 1
81622A - GASKET, PARKING AND CLEARANCE LAMP LENS, LH
81612-90A00

BJ60,FJ62,HJ6#

 1
Common parts
90160-40016
90167-50003
