BJ60LG-MNCV (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Aug 1988
Engine
3B
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

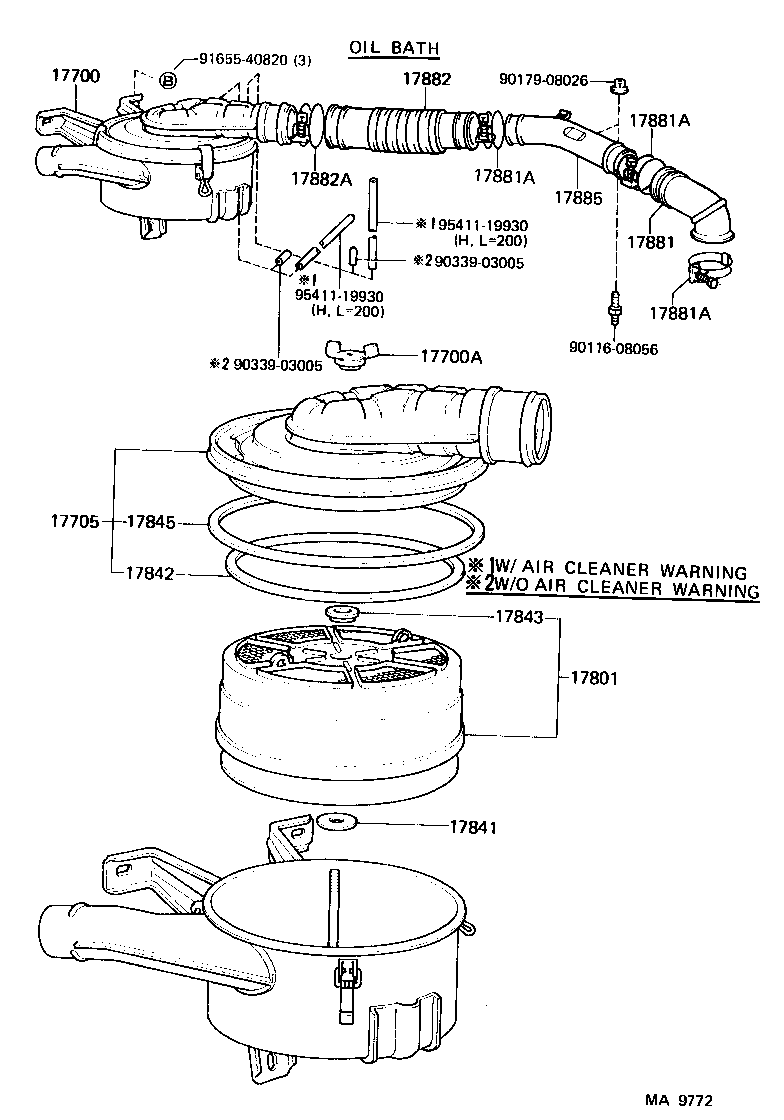

ILLUST NO. 1 OF 3(8708- )3B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-68151 |
3B..BJ60..ME |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
3B..BJ60 |
1 | ||
| 17703 - CASE SUB-ASSY, BOTTOM AIR CLEANER FILTER | ||||
| 17703-68010 |
3B..BJ60 |
1 | ||
| 17703A - GASKET(FOR BOTTOM AIR CLEANER FILTER CASE) | ||||
| 90430-98001 |
3B..BJ60 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-68100 |
3B..BJ60 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-61030 |
3B..BJ60 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
3B..BJ60 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
3B..BJ60 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-61011 |
3B..BJ60 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58090 |
3B..BJ60 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
3B..BJ60 |
3 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
3B..BJ60 |
3 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
3B..BJ60 |
3 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-58070 |
3B..BJ60 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10830 |
3B..BJ60 |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-58070 |
3B..BJ60 |
1 | ||
| Common parts | ||||
| 90116-08056 | ||||
| 90179-08026 | ||||
| 90339-03005 | ||||
| 91655-40820 | ||||
| 95411-19930 | ||||
| Linked diagrams | ||||
| 1709 | ||||
ILLUST NO. 1 OF 3(8708- )3B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-68151 |
3B..BJ60..ME |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
3B..BJ60 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-68100 |
3B..BJ60 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-61030 |
3B..BJ60 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
3B..BJ60 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-61011 |
3B..BJ60 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58090 |
3B..BJ60 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
3B..BJ60 |
3 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
3B..BJ60 |
3 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
3B..BJ60 |
3 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-58070 |
3B..BJ60 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10830 |
3B..BJ60 |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-58070 |
3B..BJ60 |
1 | ||
| Common parts | ||||
| 90116-08056 | ||||
| 90179-08026 | ||||
| 90339-03005 | ||||
| 91655-40820 | ||||
| 95411-19930 | ||||
ILLUST NO. 2 OF 2(8708- )3B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53199B - DUCT SUB-ASSY, COOL AIR INTAKE | ||||
| 53207-90A00 |
BJ60 |
1 | ||
| 53207-90A00 |
BJ60 |
1 | ||
| 53207-90A00 |
BJ60 |
1 | ||
| Common parts | ||||
| 90119-08518 | ||||
| 90119-08565 | ||||
| 90387-10078 | ||||
| 90460-01036 | ||||
| 90480-16013 | ||||
| 91611-10800 | ||||
| 91651-40612 | ||||
| 96111-10800 | ||||
