BJ42RV-KCQ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )ARL

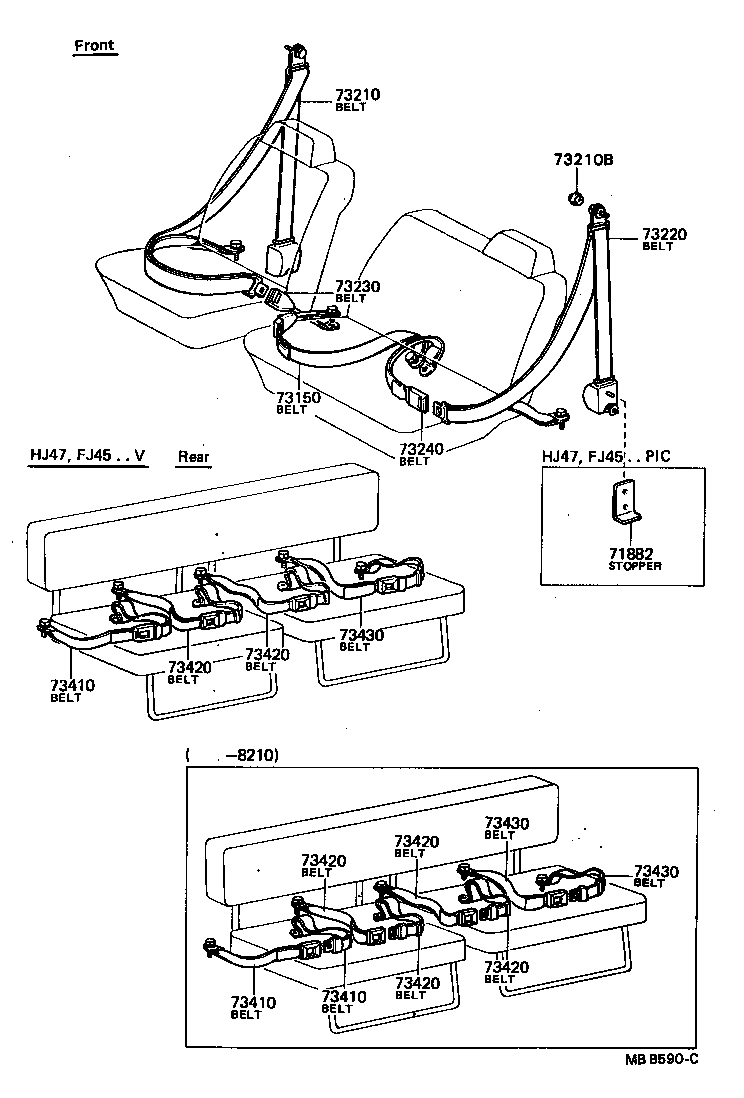

Click highlighted areas on diagram

diagram 71882 73150 73210 73210B 73220 73230 73240 73410 73410 73410 73420 73420 73420 73420 73420 73420 73430 73430 73430
Part # Description Qty Price
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
73140-90800

BJ42,FJ40,45,HJ47..ARL

INNER

 1
73130-90800

BJ42,FJ40,45,HJ47..ARL

OUTER

 1
73150-90801

BJ42,FJ40,45,HJ47..ARL

 1
73150-90802

BJ42,FJ40..VKC..ARL

W/TRIM,W/O ROLL BAR

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-90807

BJ42,FJ40..VKC..ARL

W/TRIM

 1
73210-90801

BJ42,FJ40,45,HJ47..(TP,V)..ARL

 1
73210B - CAP (FOR FRONT SEAT OUTER BELT)
73178-12010

BJ42,FJ40..VKC..(ARL,EUR)

W/TRIM,W/O ROLL BAR

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-90800

BJ42,FJ40,45,HJ47..(TP,V)..ARL

 1
73220-90803

BJ42,FJ40..VKC..ARL

W/TRIM

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-90804

BJ42,FJ40..VKC..ARL

W/TRIM,W/O *RB

 1
73230-90800

BJ42,FJ40,45,HJ47..ARL

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-90800

BJ42,FJ40,45,HJ47..ARL

 1
73240-90805

BJ42,FJ40..VKC..ARL

W/TRIM,W/O *RB

 1
73240-90804

BJ42,FJ40,45,HJ47..ARL

 1

(8110- )BJ42,FJ40..VKC..ARL,EUR

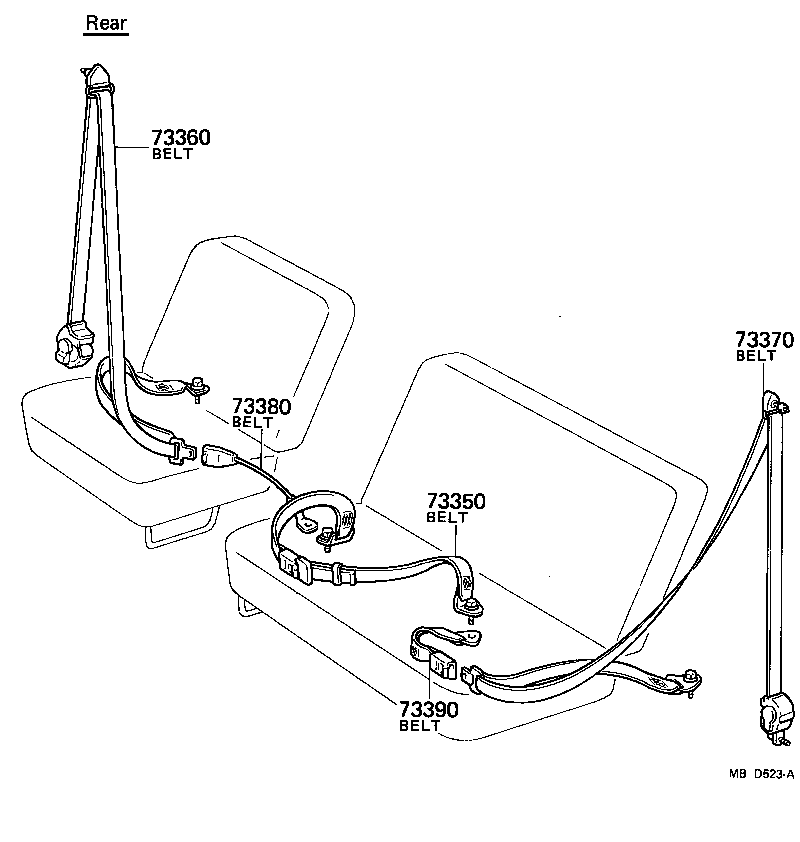

Click highlighted areas on diagram

diagram 73350 73360 73370 73380 73390
Part # Description Qty Price
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-90800

BJ42,FJ40..VKC..(ARL,EUR)

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-90801

BJ42,FJ40..VKC..ARL

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-90801

BJ42,FJ40..VKC..ARL

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73480-90800

BJ42,FJ40..VKC..(ARL,EUR)

 1
