BJ40LV-KC (1974)

Toyota Land Cruiser

Production Feb 1974 - Jul 1980
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 11251 11253 11401 11401 11415 11415A 11416 11416A 11431A 11431B 11431C 11431D 11431E 11432A 11432B 11432C 11432F 11434A 11434C 11434D 11452 11459 11462 11475 12101 12101A 12101B 12151 1301 1302 13613C 15301 15605 15708 9004301041 9011608194 9011608194 9011908512 9017908123 9017908123 9017908123 9020114099 9161160816 9161160816 9212260814 9411040800
Part # Description Qty Price
Common parts
90043-01041
90116-08194
90119-08512
90179-08123
90201-14099
91611-60816
92122-60814
94110-40800
Linked diagrams
1301
1302

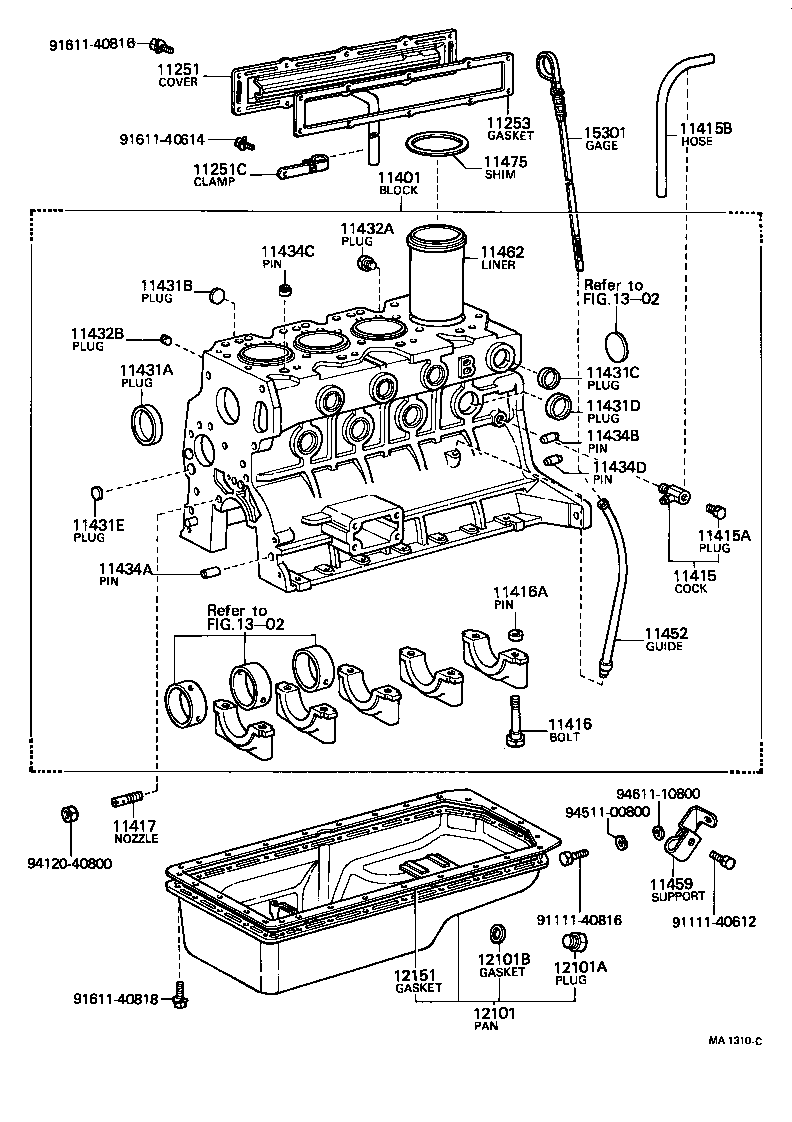

(7402-7709)B

Click highlighted areas on diagram

diagram 11251 11251C 11253 11401 11415 11415A 11415B 11416 11416A 11417 11431A 11431B 11431C 11431D 11431E 11432A 11432B 11434A 11434B 11434C 11434D 11452 11459 11462 11475 12101 12101A 12101B 12151 1302 1302 15301 9111140612 9111140816 9161140614 9161140816 9161140818 9412040800 9451100800 9461110800
Part # Description Qty Price
11251 - COVER, VALVE PUSH ROD
11203-56011

B..BJ4#

 1
11203-56020

B..BJ4#

 1
11251C - CLAMP(FOR VALVE PUSH ROD COVER)
12251-56011

B..BJ4#

 1
11253 - GASKET, VALVE PUSH ROD COVER
11253-56010

B..BJ4#

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-59025

B..BJ4#

 1
11401-59046

B..BJ4#

 1
11401-59045

B..BJ4#

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96432-03833

B..BJ4#

 1
96432-03833

B..BJ4#

 1
96432-03833

B..BJ4#

 1
11415B - HOSE(FOR DRAIN COCK)
90446-12305

B..BJ4#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02045

B..BJ4#

12-1.25PX75-22

 10
11417 - NOZZLE, OIL
90915-01011

B..BJ4#

 1
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
90331-51032

B..BJ4#

OD=51

 2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-12500

B..BJ4#

OD=25

 3
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-13000

B..BJ4#

OD=30

 5
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-13500

B..BJ4#

OD=35

 4
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
90330-17041

B..BJ4#

OD=17

 3
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90043-45010

B..BJ4#

 3
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90043-44010

B..BJ4#

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

B..BJ4#

L=18,OD=8,L=18,OD=8

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-08120

B..BJ4#

L=18,OD=8,L=18,OD=8

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-15005

B..BJ4#

L=7,OD=14.5,L=7,OD=14.5

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-56020

B..BJ4#

 1
11452-56010

B..BJ4#

 1
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
11459-56040

B..BJ4#

 1
11459-56020

B..BJ4#

 1
11462 - LINER, CYLINDER
11461-56010

B..BJ4#

 4
11461-56020

B..BJ4#

 4
11475 - SHIM, CYLINDER LINER
11476-56010

B..BJ4#

T=0.10

 1
11475-56020

B..BJ4#

T=0.05

 1
11475-56010

B..BJ4#

T=0.05

 1
11476-56020

B..BJ4#

T=0.10

 1
12101 - PAN SUB-ASSY, OIL
12101-59045

B..BJ4#

 1
12101-59055

B..BJ4#

 1
12101-59056

B..BJ4#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

B..BJ4#

OD=18

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

B..BJ4#

ID=18

 1
90430-25013

B..BJ4#

ID=25

 1
12151 - GASKET, OIL PAN
12151-56020

B..BJ4#

 1
12151-56010

B..BJ4#

 1
12151-56021

B..BJ4#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-56020

B..BJ4#

 1
15301-56010

B..BJ4#

 1
Common parts
91111-40612
91111-40816
91611-40614
91611-40816
91611-40818
94120-40800
94511-00800
94611-10800
Linked diagrams
1302

(7709-8007)B

Click highlighted areas on diagram

diagram 11251 11253 11401 11415 11415A 11415B 11416 11416A 11431A 11431B 11431C 11431D 11431E 11432A 11432B 11434A 11434C 11434D 11452 11459 11462 11475 12101 12101A 12101B 12151 1301 1302 1302 15301 9004116123 9004179052 9161160818 9161160818
Part # Description Qty Price
11251 - COVER, VALVE PUSH ROD
11203-56011

B..BJ4#

 1
11203-56020

B..BJ4#

 1
11253 - GASKET, VALVE PUSH ROD COVER
11253-56010

B..BJ4#

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-59025

B..BJ4#

 1
11401-59046

B..BJ4#

 1
11401-59045

B..BJ4#

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96432-03833

B..BJ4#

 1
96432-03833

B..BJ4#

 1
96432-03833

B..BJ4#

 1
11415B - HOSE(FOR DRAIN COCK)
90446-12305

B..BJ4#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02045

B..BJ4#

12-1.25PX75-22

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
90331-51032

B..BJ4#

OD=51

 2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-12500

B..BJ4#

OD=25

 3
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-13000

B..BJ4#

OD=30

 5
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-13500

B..BJ4#

OD=35

 4
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
90330-17041

B..BJ4#

OD=17

 3
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90043-45010

B..BJ4#

 3
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90043-44010

B..BJ4#

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

B..BJ4#

L=18,OD=8,L=18,OD=8

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-15005

B..BJ4#

L=7,OD=14.5,L=7,OD=14.5

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-56020

B..BJ4#

 1
11452-56010

B..BJ4#

 1
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
11459-56040

B..BJ4#

 1
11459-56020

B..BJ4#

 1
11462 - LINER, CYLINDER
11461-56010

B..BJ4#

 4
11461-56020

B..BJ4#

 4
11475 - SHIM, CYLINDER LINER
11476-56010

B..BJ4#

T=0.10

 1
11475-56020

B..BJ4#

T=0.05

 1
11475-56010

B..BJ4#

T=0.05

 1
11476-56020

B..BJ4#

T=0.10

 1
12101 - PAN SUB-ASSY, OIL
12101-59045

B..BJ4#

 1
12101-59055

B..BJ4#

 1
12101-59056

B..BJ4#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

B..BJ4#

OD=18

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

B..BJ4#

ID=18

 1
90430-25013

B..BJ4#

ID=25

 1
12151 - GASKET, OIL PAN
12151-56020

B..BJ4#

 1
12151-56010

B..BJ4#

 1
12151-56021

B..BJ4#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-56020

B..BJ4#

 1
15301-56010

B..BJ4#

 1
Common parts
90041-16123
90041-79052
91611-60818
Linked diagrams
1301
1302

(6903-7501)F

Click highlighted areas on diagram

diagram 11251 11251E 11253 11401 11415 11415A 11417 11434C 11452 11462 12101 12101 12101A 12101A 12101B 12101B 12151 15301 9161140610 9338118018 9411040600 9451100600
Part # Description Qty Price
11251 - COVER, VALVE PUSH ROD
11203-56011

B..BJ4#

 1
11203-56020

B..BJ4#

 1
11253 - GASKET, VALVE PUSH ROD COVER
11253-56010

B..BJ4#

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-59025

B..BJ4#

 1
11401-59046

B..BJ4#

 1
11401-59045

B..BJ4#

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96432-03833

B..BJ4#

 1
96432-03833

B..BJ4#

 1
96432-03833

B..BJ4#

 1
11417 - NOZZLE, OIL
90915-01011

B..BJ4#

 1
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-15005

B..BJ4#

L=7,OD=14.5,L=7,OD=14.5

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-56020

B..BJ4#

 1
11452-56010

B..BJ4#

 1
11462 - LINER, CYLINDER
11461-56010

B..BJ4#

 4
11461-56020

B..BJ4#

 4
12101 - PAN SUB-ASSY, OIL
12101-59045

B..BJ4#

 1
12101-59055

B..BJ4#

 1
12101-59056

B..BJ4#

 1
12101 - PAN SUB-ASSY, OIL
12101-59045

B..BJ4#

 1
12101-59055

B..BJ4#

 1
12101-59056

B..BJ4#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

B..BJ4#

OD=18

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

B..BJ4#

OD=18

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

B..BJ4#

ID=18

 1
90430-25013

B..BJ4#

ID=25

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

B..BJ4#

ID=18

 1
90430-25013

B..BJ4#

ID=25

 1
12151 - GASKET, OIL PAN
12151-56020

B..BJ4#

 1
12151-56010

B..BJ4#

 1
12151-56021

B..BJ4#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-56020

B..BJ4#

 1
15301-56010

B..BJ4#

 1
Common parts
91611-40610
93381-18018
94110-40600
94511-00600
