UZJ200L-GNANKC (2007)

Toyota Land Cruiser(China)

Production Dec 2007 - Feb 2012
Engine 2UZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0712- )

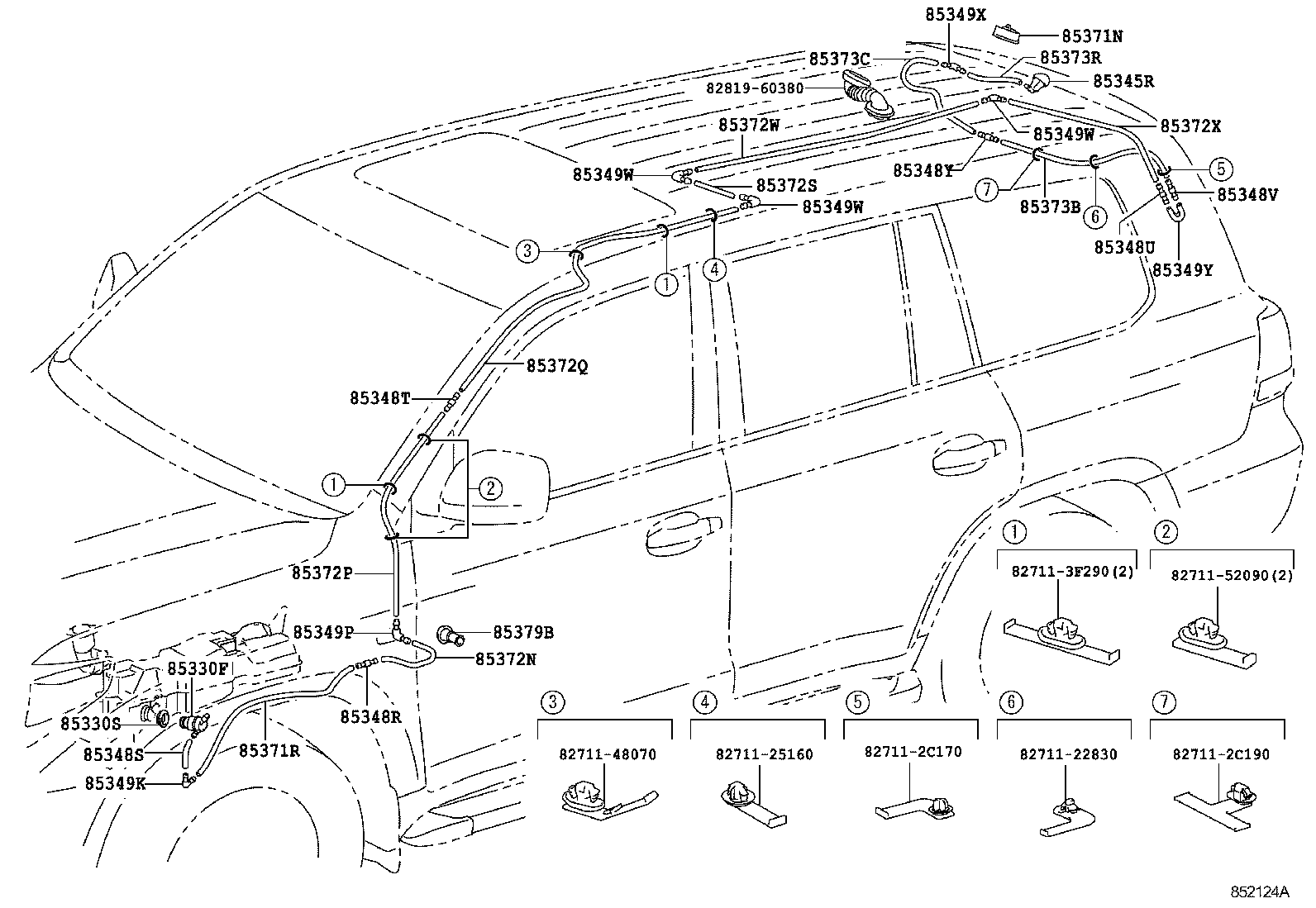

Click highlighted areas on diagram

diagram 8271122830 8271125160 827112C170 827112C190 827113F290 8271148070 8271152090 8281960380 85330F 85330S 85345R 85348R 85348S 85348T 85348U 85348V 85348Y 85349K 85349P 85349W 85349W 85349W 85349X 85349Y 85371N 85371R 85372N 85372P 85372Q 85372S 85372W 85372X 85373B 85373C 85373R 85379B
Part # Description Qty Price
85330F - MOTOR & PUMP ASSY, RR WASHER
85330-60180

GRJ200,UZJ200..5FC

 1
85330S - BUSH, REAR WASHER JAR
85336-60300

GRJ200,UZJ200..5FC

 1
85345R - NOZZLE, REAR WASHER
85391-60120

GRJ200,UZJ200..5FC

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

GRJ200,UZJ200..5FC

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200

GRJ200,UZJ200..5FC

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

GRJ200,UZJ200..5FC

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-89122

GRJ200,UZJ200..5FC

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85349-89122

GRJ200,UZJ200..5FC

 1
85348Y - JOINT, REAR WASHER HOSE, NO.5
85349-89122

GRJ200,UZJ200..5FC

 1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85355-14481

GRJ200,UZJ200..5FC

 1
85349P - JOINT, REAR WASHER ELBOW, NO.3
85355-20200

GRJ200,UZJ200..5FC

 1
85349W - JOINT, REAR WASHER ELBOW, NO.4
85355-20200

GRJ200,UZJ200..5FC

 3
85349W - JOINT, REAR WASHER ELBOW, NO.4
85355-20200

GRJ200,UZJ200..5FC

 3
85349W - JOINT, REAR WASHER ELBOW, NO.4
85355-20200

GRJ200,UZJ200..5FC

 3
85349X - JOINT, REAR WASHER ELBOW, NO.6
85355-20200

GRJ200,UZJ200..5FC

 1
85349Y - JOINT, REAR WASHER ELBOW, NO.5
85375-33040

GRJ200,UZJ200..5FC

 1
85371N - CLAMP, REAR WASHER HOSE
85371-60030

GRJ200,UZJ200..5FC

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33080

GRJ200,UZJ200..5FC

*H,L=610

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

GRJ200,UZJ200..5FC

*H,L=220

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

GRJ200,UZJ200..5FC

*H,L=700

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

GRJ200,UZJ200..5FC

*H,L=1270

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90099-33080

GRJ200,UZJ200..5FC

*H,L=100

 1
85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
90099-33803

GRJ200,UZJ200..5FC

*H,L=1550

 1
85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
90099-33080

GRJ200,UZJ200..5FC

*H,L=340

 1
85373B - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
90099-33080

GRJ200,UZJ200..5FC

*H,L=490

 1
85373C - TUBE, REAR WASHER RUBBER
90099-33080

GRJ200,UZJ200..5FC

*H,L=420

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33080

GRJ200,UZJ200..5FC

*H,L=130

 1
85379B - GROMMET, WASHER, A
85379-12850

GRJ200,UZJ200..5FC

 1
Common parts
82711-22830
82711-25160
82711-2C170
82711-2C190
82711-3F290
82711-48070
82711-52090
82819-60380
