UZJ200L-GNANKC (2007)

Toyota Land Cruiser(China)

Production Dec 2007 - Feb 2012
Engine 2UZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0712-1202)2UZFE

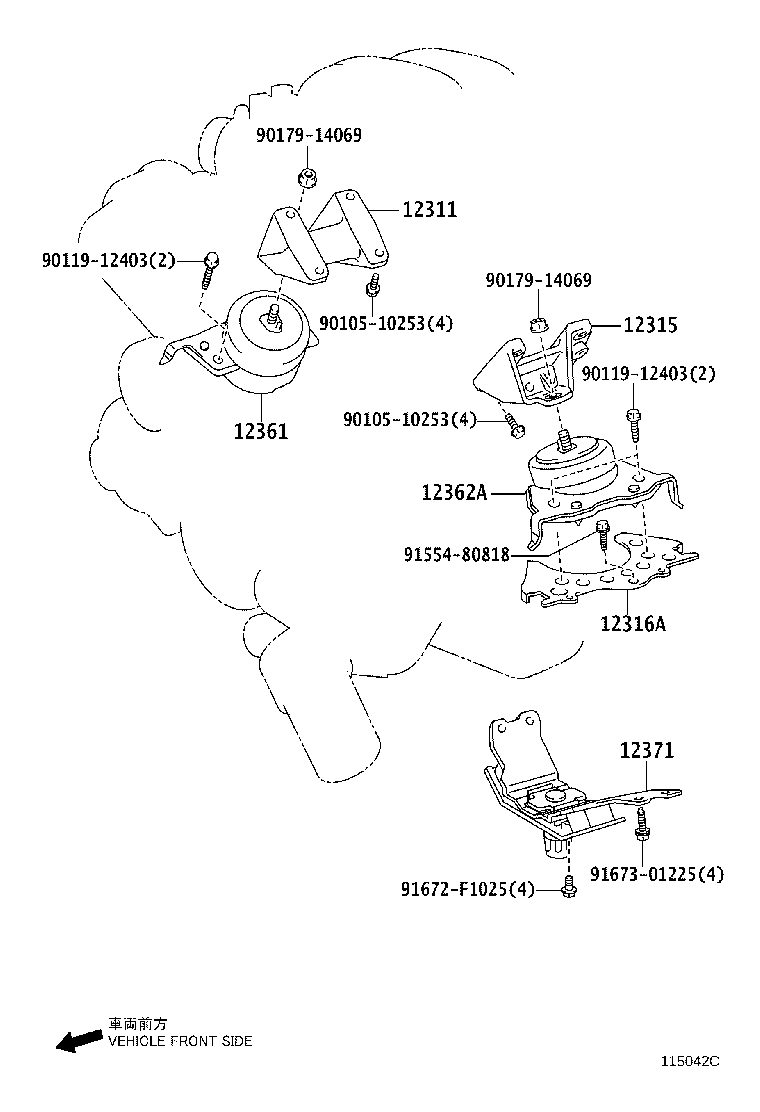

Click highlighted areas on diagram

diagram 12311 12315 12316A 12361 12362A 12371 9010510253 9010510253 9011912403 9011912403 9017914069 9017914069 9155480818 91672F1025 9167301225
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-50180

2UZFE..UZJ200

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-50140

2UZFE..UZJ200

 1
12316A - BRACKET, ENGINE MOUNTING, FR NO.2 LH
12316-50030

2UZFE..UZJ200

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-50250

2UZFE..UZJ200

 1
12362A - INSULATOR, ENGINE MOUNTING, FRONT LH
12362-50030

2UZFE..UZJ200

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-50210

2UZFE..UZJ200

 1
Common parts
90105-10253
90119-12403
90179-14069
91554-80818
91672-F1025
91673-01225
