UZJ200L-GNAEKC (2007)
Toyota Land Cruiser(China)
Production
Dec 2007
-
Feb 2012
Engine
2UZFE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0712- )

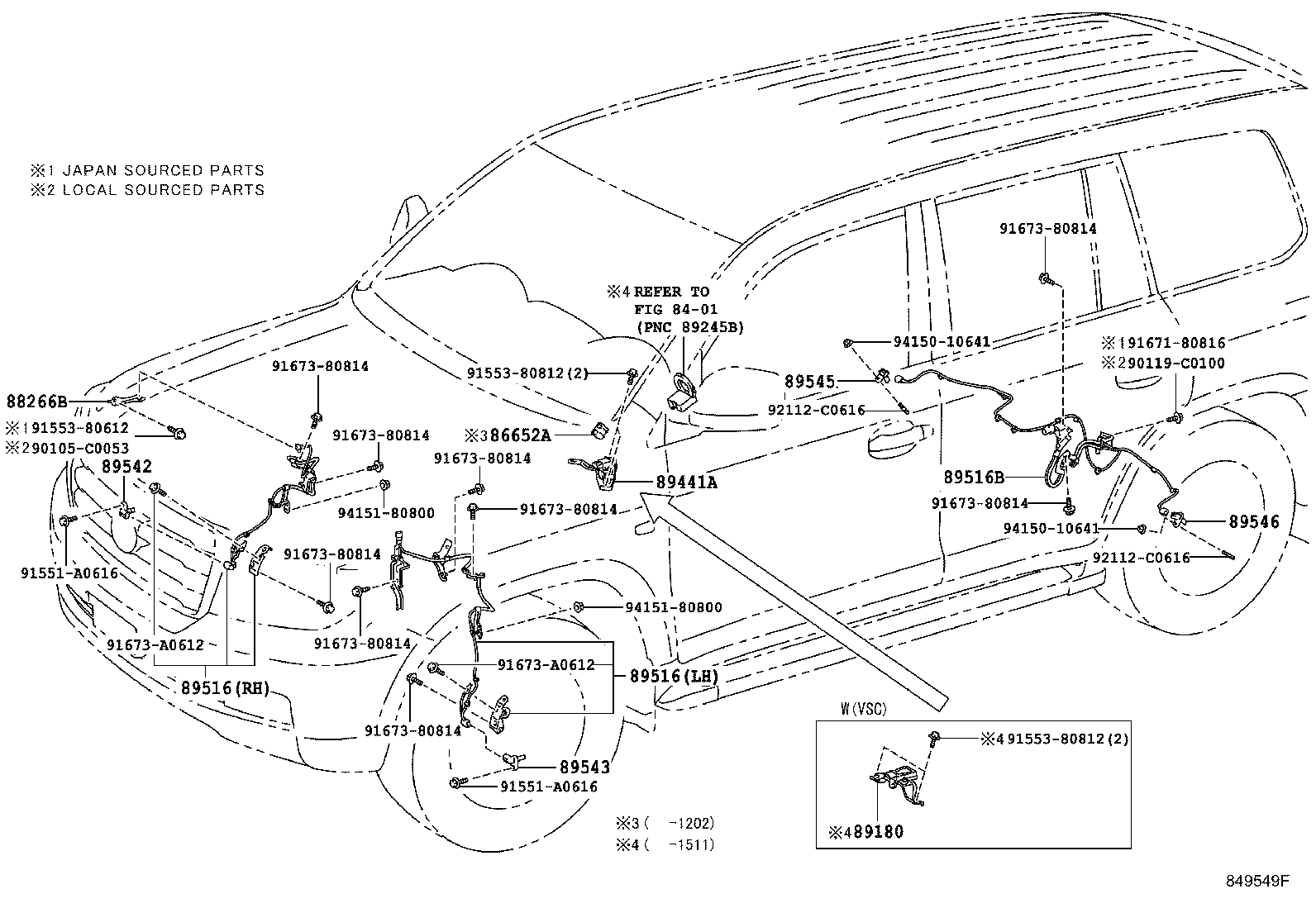

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86652A - BUZZER ASSY, SKID CONTROL | ||||
| 86652-50010 |
GRJ200,UZJ200..5FC |
1 | ||
| 88266B - CLAMP, SKID CONTROL SENSOR, NO.1 | ||||
| 88266-60580 |
GRJ200,UZJ200..5FC |
1 | ||
| 89180 - SENSOR ASSY, YAWRATE | ||||
| 89180-60100 |
UZJ200..VX |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-60110 |
GRJ200,UZJ200..5FC RH |
1 | ||
| 89516-60120 |
GRJ200,UZJ200..5FC LH |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-60110 |
GRJ200,UZJ200..5FC RH |
1 | ||
| 89516-60120 |
GRJ200,UZJ200..5FC LH |
1 | ||
| 89516B - WIRE, SKID CONTROL SENSOR | ||||
| 89516-60130 |
GRJ200,UZJ200..5FC |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-60050 |
GRJ200,UZJ200..5FC |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-60050 |
GRJ200,UZJ200..5FC |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89542-60050 |
GRJ200,UZJ200..5FC |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89543-60050 |
GRJ200,UZJ200..5FC |
1 | ||
| Common parts | ||||
| 90105-C0053 | ||||
| 90119-C0100 | ||||
| 91551-A0616 | ||||
| 91553-80612 | ||||
| 91553-80812 | ||||
| 91671-80816 | ||||
| 91673-80814 | ||||
| 91673-A0612 | ||||
| 92112-C0616 | ||||
| 94150-10641 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
