UZJ200L-GNAEKC (2007)
Toyota Land Cruiser(China)

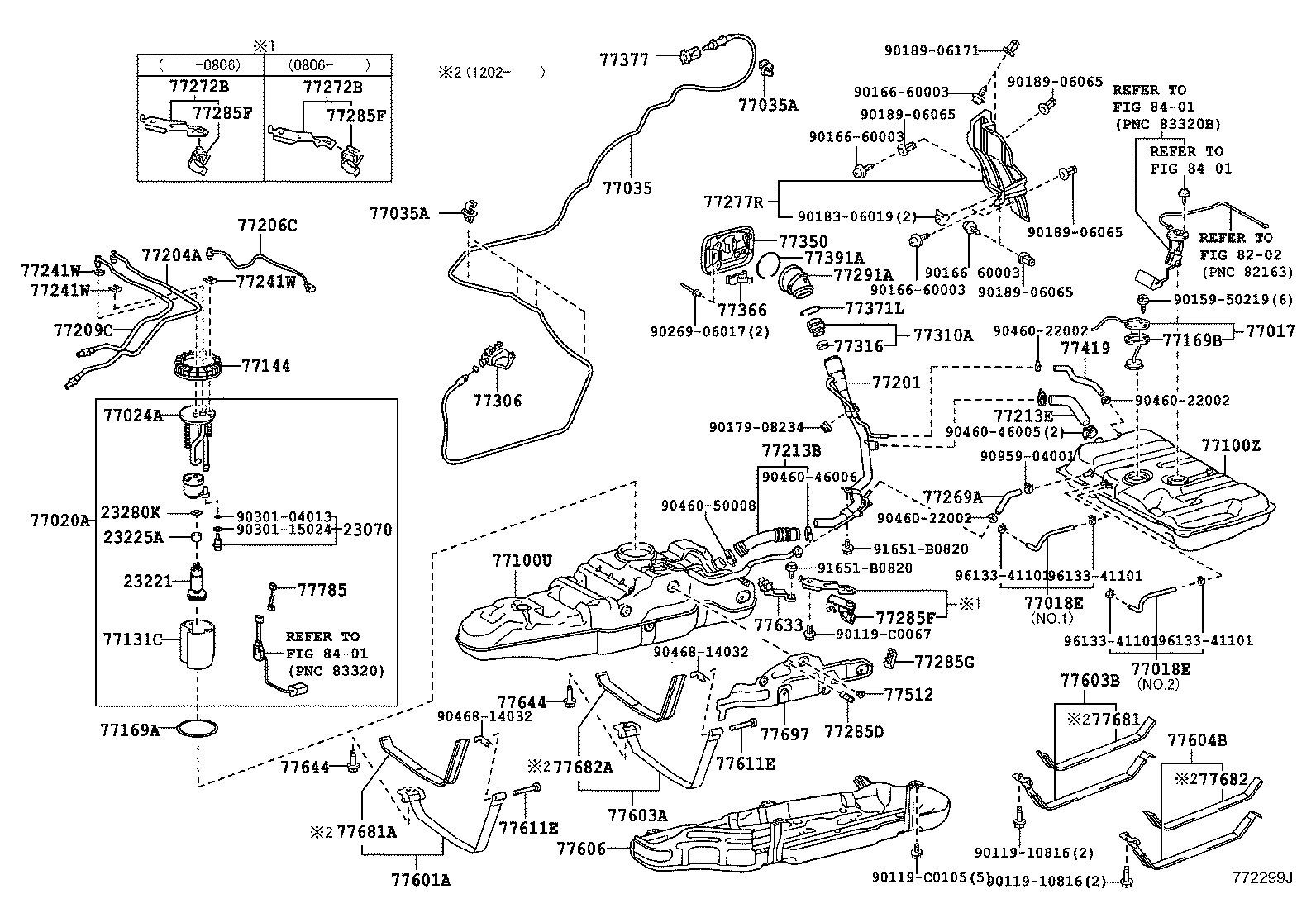

ILLUST NO. 1 OF 2(0712- )
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-38010 |
1GRFE,2UZFE..GRJ200,UZJ200..5FC |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23220-50280 |
1GRFE,2UZFE..GRJ200,UZJ200..5FC |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-23010 |
1GRFE,2UZFE..GRJ200,UZJ200..5FC |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-08019 |
1GRFE,2UZFE..GRJ200,UZJ200..5FC |
1 | ||
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-60550 |
GRJ200,UZJ200..5FC |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-60170 |
GRJ200,UZJ200..5FC NO.2:REFER ILLUST. |
1 | ||
| 77018-60160 |
GRJ200,UZJ200..5FC NO.1:REFER ILLUST. |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-60170 |
GRJ200,UZJ200..5FC NO.2:REFER ILLUST. |
1 | ||
| 77018-60160 |
GRJ200,UZJ200..5FC NO.1:REFER ILLUST. |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-60402 |
GRJ200,UZJ200..5FC |
1 | ||
| 77020-60400 |
GRJ200,UZJ200 |
1 | ||
| 77020-60401 |
GRJ200,UZJ200 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-60230 |
GRJ200,UZJ200..5FC |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-60140 |
GRJ200,UZJ200..5FC |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-06005 |
GRJ200,UZJ200..5FC |
5 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-06005 |
GRJ200,UZJ200..5FC |
5 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-60820 |
GRJ200,UZJ200 |
1 | ||
| 77001-60821 |
GRJ200,UZJ200..5FC |
1 | ||
| 77100Z - TANK SUB-ASSY, FUEL SUB | ||||
| 77001-60830 |
GRJ200,UZJ200..5FC |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-60120 |
GRJ200,UZJ200..5FC |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-47020 |
GRJ200,UZJ200..5FC |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47030 |
GRJ200,UZJ200..5FC |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-32010 |
GRJ200,UZJ200..5FC |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60B10 |
GRJ200,UZJ200..5FC |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-60070 |
GRJ200,UZJ200..5FC |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60460 |
GRJ200,UZJ200 |
1 | ||
| 77206-60461 |
GRJ200,UZJ200..5FC |
1 | ||
| 77209C - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-60470 |
GRJ200,UZJ200..5FC |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-60310 |
GRJ200,UZJ200..5FC |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-60320 |
GRJ200,UZJ200..5FC |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-60320 |
GRJ200,UZJ200..5FC |
3 | ||
| 77241-33011 |
GRJ200,UZJ200 |
3 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-60320 |
GRJ200,UZJ200..5FC |
3 | ||
| 77241-33011 |
GRJ200,UZJ200 |
3 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-60320 |
GRJ200,UZJ200..5FC |
3 | ||
| 77241-33011 |
GRJ200,UZJ200 |
3 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 95313-13020 |
GRJ200,UZJ200..5FC |
1 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77205-60C01 |
GRJ200,UZJ200..5FC |
1 | ||
| 77205-60C00 |
GRJ200,UZJ200 |
1 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77205-60C01 |
GRJ200,UZJ200..5FC |
1 | ||
| 77205-60C00 |
GRJ200,UZJ200 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-60130 |
GRJ200,UZJ200..5FC |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60840 |
GRJ200,UZJ200..5FC |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77197-60030 |
GRJ200,UZJ200 |
1 | ||
| 77197-60031 |
GRJ200,UZJ200..5FC |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77197-60030 |
GRJ200,UZJ200 |
1 | ||
| 77197-60031 |
GRJ200,UZJ200..5FC |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77197-60030 |
GRJ200,UZJ200 |
1 | ||
| 77197-60031 |
GRJ200,UZJ200..5FC |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60870 |
GRJ200,UZJ200..5FC |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-60120 |
GRJ200,UZJ200..5FC |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-28060E0 |
GRJ200,UZJ200..5FC DK. BROWN,TRIM4# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
GRJ200,UZJ200..5FC |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
GRJ200,UZJ200..5FC |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-60090 |
GRJ200,UZJ200..5FC |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-35040 |
GRJ200,UZJ200..5FC |
1 | ||
| 77371L - RING, FUEL TANK FILLER PIPE SHIELD | ||||
| 77371-35010 |
GRJ200,UZJ200..5FC |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-35010 |
GRJ200,UZJ200..5FC |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-35020 |
GRJ200,UZJ200..5FC |
1 | ||
| 77419 - HOSE, FUEL, NO.3 | ||||
| 77419-60020 |
GRJ200,UZJ200..5FC |
1 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
GRJ200,UZJ200..5FC |
4 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-60310 |
GRJ200,UZJ200..5FC |
1 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77602-60110 |
GRJ200,UZJ200..5FC |
1 | ||
| 77603B - BAND SUB-ASSY, FUEL TANK, NO.2 RH | ||||
| 77603-60040 |
GRJ200,UZJ200..5FC |
1 | ||
| 77604B - BAND SUB-ASSY, FUEL TANK, NO.2 LH | ||||
| 77604-60040 |
GRJ200,UZJ200..5FC |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60170 |
GRJ200,UZJ200..5FC |
1 | ||
| 77611E - PIN, FUEL TANK BAND | ||||
| 77653-35040 |
GRJ200,UZJ200..5FC |
2 | ||
| 77611E - PIN, FUEL TANK BAND | ||||
| 77653-35040 |
GRJ200,UZJ200..5FC |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-60070 |
GRJ200,UZJ200..5FC |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
GRJ200,UZJ200..5FC |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
GRJ200,UZJ200..5FC |
2 | ||
| 77697 - INSULATOR, FUEL TANK HEAT, NO.1 | ||||
| 77697-60010 |
GRJ200,UZJ200..5FC |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-60010 |
GRJ200,UZJ200..5FC |
1 | ||
| Common parts | ||||
| 90119-10816 | ||||
| 90119-C0067 | ||||
| 90119-C0105 | ||||
| 90159-50219 | ||||
| 90166-60003 | ||||
| 90179-08234 | ||||
| 90183-06019 | ||||
| 90189-06065 | ||||
| 90189-06171 | ||||
| 90269-06017 | ||||
| 90301-04013 | ||||
| 90301-15024 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90460-46006 | ||||
| 90460-50008 | ||||
| 90468-14032 | ||||
| 90959-04001 | ||||
| 91651-B0820 | ||||
| 96133-41101 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

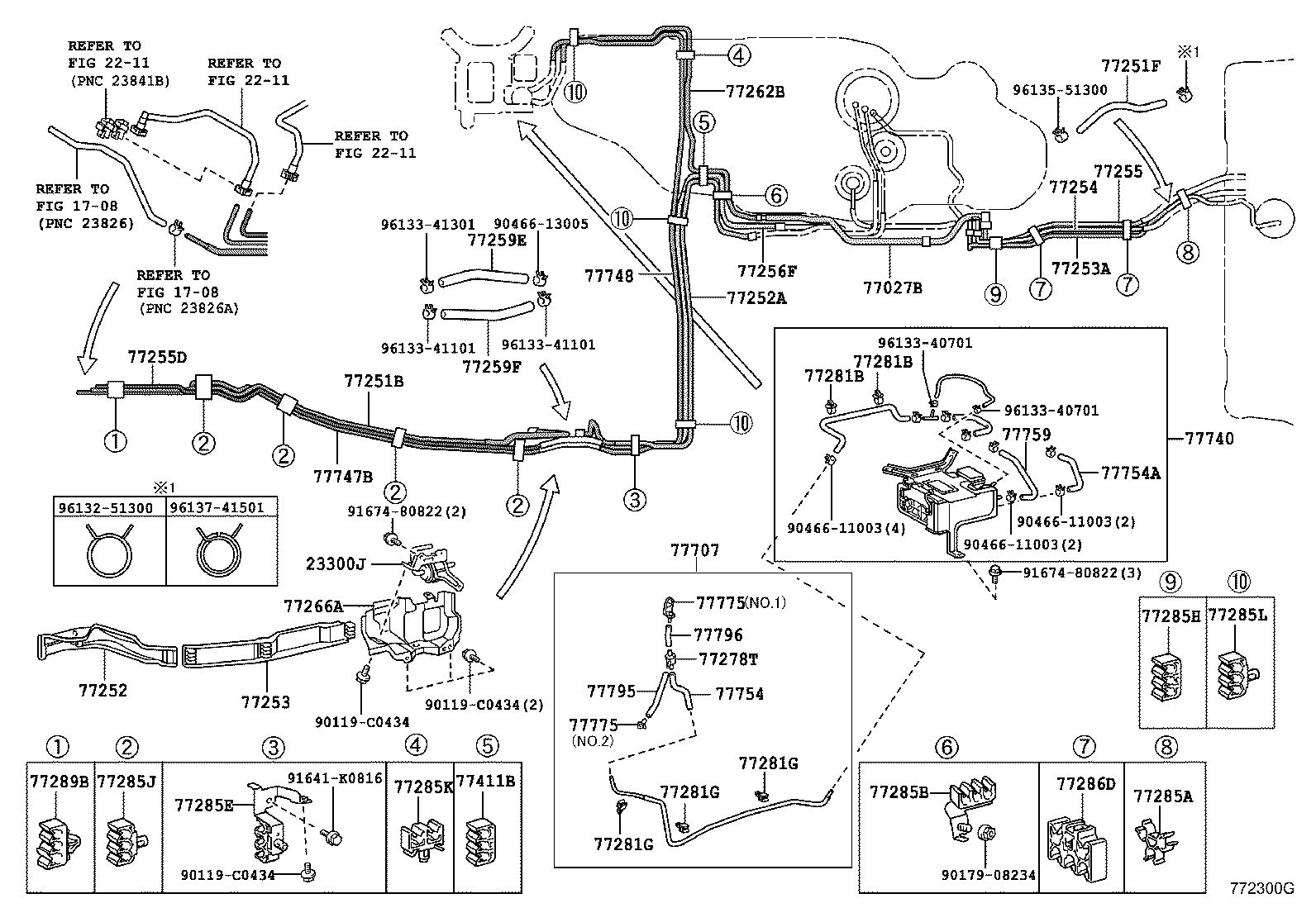

ILLUST NO. 2 OF 2(0712- )
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-50150 |
1GRFE,2UZFE..GRJ200,UZJ200..5FC |
1 | ||
| 77027B - TUBE SUB-ASSY, FUEL EMISSION, NO.1 | ||||
| 77027-60080 |
GRJ200,UZJ200..5FC |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-60C10 |
GRJ200,UZJ200..5FC |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 77259-60880 |
GRJ200,UZJ200..5FC L=210 |
1 | ||
| 77252 - PROTECTOR, FUEL TUBE | ||||
| 77296-60120 |
GRJ200,UZJ200..5FC |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77206-60520 |
GRJ200,UZJ200..5FC |
1 | ||
| 77253 - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77297-60040 |
GRJ200,UZJ200..5FC |
1 | ||
| 77253A - TUBE, FUEL MAIN, NO.3 | ||||
| 77253-60330 |
GRJ200,UZJ200 |
1 | ||
| 77253-60331 |
GRJ200,UZJ200..5FC |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-60110 |
GRJ200,UZJ200..5FC |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77263-60120 |
GRJ200,UZJ200..5FC |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-60B10 |
GRJ200,UZJ200..5FC |
1 | ||
| 77256F - TUBE, FUEL RETURN, NO.2 | ||||
| 77256-60680 |
GRJ200,UZJ200..5FC |
1 | ||
| 77259E - HOSE, FUEL | ||||
| 77259-60B00 |
GRJ200,UZJ200..5FC |
1 | ||
| 77259F - HOSE, FUEL | ||||
| 77259-60510 |
GRJ200,UZJ200..5FC |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77262-60270 |
GRJ200,UZJ200..5FC |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-60070 |
GRJ200,UZJ200..5FC |
1 | ||
| 77278T - VALVE, CHECK WITH HOSE | ||||
| 77278-60030 |
GRJ200,UZJ200..5FC |
1 | ||
| 77281B - CLAMP, FUEL HOSE(FOR REAR FUEL MAIN) | ||||
| 77281-60330 |
GRJ200,UZJ200..5FC |
2 | ||
| 77281B - CLAMP, FUEL HOSE(FOR REAR FUEL MAIN) | ||||
| 77281-60330 |
GRJ200,UZJ200..5FC |
2 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77281-60320 |
GRJ200,UZJ200..5FC |
3 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77281-60320 |
GRJ200,UZJ200..5FC |
3 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77281-60320 |
GRJ200,UZJ200..5FC |
3 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77285-60A80 |
GRJ200,UZJ200..5FC |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-60891 |
GRJ200,UZJ200..5FC |
1 | ||
| 77285E - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-60880 |
GRJ200,UZJ200..5FC |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77411-48020 |
GRJ200,UZJ200..5FC |
1 | ||
| 77285-60800 |
GRJ200,UZJ200 |
1 | ||
| 77285J - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60790 |
GRJ200,UZJ200..5FC |
4 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-34031 |
GRJ200,UZJ200..5FC |
1 | ||
| 77285L - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60790 |
GRJ200,UZJ200..5FC |
3 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-60A30 |
GRJ200,UZJ200..5FC |
2 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-26010 |
GRJ200,UZJ200..5FC |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-48020 |
GRJ200,UZJ200..5FC |
1 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-60030 |
GRJ200,UZJ200..5FC |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-60480 |
GRJ200,UZJ200..5FC |
1 | ||
| 77747B - TUBE, CHARCOAL CANISTER, NO.1 | ||||
| 77747-60070 |
GRJ200,UZJ200..5FC |
1 | ||
| 77748 - PIPE, CHARCOAL CANISTER, NO.2 | ||||
| 77748-60030 |
GRJ200,UZJ200..5FC |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-60340 |
GRJ200,UZJ200..5FC |
1 | ||
| 77754A - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77754-60330 |
GRJ200,UZJ200..5FC |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-60090 |
GRJ200,UZJ200..5FC |
1 | ||
| 77775 - GUIDE, CHARCOAL CANISTER OUTLET | ||||
| 77775-60020 |
GRJ200,UZJ200..5FC NO.2:REFER ILLUST. |
1 | ||
| 77775-60010 |
GRJ200,UZJ200..5FC NO.1:REFER ILLUST. |
1 | ||
| 77775 - GUIDE, CHARCOAL CANISTER OUTLET | ||||
| 77775-60020 |
GRJ200,UZJ200..5FC NO.2:REFER ILLUST. |
1 | ||
| 77775-60010 |
GRJ200,UZJ200..5FC NO.1:REFER ILLUST. |
1 | ||
| 77795 - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77795-60060 |
GRJ200,UZJ200..5FC |
1 | ||
| 77796 - HOSE, CHARCOAL CANISTER OUTLET, NO.3 | ||||
| 77796-60020 |
GRJ200,UZJ200..5FC |
1 | ||
| Common parts | ||||
| 90119-C0434 | ||||
| 90179-08234 | ||||
| 90466-11003 | ||||
| 90466-13005 | ||||
| 91641-K0816 | ||||
| 91674-80822 | ||||
| 96132-51300 | ||||
| 96133-40701 | ||||
| 96133-41101 | ||||
| 96133-41301 | ||||
| 96135-51300 | ||||
| 96137-41501 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
