UZJ200L-GNAEKC (2007)

Toyota Land Cruiser(China)

Production Dec 2007 - Feb 2012
Engine 2UZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

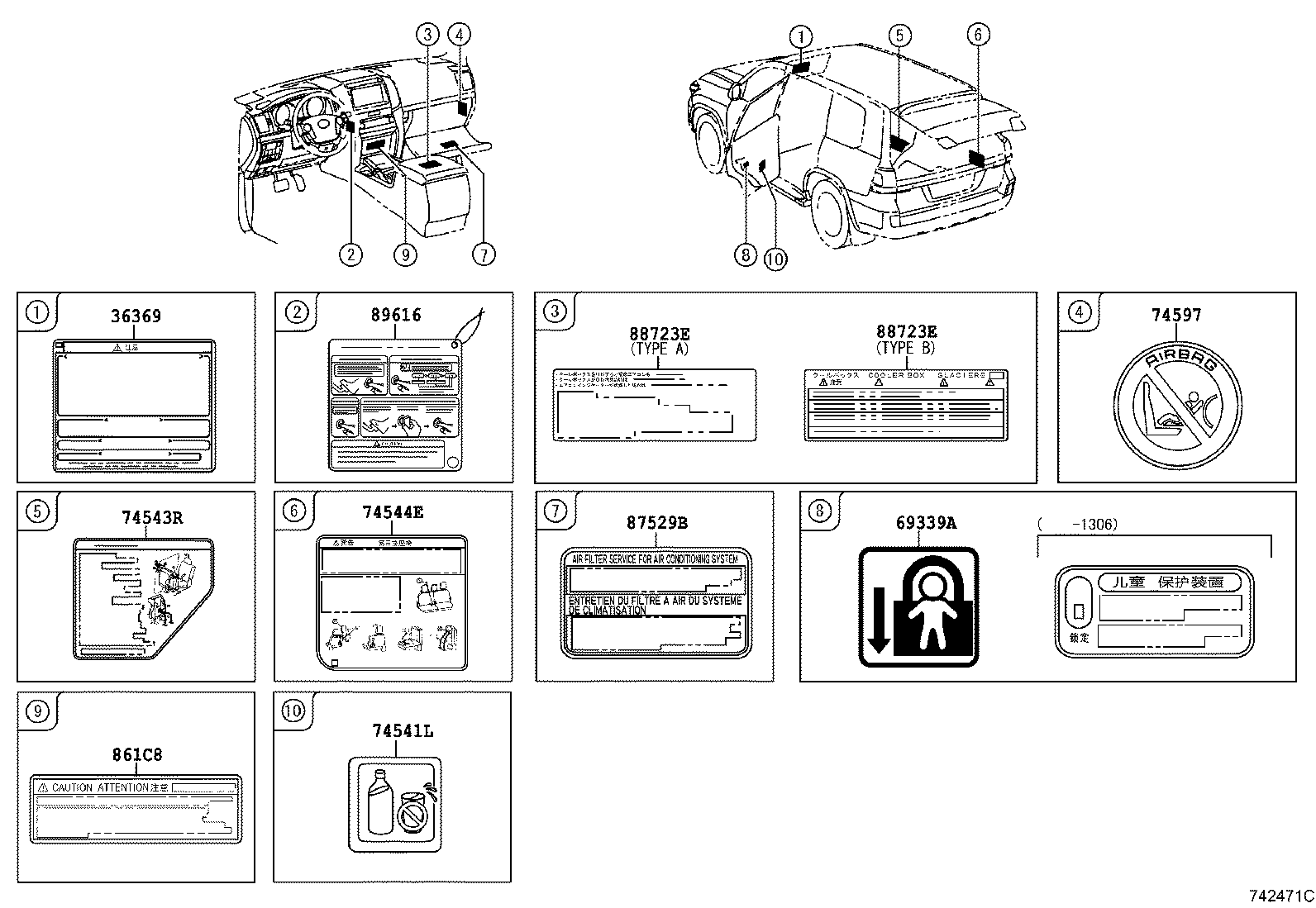

ILLUST NO. 3 OF 3(0712- )

Click highlighted areas on diagram

diagram 36369 69339A 74541L 74543R 74544E 74597 861C8 87529B 88723E 88723E 89616
Part # Description Qty Price
36369 - LABEL, TRANSFER INFORMATION
36369-60640

GRJ200,UZJ200..5FC

 1
69339A - PLATE, CHILD PROTECTOR LOCK CAUTION
69339-06030

GRJ200,UZJ200..5FC

 2
74543R - LABEL, REAR SEAT CAUTION
74543-60440

GRJ200,UZJ200..5FC

 1
74544E - LABEL, REAR NO.2 SEAT INFORMATION
74544-60250

GRJ200,UZJ200..5FC

 1
74597 - LABEL, DRIVER & PASSENGER AIR BAG CAUTION
74598-20010

GRJ200,UZJ200..5FC

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-50010

GRJ200,UZJ200..5FC

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-60200

GRJ200,UZJ200

TYPE A:REFER ILLUST.

 1
88723-60250

GRJ200,UZJ200..5FC

TYPE A:REFER ILLUST.

 1
88723-60210

GRJ200,UZJ200..5FC

TYPE B:REFER ILLUST.

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-60200

GRJ200,UZJ200

TYPE A:REFER ILLUST.

 1
88723-60250

GRJ200,UZJ200..5FC

TYPE A:REFER ILLUST.

 1
88723-60210

GRJ200,UZJ200..5FC

TYPE B:REFER ILLUST.

 1
89616 - LABEL, PUSH START INFORMATION
89616-30081

GRJ200,UZJ200..5FC

OWNER'S MANUAL-W/O

 1
89616-30081

GRJ200,UZJ200..5FC

 1

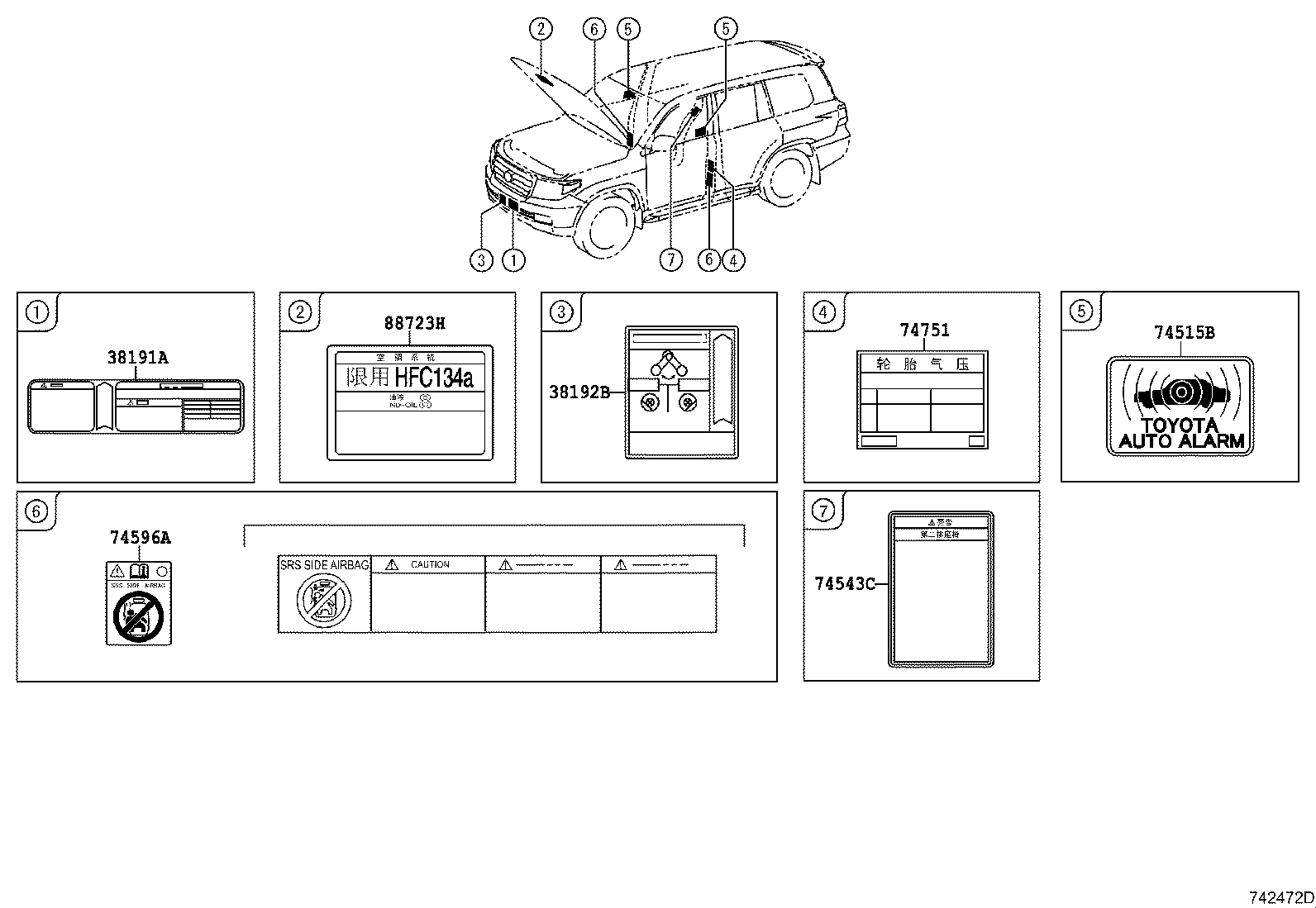

ILLUST NO. 1 OF 3(0712- )

Click highlighted areas on diagram

diagram 38191A 38192B 74515B 74543C 74596A 74751 88723H
Part # Description Qty Price
74515B - PLATE, THEFT WARNING
74515-33020

GRJ200,UZJ200..5FC

 2
74543C - LABEL, REAR SEAT INFORMATION
74543-60460

GRJ200,UZJ200..5FC

 1
74596A - LABEL, SIDE AIR BAG CAUTION
74596-60020

GRJ200,UZJ200..5FC

 2
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-60470

GRJ200,UZJ200..5FC

 1
88723H - LABEL, COOLER SERVICE CAUTION
88723-48070

GRJ200,UZJ200..5FC

 1

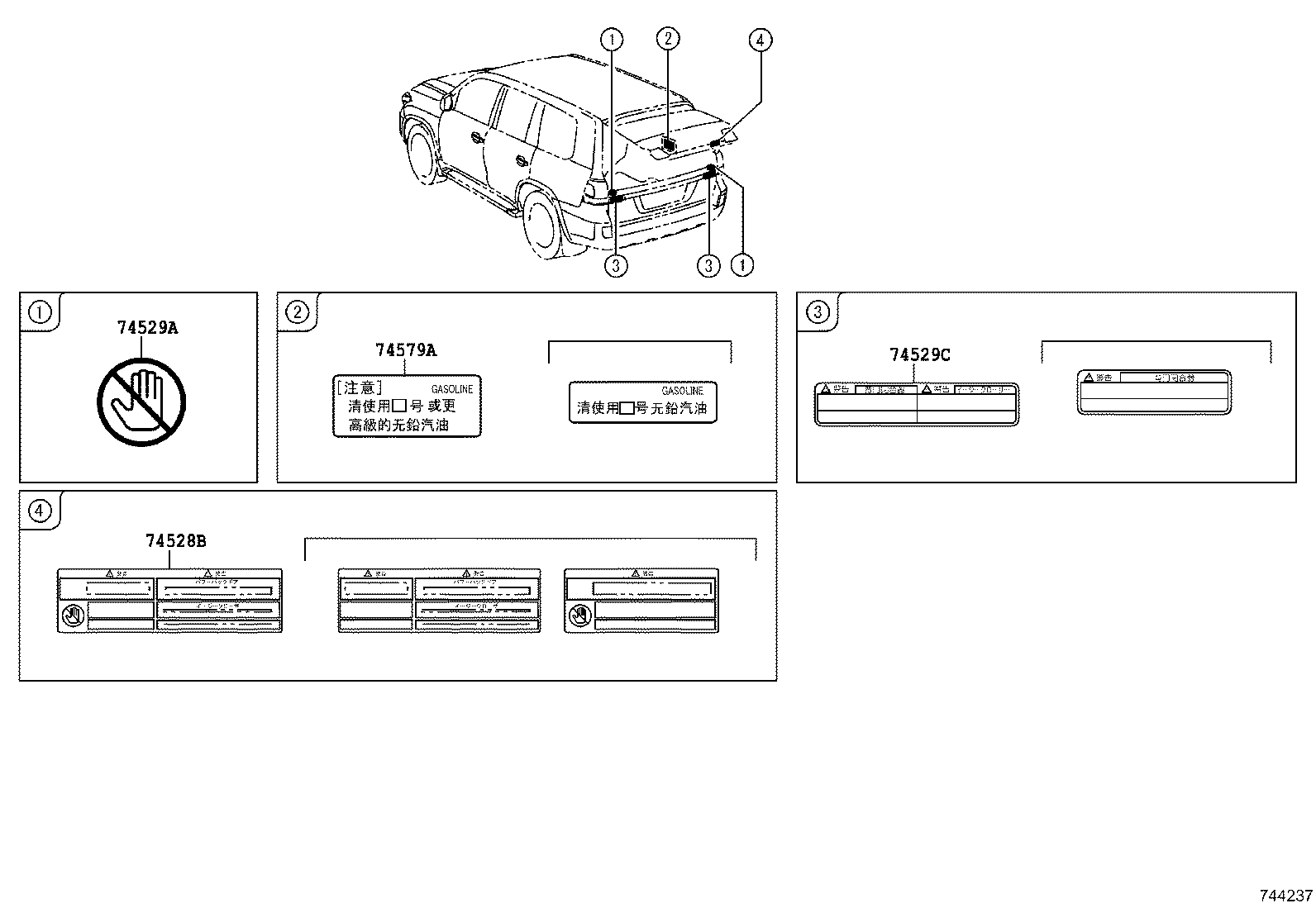

ILLUST NO. 2 OF 3(0712- )

Click highlighted areas on diagram

diagram 74528B 74529A 74529C 74579A
Part # Description Qty Price
74579A - LABEL, UNLEADED FUEL INFORMATION
74579-26010

UZJ200

 1
