GRJ200L-GNMNKC (2007)

Toyota Land Cruiser(China)

Production Dec 2007 - Jan 2009
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0712- )GRJ200

Click highlighted areas on diagram

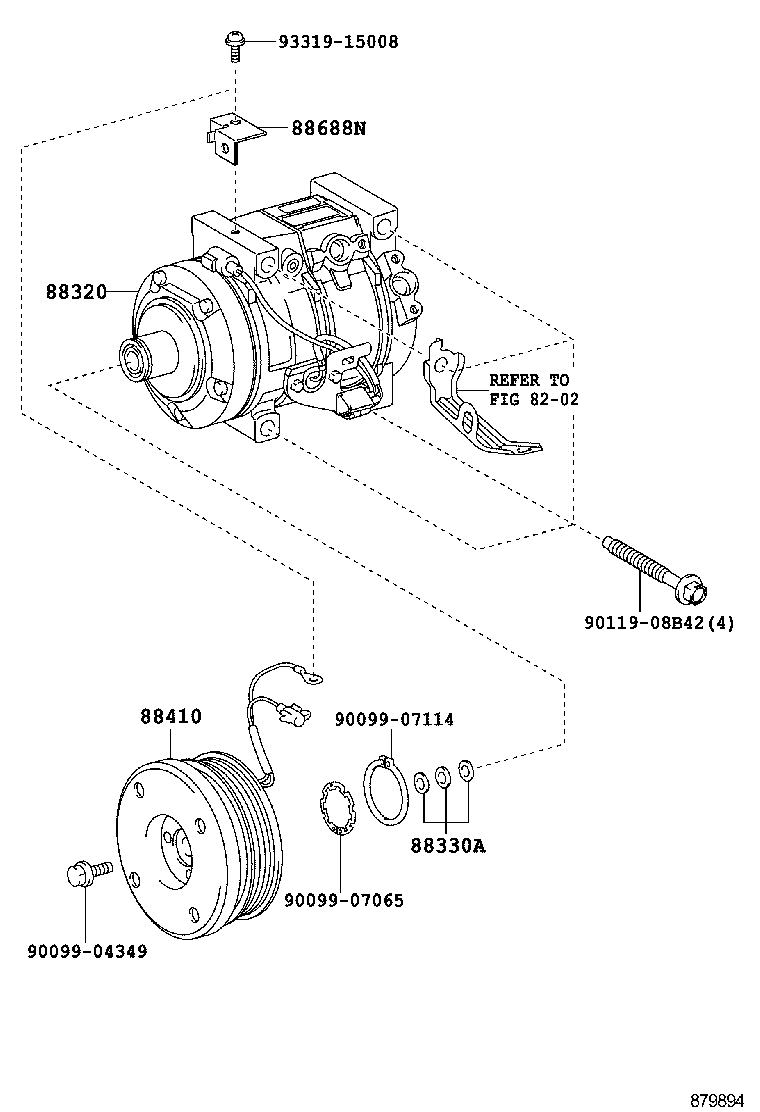

diagram 8202 88320 88330A 88410 88688N 9009904349 9009907065 9009907114 9011908B42 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-6A280

GRJ200..5F

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

GRJ200..5F

 1
88410 - CLUTCH ASSY, MAGNET
88410-6A070

GRJ200..5F

 1
88688N - BRACKET, COOLER
88688-32670

GRJ200..5F

 1
Common parts
90099-04349
90099-07065
90099-07114
90119-08B42
93319-15008
Linked diagrams
8202
