GRJ200L-GNMNKC (2007)
Toyota Land Cruiser(China)
Production
Dec 2007
-
Jan 2009
Engine
1GRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0712- )GX,GXR

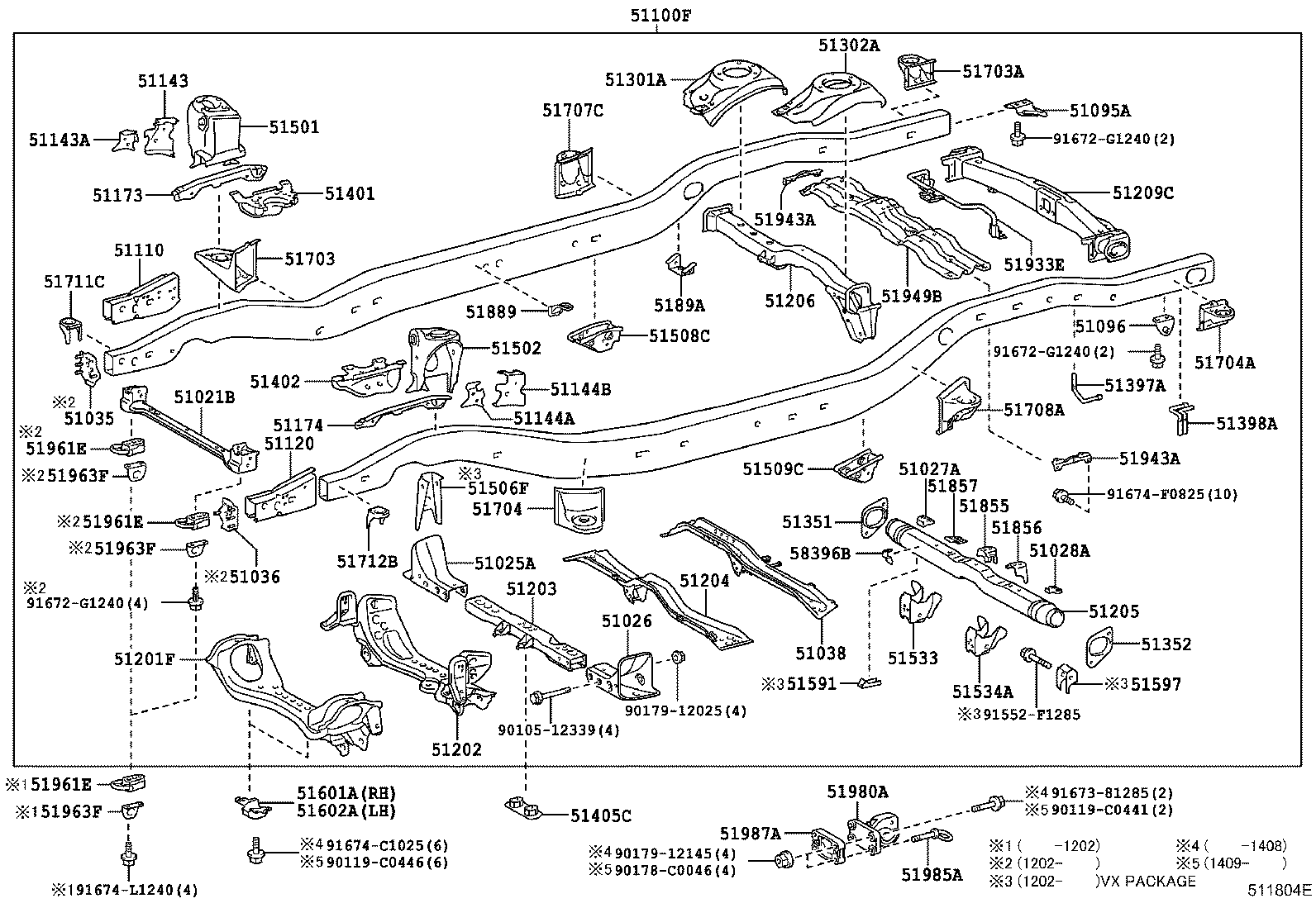

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51021B - CROSSMEMBER SUB-ASSY, FRAME AUXILIARY | ||||
| 51021-60030 |
GRJ200..5F |
1 | ||
| 51025A - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, RH | ||||
| 51025-60020 |
GRJ200..5F |
1 | ||
| 51026 - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, LH | ||||
| 51026-60020 |
GRJ200..5F |
1 | ||
| 51027A - BRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, RH | ||||
| 5125A-60010 |
GRJ200..5F |
1 | ||
| 51028A - BRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, LH | ||||
| 5125B-60010 |
GRJ200..5F |
1 | ||
| 51038 - MEMBER SUB-ASSY, FUEL TANK SUPPORT | ||||
| 51039-60010 |
GRJ200..5F |
1 | ||
| 51095A - HOOK SUB-ASSY, TRANSPORT, REAR RH | ||||
| 51095-60020 |
GRJ200..5F |
1 | ||
| 51096 - HOOK SUB-ASSY, TRANSPORT, REAR LH | ||||
| 51968-60020 |
GRJ200..5F |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-60F90 |
GRJ200..5F |
1 | ||
| 51110 - EXTENSION ASSY, SIDE RAIL, RH | ||||
| 51110-60020 |
GRJ200..5F |
1 | ||
| 51120 - EXTENSION ASSY, SIDE RAIL, LH | ||||
| 51120-60030 |
GRJ200..5F |
1 | ||
| 51143 - REINFORCEMENT, SIDE RAIL, REAR RH | ||||
| 51158-60060 |
GRJ200..5F |
1 | ||
| 51143A - REINFORCEMENT, SIDE RAIL, FRONT RH | ||||
| 51162-60020 |
GRJ200..5F |
1 | ||
| 51144A - REINFORCEMENT, SIDE RAIL, FRONT LH | ||||
| 51161-60030 |
GRJ200..5F |
1 | ||
| 51144B - REINFORCEMENT, SIDE RAIL, REAR LH | ||||
| 51167-60020 |
GRJ200..5F |
1 | ||
| 51173 - REINFORCEMENT, FRONT INNER CHANNEL, RH | ||||
| 51147-60030 |
GRJ200..5F |
1 | ||
| 51174 - REINFORCEMENT, FRONT INNER CHANNEL, LH | ||||
| 51148-60010 |
GRJ200..5F |
1 | ||
| 51201F - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-60180 |
GRJ200..5F |
1 | ||
| 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51202-60280 |
GRJ200..5F |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51203-60250 |
GRJ200..5F |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51240-60020 |
GRJ200..5F |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51251-60130 |
GRJ200..5F |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51206-60040 |
GRJ200..5F |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51209-60190 |
GRJ200..5F |
1 | ||
| 51301A - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 51301-60030 |
GRJ200..5F |
1 | ||
| 51302A - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 51302-60040 |
GRJ200..5F |
1 | ||
| 51351 - GUSSET, CROSSMEMBER, NO.5 RH | ||||
| 51351-60050 |
GRJ200..5F |
1 | ||
| 51352 - GUSSET, CROSSMEMBER, NO.5 LH | ||||
| 51352-60010 |
GRJ200..5F |
1 | ||
| 51397A - BRACKET, EXHAUST PIPE CLAMP, NO.3 | ||||
| 51397-60020 |
GRJ200..5F |
1 | ||
| 51398A - BRACKET, EXHAUST PIPE CLAMP, NO.4 | ||||
| 51398-60020 |
GRJ200..5F |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-60060 |
GRJ200..5F |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-60060 |
GRJ200..5F |
1 | ||
| 51405C - COVER SUB-ASSY, ENGINE UNDER, NO.1 | ||||
| 51225-60010 |
GRJ200..5F |
1 | ||
| 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH | ||||
| 51501-60030 |
GRJ200..5F |
1 | ||
| 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH | ||||
| 51502-60030 |
GRJ200..5F |
1 | ||
| 51508C - BRACKET SUB-ASSY, LOWER CONTROL LINK, RH | ||||
| 5150C-60010 |
GRJ200..5F |
1 | ||
| 51509C - BRACKET SUB-ASSY, LOWER CONTROL LINK, LH | ||||
| 5150D-60010 |
GRJ200..5F |
1 | ||
| 51533 - BRACKET, UPPER CONTROL LINK, RH | ||||
| 51533-60050 |
GRJ200..5F |
1 | ||
| 51534A - BRACKET, UPPER CONTROL LINK, LH | ||||
| 51534-60040 |
GRJ200..5F |
1 | ||
| 51601A - STOPPER SUB-ASSY, FRONT SUSPENSION REBOUND, RH | ||||
| 51601-60010 |
GRJ200..5F |
1 | ||
| 51602A - STOPPER SUB-ASSY, FRONT SUSPENSION REBOUND, LH | ||||
| 51602-60010 |
GRJ200..5F |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51703-60100 |
GRJ200..5F |
1 | ||
| 51703A - BRACKET SUB-ASSY, CAB REAR MOUNTING, RH | ||||
| 51705-60160 |
GRJ200..5F |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51704-60090 |
GRJ200..5F |
1 | ||
| 51704A - BRACKET SUB-ASSY, CAB REAR MOUNTING, LH | ||||
| 51705-60160 |
GRJ200..5F |
1 | ||
| 51707C - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH | ||||
| 51707-60100 |
GRJ200..5F |
1 | ||
| 51708A - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH | ||||
| 51708-60080 |
GRJ200..5F |
1 | ||
| 51711C - BRACKET, CAB MOUNTING, NO.1 RH | ||||
| 51711-60080 |
GRJ200..5F |
1 | ||
| 51712B - BRACKET, CAB MOUNTING, NO.1 LH | ||||
| 51711-60080 |
GRJ200..5F |
1 | ||
| 51855 - BRACKET, FLOOR CROSSMEMBER,NO.1 | ||||
| 5126A-60010 |
GRJ200..5F |
1 | ||
| 51856 - BRACKET,FLOOR CROSSMEMBER,NO.2 | ||||
| 5126B-60010 |
GRJ200..5F |
1 | ||
| 51857 - BRACKET, FLOOR CROSSMEMBER,NO.3 | ||||
| 51681-60010 |
GRJ200..5F |
1 | ||
| 51889 - STOPPER, FUEL TANK MOUNTING | ||||
| 51889-60010 |
GRJ200..5F |
1 | ||
| 5189A - BRACKET, FUEL TANK PROTECTOR | ||||
| 5189A-60010 |
GRJ200..5F |
1 | ||
| 51933E - STOPPER, SPARE WHEEL, NO.1 | ||||
| 51904-60100 |
GRJ200..5F |
1 | ||
| 51943A - BRACKET, SPARE WHEEL CARRIER | ||||
| 51941-60140 |
GRJ200..5F |
2 | ||
| 51943A - BRACKET, SPARE WHEEL CARRIER | ||||
| 51941-60140 |
GRJ200..5F |
2 | ||
| 51949B - CROSSMEMBER, SPARE WHEEL CARRIER | ||||
| 51949-60030 |
GRJ200..5F |
1 | ||
| 51961E - HOOK, FRONT | ||||
| 51960-60020 |
GRJ200..5F |
2 | ||
| 51961E - HOOK, FRONT | ||||
| 51960-60020 |
GRJ200..5F |
2 | ||
| 51961E - HOOK, FRONT | ||||
| 51960-60020 |
GRJ200..5F |
2 | ||
| 51963F - HOOK, TRANSPORT | ||||
| 51963-60070 |
GRJ200..5F |
2 | ||
| 51963F - HOOK, TRANSPORT | ||||
| 51963-60070 |
GRJ200..5F |
2 | ||
| 51963F - HOOK, TRANSPORT | ||||
| 51963-60070 |
GRJ200..5F |
2 | ||
| 51980A - HOOK ASSY, PINTLE | ||||
| 51980-60012 |
GRJ200..5F |
1 | ||
| 51985A - HOOK, EYELET PINTLE | ||||
| 51985-60020 |
GRJ200..5F |
2 | ||
| 51987A - BRACKET, PINTLE HOOK | ||||
| 51987-60050 |
GRJ200..5F |
1 | ||
| 58396B - BRACKET, WIRE HARNESS CLAMP | ||||
| 51891-60010 |
GRJ200..5F |
1 | ||
| Common parts | ||||
| 90105-12339 | ||||
| 90119-C0441 | ||||
| 90119-C0446 | ||||
| 90178-C0046 | ||||
| 90179-12025 | ||||
| 90179-12145 | ||||
| 91552-F1285 | ||||
| 91672-G1240 | ||||
| 91673-81285 | ||||
| 91674-C1025 | ||||
| 91674-F0825 | ||||
| 91674-L1240 | ||||
