GRJ200L-GNMNKC (2007)

Toyota Land Cruiser(China)

Production Dec 2007 - Jan 2009
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0712-1202)1GRFE

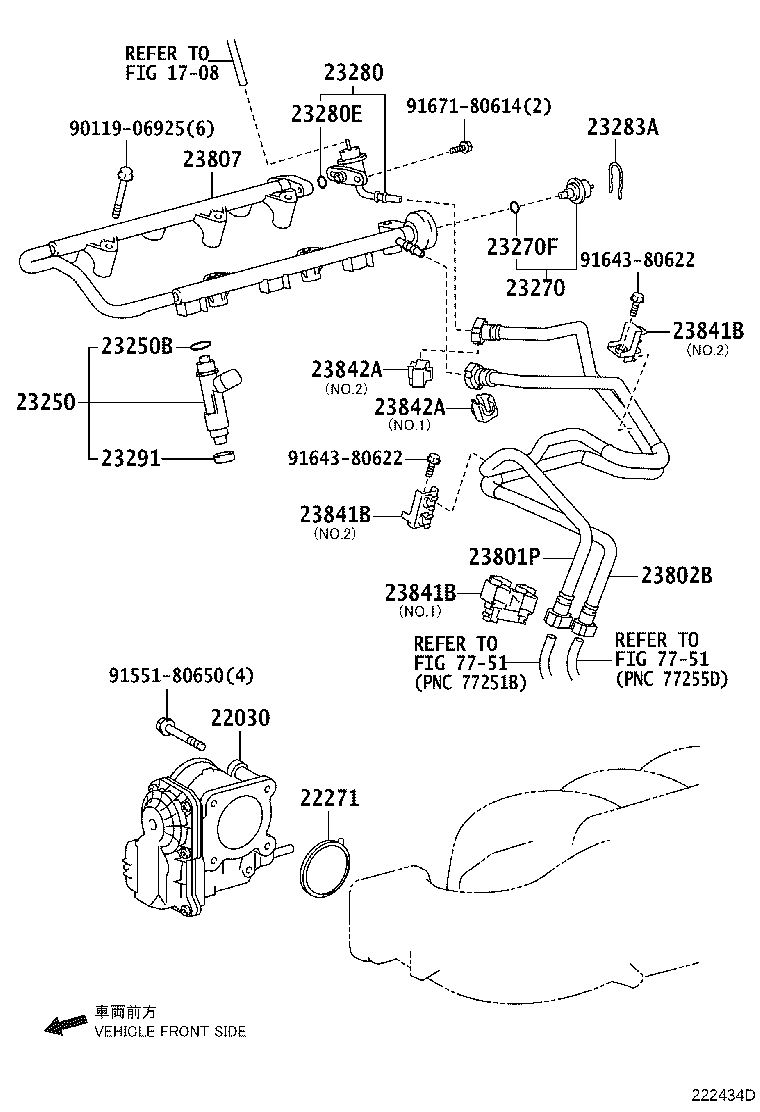

Click highlighted areas on diagram

diagram 1708 22030 22271 23250 23250B 23270 23270F 23280 23280E 23283A 23291 23801P 23802B 23807 23841B 23841B 23841B 23842A 23842A 7751 7751 9011906925 9155180650 9164380622 9164380622 9167180614
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-31010

1GRFE..GRJ200..5F

 1
22271 - GASKET, THROTTLE BODY
22271-31012

1GRFE..GRJ200..5F

 1
23250 - INJECTOR ASSY, FUEL
23209-39075

1GRFE..GRJ200..5F

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07033

1GRFE..GRJ200..5F

 6
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-31010

1GRFE..GRJ200..5F

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-31010

1GRFE..GRJ200..5F

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07034

1GRFE..GRJ200..5F

 1
23283A - HOLDER, FUEL PRESSURE REGULATOR
23283-31010

1GRFE..GRJ200..5F

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-23010

1GRFE..GRJ200..5F

 6
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-31150

1GRFE..GRJ200..5F

 1
23802B - PIPE SUB-ASSY, FUEL, NO.2
23802-31100

1GRFE..GRJ200..5F

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-31010

1GRFE..GRJ200..5F

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-31030

1GRFE..GRJ200..5F

NO.2

 2
23841-50020

1GRFE..GRJ200..5F

NO.1

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-31030

1GRFE..GRJ200..5F

NO.2

 2
23841-50020

1GRFE..GRJ200..5F

NO.1

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-31030

1GRFE..GRJ200..5F

NO.2

 2
23841-50020

1GRFE..GRJ200..5F

NO.1

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-31030

1GRFE..GRJ200..5F

NO.2

 1
23842-31020

1GRFE..GRJ200..5F

NO.1

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-31030

1GRFE..GRJ200..5F

NO.2

 1
23842-31020

1GRFE..GRJ200..5F

NO.1

 1
Common parts
90119-06925
91551-80650
91643-80622
91671-80614
Linked diagrams
1708
7751
