GRJ200L-GNANKC (2007)
Toyota Land Cruiser(China)

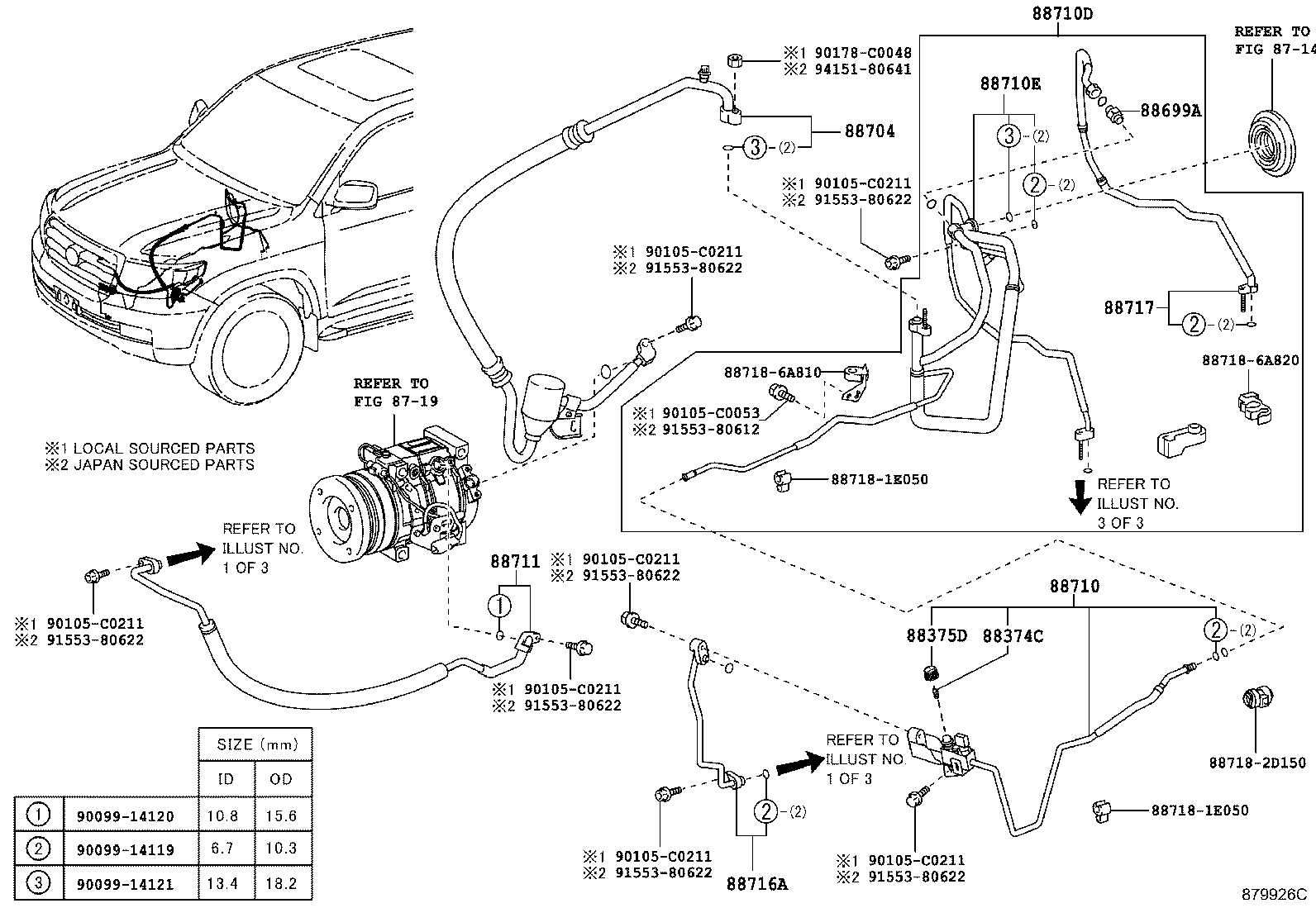

ILLUST NO. 2 OF 3(0712-1202)GRJ200
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
GRJ200,UZJ200..5FC |
1 | ||
| 88374-30010 |
GRJ200,URJ202 |
1 | ||
| 88374-30010 |
GRJ200..5F |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
GRJ200..5F |
1 | ||
| 88375-30280 |
GRJ200,URJ202 |
1 | ||
| 88375-30280 |
GRJ200,UZJ200..5FC |
1 | ||
| 88699A - VALVE, AIR | ||||
| 88699-60010 |
GRJ200,UZJ200..5FC |
1 | ||
| 88699-60010 |
GRJ200,URJ202 |
1 | ||
| 88699-60010 |
GRJ200..5F |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-60420 |
GRJ200..5F |
1 | ||
| 88704-0G040 |
GRJ200 |
1 | ||
| 88704-60420 |
GRJ200..5FC |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-6B580 |
GRJ200,UZJ200..5FC |
1 | ||
| 88710-0G170 |
GRJ200,URJ202 |
1 | ||
| 88710-6B580 |
GRJ200..5F |
1 | ||
| 88710D - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-6B611 |
GRJ200,UZJ200 |
1 | ||
| 88710-6B610 |
GRJ200..5F |
1 | ||
| 88710-6B610 |
GRJ200,UZJ200..5FC |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-6B690 |
GRJ200..5F |
1 | ||
| 88710-6B690 |
GRJ200,UZJ200..5FC |
1 | ||
| 88710-60C00 |
GRJ200,UZJ200 |
1 | ||
| 88710-60C00 |
GRJ200,URJ202 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0G010 |
GRJ200 |
1 | ||
| 88711-60790 |
GRJ200..5FC |
1 | ||
| 88711-60790 |
GRJ200..5F |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6C200 |
GRJ200..5F |
1 | ||
| 88716-0G050 |
GRJ200,URJ202 |
1 | ||
| 88716-6C200 |
GRJ200,UZJ200..5FC |
1 | ||
| 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88717-6B130 |
GRJ200..5F |
1 | ||
| 88717-6B130 |
GRJ200,URJ202 |
1 | ||
| 88717-6B130 |
GRJ200,UZJ200..5FC |
1 | ||
| Common parts | ||||
| 88718-1E050 | ||||
| 88718-2D150 | ||||
| 88718-6A810 | ||||
| 88718-6A820 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-C0053 | ||||
| 90105-C0211 | ||||
| 90178-C0048 | ||||
| 91553-80612 | ||||
| 91553-80622 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

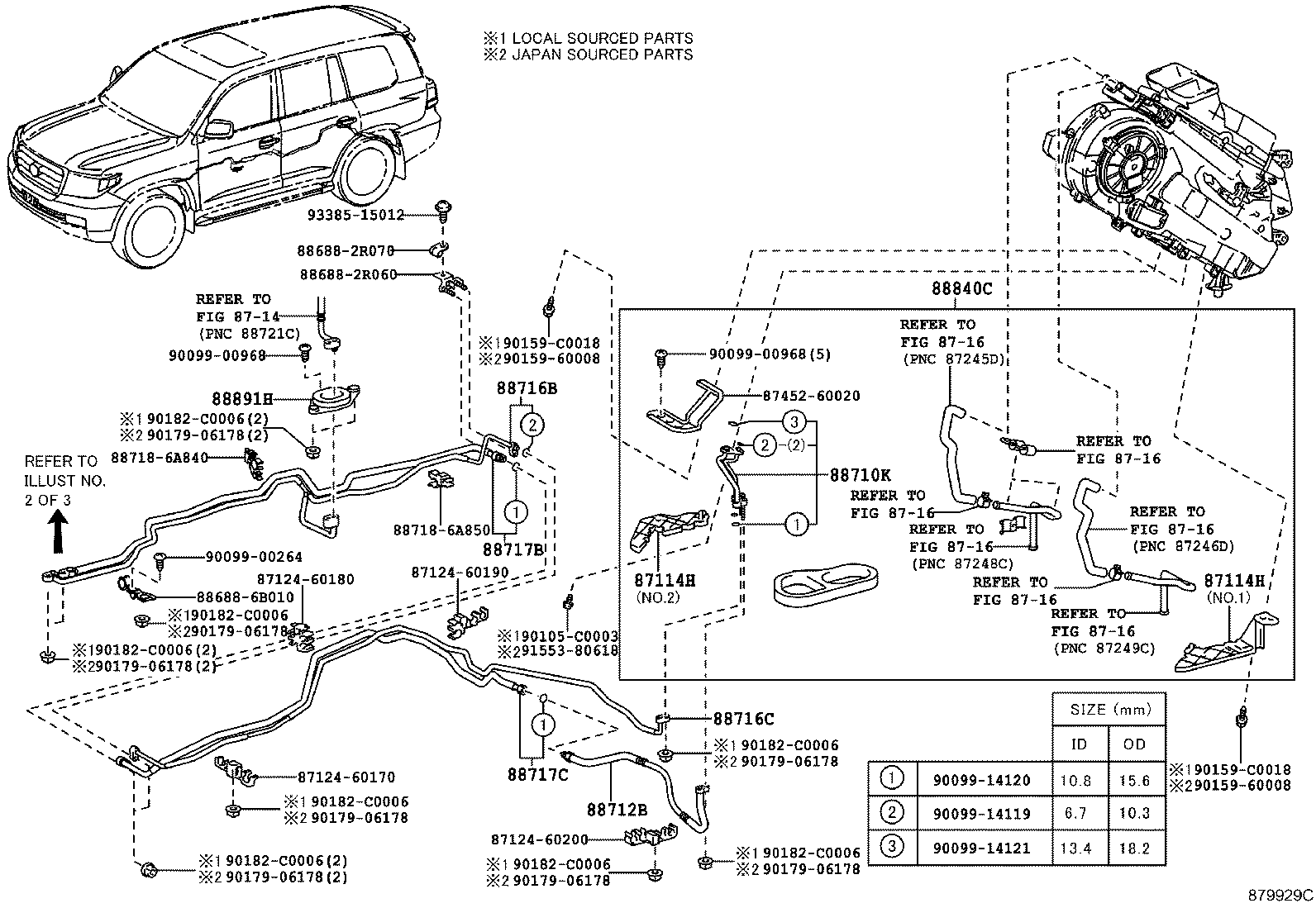

ILLUST NO. 3 OF 3(0712- )
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87114H - COVER, HEATER | ||||
| 87114-60040 |
GRJ200..5F NO.2 |
1 | ||
| 87114-60040 |
GRJ200,UZJ200..5FC NO.2 |
1 | ||
| 87114-60030 |
GRJ200,URJ202 NO.1 |
1 | ||
| 87114-60030 |
GRJ200,UZJ200..5FC NO.1 |
1 | ||
| 87114-60030 |
GRJ200..5F NO.1 |
1 | ||
| 87114-60040 |
GRJ200,URJ202 NO.2 |
1 | ||
| 87114H - COVER, HEATER | ||||
| 87114-60040 |
GRJ200..5F NO.2 |
1 | ||
| 87114-60040 |
GRJ200,UZJ200..5FC NO.2 |
1 | ||
| 87114-60030 |
GRJ200,URJ202 NO.1 |
1 | ||
| 87114-60030 |
GRJ200,UZJ200..5FC NO.1 |
1 | ||
| 87114-60030 |
GRJ200..5F NO.1 |
1 | ||
| 87114-60040 |
GRJ200,URJ202 NO.2 |
1 | ||
| 88710K - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.3 | ||||
| 88710-6B670 |
GRJ200,URJ202 |
1 | ||
| 88710-6B670 |
GRJ200..5F |
1 | ||
| 88710-6B670 |
GRJ200,UZJ200..5FC |
1 | ||
| 88712B - HOSE, COOLER REFRIGERANT SUCTION | ||||
| 88712-6A440 |
GRJ200,URJ202 |
1 | ||
| 88712-6A440 |
GRJ200,UZJ200..5FC |
1 | ||
| 88712-6A440 |
GRJ200..5F |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-6C220 |
GRJ200..5F |
1 | ||
| 88716-6C220 |
GRJ200,UZJ200..5FC |
1 | ||
| 88716-6C220 |
GRJ200,URJ202 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-6C230 |
GRJ200,UZJ200..5FC |
1 | ||
| 88716-6C230 |
GRJ200,URJ202 |
1 | ||
| 88716-6C230 |
GRJ200..5F |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-6B100 |
GRJ200..5F |
1 | ||
| 88717-6B100 |
GRJ200,URJ202 |
1 | ||
| 88717-6B100 |
GRJ200,UZJ200..5FC |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-6B110 |
GRJ200..5F |
1 | ||
| 88717-6B110 |
GRJ200,URJ202 |
1 | ||
| 88717-6B110 |
GRJ200,UZJ200..5FC |
1 | ||
| 88840C - ACCESSORY ASSY, AIR CONDITIONER, NO.1 | ||||
| 88840-60140 |
GRJ200,UZJ200..5FC |
1 | ||
| 88840-0G020 |
GRJ200,URJ202 |
1 | ||
| 88840-60140 |
GRJ200..5F |
1 | ||
| 88891H - COVER, COOLER, NO.1 | ||||
| 88891-60110 |
GRJ200,URJ202 |
1 | ||
| 88891-60110 |
GRJ200,UZJ200..5FC |
1 | ||
| 88891-60110 |
GRJ200..5F |
1 | ||
| Common parts | ||||
| 87124-60170 | ||||
| 87124-60180 | ||||
| 87124-60190 | ||||
| 87124-60200 | ||||
| 87452-60020 | ||||
| 88688-2R060 | ||||
| 88688-2R070 | ||||
| 88688-6B010 | ||||
| 88718-6A840 | ||||
| 88718-6A850 | ||||
| 90099-00264 | ||||
| 90099-00968 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-C0003 | ||||
| 90159-60008 | ||||
| 90159-C0018 | ||||
| 90179-06178 | ||||
| 90182-C0006 | ||||
| 91553-80618 | ||||
| 93385-15012 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8716 | ||||

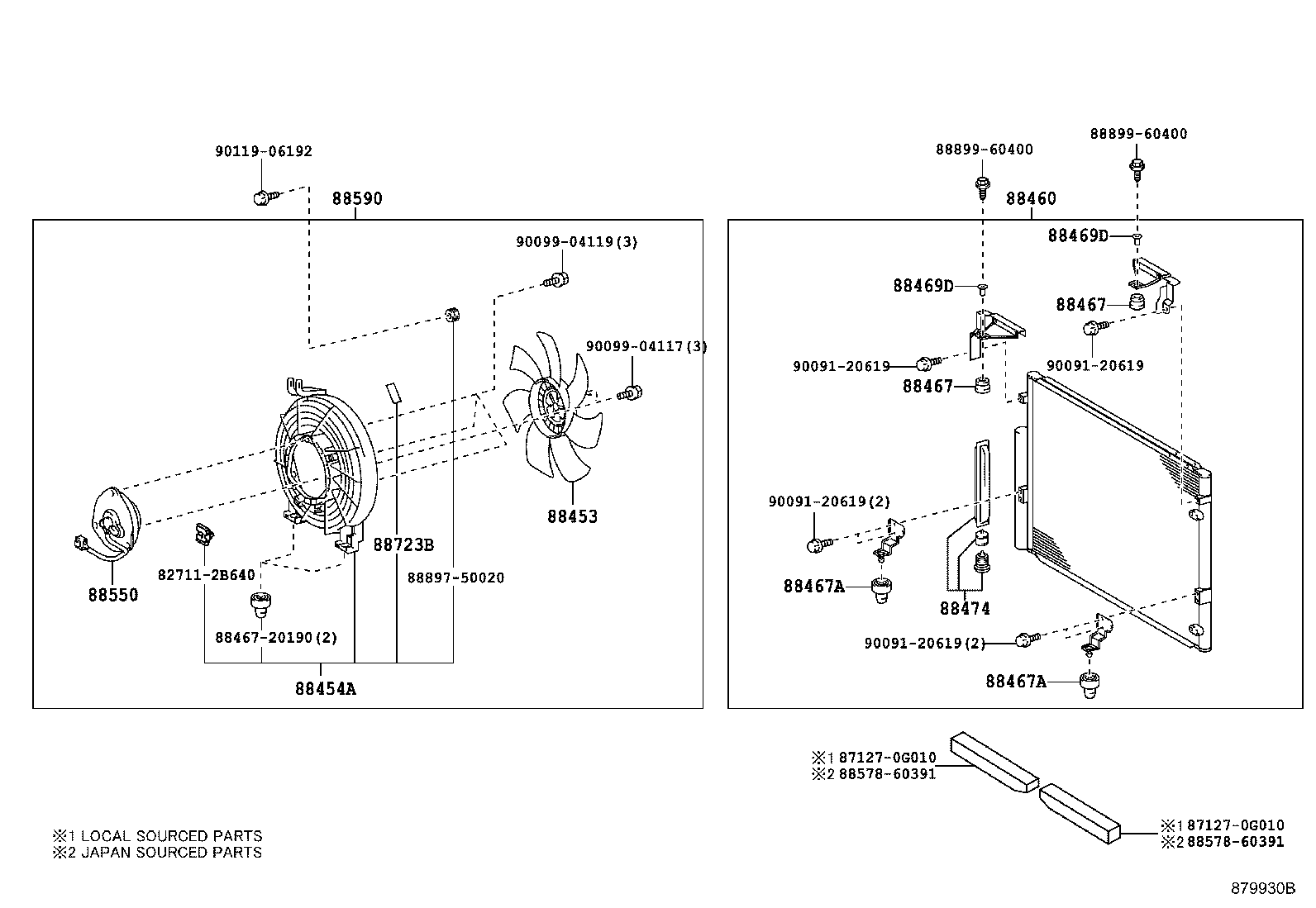

ILLUST NO. 1 OF 3(0712- )
CONDENSER & FUN SHROUD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-60020 |
GRJ200,URJ202 |
1 | ||
| 88453-60020 |
GRJ200,UZJ200..5FC |
1 | ||
| 88453-60020 |
GRJ200..5F |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-60050 |
GRJ200..5F |
1 | ||
| 88454-0G020 |
GRJ200,URJ202 |
1 | ||
| 88454-60050 |
GRJ200,UZJ200..5FC |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-60400 |
GRJ200,UZJ200..5FC |
1 | ||
| 88460-0G050 |
GRJ200,URJ202 |
1 | ||
| 88460-60400 |
GRJ200..5F |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
GRJ200,URJ202 |
2 | ||
| 88467-12180 |
GRJ200..5F |
2 | ||
| 88467-12180 |
GRJ200,UZJ200..5FC |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
GRJ200,URJ202 |
2 | ||
| 88467-12180 |
GRJ200..5F |
2 | ||
| 88467-12180 |
GRJ200,UZJ200..5FC |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-60010 |
GRJ200,UZJ200..5FC |
2 | ||
| 88467-60010 |
GRJ200..5F |
2 | ||
| 88467-60010 |
GRJ200,URJ202 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-60010 |
GRJ200,UZJ200..5FC |
2 | ||
| 88467-60010 |
GRJ200..5F |
2 | ||
| 88467-60010 |
GRJ200,URJ202 |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
GRJ200,URJ202 |
2 | ||
| 88469-52010 |
GRJ200,UZJ200..5FC |
2 | ||
| 88469-52010 |
GRJ200..5F |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
GRJ200,URJ202 |
2 | ||
| 88469-52010 |
GRJ200,UZJ200..5FC |
2 | ||
| 88469-52010 |
GRJ200..5F |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
GRJ200,URJ202 |
1 | ||
| 88474-12030 |
GRJ200,UZJ200..5FC |
1 | ||
| 88474-12030 |
GRJ200..5F |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-60110 |
GRJ200..5F |
1 | ||
| 88550-60110 |
GRJ200,UZJ200..5FC |
1 | ||
| 88550-0G010 |
GRJ200,URJ202 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-60080 |
GRJ200,UZJ200..5FC |
1 | ||
| 88590-60080 |
GRJ200..5F |
1 | ||
| 88590-0G030 |
GRJ200,URJ202 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 16793-28020 |
GRJ200..5F |
1 | ||
| 16793-28020 |
GRJ200,UZJ200..5FC |
1 | ||
| 88596-0G010 |
GRJ200,URJ202 |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 87127-0G010 | ||||
| 88467-20190 | ||||
| 88578-60391 | ||||
| 88897-50020 | ||||
| 88899-60400 | ||||
| 90091-20619 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90119-06192 | ||||

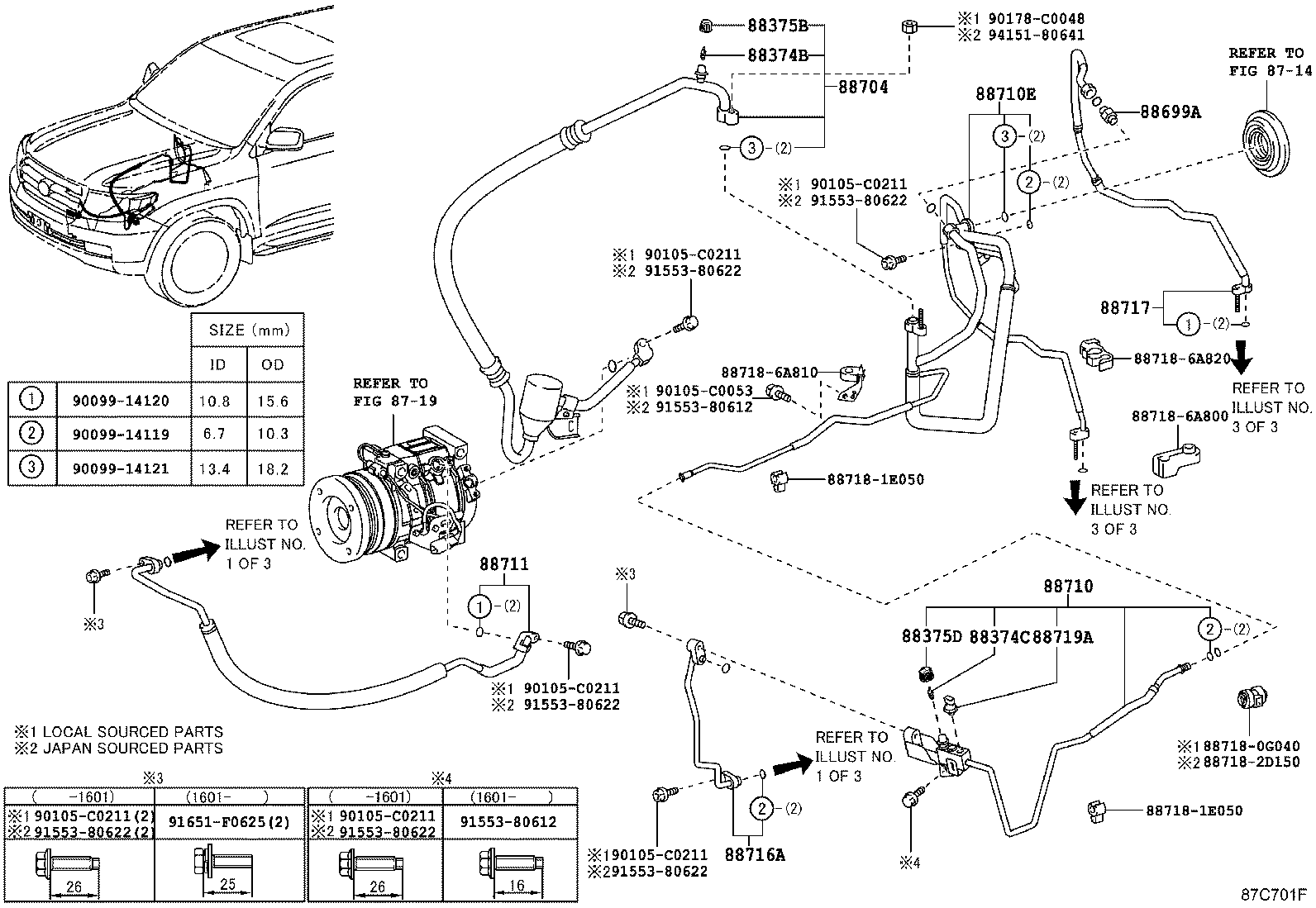

ILLUST NO. 2 OF 3(1202- )GRJ200
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
GRJ200,URJ202 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
GRJ200,UZJ200..5FC |
1 | ||
| 88374-30010 |
GRJ200,URJ202 |
1 | ||
| 88374-30010 |
GRJ200..5F |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
GRJ200,URJ202 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
GRJ200..5F |
1 | ||
| 88375-30280 |
GRJ200,URJ202 |
1 | ||
| 88375-30280 |
GRJ200,UZJ200..5FC |
1 | ||
| 88699A - VALVE, AIR | ||||
| 88699-60010 |
GRJ200,UZJ200..5FC |
1 | ||
| 88699-60010 |
GRJ200,URJ202 |
1 | ||
| 88699-60010 |
GRJ200..5F |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-60420 |
GRJ200..5F |
1 | ||
| 88704-0G040 |
GRJ200 |
1 | ||
| 88704-60420 |
GRJ200..5FC |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-6B580 |
GRJ200,UZJ200..5FC |
1 | ||
| 88710-0G170 |
GRJ200,URJ202 |
1 | ||
| 88710-6B580 |
GRJ200..5F |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-6B690 |
GRJ200..5F |
1 | ||
| 88710-6B690 |
GRJ200,UZJ200..5FC |
1 | ||
| 88710-60C00 |
GRJ200,UZJ200 |
1 | ||
| 88710-60C00 |
GRJ200,URJ202 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0G010 |
GRJ200 |
1 | ||
| 88711-60790 |
GRJ200..5FC |
1 | ||
| 88711-60790 |
GRJ200..5F |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6C200 |
GRJ200..5F |
1 | ||
| 88716-0G050 |
GRJ200,URJ202 |
1 | ||
| 88716-6C200 |
GRJ200,UZJ200..5FC |
1 | ||
| 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88717-6B130 |
GRJ200..5F |
1 | ||
| 88717-6B130 |
GRJ200,URJ202 |
1 | ||
| 88717-6B130 |
GRJ200,UZJ200..5FC |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
GRJ200,URJ202 |
1 | ||
| Common parts | ||||
| 88718-0G040 | ||||
| 88718-1E050 | ||||
| 88718-2D150 | ||||
| 88718-6A800 | ||||
| 88718-6A810 | ||||
| 88718-6A820 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-C0053 | ||||
| 90105-C0211 | ||||
| 90178-C0048 | ||||
| 91553-80612 | ||||
| 91553-80622 | ||||
| 91651-F0625 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
