GRJ200L-GNANKC (2007)
Toyota Land Cruiser(China)

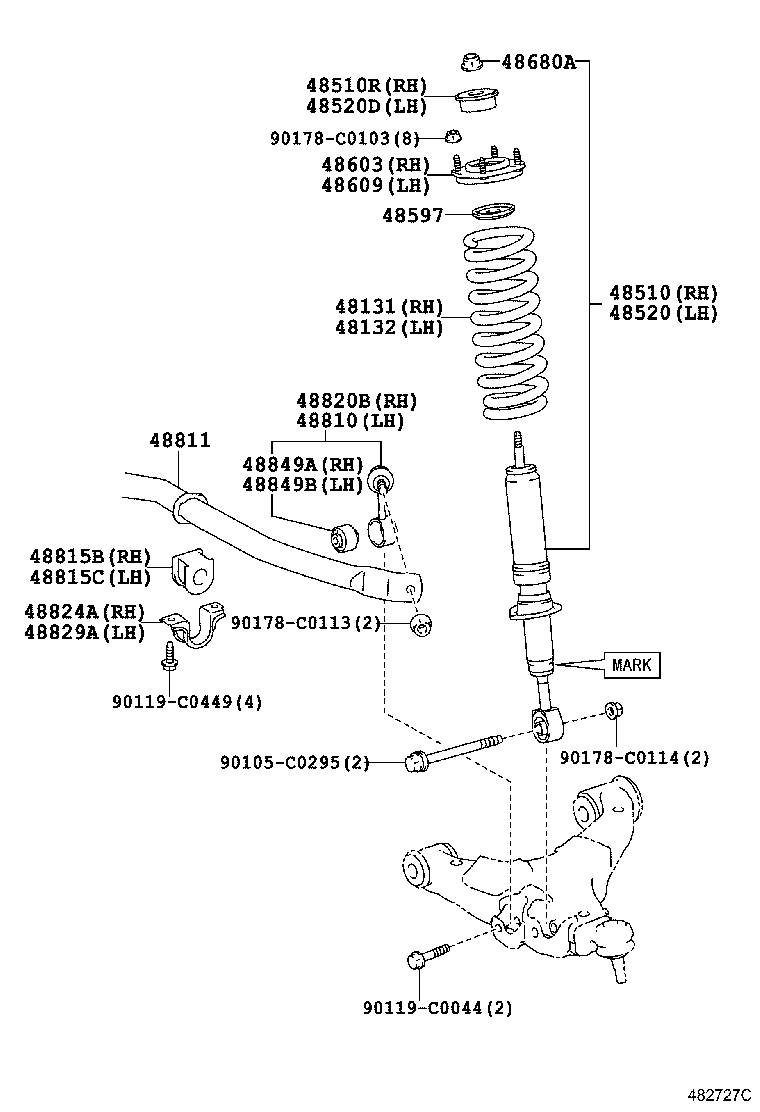

ILLUST NO. 1 OF 2(0712- )VX,VXR ; (1202- )GX
KDSS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-60C90 |
GRJ200 VX(SPECIAL) PACKAGE |
1 | ||
| 48131-60D00 |
GRJ200..5FC |
1 | ||
| 48131-60D00 |
GRJ200..5F |
1 | ||
| 48131-60C81 |
GRJ200 VX PACKAGE |
1 | ||
| 48131-60C90 |
GRJ200 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-60D00 |
GRJ200..5F |
1 | ||
| 48131-60C50 |
GRJ200 VX PACKAGE |
1 | ||
| 48131-60D00 |
GRJ200..5FC |
1 | ||
| 48131-60C90 |
GRJ200 VX(SPECIAL) PACKAGE |
1 | ||
| 48131-60C90 |
GRJ200 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-69405 |
UZJ200..VX;GRJ200..5FC MARK 48510-60180 |
1 | ||
| 48510-69405 |
GRJ200,URJ202 MARK 48510-60180 |
1 | ||
| 48510-69405 |
GRJ200..5F MARK 48510-60180 |
1 | ||
| 48510R - CUSHION, FRONT SHOCK ABSORBER, NO.1 RH | ||||
| 90948-01096 |
GRJ200..5F |
1 | ||
| 90948-01096 |
GRJ200,URJ202 |
1 | ||
| 90948-01096 |
GRJ200,UZJ200..5FC |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-69405 |
UZJ200..VX;GRJ200..5FC MARK 48510-60180 |
1 | ||
| 48510-69405 |
GRJ200,URJ202 MARK 48510-60180 |
1 | ||
| 48510-69405 |
GRJ200..5F MARK 48510-60180 |
1 | ||
| 48520D - CUSHION, FRONT SHOCK ABSORBER, NO.1 LH | ||||
| 90948-01096 |
GRJ200,URJ202 |
1 | ||
| 90948-01096 |
GRJ200..5F |
1 | ||
| 90948-01096 |
GRJ200,UZJ200..5FC |
1 | ||
| 48597 - RETAINER, SHOCK ABSORBER CUSHION | ||||
| 48597-60120 |
GRJ200,UZJ200..5FC |
2 | ||
| 48597-60120 |
GRJ200,URJ202 |
2 | ||
| 48597-60120 |
GRJ200..5F |
2 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-60070 |
GRJ200,URJ202 |
1 | ||
| 48609-60070 |
GRJ200,UZJ200..5FC |
1 | ||
| 48609-60070 |
GRJ200..5F |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-60070 |
GRJ200..5F |
1 | ||
| 48609-60070 |
GRJ200,UZJ200..5FC |
1 | ||
| 48609-60070 |
GRJ200,URJ202 |
1 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94188-01401 |
GRJ200..5F |
2 | ||
| 94188-01401 |
GRJ200,URJ202 |
2 | ||
| 94188-01401 |
GRJ200,UZJ200..5FC |
2 | ||
| 90177-C0023 |
GRJ200,URJ202 |
2 | ||
| Common parts | ||||
| 90105-C0295 | ||||
| 90178-C0103 | ||||
| 90178-C0114 | ||||

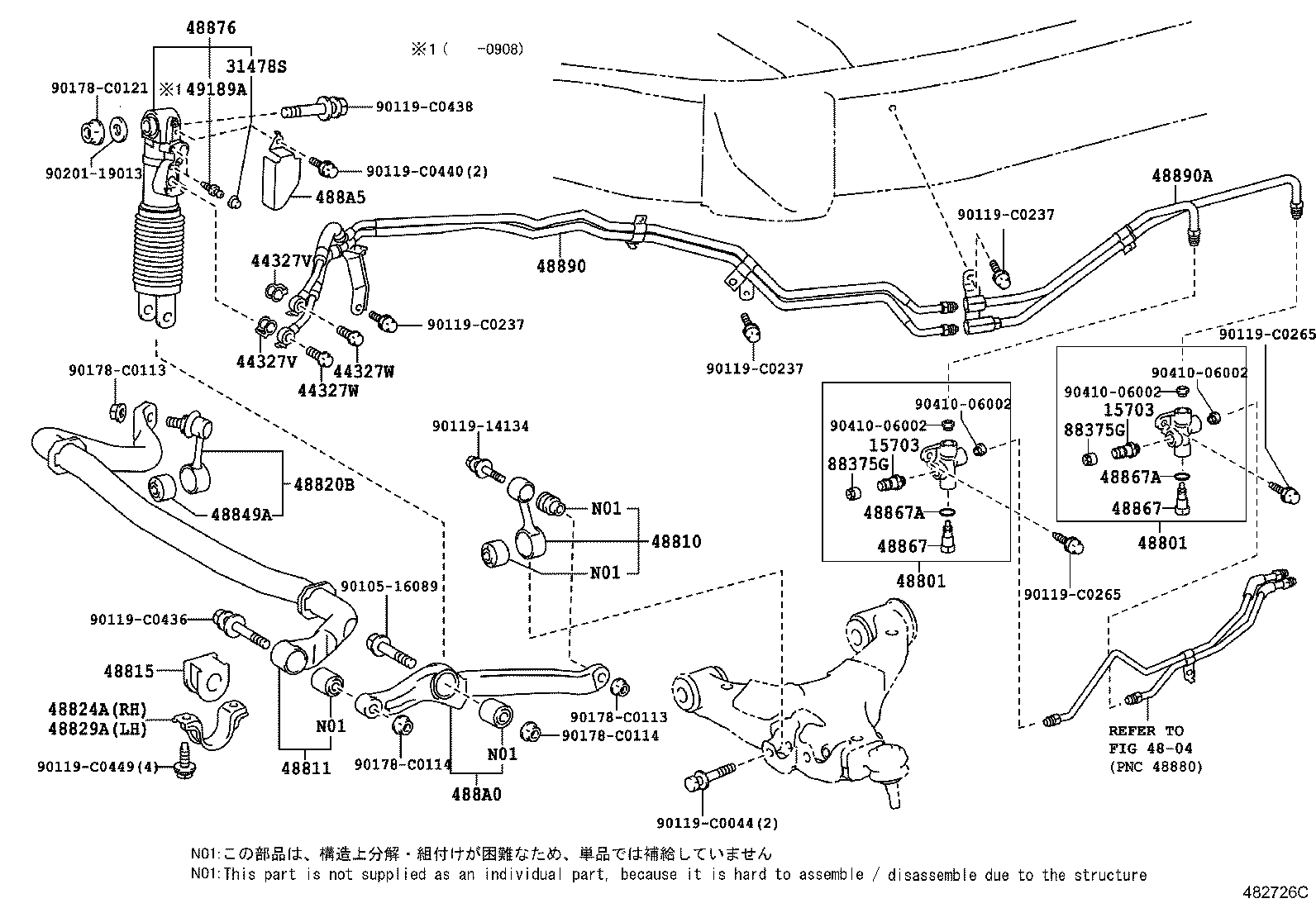

ILLUST NO. 2 OF 2(0712- )VX,VXR ; (1202- )GX
KDSS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15703 - VALVE SUB-ASSY, OIL NOZZLE | ||||
| 15703-60010 |
1GRFE..GRJ200 VX PACKAGE |
2 | ||
| 15703 - VALVE SUB-ASSY, OIL NOZZLE | ||||
| 15703-60010 |
1GRFE..GRJ200 VX PACKAGE |
2 | ||
| 31478S - CAP, BLEEDER PLUG(FOR FRONT SUSPENSION CONTROL) | ||||
| 31478-60020 |
GRJ200 VX PACKAGE |
2 | ||
| 44327V - GASKET, PRESSURE PORT(FOR FRONT STABILIZER CONTROL TUBE | ||||
| 90430-16016 |
GRJ200 VX PACKAGE |
2 | ||
| 44327-30030 |
GRJ200 VX PACKAGE |
2 | ||
| 44327V - GASKET, PRESSURE PORT(FOR FRONT STABILIZER CONTROL TUBE | ||||
| 90430-16016 |
GRJ200 VX PACKAGE |
2 | ||
| 44327-30030 |
GRJ200 VX PACKAGE |
2 | ||
| 44327W - BOLT, UNION(FOR FRONT STABILIZER CONTOROL TUBE) | ||||
| 96341-41603 |
GRJ200 VX PACKAGE |
2 | ||
| 44327W - BOLT, UNION(FOR FRONT STABILIZER CONTOROL TUBE) | ||||
| 96341-41603 |
GRJ200 VX PACKAGE |
2 | ||
| 48801 - ADAPTER SUB-ASSY, STABILIZER CONTROL | ||||
| 48001-60020 |
GRJ200 VX PACKAGE |
2 | ||
| 48801 - ADAPTER SUB-ASSY, STABILIZER CONTROL | ||||
| 48001-60020 |
GRJ200 VX PACKAGE |
2 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-60051 |
GRJ200,UZJ200..GX |
1 | ||
| 48810-60050 |
GRJ200..5F |
1 | ||
| 48810-60050 |
GRJ200,UZJ200..5FC..GX |
1 | ||
| 48810-60051 |
GRJ200 |
1 | ||
| 48810-60060 |
GRJ200 VX PACKAGE |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-60290 |
GRJ200,UZJ200..5FC..GX |
1 | ||
| 48804-60120 |
GRJ200 VX PACKAGE |
1 | ||
| 48811-60290 |
GRJ200 |
1 | ||
| 48811-60290 |
GRJ200..5F |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-60260 |
GRJ200 VX PACKAGE |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-60071 |
GRJ200,UZJ200..GX |
1 | ||
| 48820-60070 |
GRJ200,UZJ200..5FC..GX |
1 | ||
| 48820-60081 |
GRJ200 VX PACKAGE |
1 | ||
| 48820-60070 |
GRJ200..5F |
1 | ||
| 48820-60071 |
GRJ200 |
1 | ||
| 48820-60082 |
GRJ200 VX PACKAGE |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-60170 |
GRJ200,UZJ200..5FC..GX |
1 | ||
| 48824-60170 |
GRJ200..5F |
1 | ||
| 48824-60180 |
GRJ200 VX PACKAGE |
1 | ||
| 48824-60170 |
GRJ200 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-60170 |
GRJ200,UZJ200..5FC..GX |
1 | ||
| 48824-60170 |
GRJ200..5F |
1 | ||
| 48824-60180 |
GRJ200 VX PACKAGE |
1 | ||
| 48824-60170 |
GRJ200 |
1 | ||
| 48849A - BUSH, FRONT STABILIZER LINK, RH | ||||
| 48849-60110 |
GRJ200 |
1 | ||
| 48849-60110 |
GRJ200..5F |
1 | ||
| 48849-60110 |
GRJ200,UZJ200..5FC..GX |
1 | ||
| 48849-60120 |
GRJ200 VX PACKAGE |
1 | ||
| 48867 - VALVE, STABILIZER CONTROL ADAPTER SHUTTER | ||||
| 48867-60010 |
GRJ200 VX PACKAGE |
2 | ||
| 48867 - VALVE, STABILIZER CONTROL ADAPTER SHUTTER | ||||
| 48867-60010 |
GRJ200 VX PACKAGE |
2 | ||
| 48867A - RING, O(FOR STABILIZER CONTROK ADAPTER SHUTTER VALVE) | ||||
| 96711-19007 |
GRJ200 VX PACKAGE |
2 | ||
| 48867A - RING, O(FOR STABILIZER CONTROK ADAPTER SHUTTER VALVE) | ||||
| 96711-19007 |
GRJ200 VX PACKAGE |
2 | ||
| 48876 - CYLINDER, FRONT STABILIZER CONTROL | ||||
| 48876-60020 |
GRJ200 VX PACKAGE |
1 | ||
| 48876-60021 |
GRJ200 VX PACKAGE |
1 | ||
| 48890 - TUBE ASSY, FRONT STABILIZER CONTROL, NO.1 | ||||
| 48890-60022 |
GRJ200 VX PACKAGE |
1 | ||
| 48890A - TUBE ASSY, FRONT STABILIZER CONTROL, NO.2 | ||||
| 48890-60030 |
GRJ200 VX PACKAGE |
1 | ||
| 488A0 - ARM ASSY, STABILIZER CONTROL, FRONT | ||||
| 488A0-60010 |
GRJ200 VX PACKAGE |
1 | ||
| 488A5 - PROTECTOR, STABILIZER CONTROL TUBE | ||||
| 488A5-60010 |
GRJ200 VX PACKAGE |
1 | ||
| 88375G - CAP, SERVICE VALVE | ||||
| 88375-60010 |
GRJ200 VX PACKAGE |
2 | ||
| 88375G - CAP, SERVICE VALVE | ||||
| 88375-60010 |
GRJ200 VX PACKAGE |
2 | ||
| Common parts | ||||
| 90105-16089 | ||||
| 90119-14134 | ||||
| 90119-C0044 | ||||
| 90119-C0237 | ||||
| 90119-C0265 | ||||
| 90119-C0436 | ||||
| 90119-C0438 | ||||
| 90119-C0440 | ||||
| 90119-C0449 | ||||
| 90178-C0113 | ||||
| 90178-C0114 | ||||
| 90178-C0121 | ||||
| 90201-19013 | ||||
| 90410-06002 | ||||
| Linked diagrams | ||||
| 4804 | ||||

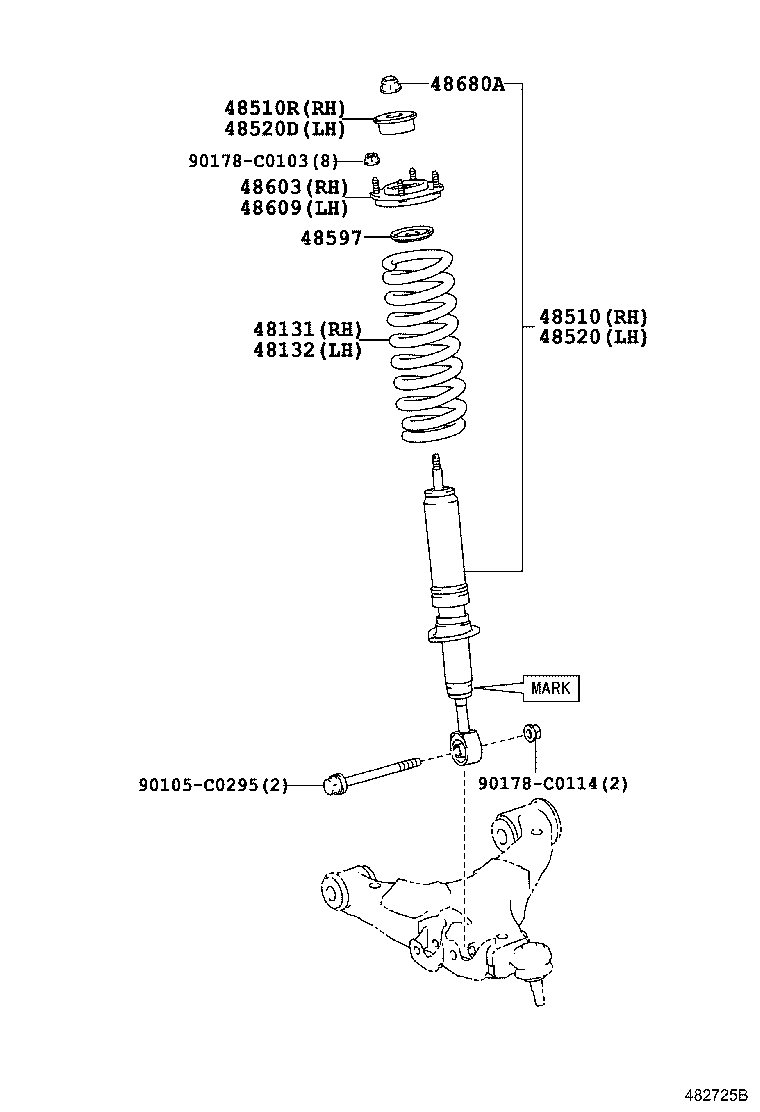

(0712- )GX,GXR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-60C90 |
GRJ200 VX(SPECIAL) PACKAGE |
1 | ||
| 48131-60D00 |
GRJ200..5FC |
1 | ||
| 48131-60D00 |
GRJ200..5F |
1 | ||
| 48131-60C81 |
GRJ200 VX PACKAGE |
1 | ||
| 48131-60C90 |
GRJ200 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-60D00 |
GRJ200..5F |
1 | ||
| 48131-60C50 |
GRJ200 VX PACKAGE |
1 | ||
| 48131-60D00 |
GRJ200..5FC |
1 | ||
| 48131-60C90 |
GRJ200 VX(SPECIAL) PACKAGE |
1 | ||
| 48131-60C90 |
GRJ200 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-69405 |
UZJ200..VX;GRJ200..5FC MARK 48510-60180 |
1 | ||
| 48510-69405 |
GRJ200,URJ202 MARK 48510-60180 |
1 | ||
| 48510-69405 |
GRJ200..5F MARK 48510-60180 |
1 | ||
| 48510R - CUSHION, FRONT SHOCK ABSORBER, NO.1 RH | ||||
| 90948-01096 |
GRJ200..5F |
1 | ||
| 90948-01096 |
GRJ200,URJ202 |
1 | ||
| 90948-01096 |
GRJ200,UZJ200..5FC |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-69405 |
UZJ200..VX;GRJ200..5FC MARK 48510-60180 |
1 | ||
| 48510-69405 |
GRJ200,URJ202 MARK 48510-60180 |
1 | ||
| 48510-69405 |
GRJ200..5F MARK 48510-60180 |
1 | ||
| 48520D - CUSHION, FRONT SHOCK ABSORBER, NO.1 LH | ||||
| 90948-01096 |
GRJ200,URJ202 |
1 | ||
| 90948-01096 |
GRJ200..5F |
1 | ||
| 90948-01096 |
GRJ200,UZJ200..5FC |
1 | ||
| 48597 - RETAINER, SHOCK ABSORBER CUSHION | ||||
| 48597-60120 |
GRJ200,UZJ200..5FC |
2 | ||
| 48597-60120 |
GRJ200,URJ202 |
2 | ||
| 48597-60120 |
GRJ200..5F |
2 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-60070 |
GRJ200,URJ202 |
1 | ||
| 48609-60070 |
GRJ200,UZJ200..5FC |
1 | ||
| 48609-60070 |
GRJ200..5F |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-60070 |
GRJ200..5F |
1 | ||
| 48609-60070 |
GRJ200,UZJ200..5FC |
1 | ||
| 48609-60070 |
GRJ200,URJ202 |
1 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94188-01401 |
GRJ200..5F |
2 | ||
| 94188-01401 |
GRJ200,URJ202 |
2 | ||
| 94188-01401 |
GRJ200,UZJ200..5FC |
2 | ||
| 90177-C0023 |
GRJ200,URJ202 |
2 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-60051 |
GRJ200,UZJ200..GX |
1 | ||
| 48810-60050 |
GRJ200..5F |
1 | ||
| 48810-60050 |
GRJ200,UZJ200..5FC..GX |
1 | ||
| 48810-60051 |
GRJ200 |
1 | ||
| 48810-60060 |
GRJ200 VX PACKAGE |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-60290 |
GRJ200,UZJ200..5FC..GX |
1 | ||
| 48804-60120 |
GRJ200 VX PACKAGE |
1 | ||
| 48811-60290 |
GRJ200 |
1 | ||
| 48811-60290 |
GRJ200..5F |
1 | ||
| 48815B - BUSH, FRONT STABILIZER LOWER BRACKET, RH | ||||
| 48815-60250 |
GRJ200..5F |
1 | ||
| 48815-60250 |
GRJ200 |
1 | ||
| 48815-60250 |
GRJ200,UZJ200..5FC..GX |
1 | ||
| 48815C - BUSH, FRONT STABILIZER LOWER BRACKET, LH | ||||
| 48815-60250 |
GRJ200,UZJ200..5FC..GX |
1 | ||
| 48815-60250 |
GRJ200..5F |
1 | ||
| 48815-60250 |
GRJ200 |
1 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-60071 |
GRJ200,UZJ200..GX |
1 | ||
| 48820-60070 |
GRJ200,UZJ200..5FC..GX |
1 | ||
| 48820-60081 |
GRJ200 VX PACKAGE |
1 | ||
| 48820-60070 |
GRJ200..5F |
1 | ||
| 48820-60071 |
GRJ200 |
1 | ||
| 48820-60082 |
GRJ200 VX PACKAGE |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-60170 |
GRJ200,UZJ200..5FC..GX |
1 | ||
| 48824-60170 |
GRJ200..5F |
1 | ||
| 48824-60180 |
GRJ200 VX PACKAGE |
1 | ||
| 48824-60170 |
GRJ200 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-60170 |
GRJ200,UZJ200..5FC..GX |
1 | ||
| 48824-60170 |
GRJ200..5F |
1 | ||
| 48824-60180 |
GRJ200 VX PACKAGE |
1 | ||
| 48824-60170 |
GRJ200 |
1 | ||
| 48849A - BUSH, FRONT STABILIZER LINK, RH | ||||
| 48849-60110 |
GRJ200 |
1 | ||
| 48849-60110 |
GRJ200..5F |
1 | ||
| 48849-60110 |
GRJ200,UZJ200..5FC..GX |
1 | ||
| 48849-60120 |
GRJ200 VX PACKAGE |
1 | ||
| 48849B - BUSH, FRONT STABILIZER LINK, LH | ||||
| 48849-60110 |
GRJ200..5F |
1 | ||
| 48849-60110 |
GRJ200,UZJ200..5FC..GX |
1 | ||
| 48849-60110 |
GRJ200 |
1 | ||
| Common parts | ||||
| 90105-C0295 | ||||
| 90119-C0044 | ||||
| 90119-C0449 | ||||
| 90178-C0103 | ||||
| 90178-C0113 | ||||
| 90178-C0114 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
